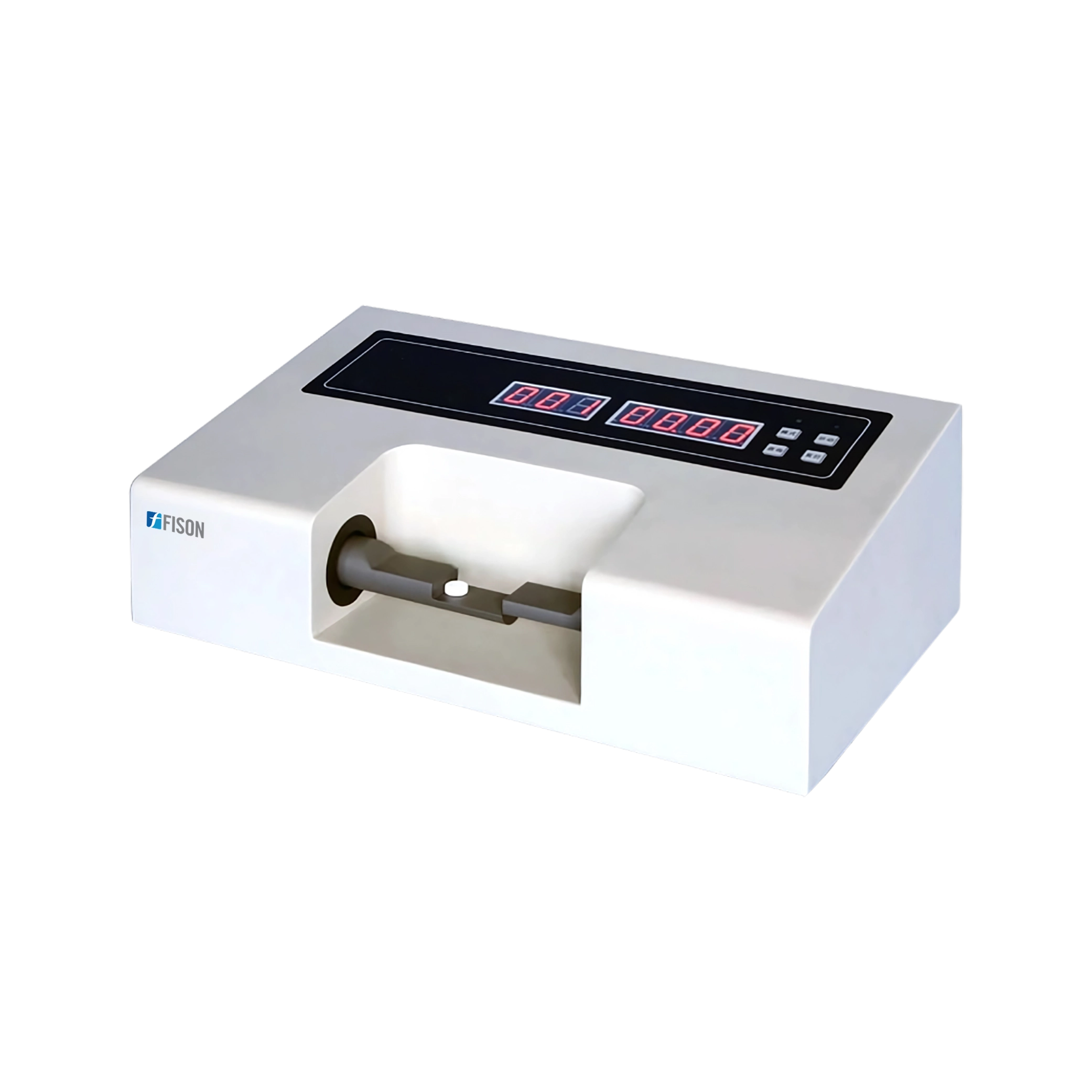

Tablet Hardness Tester FM-THT-A101

Tablet Hardness Tester FM-THT-A101

Tablet Hardness Tester FM-THT-A101 tests the hardness of 3 to 40 mm dimeter tablets with the hardness checking range of 2 to 199.9 N. The unit has high accuracy press sensor and equipped with LED screen to display test data and other parameters. The tablet is loaded and pressed artificially for the testing, test can be reset and cycled. It also features auto-test, auto-diagnose and auto-alarm system. The unit detect and print hardness of each tablet, maximum value, minimal value, average value and the total number of tablets.

Specifications

Hardness range 2 to 199.9 N
Hardness accuracy ± 1.5 %
Probe procession range 3 to 40 mm
Max number in each group 100 pc
Test period 20 sec / pc
Safe testing force 0.2 to 50 kg
In-built printer Yes
Power 60 W
Voltage AC 220 V, 50 Hz or AC 110 V, 60 Hz
Dimension (W × D × H) 500 x 300 x 160 mm
Packaging dimension (W × D × H) 600 x 400 x 250 mm
Net weight 12 kg
Gross weight 15 kg

Features

  • The tablet is loaded artificially and pressed automatically
  • It has high accuracy press sensor
  • LED screen to display hardness value and other parameters
  • Maximum number in each group is 100 pieces
  • Tests tablet hardness continuously
  • The parameters can be preset at any time
  • Test data is displayed and locked automatically, test can be reset and re-cycled
  • Automation: auto-test, auto-diagnose and auto-alarm
  • Time of testing will be saved by directly measuring the diameter
  • It can detect and print such data as: hardness of each tablet, maximum and minimal value, average value and the total number of tablets

Applications

  • Used for detecting breaking hardness of tablet in the pharmaceutical, food, detergent, dairy, animal feed, pesticides and any other industries which requires compressed tablet.
