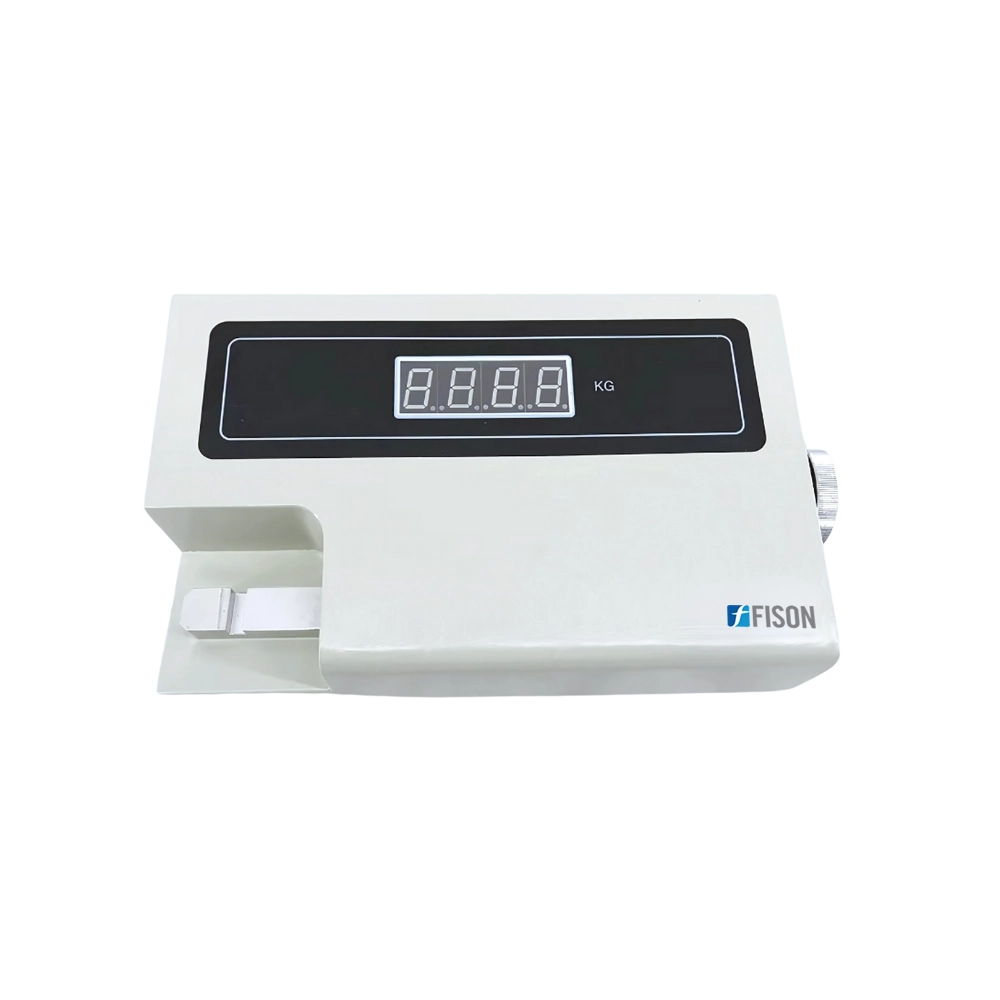

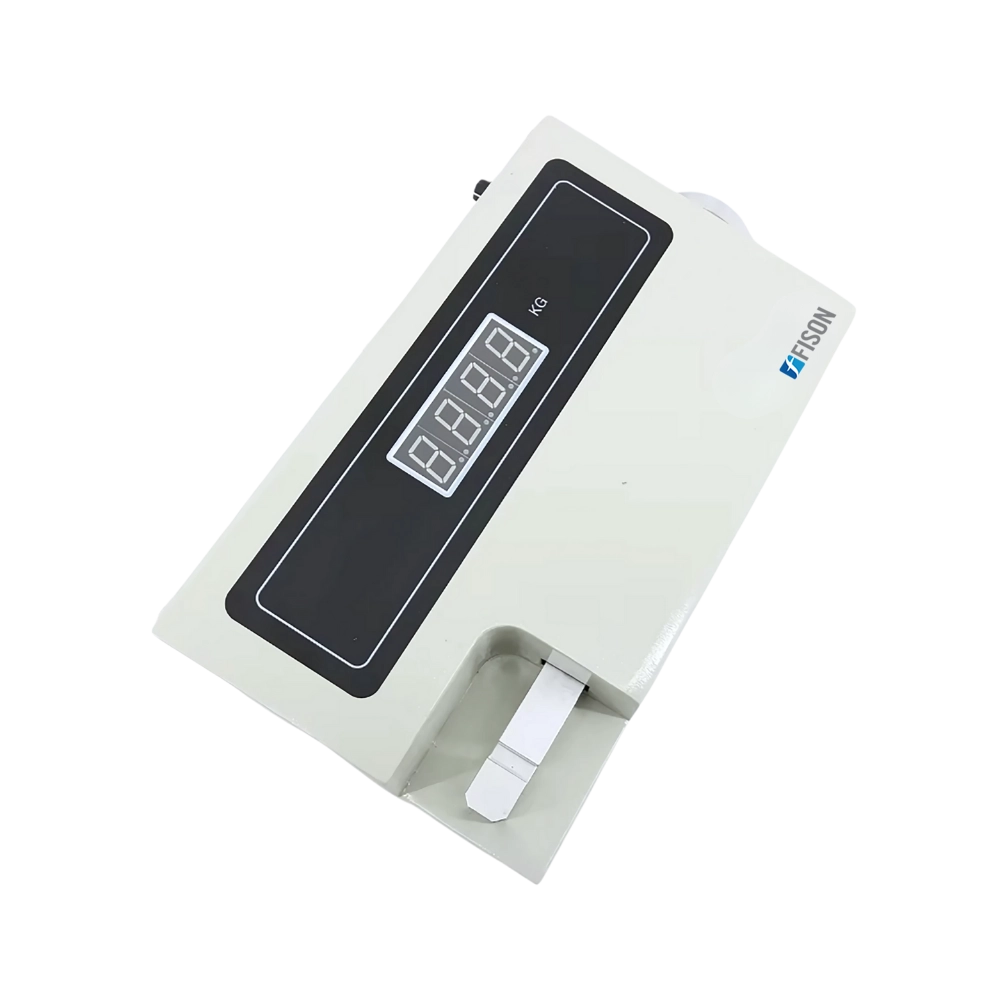

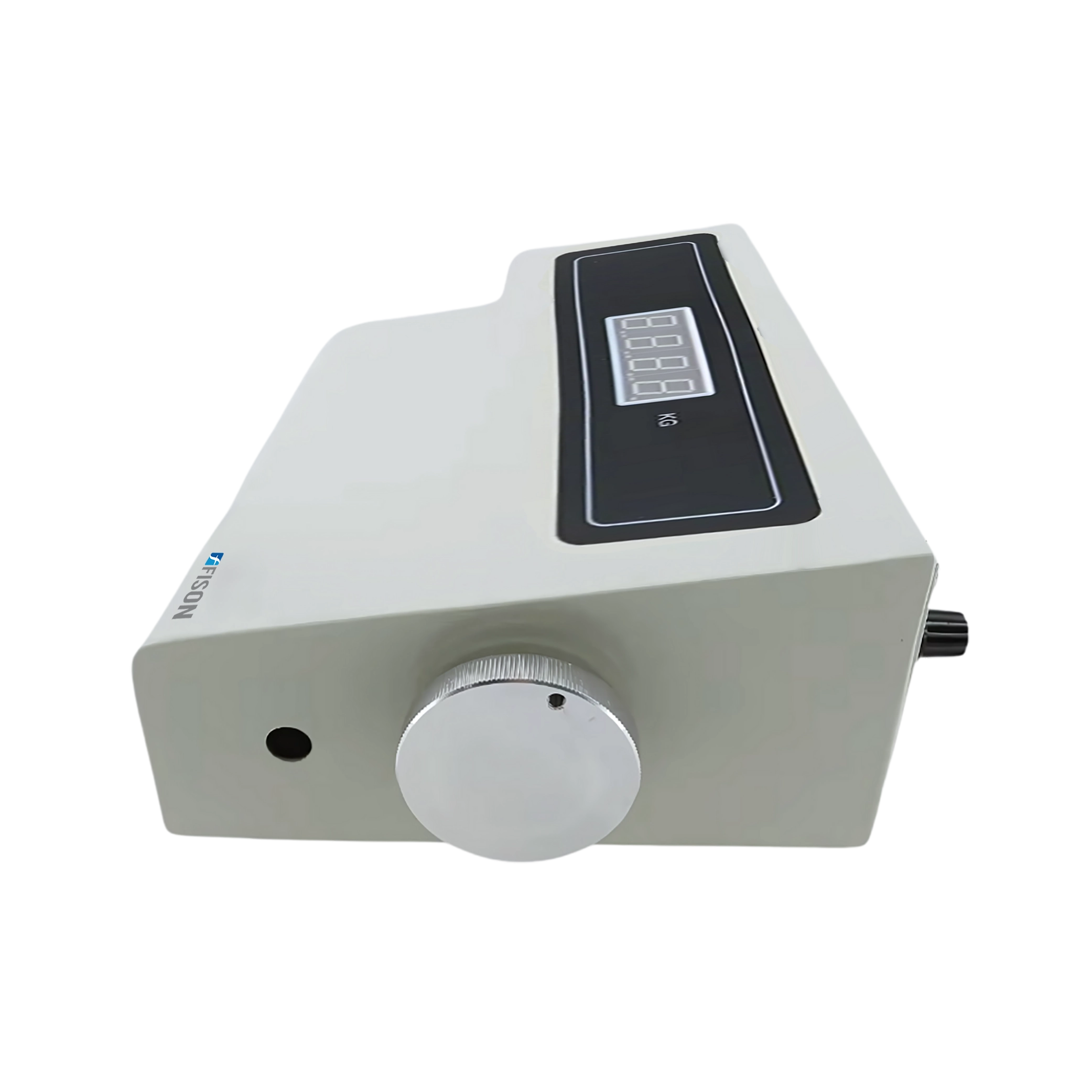

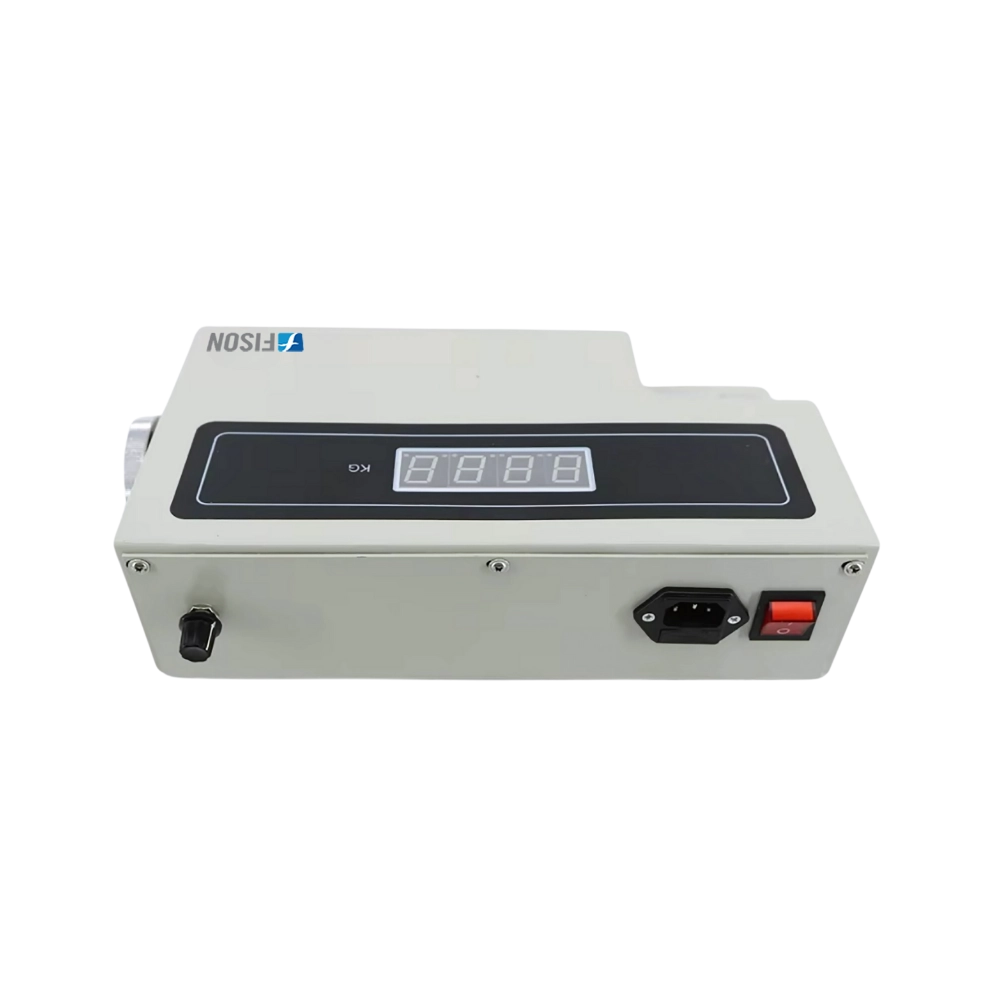

Tablet Hardness Tester FM-THT-A100
Tablet Hardness Tester FM-THT-A100 tests the hardness of ≤ 20 mm dimeter tablets with the hardness checking range of 2 to 199.9 N. The unit has high accuracy press sensor and equipped with LED screen to display test data and other parameters. The tablet is loaded and pressed artificially for the testing, test can be reset and cycled. It also features auto-test, auto-diagnose and auto-alarm system.
Specifications
| Hardness range | 2 to 199.9 N |
| Hardness accuracy | ± 1.5 % |
| Probe procession range | ≤ 20 mm |
| Max number in each group | - |
| Test period | 20 sec / pc |
| Safe testing force | 0.2 to 20 kg |
| In-built printer | No |
| Power | 60 W |
| Voltage | AC 220 V, 50 Hz or AC 110 V, 60 Hz |
| Dimension (W × D × H) | 400 x 240 x 160 mm |
| Packaging dimension (W × D × H) | 440 x 280 x 200 mm |
| Net weight | 8 kg |
| Gross weight | 11 kg |
Features
- The tablet is loaded and pressed artificially
- It has high accuracy press sensor
- LED screen to display hardness value and other parameters
- Tests tablet hardness continuously
- Test data is displayed and locked automatically, test can be reset and re-cycled
- Automation: auto-test, auto-diagnose and auto-alarm
Applications
- Used for detecting breaking hardness of tablet in the pharmaceutical, food, detergent, dairy, animal feed, pesticides and any other industries which requires compressed tablet.
