- ✔ High-temperature precision control
- ✔ Advanced real-time data processing
- ✔ Multi-gas atmosphere compatibility
- ✔ Corrosion-resistant sensor
- ✔ Efficient heat dissipation system
| Temperature Range |
Room temperature to 1200℃ |
| Temperature Resolution |
0.01℃ |
| Temperature Fluctuation |
±0.1℃ |
| Heating Rate |
1to 100℃/min |
| Temperature Control Mode |
Rising temperature, Cooling temperature, Constant temperature |
| Constant Temperature Time |
0 to 300min, adjustable |
| Cooling Time |
15min (1000℃ to 100℃) |
| Weighing Range |
0.01mg to 3g (Can be extended to 30g) |
| DSC Measurement Range |
0 to ±600mW |
| DSC Resolution |
0.001mW |
| Weighing Accuracy |
0.01mg |
| Display |
24-bit color, 7 inches LCD Touch Screen |
| Atmosphere |
Inertia, oxidability, reducibility, static and dynamic |
| Atmosphere Device |
Built-in gas flow meter with two-way gas switching and flow control |
| Software features |
Supports differential, thermogravimetric, and synchronous heat analysis
Includes automatic TG curve recording, data processing, and report printing |
| Data Interface |
USB |
| Power |
AC220V 50Hz |
| Dimension |
550×460×440 mm (L×W×H) |
| Packaging dimension |
700×650×580mm (L×W×H) |
| Net Weight |
26kg |
| Gross Weight |
50kg |

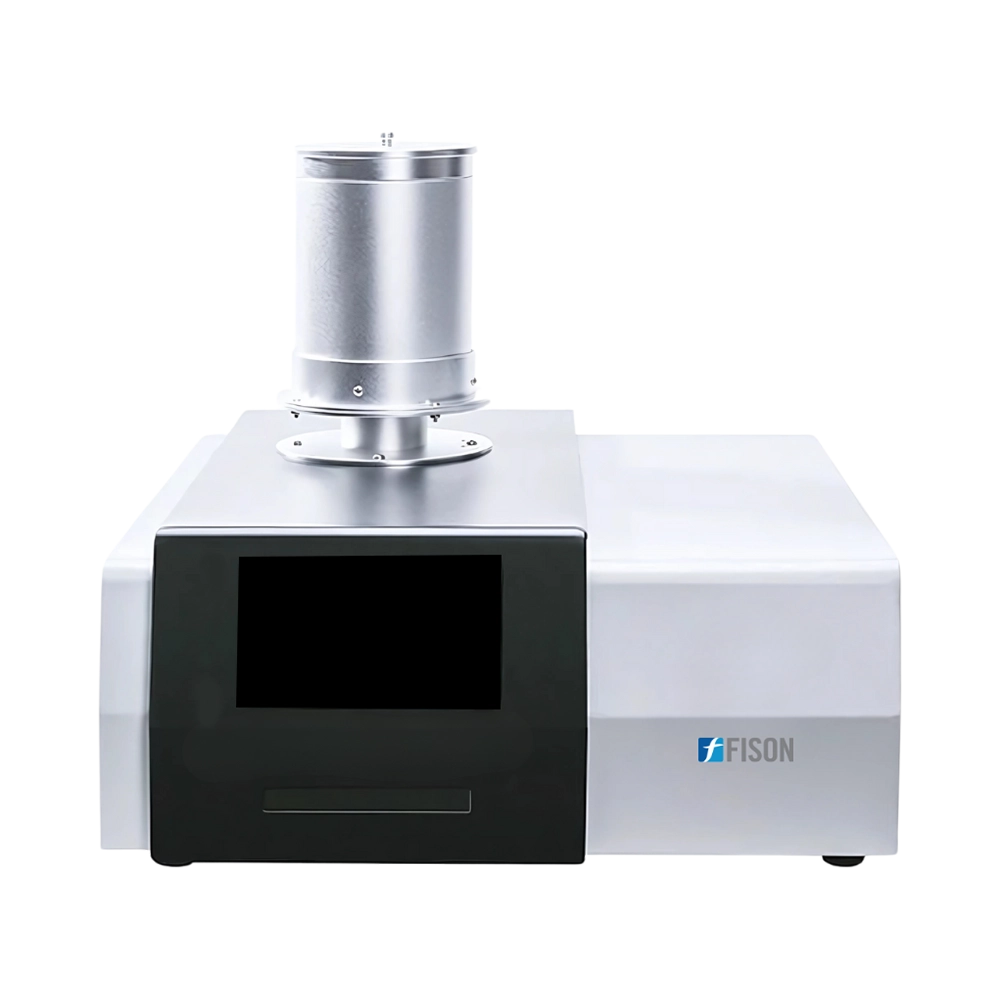

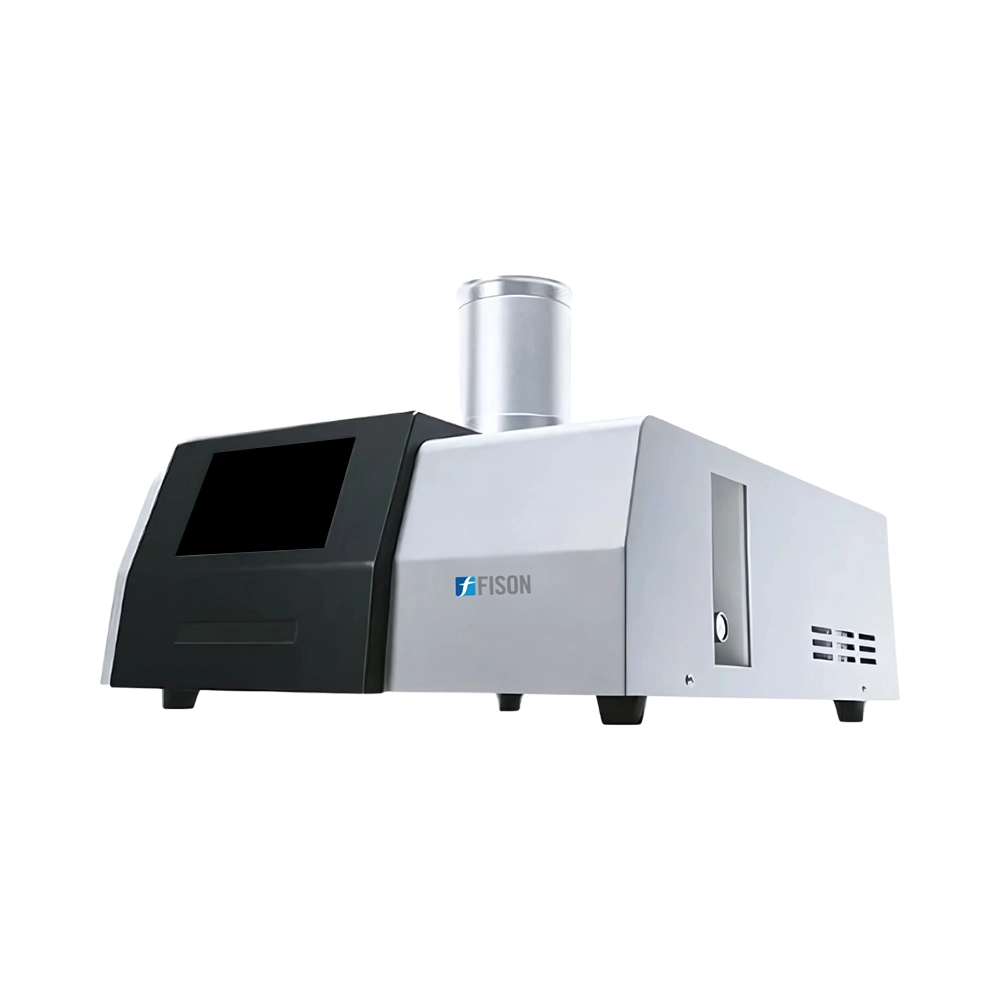

Synchronous Thermal Analyzer FM-STA-A103 is used to analyze thermal stability, decomposition, and phase transitions. It is widely used in research labs, material science, pharmaceuticals, polymers, metallurgy, nanotechnology, and quality control industries.
| Name |
Quantity |
| USB flash drive |
1pc |
| Data cables |
2pc |
| Power cord |
1pc |
| Ceramic crucibles |
200pc |
| Ceramic covers |
2pc |
| Metal cover |
1pc |
| Roll of raw adhesive tape |
1pc |
| Bag of standard tin |
1pc |
| 10A fuses |
5pc |
| Sample spoon |
1pc |
| Sample presser bar |
1pc |
| Tweezers |
1pc |
| Dust cleaning ball |
1pc |
| Gas tubes (with a diameter of 8mm) |
2pc |
