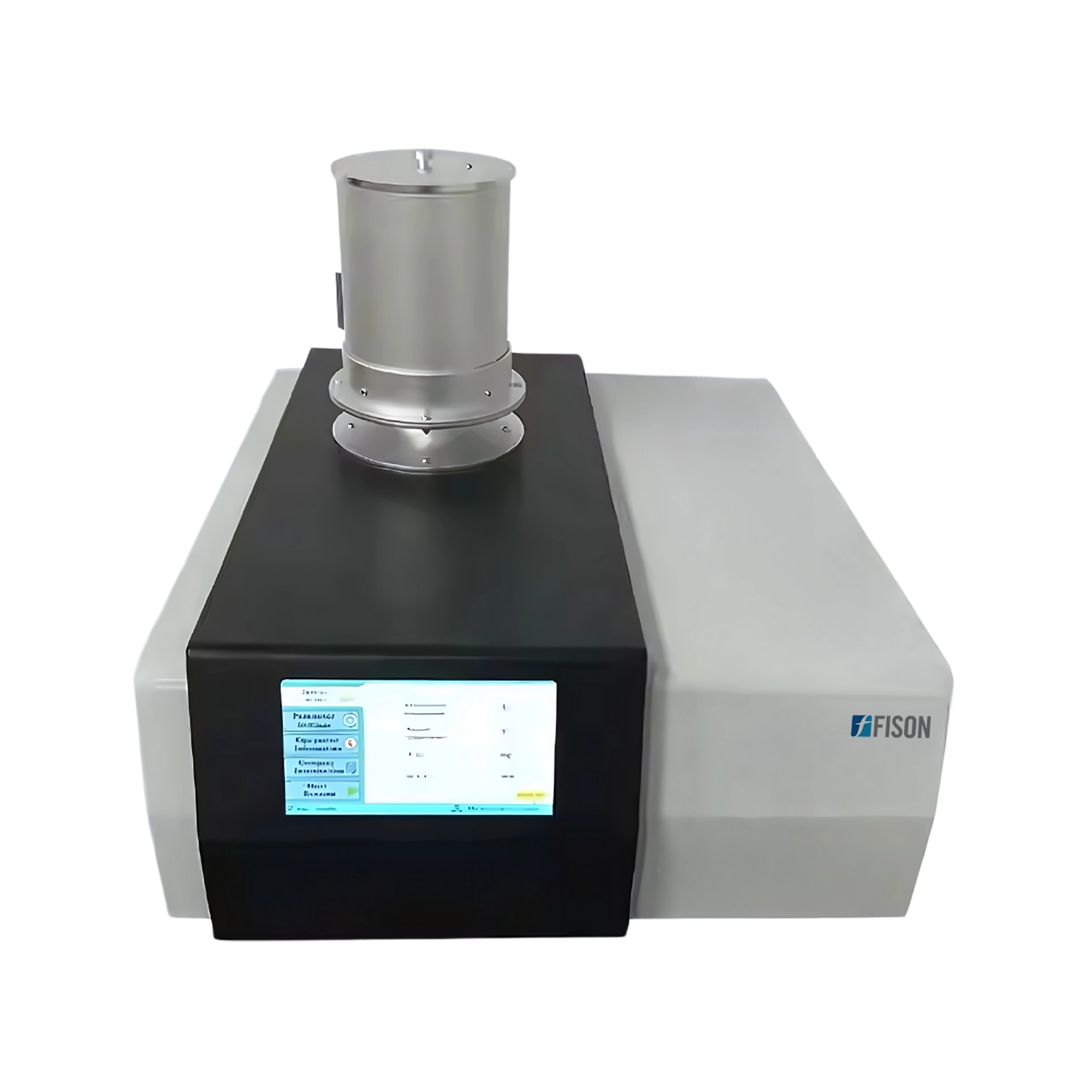

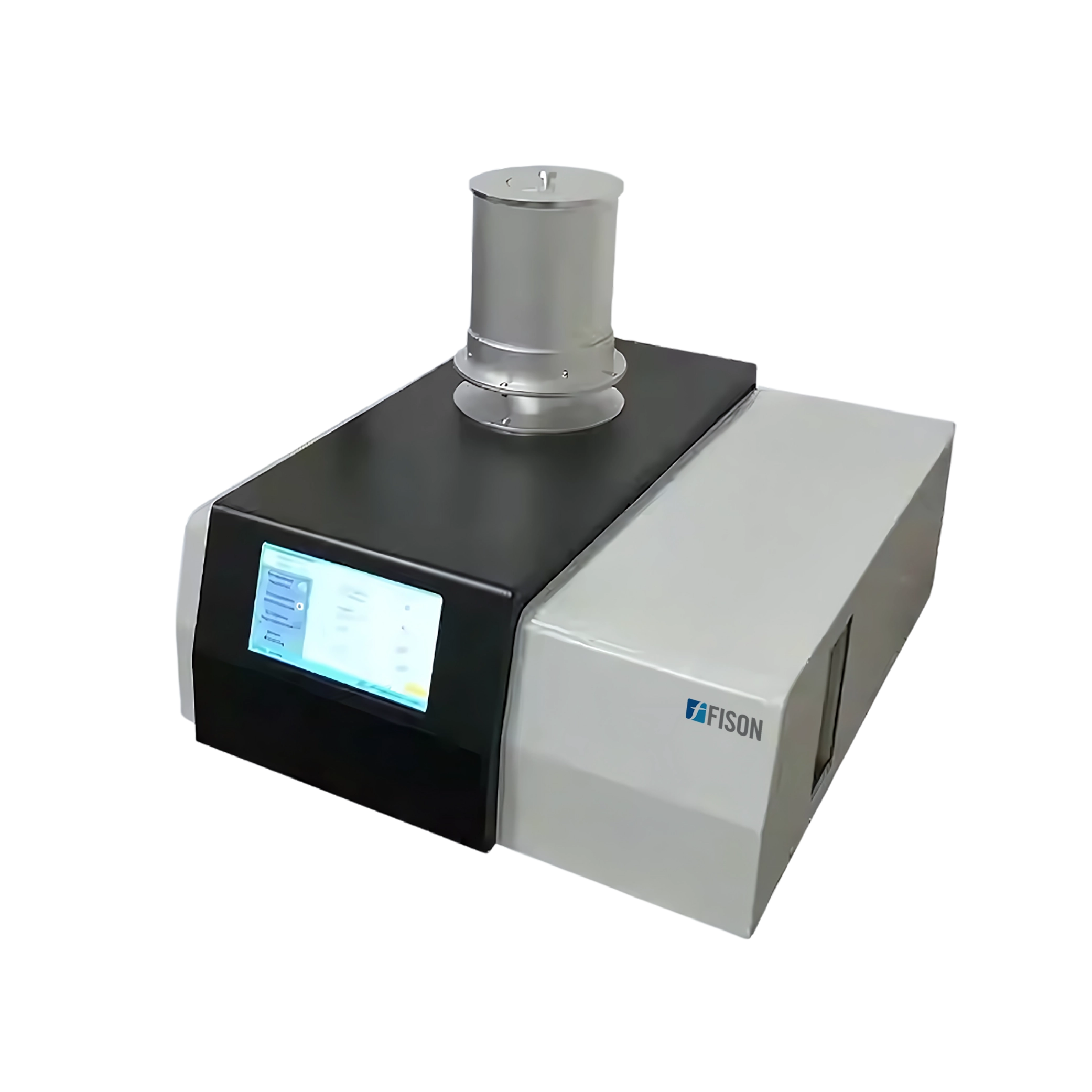

Synchronous Thermal Analyzer FM-STA-A102
Synchronous Thermal Analyzer FM-STA-A102 examines heat-related properties of samples within room temperature to 1500 ℃. It has built-in gas flowmeter for monitoring conditions of working atmosphere. Features quick switch between different thermal analysis methods including DSC, DTA, TGA and STA. Integrated with intelligent software for auto-recording and processing of TG curves. Our all-in-one Thermal Analyzer can operate under inert, oxidizing, reducing, static and dynamic conditions.
Specifications
| Temperature Range | Room temperature to 1500 ℃ |
| Temperature Resolution | 0.01 ℃ |
| Temperature Fluctuation | ± 0.1 ℃ |
| Temperature Control Mode | PID control mode Rising temperature mode Constant temperature mode |
| Constant Temperature Time Range | 0 to 300 minutes |
| Heating Rate | 1 to 80 ℃/ min |
| Weighing Range | 0.01 mg to 3 g |
| Weighing Accuracy | 0.01 mg |
| DSC Measuring Range | 0 to ± 600 mW |
| DSC Resolution | 0.01 mW |
| Working Atmosphere Features | Built-in gas flowmeter, two-way gas switching and flow control |
| Working Atmosphere Type | Inert, Oxidizing, Reducing, Static, Dynamic |
| Display | 24-bit colour 7-inch LCD touch screen |
| Communication Interface | USB |
| Software Analysis Modes | Differential Scanning Calorimetry Differential Thermal Analysis Thermogravimetric Analysis Simultaneous Thermal Analysis |
| Software Features | Quick switch between thermal analysis modes, Automatic recording of Thermogravimetric curves, Data processing and interpretation, Experimental report printing |
| Power Supply | AC 220 V, 50 Hz |
| Packaging Dimensions (L × D × H) | 67 × 59 × 48 cm |
| Net Weight | 30 kg |
| Gross Weight | 42 kg |
Features
- 24-bit colour 7-inch LCD touch screen
- 3 distinct temperature control modes
- 2-way gas switching
- Experimental report printing
- USB communication interface
Applications
- Synchronous Thermal Analyzer is essential for material science, polymer and pharmaceutical research.
Accessories Optional
- Sensor
Aluminium Crucible
Ceramic Crucible
