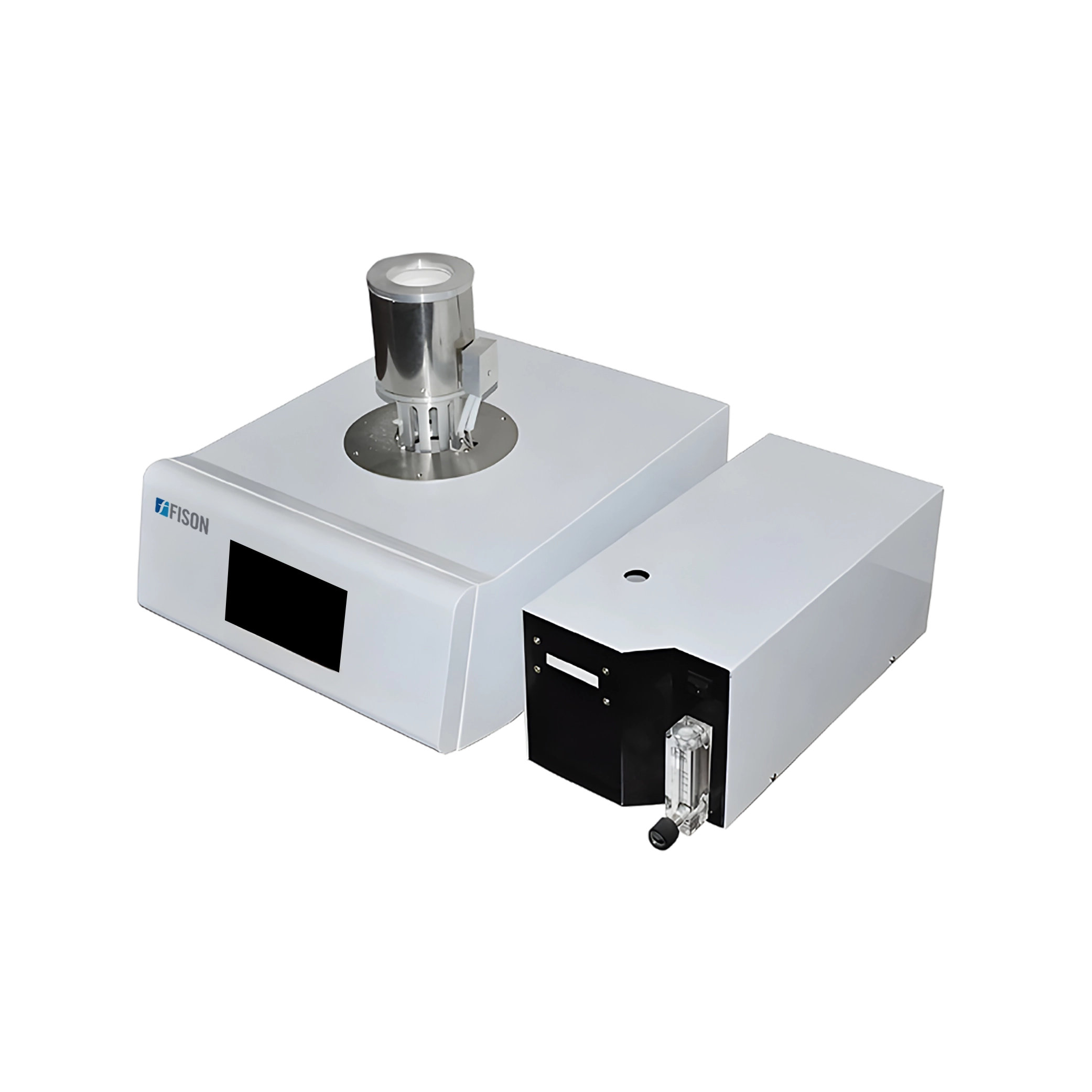

Synchronous Thermal Analyzer FM-STA-A101
Synchronous Thermal Analyzer FM-STA-A101 combines TGA (thermo gravimetric analysis) with DSC (differential scanning calorimeter) to obtain the TG and DSC analysis data in synchronization using same sample during testing. This simultaneous execution of TGA and DSC saves the time and increases efficiency. Intelligent software automatically records TG curve, processing data and prints experimental statements.
Specifications
| Temperature range | Room temperature to 1350°C |
| Temperature resolution | 0.1°C |
| Temperature fluctuation | ± 0.1°C |
| Heating rate | 1 to 80°C/ min |
| Temperature control mode | Temperature rise/ fall and constant mode |
| Constant temperature time | 0 to 300 min (adjustable) |
| Cooling time | 15 mins (from 1000 to 100°C) |
| Weighing range | 1 mg to 2 g (can be extended to 5 g) |
| Resolution | 1 µg |
| DSC measuring range | 0 to ± 500 mW |
| DSC resolution | 1 µW |
| Display | 24 bit color, 7 inches LCD touch screen display |
| Power | AC 220 V, 50 Hz |
Features
- Built in gas flow meter
- Temperature range: RT to 1350°C
- User friendly 24 bit 7 inch touch screen
- Inertia, oxidation, reduction, static, dynamic atmosphere
- USB data interface connection
- Provides high quality reproducible results
Applications
- Used to study the physical and chemical properties of a material w.r.t. change in temperature across chemical, pharmacy, petroleum, life science industry.
Test Method
Method Name Analysis Details TGA Determines the thermal stability, decomposition, redox, adsorption, free water and gesso content, composition of ingredients DSC Reads the phase changes, reaction temperature, heat melting, crystallization, heat of combustion, specific heat capacity of a material
Accessories Optional
Accessories no. Name Details 1 Aluminum Crucible Inner diameter 5 × 5 mm, Temperature < 600°C 2 Ceramic Crucible Inner diameter 5 × 4 mm, Temperature < 1600°C
