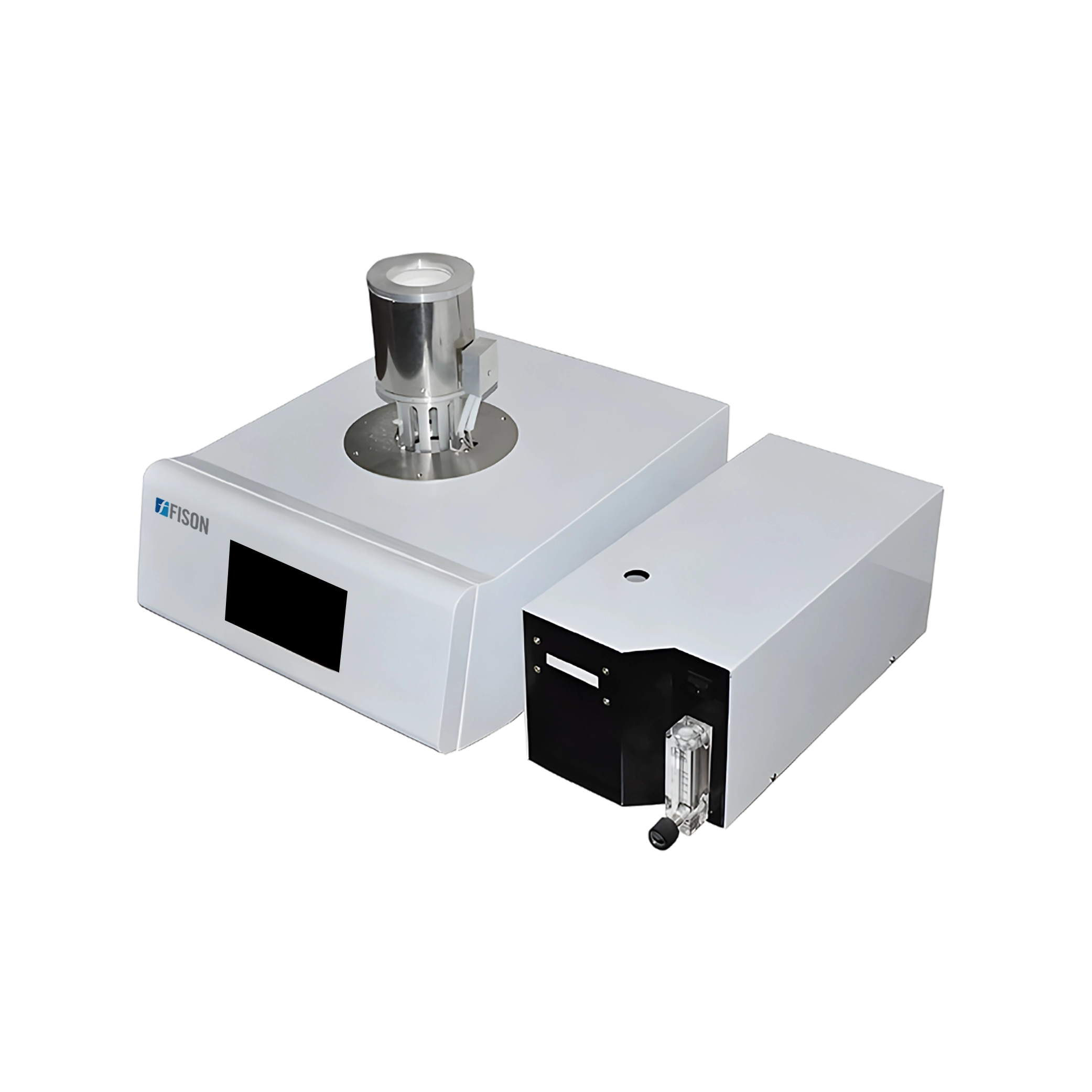

Synchronous Thermal Analyzer FM-STA-A100 combines TGA (thermo gravimetric analysis) with DSC (differential scanning calorimeter) to obtain the TG and DSC analysis data in synchronization using same sample during testing. This simultaneous execution of TGA and DSC saves the time and increases efficiency. Intelligent software automatically records TG curve, processing data and prints experimental statements.
| Temperature range | Room temperature to 1150°C |
| Temperature resolution | 0.1°C |
| Temperature fluctuation | ± 0.1°C |
| Heating rate | 1 to 80°C/ min |
| Temperature control mode | Temperature rise/ fall and constant mode |
| Constant temperature time | 0 to 300 min (adjustable) |
| Cooling time | 15 mins (from 1000 to 100°C) |
| Weighing range | 1 mg to 2 g (can be extended to 5 g) |
| Resolution | 1 µg |
| DSC measuring range | 0 to ± 500 mW |
| DSC resolution | 1 µW |
| Display | 24 bit color, 7 inches LCD touch screen display |
| Power | AC 220 V, 50 Hz |
Used to study the physical and chemical properties of a material w.r.t. change in temperature across chemical, pharmacy, petroleum, life science industry.
| Method Name | Analysis Details |
| TGA | Determines the thermal stability, decomposition, redox, adsorption, free water and gesso content, composition of ingredients |
| DSC | Reads the phase changes, reaction temperature, heat melting, crystallization, heat of combustion, specific heat capacity of a material |
| Accessories no. | Name | Details |
| 1 | Aluminum Crucible | Inner diameter 5 × 5 mm, Temperature < 600°C |
| 2 | Ceramic Crucible | Inner diameter 5 × 4 mm, Temperature < 1600°C |
