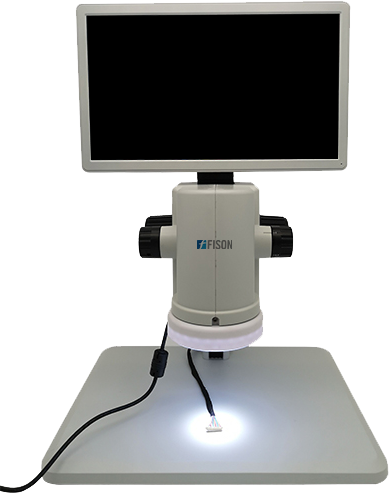

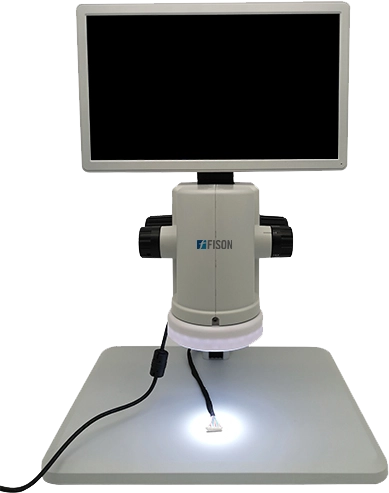

Stereo Microscope FM-SM-A401 is integrated zoom optical module with high definition camera. It can be conveniently used in a narrow and small space. It offers 17 X to 110 X Magnification range with objective lens 0.7 x to 4.5 x and design with COMS Sensor of 1/3 inches. According to ergonomic principles, its internal optical corner design and angle adjustment of the display screen, allow the operator to look at the display in a flat view. Through the HDMI HD interface, it can connect to another display simultaneously.
Specifications
Magnification | 17 x to 110 x | ||||
Objective | 0.7 x to 4.5 x | ||||
Sensor | 1/3 inches COMS Sensor | ||||
Resolution | 1920 × 1080 P@60FS (2.0 MP) | ||||
Output | HDMI, USB, SD Card | ||||
Display | 11.6 inches LCD standard Through the HDMI interface, can connect to another display simultaneously | ||||
Function | Real-time observation, photo taking, video recording, measurement, storage, data output | ||||
Displayer Size | Standard W.D.100 mm | ||||
LCD 11.6 inches |
|
||||
Stand | C10 Track Stand Vertical Height:325 mm, Focusing Distance:220 mm | ||||
Base Dimension | 320 x 260 x16 mm | ||||
Illumination | Comes with 56-LED ring light | ||||
Weight | 8.5 kg |
Features
Applications
Fison Stereo Microscopes deliver sharp, multi-dimensional view of specimens. They are specially designed for examining live organisms, inspecting material surface and perform dissections. They have adjustable zoom function to allow for uninterrupted magnification. They feature bright illumination, wide field of view and large working distance. Our Stereo Microscopes provide you with an ergonomic setup for enabling extended periods of comfortable observation.
Fison Biological Microscopes are specifically constructed for observing biological specimens. Our routine range of microscopes have classroom-friendly utility as well as special design considerations for reduced strain on user’s eyes. They feature both finite and infinite ocular systems with a wide field of view. Equipped with dynamic lens system having different types of objectives (4X to 100X) and condenser types. We provide you with additional blue filter with our C series, phase contrast condenser with our D series, on demand digital cameras setups and much more.
Fison Digital Microscopes are engineered with built in camera and IPS/LCD touch screens for live specimen viewing. They are incorporated with zoom controls, auto-focus, intelligent illumination systems for enhanced clarity. Sophisticated software integration systems produce undistorted, high-resolution images. They feature advanced optical systems with binocular/trinocular heads for multi-angle visualization of specimens. Our digital scopes support Wi-Fi, Bluetooth, USB, HDMI and more, for real time documentation and analysis.
Fison’s suite of Fluorescence Microscopes are specially engineered to visualize specimens that emit fluorescence when exposed to monochromatic light. They are equipped with high quality filters to observe vast array of samples such as cultured tissue, plant and animal cells. Designed with infinite optical systems and binocular/trinocular viewing heads. They are capable of 3D, real time and time series analysis. We offer Fluorescence Microscopes that are highly sensitive, non-destructive with superior imaging facilities.
Fison Inverted Biological Microscopes offer non-invasive observation of live cells, tissues and organisms. Limited sample handling reduces risk of contamination. They feature greater working distances with high-resolution optical systems. Clear contrast renders distinct visualization of cells within 4X to 40X magnification. Our all-in-one Inverted Microscope come with phase contrast objectives, colour filters and optional fluorescent attachments.
Fison Metallurgical Microscopes employ dual transmitted and reflected light for sample illumination. They are equipped with multiple objective lenses with different magnification levels from 4x to 100x. Heavy base and robust frame for vibration-resistant observations. We offer you both upright and inverted designs suiting to your research needs. Our Metallurgical microscopes are versatile tools featuring brightfield, darkfield, phase contrast and polarisation to visualize microstructure of metals and alloys.
