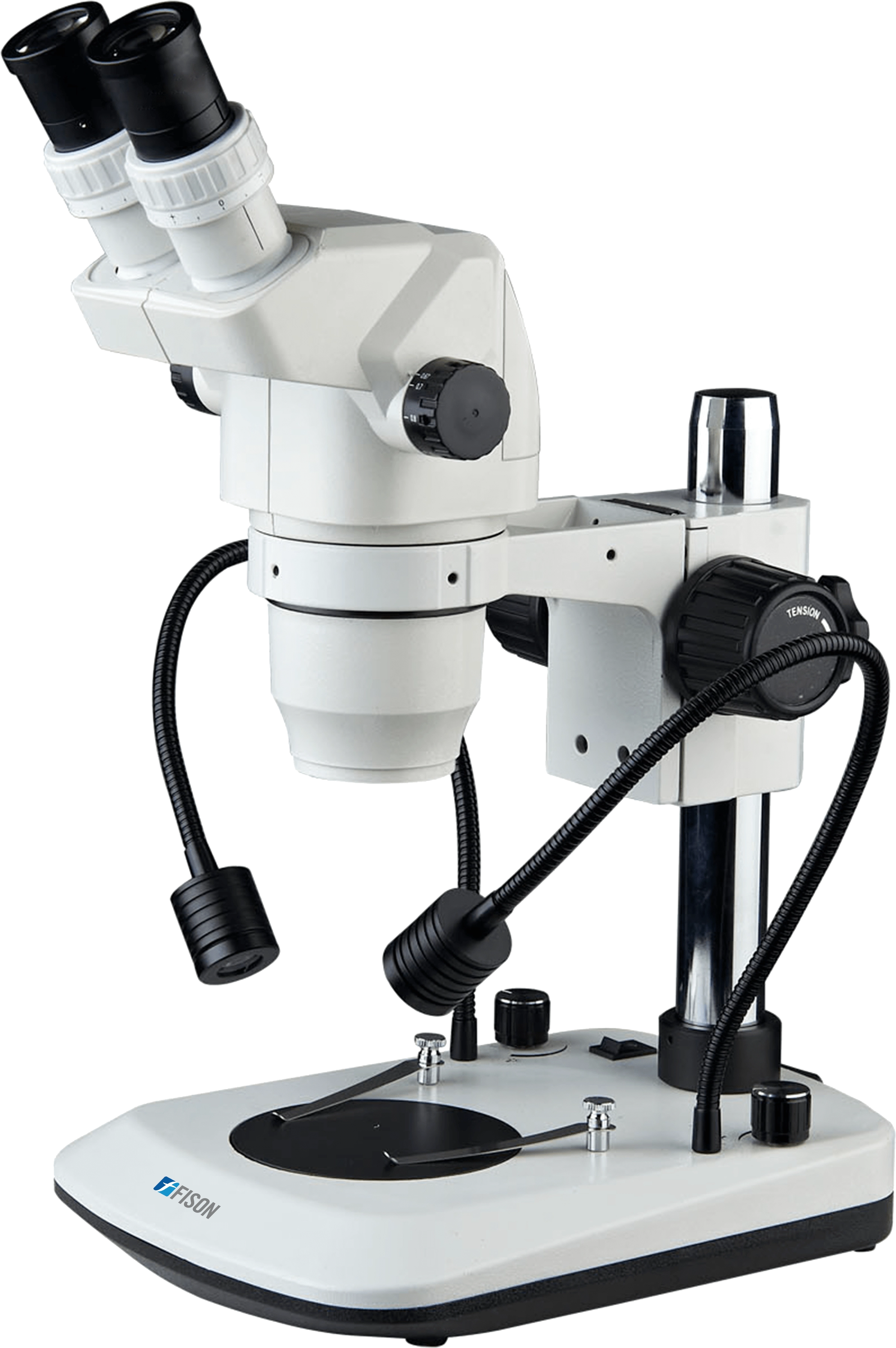

Stereo Microscope FM-SM-A400

Stereo Microscope FM-SM-A400

Stereo Microscope FM-SM-A400 is a zoom stereo microscope with 60° inclined binocular viewing head. With Greenough zoom optical system, it offers 6.7x to 45x wide zoom magnification range (6:7:1 zoom ratio). Designed with X-LED incident (2 arms). It has two focusing knobs with tension adjustable and adjust range up to 50 mm with user-friendly stands focusing mechanism.

Specifications

Optical System Greenough zoom optical system
 Viewing head Binocular 60° inclined head and 90° rotational body Left ocular tube diopter adjustment of +/- 5dp Interpupillary distance 55 to 75 mm
Widefield eyepiece WF10 X / 22 mm
 Objective Zoom objective 0.67X to 4.5X
Magnification Zoom magnification 6.7X to 45X
Zoom ratio 6:7:1
 Working distance 105 mm
Stand Stand with X-LED incident (2 arms)
Illumination Oblique Illumination
Focusing focus arm, two focusing knobs are with tension adjustable, adjust range 50 mm
Stage base black plate
Power supply AC 220V, 60 Hz
Weight Approx. 12 kg

Features

  • Greenough zoom optical system
  • Binocular 60° inclined Viewing head
  • 105 mm long working distance
  • Stand with X-LED incident (2 arms)
  • Equipped with zoom magnification 6.7 X to 45 X
  • Oblique Illumination system

Applications

  • Used for Zoom Observation of specimen through oblique illumination system across medicine, Life science, gemology, electronics and other different fields.

Alternative Models Of Stereo Microscopes

Fison Stereo Microscopes deliver sharp, multi-dimensional view of specimens. They are specially designed for examining live organisms, inspecting material surface and perform dissections. They have adjustable zoom function to allow for uninterrupted magnification. They feature bright illumination, wide field of view and large working distance. Our Stereo Microscopes provide you with an ergonomic setup for enabling extended periods of comfortable observation.

Stereo Microscope FM-SM-A100

  • Optical system: Greenough zoom optical system
  • Viewing Head: 45° inclined and 360° rotable binocular viewing head, interpupillary distance 54-76 mm
  • Eyepieces: EW 10X/20 mm with diopter adjustment
Catalog

Stereo Microscope FM-SM-A101

  • Optical system: Greenough zoom optical system
  • Viewing Head: 60° inclined and 360° rotable trinocular viewing head, interpupillary distance 54-76 mm
  • Eyepieces: EW 10X/20 mm with diopter adjustment
Catalog

Stereo Microscope FM-SM-A200

  • Main body: Sharp stereo erect image over wide field view
  • Optical system: Greenough system
  • Viewing head: 45° inclined binocular head and unrotable body with locked-in eyepiece
Catalog
Stereo Microscope FM-SM-A201
  • Main body: Sharp stereo erect image over wide field view
  • Optical system: Greenough system
  • Viewing head: 45° inclined binocular head and unrotable body with locked-in eyepiece
Catalog
Stereo Microscope FM-SM-A202
  • Main body: Sharp stereo erect image over a wide field of view
  • Optical system: Greenough system
  • Viewing head: Binocular head with 45° inclined body Left ocular tube dioptre adjustment of +/- 5dp Interpupillary distance 55 to 75 mm
Catalog

Stereo Microscope FM-SM-A300

  • Main body: Sharp stereo erect image over wide field view
  • Optical system: Greenough system
  • Viewing head: Straight viewing 90° Upright head and rotational body Left ocular tube dioptre adjustment of +/- 5dp Interpupillary distance 55 to 75 mm
Catalog

Stereo Microscope FM-SM-A301

  • Main body: Sharp stereo erect image over wide field view
  • Optical system: Greenough system
  • Viewing head: Binocular 45° inclined head and Non-auxiliary body Left ocular tube dioptre adjustment of +/- 5dp Interpupillary distance 55 to 75 mm
Catalog

Stereo Microscope FM-SM-A302

  • Main body: Sharp stereo erect image over wide field view
  • Optical system: Greenough system
  • Viewing head: Binocular 45° inclined head and 90° rotational body Left ocular tube dioptre adjustment of +/- 5dp Interpupillary distance 55 to 75 mm
Catalog
Stereo Microscope FM-SM-A303
  • Main body: Sharp stereo erect image over wide field view
  • Optical system: Greenough system
  • Viewing head: Binocular 45° inclined head and 360° rotational body Left ocular tube dioptre adjustment of +/- 5dp Interpupillary distance 55 to 75 mm
Catalog
Stereo Microscope FM-SM-A304
  • Main body: Sharp stereo erect image over wide field view
  • Optical system: Greenough system
  • Viewing head: Binocular 45° inclined head and 360° rotational body Left ocular tube dioptre adjustment of +/- 5dp Interpupillary distance 55 to 75 mm
Catalog

Stereo Microscope FM-SM-A401

  • Magnification: 17 x to 110 x
  • Objective: 0.7 x to 4.5 x
  • Sensor: 1/3 inches COMS Sensor
Catalog

Stereo Microscope FM-SM-A402

  • Body: Built-in camera with HDR image, 1/3 inches COMS, 2.0 MP; HDMI output; support for SD card
  • Objective: 0.7 x to 4.5 x
  • Sensor: 1/3 inches COMS Sensor
Catalog

Stereo Microscope FM-SM-A500

  • Optical System: Parallel optical zoom system
  • Viewing Head: Binocular Head, 20° Inclination, Interpupillary Distance 55-75mm
  • Eyepiece: EW10×/22
Catalog
Stereo Microscope FM-SM-A600
  • Optical system: Greenough optical system
  • Viewing head: Trinocular heads with 360° rotation and 45° inclination
    Distribution ratio : 3:7
    Interpupillary distance : 52 to 75 mm (Adjustable)
  • Eyepiece: WF 10 X / 22 mm, with diopter adjustment
Catalog

Biological Microscopes

Fison Biological Microscopes are specifically constructed for observing biological specimens. Our routine range of microscopes have classroom-friendly utility as well as special design considerations for reduced strain on user’s eyes. They feature both finite and infinite ocular systems with a wide field of view. Equipped with dynamic lens system having different types of objectives (4X to 100X) and condenser types. We provide you with additional blue filter with our C series, phase contrast condenser with our D series, on demand digital cameras setups and much more.

Biological Microscope FM-BM-A100

  • Optical System : Finite Optical System
  • Viewing Head : Binocular viewing head, 30° inclined, 360° rotation, interpupillary distance 48 to 75 mm
  • Magnification : 40X to 1600X
Catalog

Biological Microscope FM-BM-A101

  • Optical System : Finite Optical System
  • Viewing Head : Binocular viewing head, 30° inclined, 360° rotation, interpupillary distance 48 to 75 mm
  • Magnification : 40X to 1600X
Catalog
Biological Microscope FM-BM-A102
  • Optical System : Finite Optical System
  • Viewing Head : Trinocular viewing head, 30° inclined, 360° rotation, interpupillary distance 48 to 75 mm
  • Magnification : 40X to 1600X
Catalog

Digital Microscopes

Fison Digital Microscopes are engineered with built in camera and IPS/LCD touch screens for live specimen viewing. They are incorporated with zoom controls, auto-focus, intelligent illumination systems for enhanced clarity. Sophisticated software integration systems produce undistorted, high-resolution images. They feature advanced optical systems with binocular/trinocular heads for multi-angle visualization of specimens. Our digital scopes support Wi-Fi, Bluetooth, USB, HDMI and more, for real time documentation and analysis.

Digital Microscope FM-DM-A100
  • Optical system : Infinite optical system
  • Viewing head : Seidentopf Binocular head, 30° inclined, Interpupillary 48 to 75 mm
  • LCD Touch pad Screen : 8 Inch TFT Touching screen, 5.0 Mega Pixel CMOS Chip
Catalog

Digital Microscope FM-DM-A101

  • Optical system : Infinite optical system
  • Viewing head : Seidentopf Binocular head, 30° inclined, Interpupillary 48 to 75 mm
  • LCD Touch pad Screen : 8 Inch TFT Touching screen, 5.0 Mega Pixel CMOS Chip
Catalog

Digital Microscope FM-DM-A200

  • Optical system : Infinite optical system
  • Viewing head : Seidentopf Binocular head, 30° inclined, Interpupillary 48 to 75 mm
  • LCD Touch pad Screen : 8 Inch TFT Touching screen, 5.0 Mega Pixel CMOS Chip
Catalog

Fluorescence Microscopes

Fison’s suite of Fluorescence Microscopes are specially engineered to visualize specimens that emit fluorescence when exposed to monochromatic light. They are equipped with high quality filters to observe vast array of samples such as cultured tissue, plant and animal cells. Designed with infinite optical systems and binocular/trinocular viewing heads. They are capable of 3D, real time and time series analysis. We offer Fluorescence Microscopes that are highly sensitive, non-destructive with superior imaging facilities.

Fluorescence Microscope FM-FM-A200
  • Optical system : Infinite optical system
  • Viewing head : Compensation free binocular head inclined at 30°, interpupillary distance 48 to 75 mm
  • Eyepiece : Wide field eyepiece EW10X/ 18 mm
Catalog
Fluorescence Microscope FM-FM-A201
  • Optical system : Infinite optical system
  • Viewing head : Compensation free trinocular head inclined at 30°, interpupillary distance 48 to 75 mm
  • Eyepiece : Wide field eyepiece EW10X/ 18 mm
Catalog

Fluorescence Microscope FM-FM-A202

  • Optical system : Infinite optical system
  • Viewing head : Compensation free binocular head inclined at 30°, interpupillary distance 48 to 75 mm
  • Eyepiece : Wide field eyepiece EW10X/ 18 mm
Catalog

Inverted Biological Microscope

Fison Inverted Biological Microscopes offer non-invasive observation of live cells, tissues and organisms. Limited sample handling reduces risk of contamination. They feature greater working distances with high-resolution optical systems. Clear contrast renders distinct visualization of cells within 4X to 40X magnification. Our all-in-one Inverted Microscope come with phase contrast objectives, colour filters and optional fluorescent attachments.

Inverted Biological Microscope FM-BM-B100

  • Optical System : Finite optical system
  • Viewing head : Compensation free binocular head inclined at 45°C, interpupillary distance 50 to 75 mm
  • Eyepiece : WF10X/ 20 mm
Catalog
Inverted Biological Microscope FM-BM-B101
  • Optical System : Infinite optical system
  • Viewing head : Compensation free binocular head inclined at 45°C, interpupillary distance 50 to 75 mm
  • Eyepiece : WF10X/ 22 mm
Catalog
Inverted Biological Microscope FM-BM-B200
  • Optical system : Infinite optical system
  • Viewing head : Seidentopf binocular viewing head, inclined at 45°, 360° rotation, interpupillary distance adjustable 48 to 75 mm
  • Eyepiece : Wide field eyepiece WF10X/ 22 mm, Eyepiece tube diameter: 30 mm
Catalog

Metallurgical Microscopes

Fison Metallurgical Microscopes employ dual transmitted and reflected light for sample illumination. They are equipped with multiple objective lenses with different magnification levels from 4x to 100x. Heavy base and robust frame for vibration-resistant observations. We offer you both upright and inverted designs suiting to your research needs. Our Metallurgical microscopes are versatile tools featuring brightfield, darkfield, phase contrast and polarisation to visualize microstructure of metals and alloys.

Metallurgical Microscope FM-MM-A100

  • Optical system : Finite optical system
  • Viewing head : Sliding binocular viewing head 45° inclined
  • Objective : Achromatic Objective 10X/ 0.25 WD= 6.3 mm, Plan achromatic objective 40X/ 0.65 WD= 0.7 mm
Catalog

Metallurgical Microscope FM-MM-A200

  • Optical system : Infinite optical system
  • Viewing head : Seidentopf type trinocular head
  • Objective :
    Infinite Plan Achromatic Objectives
    4X/ 0.10/∞/- WD 17.8 mm
    10X/ 0.25/∞/- WD 10.0 mm
    20X/ 0.40/∞/0 WD 5.8 mm
    40X/ 0.65/∞/0 WD 2.90 mm
Catalog
Metallurgical Microscope FM-MM-A201
  • Optical system : Infinite optical system
  • Viewing head : Seidentopf type trinocular head
  • Objective :
    Infinite Plan Achromatic Objectives
    5X/ 0.12/∞/- WD 15.5 mm
    10X/ 0.25/∞/- (BF/DF) WD 10.0 mm
    20X/ 0.40/∞/0 (BF/DF) WD 4.3 mm
    50X/ 0.75/∞/0 WD 0.32 mm
    100X/ 0.80/∞/0 WD 2.00 mm
Catalog
