Stereo Microscope FM-SM-A202

Stereo Microscope FM-SM-A202

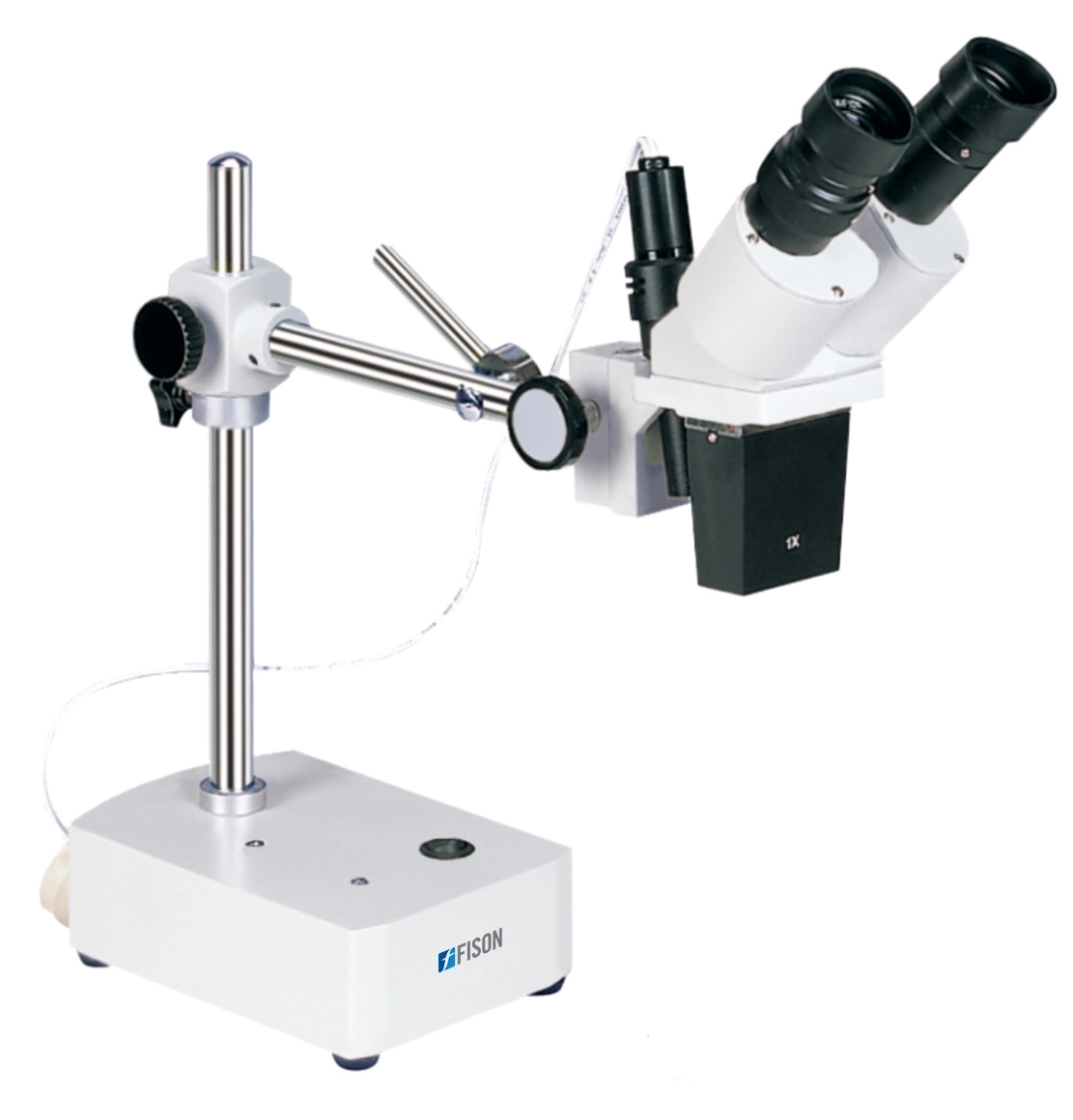

Stereo Microscope FM-SM-A202 is a boom-arm stand that facilitates rotating of microscope head about two different axis (X and Z). It includes sets of objectives that gives 230 to 250 mm working distance. The 45° inclined eye tubes and rubber eyeguards ensures an easy observation. Ideal for inspection tasks requiring plenty of room between microscope and object under observation. This microscope offers high resolution, widefield view and very large operational distance.

Specifications

Main body Sharp stereo erect image over a wide field of view
Optical system Greenough system
Viewing head Binocular head with 45° inclined body Left ocular tube dioptre adjustment of +/- 5dp Interpupillary distance 55 to 75 mm
Widefield eyepiece WF 10 X
Objective 1 X
Working distance 230 mm
Working board material White and black board
Base size 115 × 170 mm
Stand style Boom Arm stand
Plate Frosted glass
Focusing Coarse focusing knob
Illumination Incident illumination
lamp Incandescent lamp 110 V or 220 V 10 W
Dimension (W × L × H) 115 × 170 × 230
Net weight 6 kg
Gross weight 9 kg

Features

  • Versatile Boom-arm Stand to tilt angle of head
  • Forward widefield binocular head
  • 45° ocular angle body and locked-in eyepieces
  • Extremely Large Working Distance of 230 mm
  • Adjustable Interpupillary Distance (55 mm - 75 mm)
  • The left ocular-tube with dioptre adjustment ± 5 dp
  • Articulated incandescent lamp as illumination source
  • Dovetail inserted style objective with locked-in device ensures easy replacement

Applications

  • Used in workplace environments such as electronics assembly, jewellery work, component checking and inspection. It is an ideal instrument for dentists, gemmologists, collectors and in semiconductor or electronic industry.

Accessories Optional

  • Accessories no. Name
    1.        Objective 0.5 X with 250 mm working distance
    2.        Eyepiece WF 5 X / 22 mm
    3.        Eyepiece WF 15 X / 15 mm
    4.        Eyepiece  WF 20 X / 10 mm
