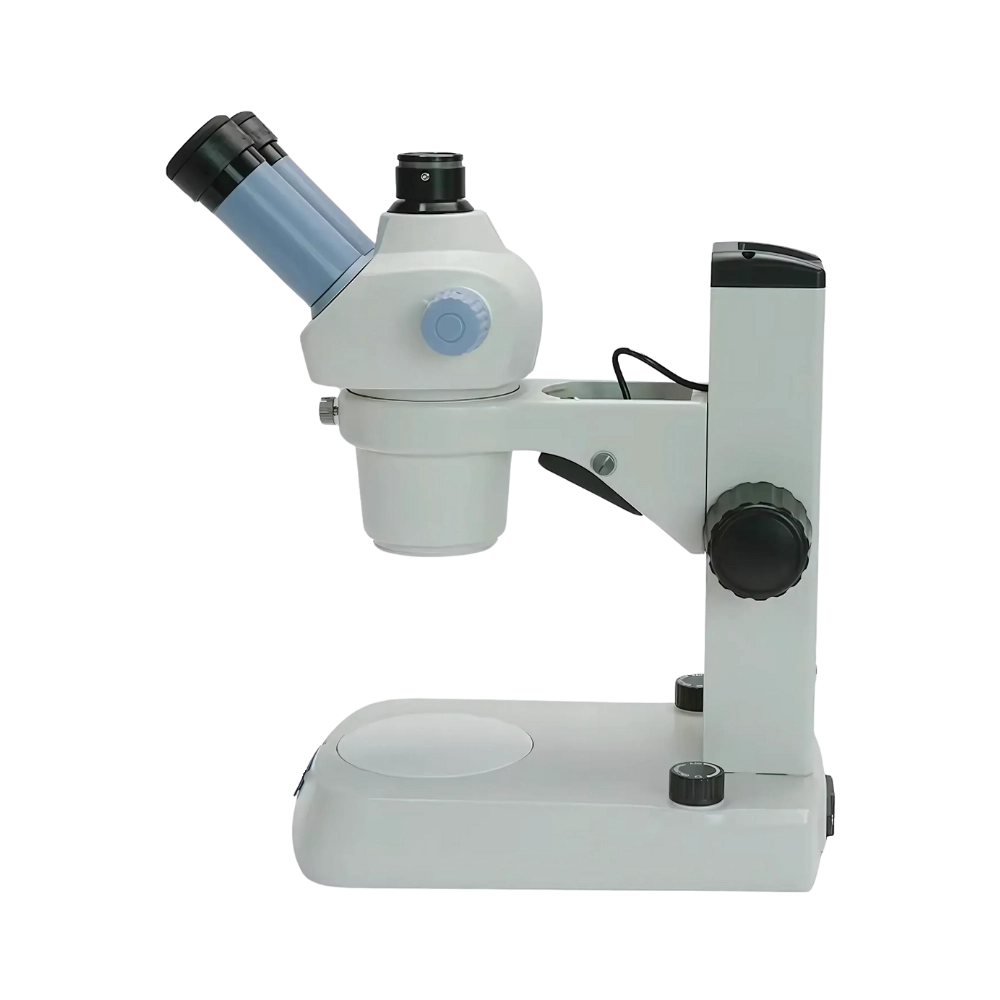

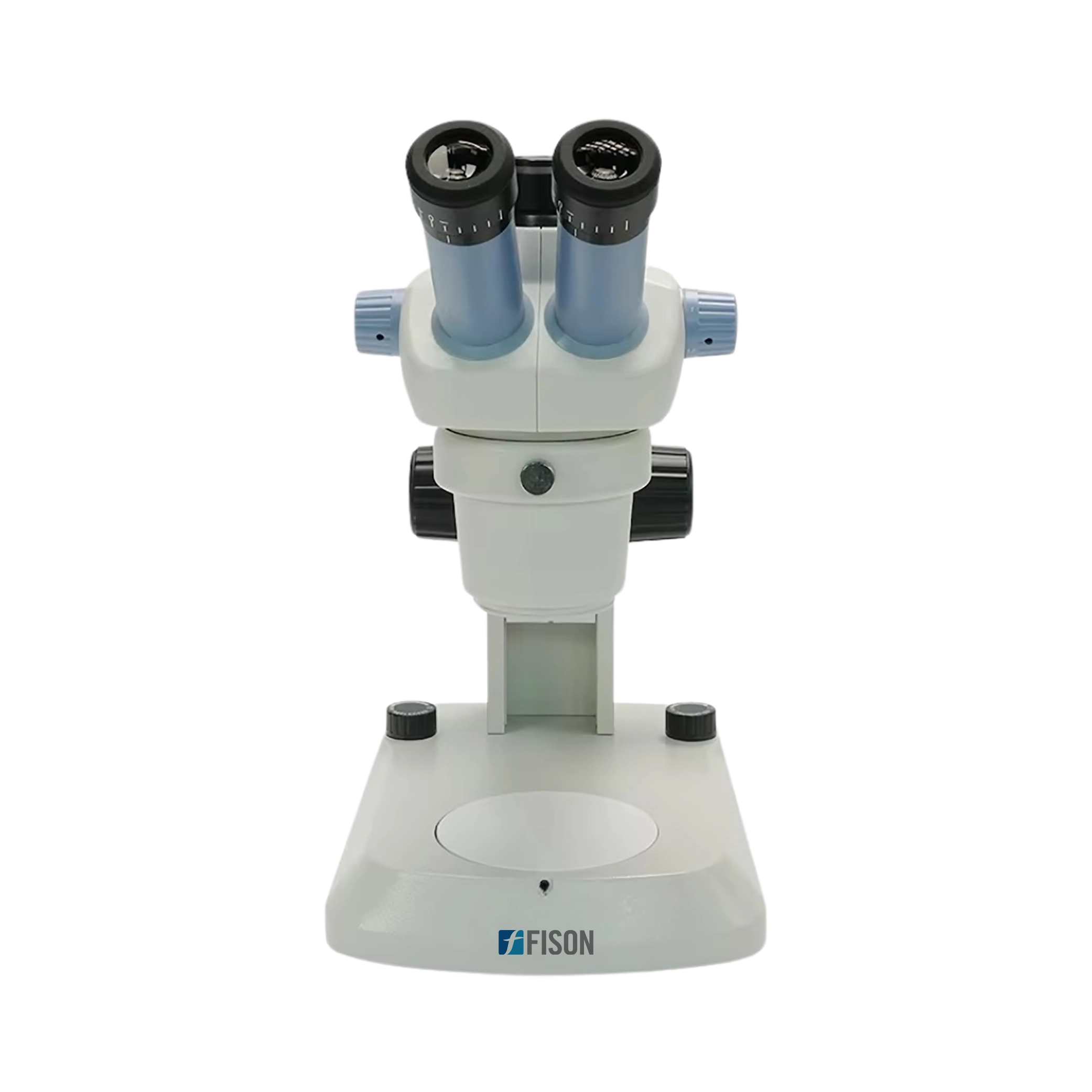

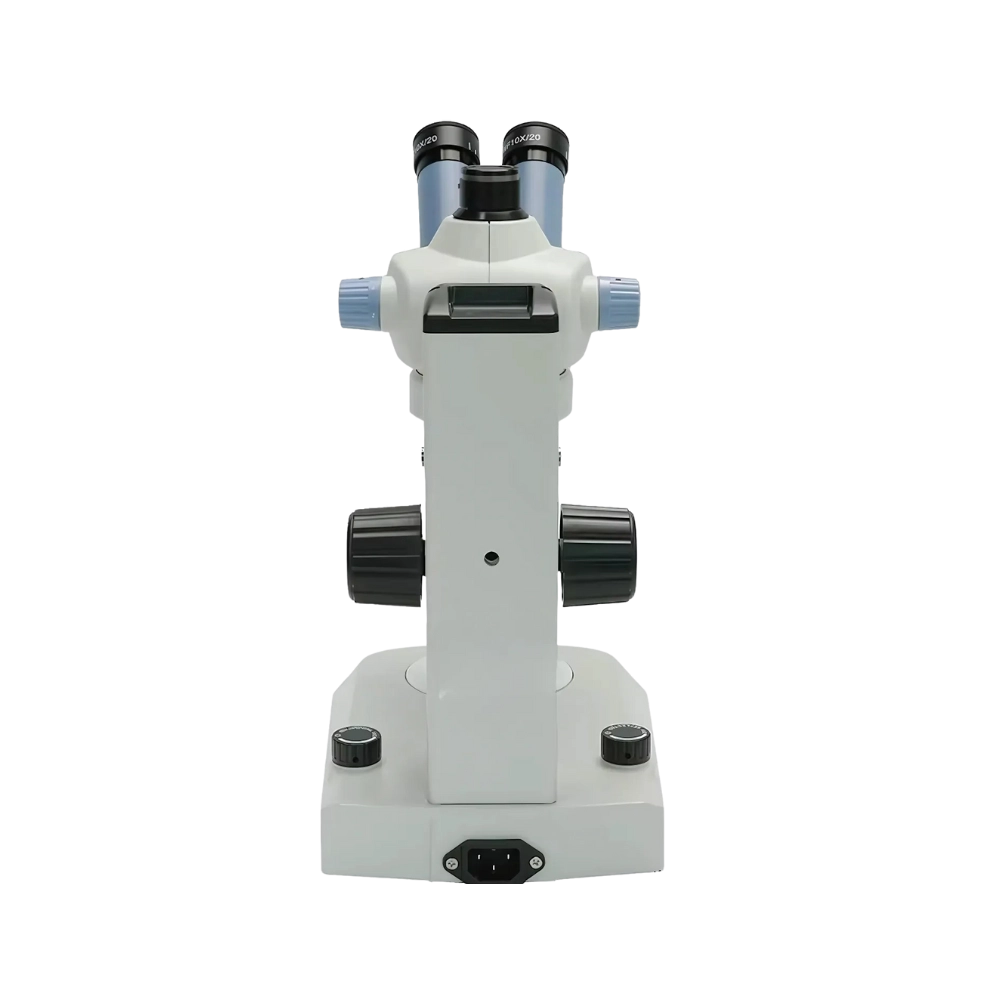

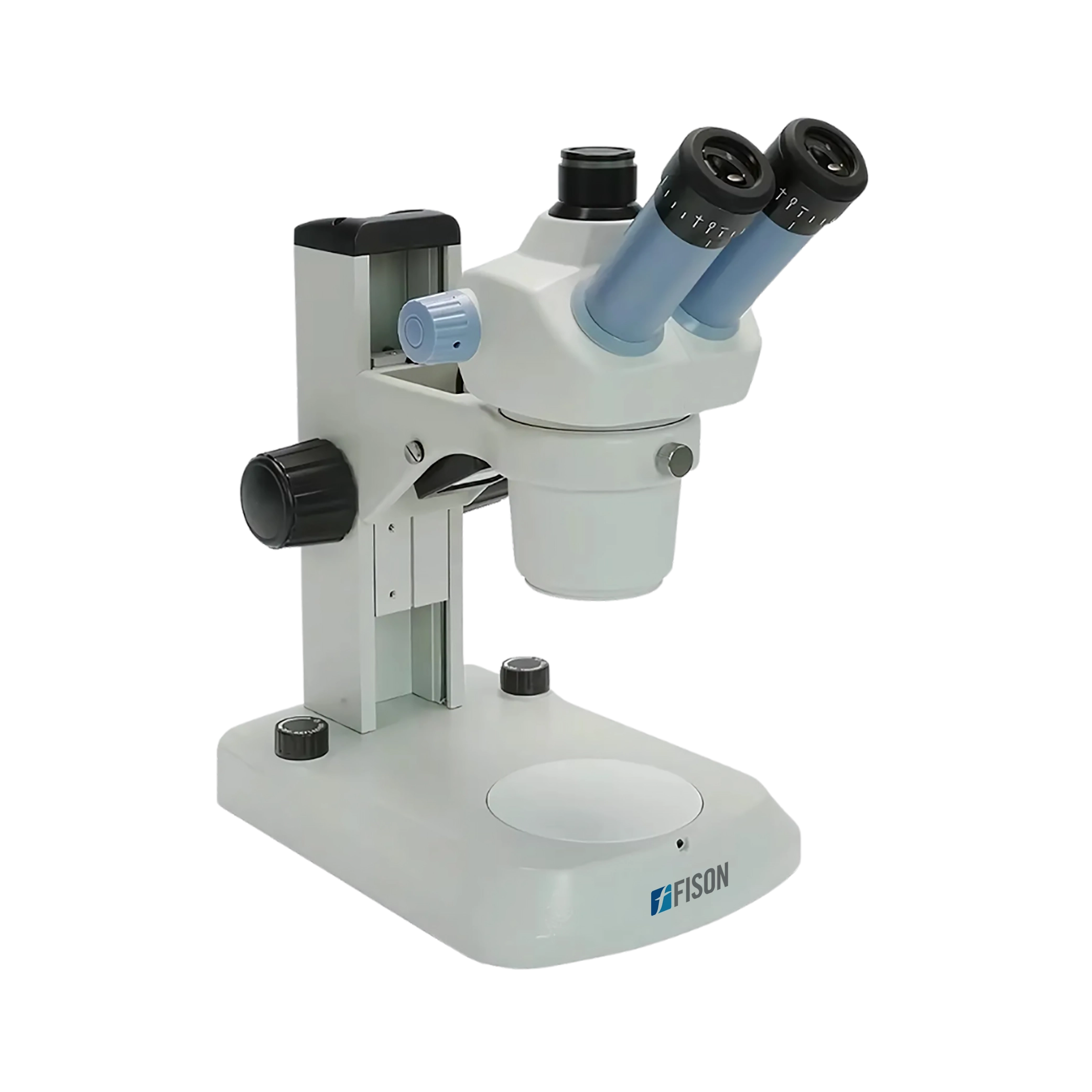

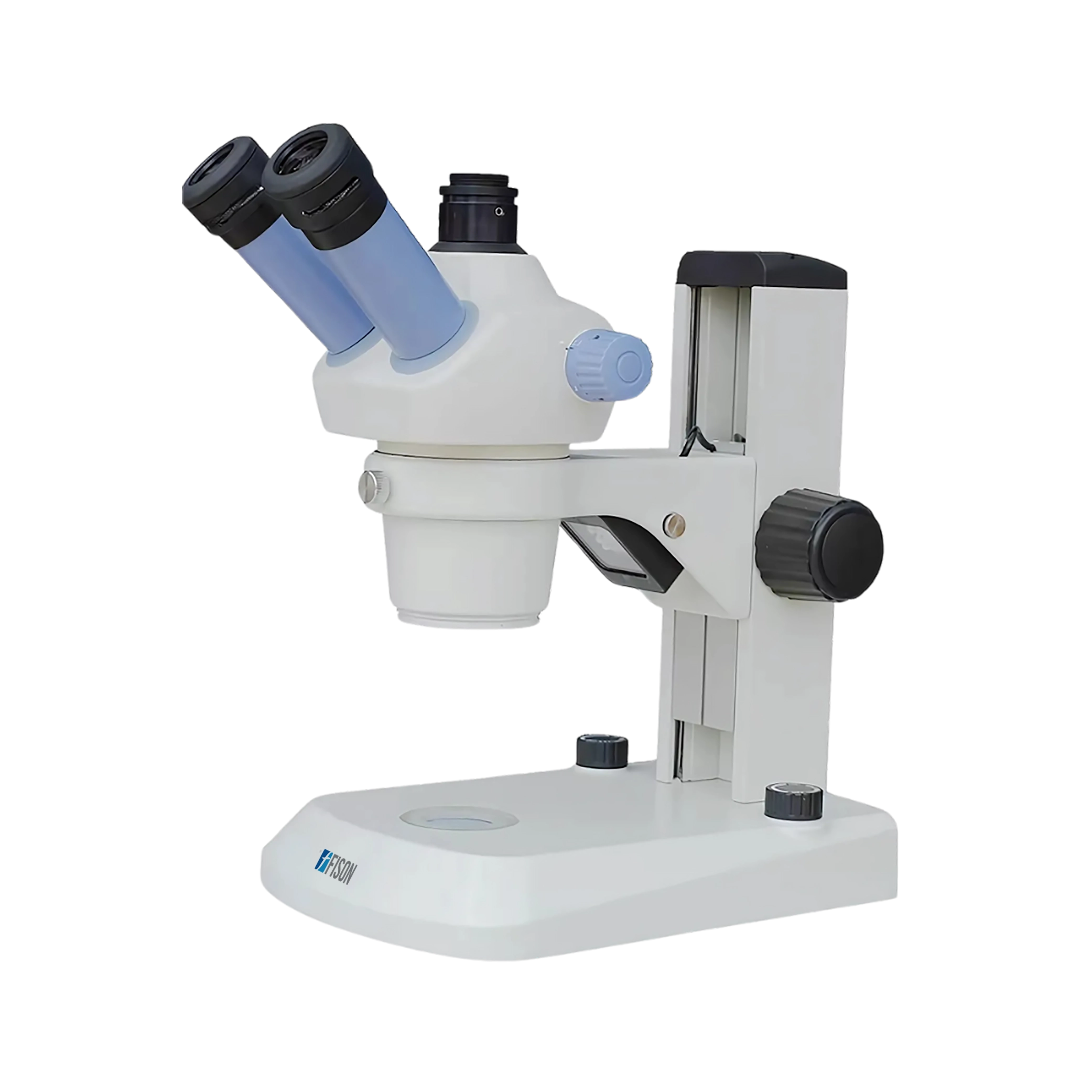

Stereo Microscope FM-SM-A101 is a zoom stereo microscope with 60° inclined trinocular viewing head. With Greenough zoom optical system, it offers 10x to 45x wide zoom magnification range (4:5:1 zoom ratio). Designed with fixed arm type stand with user-friendly focusing mechanism.
Specifications
Optical system | Greenough zoom optical system |
Viewing Head | 60° inclined and 360° rotable trinocular viewing head, interpupillary distance 54-76 mm |
Eyepieces | EW 10X/20 mm with diopter adjustment |
Objectives | Zoom Objective 1x - 4.5x, Standard 1x objective |
Zoom Magnification | 10 x to 45 x |
Zoom ratio | 4.5:1 |
Working distance | 97 mm |
Stand | Fixed arm type with focusing mechanism |
Focusing | Rack and pinion controlled by a pair of knobs placed on both sides of the stand |
Stage base | Clear glass plate diameter 95 mm |
Illumination | 2 high efficiency LED light source for Incident and transmitted light illumination simultaneously, Angle of incident illumination is adjustable |
Diemsnion (W×D×H) | 185 × 262 × 315 mm |
Weight | 4.6 kg |
Power supply | AC 110/ 240 V |
Features
Applications
Accessories Optional
Accessories No. | Name |
1 | Eyepiece EW10X/ 20 mm |
2 | 10 X Eyepiece with cross hair |
3 | Binocular 60° viewing head, zoom objectives 0.7-3X, Zoom Ratio 1:4:3 |
4 | Auxiliary plan objective 2X, 30 mm |
5 | Auxiliary plan objective 0.75X, 120 mm |
6 | Auxiliary plan objective 0.63X, 137 mm |
7 | Auxiliary plan objective 0.5X, 180 mm |
8 | 1X C mount |
9 | 0.5X C mount |
10 | 7X photo Adapter |
11 | Polarization set |
12 | Dark field set |
13 | Moveable stage |
14 | Temperature controlled stage |
15 | Cold light illumination |
