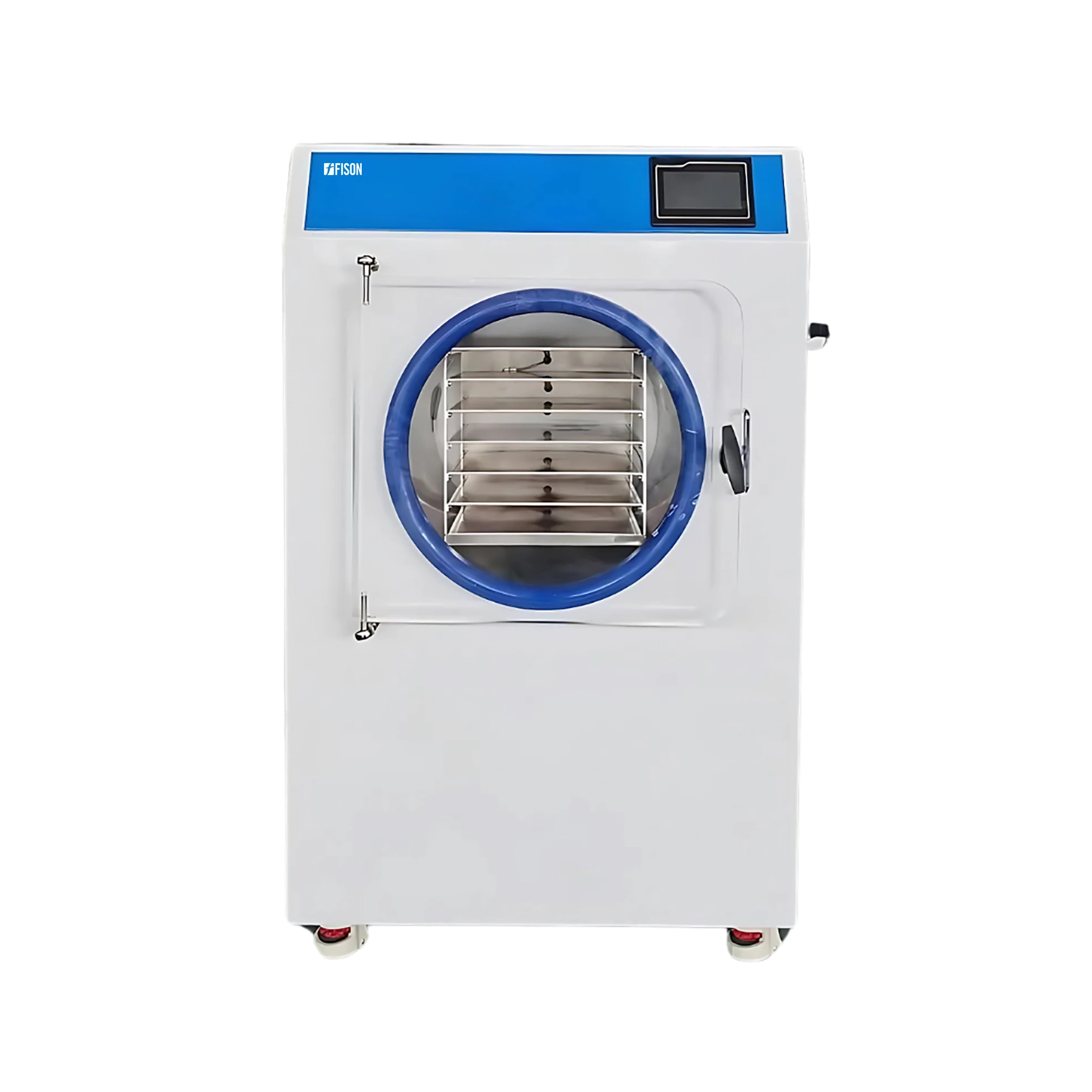

Freeze Dryer FM-FD-C103
Freeze Dryer FM-FD-C103 is a high-performance unit designed for efficient and reliable freeze-drying. It features a 2.5 m² shelf area and a 25 kg nominal input capacity for enhanced preservation. It is equipped with 10 spacious trays, providing efficient and uniform drying. It is constructed from high-quality stainless steel, ensuring exceptional durability and longevity.
Specifications
| Shelf area | 2.5 m² |
| Nominal input capacity | 25 kg |
| Max. input capacity | 37 kg |
| Max. ice capacity | 37 kg |
| Product cooling | -20 to -30°C |
| Product cooling way | In dryer |
| Ice condenser | -25 to -35°C |
| Tray quantity | 10 pcs |
| Tray size | 405 × 605 mm |
| The way of cooling | By air |
| Ultimate vacuum | 15 Pa |
| Compressor | Economical |
| Vacuum pump | Economical |
| Other accessories | Economical |
| Power consumption | 7 kW |
| Power phase | Three phases |
| Power voltage | 200 to 480V |
| Power frequency | 50/60Hz |
| Installation area | 4 m² |
| Dimension | 1960 × 960 × 1580 mm |
| Weight | 540 kg |
Features
- Reliable Ice Condenser
- Compact design
- Tray Configuration
- Advanced Air-cooling system
- Efficient Cooling
- Energy efficient
Applications
- Freeze Dryer is used in the Pharmaceutical Industry, Biotechnology Research, Food Industry, Chemical Industry, and Environmental Science.
