Freeze Dryer FM-FD-C102 Freeze Dryer FM-FD-C102 Freeze Dryer FM-FD-C102

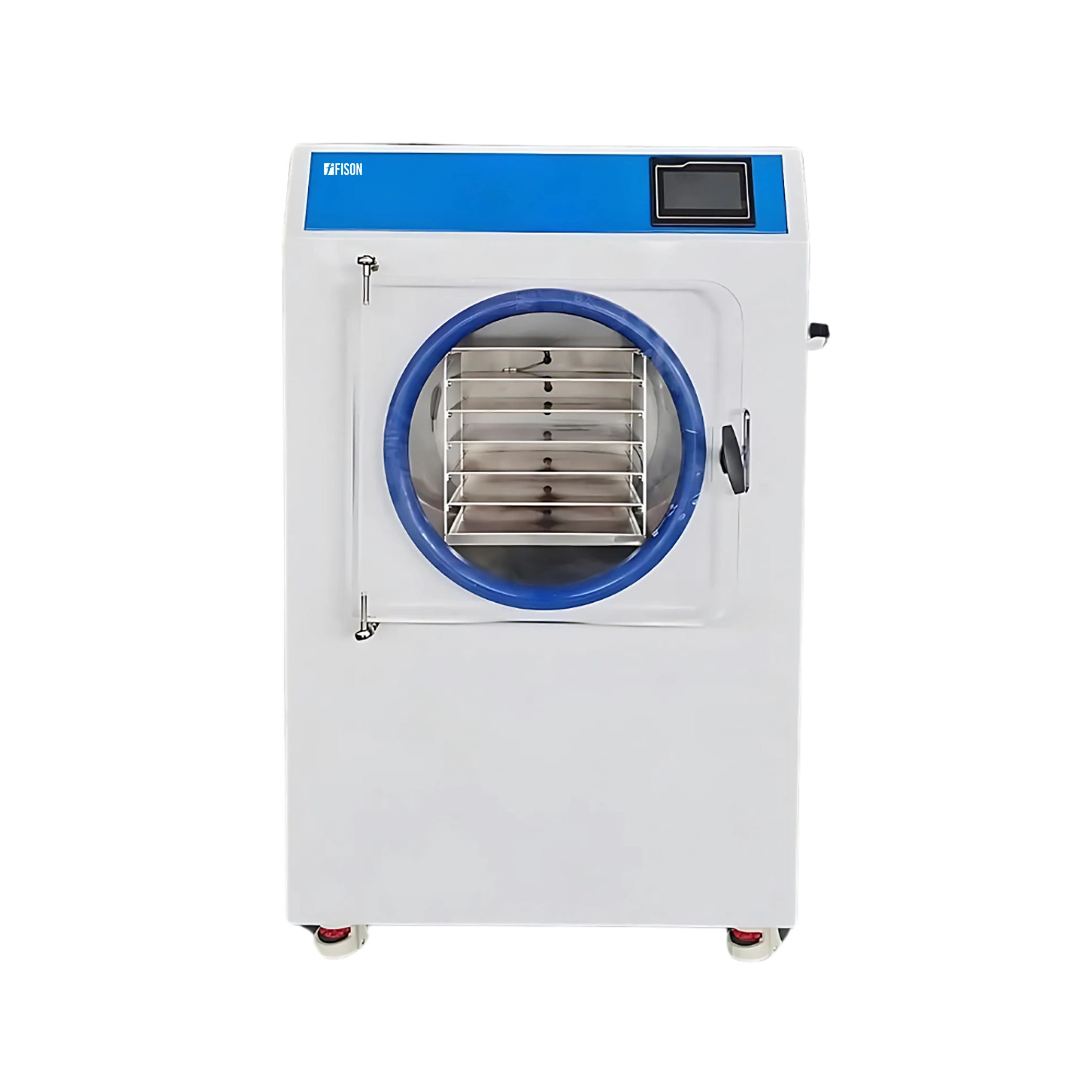

Freeze Dryer FM-FD-C102

Freeze Dryer FM-FD-C102 offers a precise temperature range of -25°C to -35°C for optimal performance. It features a 1 m² shelf area and a 10 kg nominal input capacity, ensuring efficient and uniform drying. It has 12 trays, ensuring efficient and organized drying of multiple samples. It is equipped with a digital display for precise operation and seamless functionality.

Specifications

Shelf area 1 m²
Nominal input capacity 10 kg
Max. input capacity 15 kg
Max. ice capacity 15 kg
Product cooling -20 to -30°C
Product cooling way In dryer
Ice condenser -25 to -35°C
Tray quantity 12 pcs
Tray size (mm) 245 × 315
The way of cooling By air
Vacuum (Pa) 15 Pa
Compressor Economical
Vacuum pump Economical
Other accessories Economical
Power phase Single
Power voltage 220/115V
Power frequency 50/60Hz
Power consumption 3.5 kW
Installation area 3 m²
Dimension 1210 × 650 × 1150 mm
Weight 305 kg

Features

  • Reliable Ice Condenser
  • Durable Construction
  • Compact design
  • Advanced Air-cooling system
  • Efficient Cooling
  • Energy efficient

Applications

  • Freeze Dryer is used in the Pharmaceutical Industry, Biotechnology Research, Food Industry, Chemical Industry, and Environmental Science.

Alternative Models Of Standard Freeze Dryer

Lyophilizer Freeze Dryer FM-FD-A100

  • Sample Capacity: 3 L
  • Freeze Drying Area: 0.3 m²
  • Temperature Range: -50 °C to70 °C
Catalog

Freeze Dryer FM-FD-C100

  • Shelf Area: 0.2 m²
  • Nominal Input Capacity: 2 kg
  • Maximum Input Capacity: 3 kg
Catalog

Freeze Dryer FM-FD-C101

  • Shelf area: 0.5 m²
  • Nominal input capacity: 5 kg
  • Max. input capacity: 7.5 kg
Catalog
Freeze Dryer FM-FD-C103
  • Shelf area: 2.5 m²
  • Nominal input capacity: 25 kg
  • Max. input capacity: 37 kg
Catalog

Lyophilizer Freeze Dryer

Fison Lyophilizer Freeze Dryer features a compact design, making it ideal for laboratories with limited space while still delivering high-performance freeze-drying capabilities. They include an off-cycle defrosting system that reduces maintenance by preventing and automatically clearing ice buildup. The CFC-free refrigerant enhances environmental sustainability while ensuring reliable cooling performance during the freeze-drying process. These high-speed vacuum pump ensures rapid and effective drying by maintaining optimal vacuum conditions. Our Lyophilizer Freeze Dryer Automatic data saving records essential temperature and vacuum data for accuracy and easy future analysis.

Lyophilizer Freeze Dryer FM-FD-B100

  • Freeze Drying Area : 0.12m²
  • Ice Condenser Capacity : 3 to 4 kg /24h
  • Condenser Temperature : -50℃
Catalog

Vacuum Freeze Dryer

Our Vacuum Freeze Dryer are equipped with high-efficiency cold traps and powerful vacuum systems, these dryers ensure optimal drying performance and long-term preservation. A user-friendly touchscreen interface provides real-time monitoring of temperatures, vacuum levels, and system status, while built-in programs and customizable settings offer flexibility for various material types. They are constructed with food-grade materials to offer safety. Low-noise operation, data export via USB, and optional oil-free pumps further enhance convenience, making vacuum freeze dryers a reliable solution for home, lab, and small-scale commercial use.

Vacuum Freeze Dryer FM-VFD-A100

  • Freeze dried area : 0.8M²
  • Handling capacity : 8 to 10 kg/batch
  • Cold trap temperature : -35°C
Catalog
Vacuum Freeze Dryer FM-VFD-A101
  • Freeze dried area : 1.0M²
  • Handling capacity : 10 to 12 kg/batch
  • Cold trap temperature : -35°C
Catalog
Vacuum Freeze Dryer FM-VFD-A102
  • Freeze dried area : 1.5M²
  • Handling capacity : 15 to 20 kg/batch
  • Cold trap temperature : -60°C
Catalog
