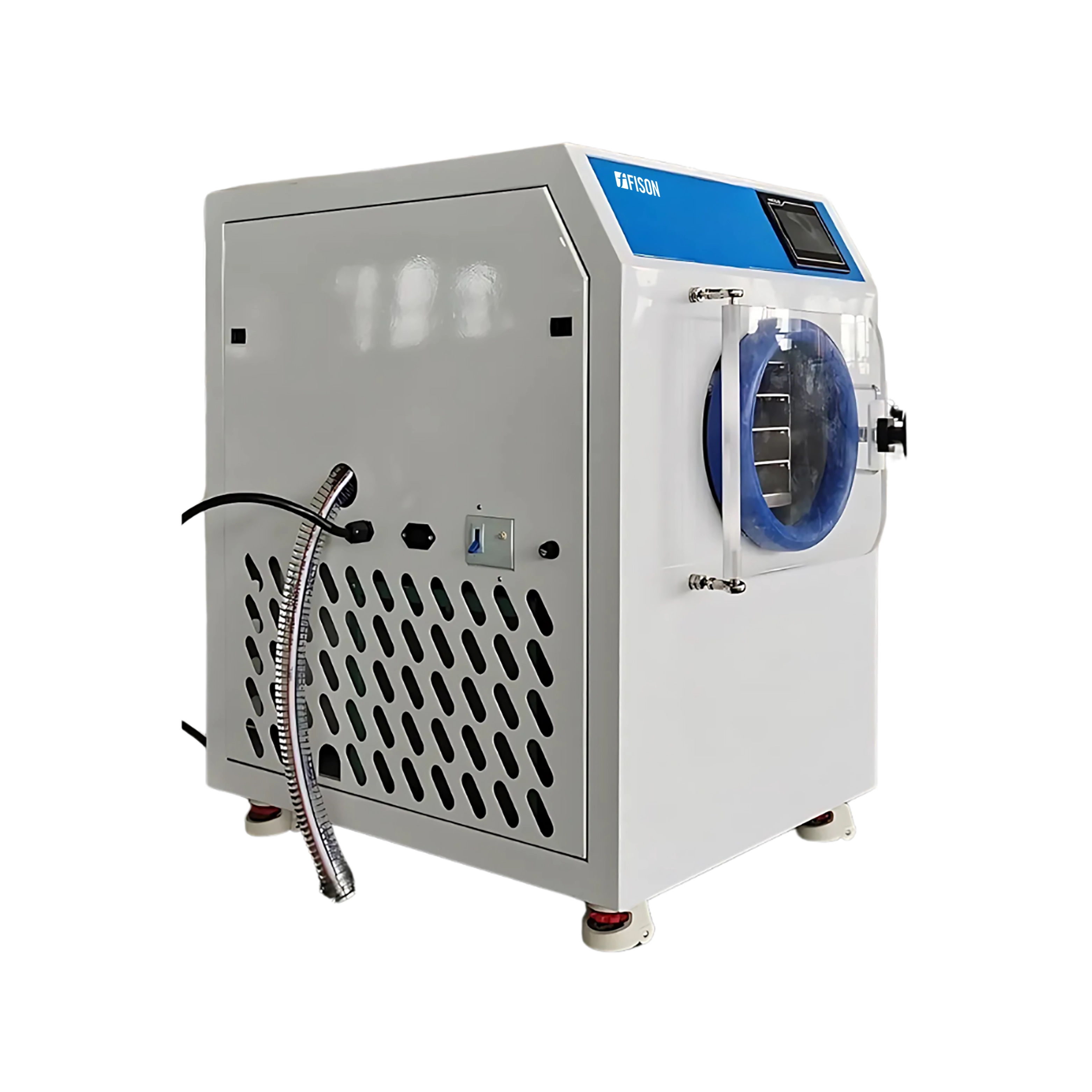

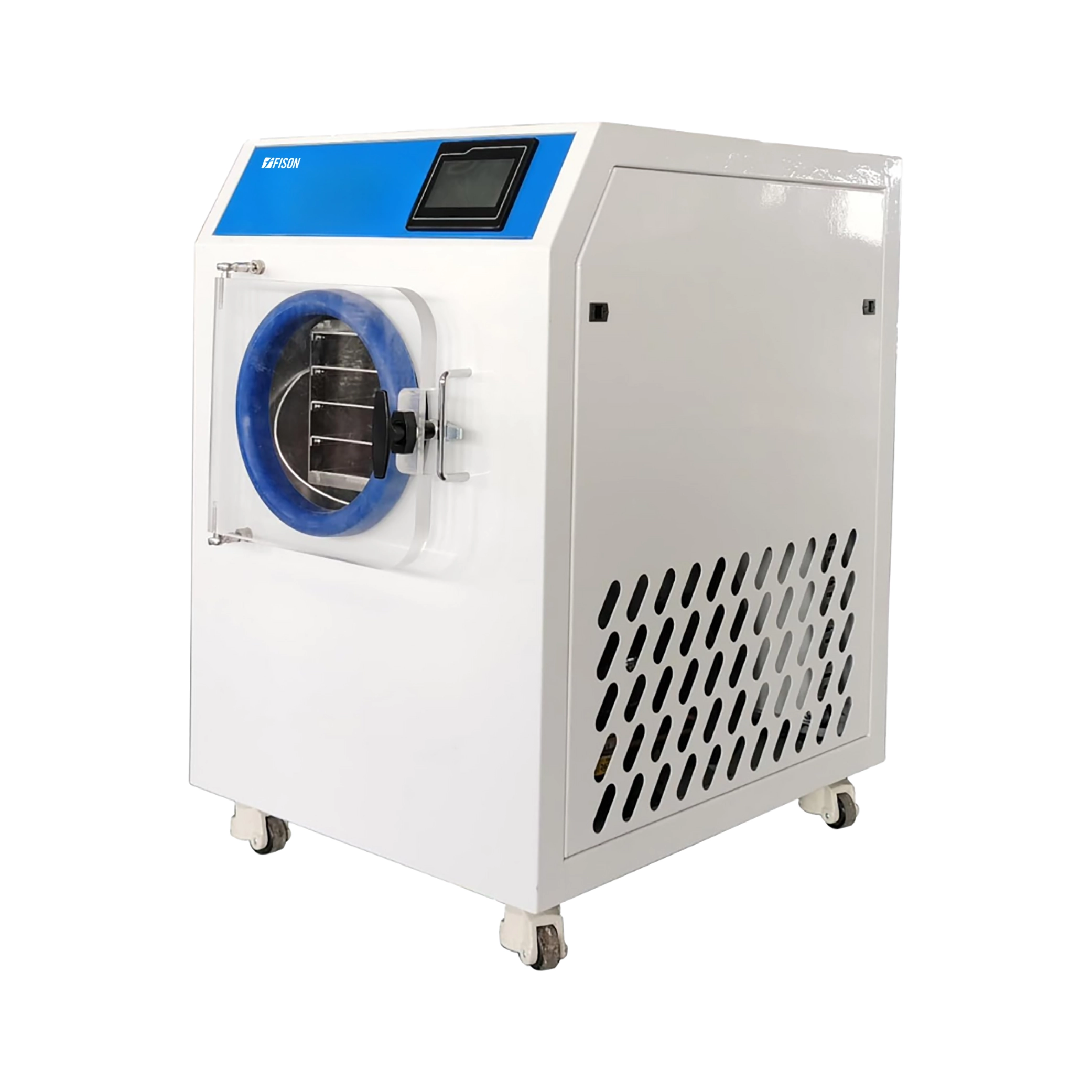

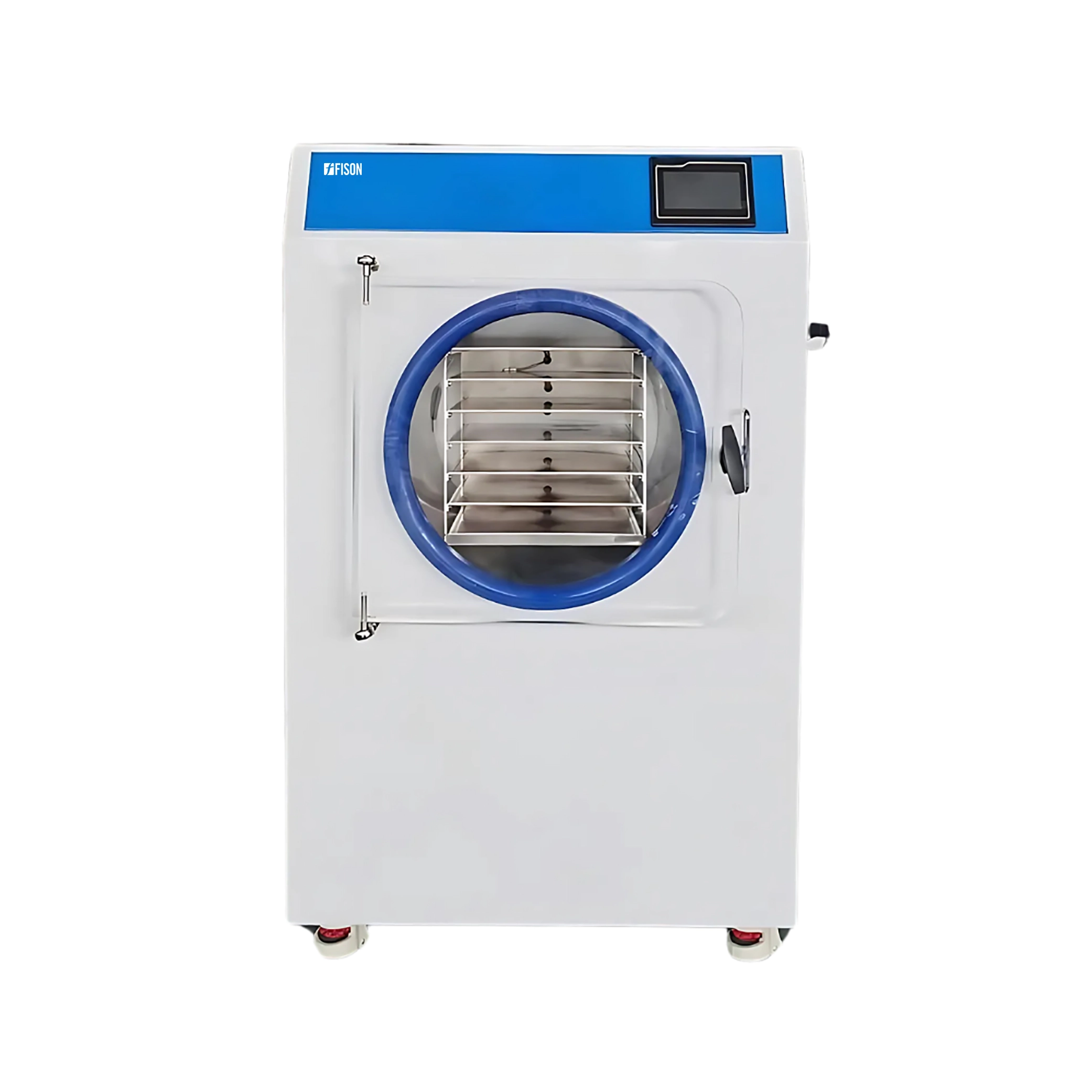

Freeze Dryer FM-FD-C100

Freeze Dryer FM-FD-C100

Freeze Dryer FM-FD-C100 features a 0.2 m² shelf area and a 2 kg nominal input capacity, ensuring efficient and uniform drying. It operates within a temperature of -25°C to -35°C, ensuring optimal drying performance and preservation. It features a vacuum pump, operating at 15 Pa to provide efficient moisture removal. It utilizes an air-cooled system, ensuring consistent and energy-efficient performance. Our freeze dryer features a digital display for precise control and monitoring.

Specifications

Shelf Area 0.2 m²
Nominal Input Capacity 2 kg
Maximum Input Capacity 3 kg
Maximum Ice Capacity 3 kg
Product Cooling Temperature -20°C to -30°C
Product Cooling Method In dryer
Ice Condenser Temperature -25°C to -35°C
Tray Quantity 8 pcs
Tray Size 138 × 180 mm
Cooling Method Air-cooled
Vacuum Level 15 Pa
Compressor Standard
Vacuum Pump Standard
Other Accessories Standard
Power Phase Single
Power Voltage 220V/115V
Power Frequency 50/60 Hz
Power Consumption 1.2 kW
Installation Area 1 m²
Dimensions 750 × 530 × 810 mm
Weight 160 kg

Features

  • Reliable Ice Condenser
  • Compact design
  • Tray Configuration
  • Advanced Air-cooling system
  • Efficient Cooling
  • Energy efficient

Applications

  • Freeze Dryer is used in the Pharmaceutical Industry, Biotechnology Research, Food Industry, Chemical Industry, and Environmental Science.

Alternative Models Of Standard Freeze Dryer

Lyophilizer Freeze Dryer FM-FD-A100

  • Sample Capacity: 3 L
  • Freeze Drying Area: 0.3 m²
  • Temperature Range: -50 °C to70 °C
Catalog

Freeze Dryer FM-FD-C101

  • Shelf area: 0.5 m²
  • Nominal input capacity: 5 kg
  • Max. input capacity: 7.5 kg
Catalog

Freeze Dryer FM-FD-C102

  • Shelf area : 1 m²
  • Nominal input capacity: 10 kg
  • Max. input capacity: 15 kg
Catalog
Freeze Dryer FM-FD-C103
  • Shelf area: 2.5 m²
  • Nominal input capacity: 25 kg
  • Max. input capacity: 37 kg
Catalog

Lyophilizer Freeze Dryer

Fison Lyophilizer Freeze Dryer features a compact design, making it ideal for laboratories with limited space while still delivering high-performance freeze-drying capabilities. They include an off-cycle defrosting system that reduces maintenance by preventing and automatically clearing ice buildup. The CFC-free refrigerant enhances environmental sustainability while ensuring reliable cooling performance during the freeze-drying process. These high-speed vacuum pump ensures rapid and effective drying by maintaining optimal vacuum conditions. Our Lyophilizer Freeze Dryer Automatic data saving records essential temperature and vacuum data for accuracy and easy future analysis.

Lyophilizer Freeze Dryer FM-FD-B100

  • Freeze Drying Area : 0.12m²
  • Ice Condenser Capacity : 3 to 4 kg /24h
  • Condenser Temperature : -50℃
Catalog
