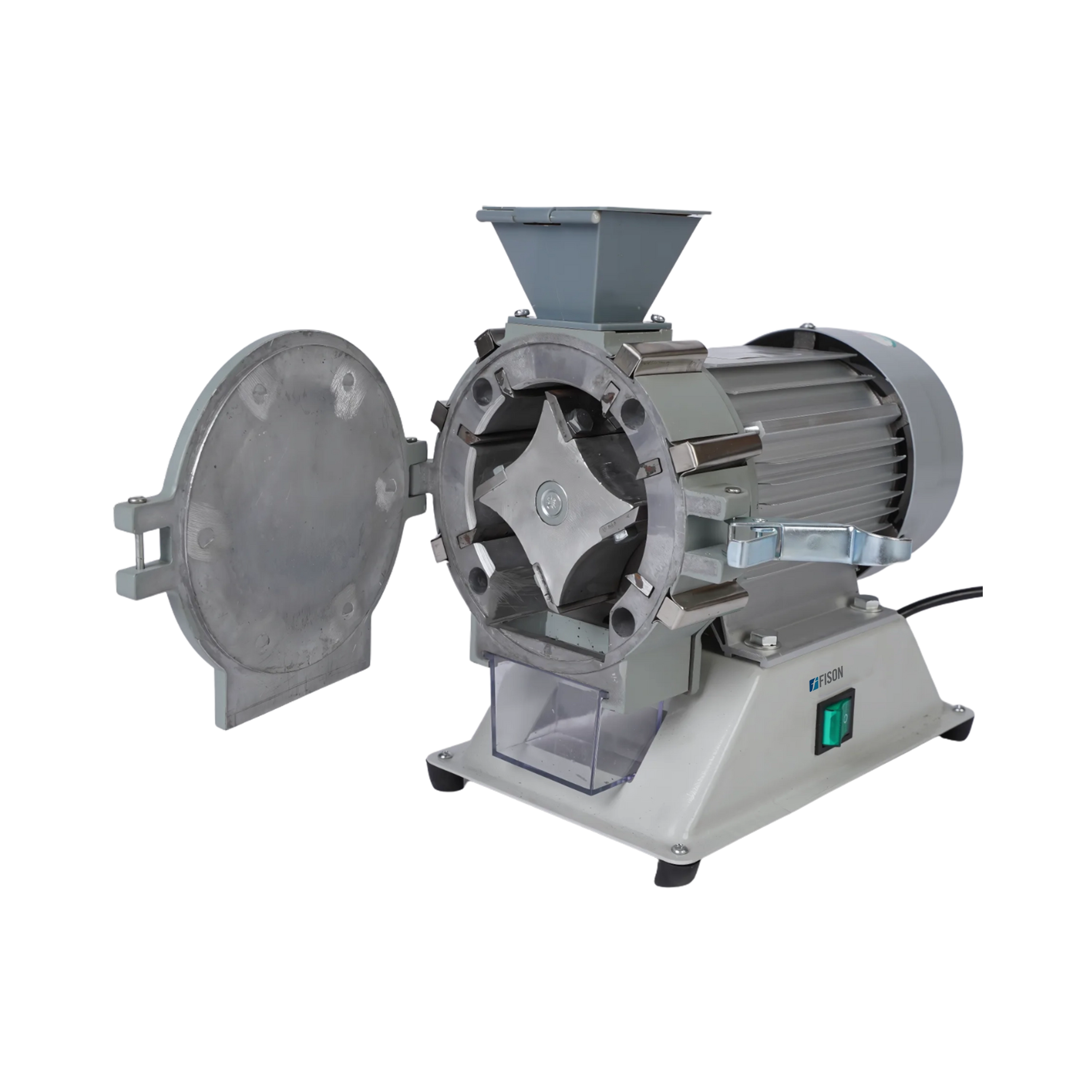

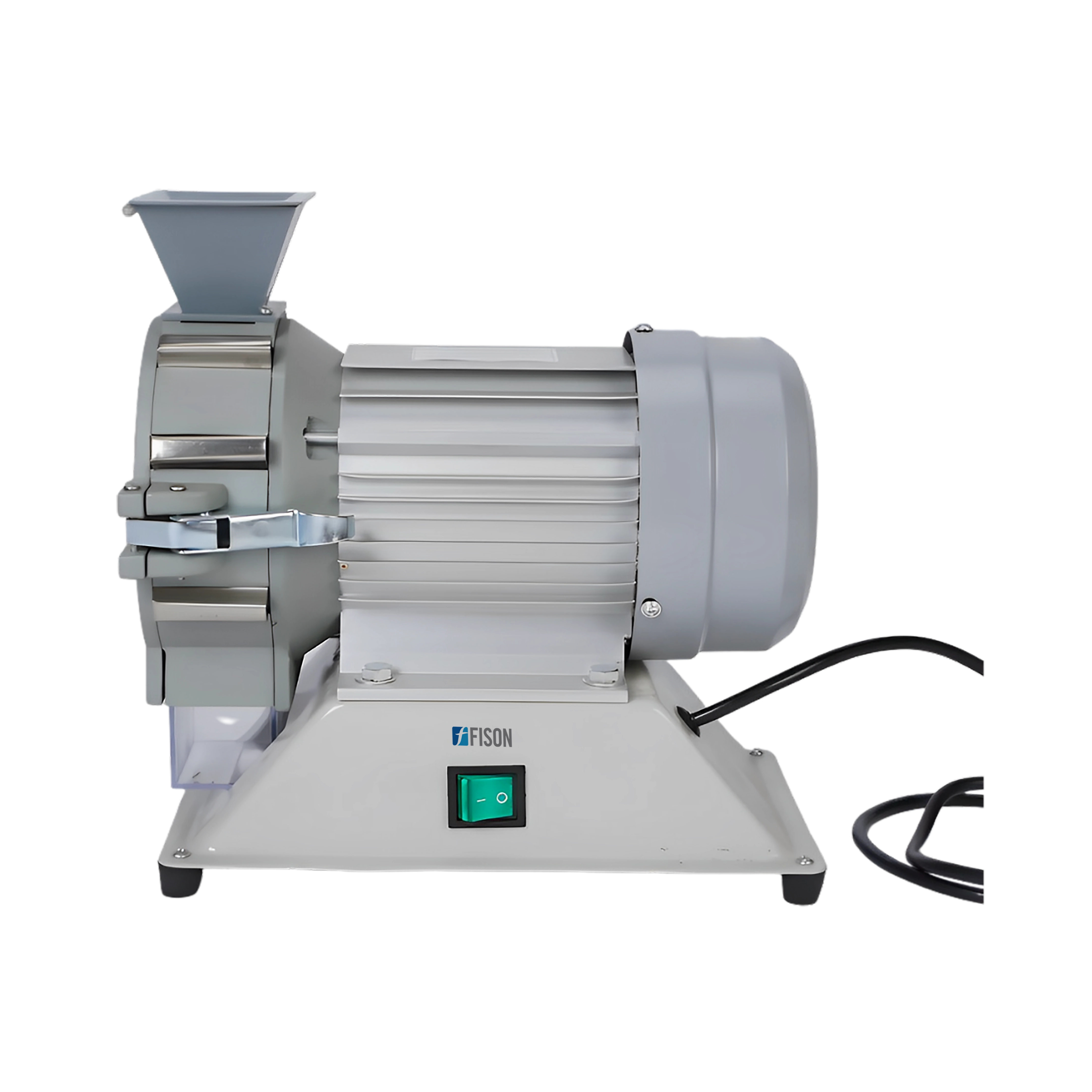

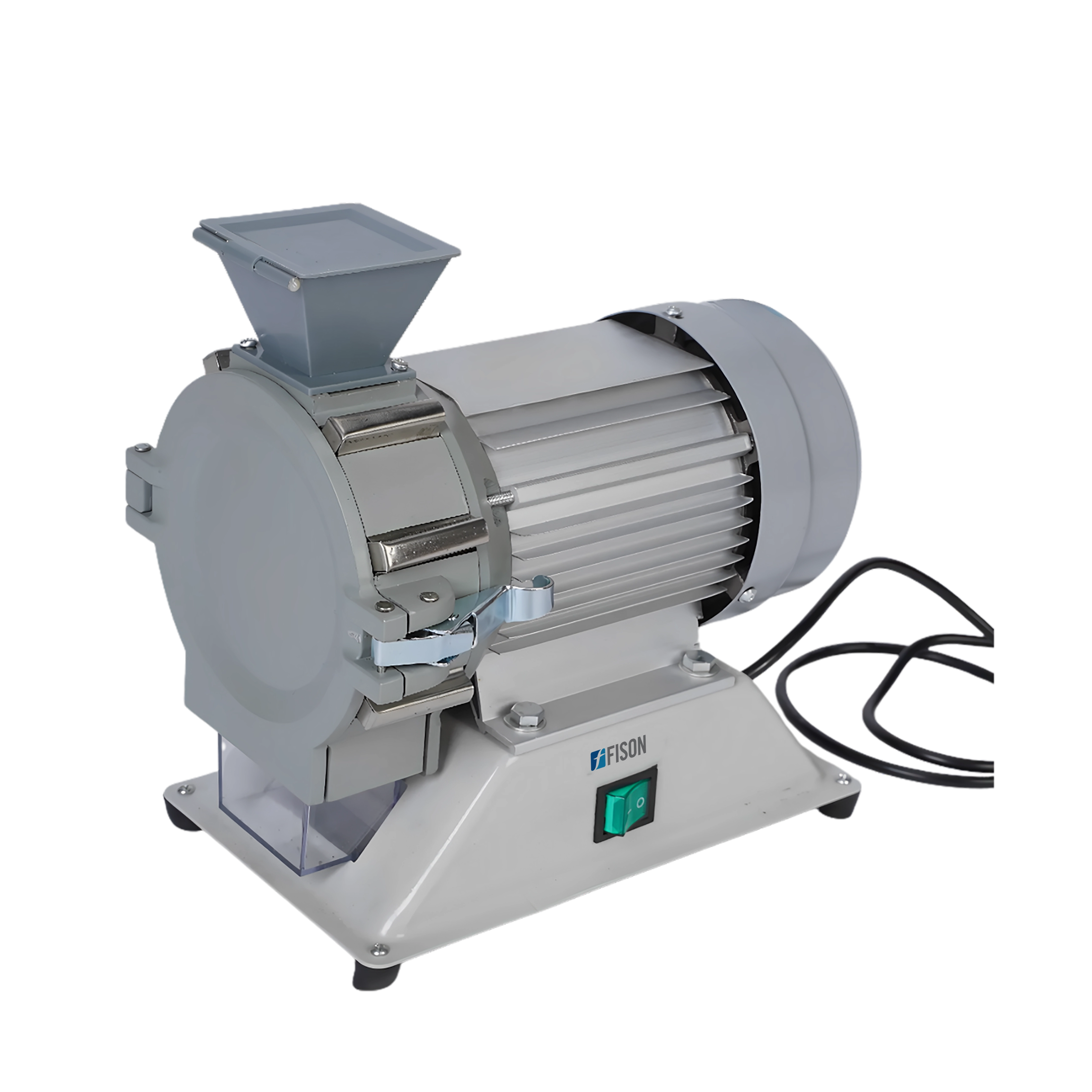

Soil Grinder FM-SG-A100

Soil Grinder FM-SG-A100 features a high-speed 1400 RPM motor for efficient soil crushing. It is provided with adjustable grinding mesh range of 30 to 120 for precise control over particle size, enabling consistent results. It utilizes collision and crushing work mode for efficient particle breakdown and uniform grinding through high-speed impact and friction. Its durable design and minimal maintenance make it a reliable tool for soil analysis.

Specifications

Speed 1400 RPM max
Sample capacity 50g
Mesh size 0.5/1/1.5 mm
Working time Continuous
Work mode Collision crashing and mesh
Grinding (mesh) 30 to 120
Power supply 220 V 50 Hz
Dimension (L×B×H) 270×180×280 mm
Package dimension (L×B×H) 350×225×340 mm
Net weight 13.5kg
Gross weight 19.5kg

Features

  • Compact and lightweight
  • High crushing efficiency
  • Easy to operate and clean
  • Low power consumption

Applications

  • Our Soil Grinder is ideal for agricultural research, laboratories, testing facilities and geological exploration to ensure precise sample preparation for analysis.

Accessories

    1. Fuse

    2. Brush

    3. Wrench

    4. Grinding knife

Soil Testing Kit

Fison offers Soil Testing Kit, an advanced high-performance solution for precise soil analysis. It is powered by an Android OS, ensuring ultra-fast performance and stability. It features a multichannel rotating detection system, enabling simultaneous testing for increased efficiency. Its built-in AI-based fertilization guide optimizes nutrient recommendations for crops. Our kit is equipped with a 7-inch HD true-color touchscreen and offers an intuitive interface for seamless operation.

Soil Testing Kit FM-STK-A100

  • pH Value (Acidity/Alkalinity) : Test Range: 1 to 14, Accuracy: 0.01,Error: ±0.1
  • Soil Moisture Parameters : Moisture Unit: % (g/100g), Test Range: 0 to 100%, Error: Less than 0.5%
  • Range & Resolution : 0.001 to 9999
Catalog

Liquid Limit Apparatus

Fison’s Liquid Limit Apparatus are designed to determine moisture content in the soil. They feature a durable brass dish that provides a non-corrosive and stable testing surface. They are equipped with built-in stroke counter, automating test tracking for improved accuracy. Their high quality rubber and plastic pedestal absorbs impact, stabilizing the testing process. Our Liquid Limit Apparatus care widely used in geotechnical engineering, soil research and construction projects for reliable soil consistency analysis.

Liquid Limit Apparatus FM-LLA-A100

  • Type : Motor operated
  • Disc falling frequency : 120hits/min (allowed error 15%)
  • Power supply : 240 V
