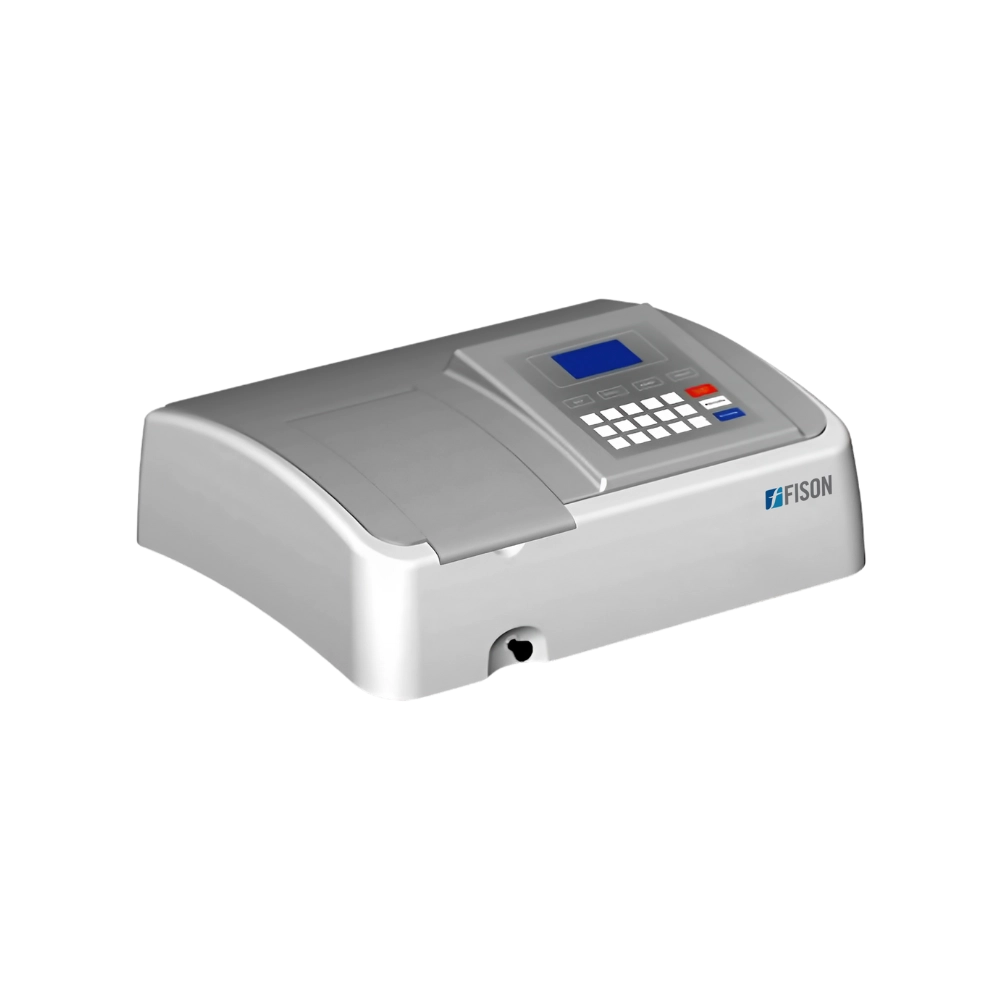

Single Beam UV-Visible Spectrophotometer FM-UVS-A102

Name: Single Beam UV-Visible Spectrophotometer FM-UVS-A102
Brand: Fison
SKU: FM-UVS-A102
Rating: 4.7 (254 reviews)

Single Beam UV-Visible Spectrophotometer FM-UVS-A102 operates with wavelength range of 190 nm to 1100 nm and spectral bandwidth 4 nm. Equipped with large LCD display and a USB interface which allows it to plug directly to computer for output results. It uses silicon photodiode detector, deuterium and tungsten lamp as light source which provides best wavelength coverage across working range of spectrophotometer. This single beam spectrophotometer has highly stable optics with 1200 lines/mm grating. System save test results up to 200 group data and 100 standard curves. Software M. Wave Professional provides complete control of the spectrophotometer through a computer with built-in USB port. It can expand to the following functions: Quantitative, Kinetics, Wavelength Scan, Multi-wavelength & DNA/Protein Test.

Catalog Buy Now

✔ LCD screen (128 × 64 dots)
✔ Wavelength range 190 nm to 1100 nm
✔ 1200 lines / mm grating optical system
✔ Spectral bandwidth 4 nm
✔ Built-in M. Wave Professional Software
✔ Wavelength repeatability 0.3 nm
✔ Automatic 0 % transmittance
✔ 100 % transmittance calibration
✔ Large sample compartment accommodate 5 to 100 mm path length cuvettes
✔ High accuracy with digital wavelength display
✔ Data restores after sudden power cut
✔ Auto setting of wavelength
✔ System save test results 200 group data and 100 standard curves

Wavelength range	190 nm to 1100 nm
Spectral bandwidth	4 nm
Optical system	Single beam, grating 1200 lines / mm
Wavelength accuracy	± 0.5 nm
Wavelength repeatability	0.3 nm
Photometric range	T: 0 to 200% , A: (-0.3) to 3, C: 0 to 9999
Photometric accuracy	T: ≤ ±0.5%, A: ±0.003 % @ 1 A
Light source	Tungsten lamp and deuterium lamp
Stray light	≤ 0.05 % T @ 360 nm
Stability	±0.002 A/h @ 500 nm
Display	LCD (128 × 64 dots)
Standard cell holder	4 position 10 mm cell changer
Sample compartment	Standard 10 mm path length cuvette
Detector	Silicon photodiode
Output	USB port and parallel port (printer)
Power requirement	AC 110 / 220 V, 50 / 60 Hz
Dimensions (W × D × H)	470 × 370 × 180 mm
Weight	14 kg

Used in biochemistry, biotechnology, microbiology, chemistry, pharmacy, water testing, environmental and food science industries for detection of impurities, functional groups, and quality analysis and research.
