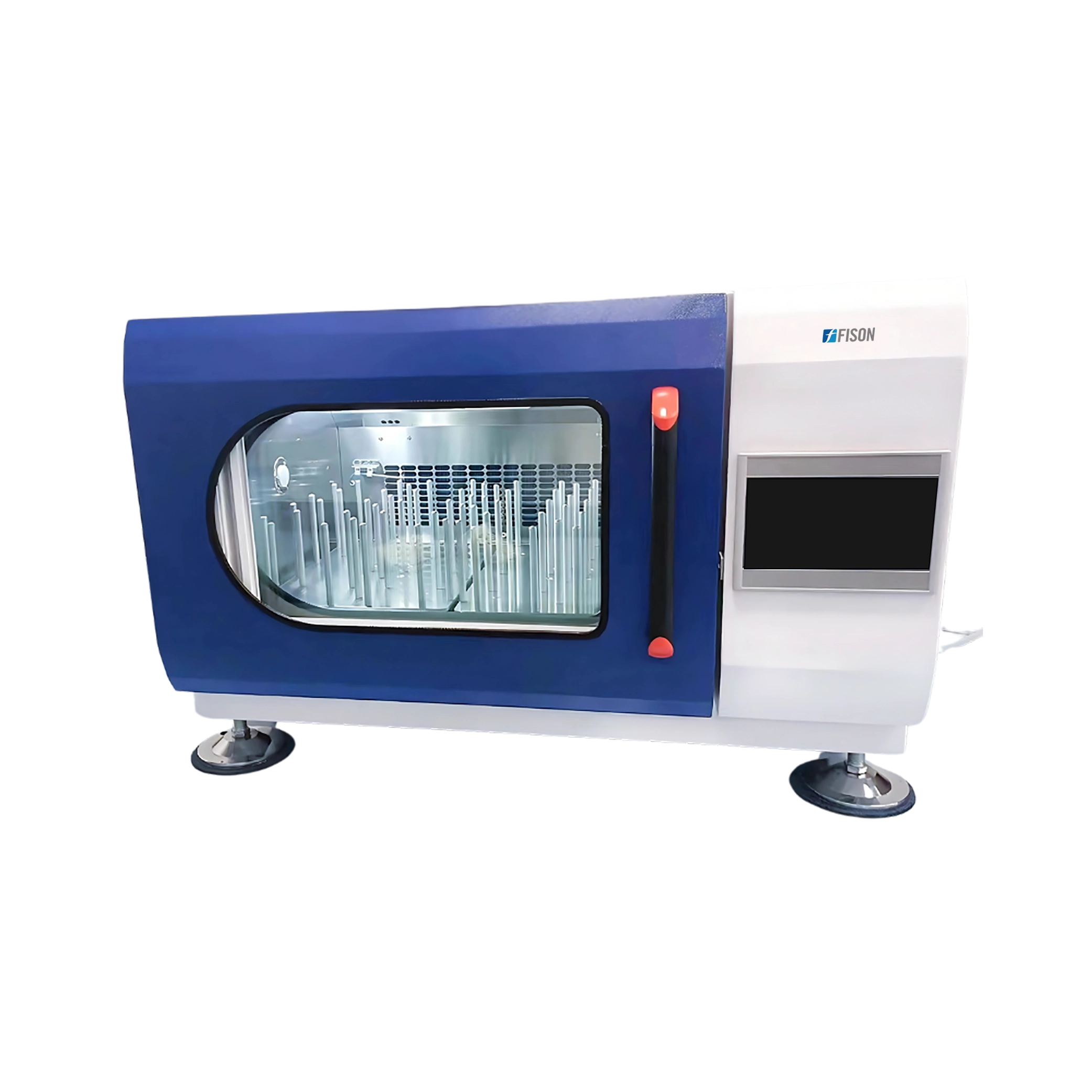

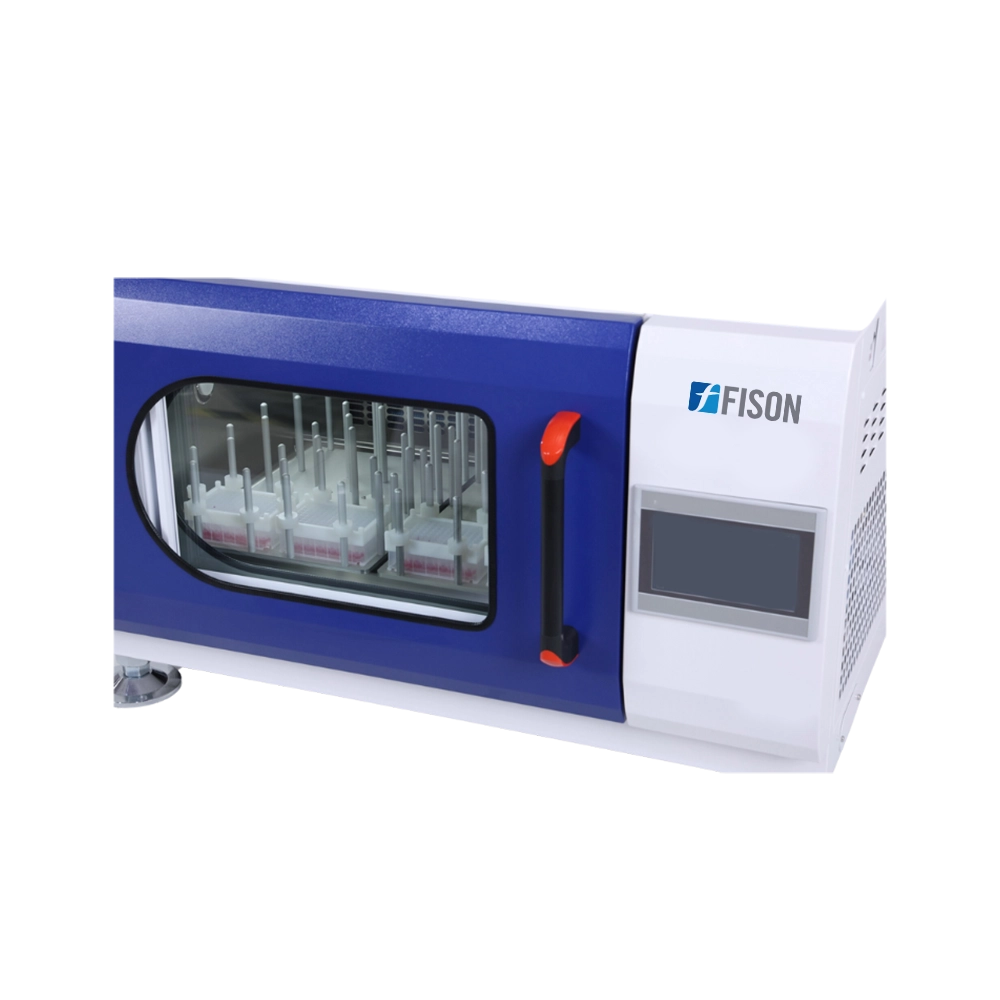

Shaking Incubator FM-IS-A109

Shaking Incubator FM-IS-A109

Shaking Incubator FM-IS-A109 has precise temperature distribution with accuracy of ±0.5 °C at 37 °C, ensuring optimal conditions for sensitive biological cultures. This energy-efficient incubation minimizes operational costs and supports sustainable lab practices. Its efficient design includes features for dark culture conditions, making it ideal for light-sensitive experiments. Our shaker has long-lasting machine life for consistent, high-quality results.

Specifications

Total Volume 160 L
Temperature Range 4 to 60°C
Rotation Speed 2 to 300 rpm
Speed Control Accuracy ± 1 rpm
Temperature Display Resolution 0.1°C
Temperature Distribution ± 0.5°C at 37°C
Ambient Temperature Range 5 to 35°C
Sterilization Method UV sterilization
Shaking Throw 26 mm
Shaking Motion Orbital
Temperature Sensor Pt-100
Maximum Loading Capacity 35 kg
Temperature Control Mode PID control
Maximum Working Height 340 mm
Control Interface Push-button operation panel
Timer 0~999 hours
Maximum Stackable Units Up to 3 units
Number of Settable Programs 5
Number of Stages Per program 30
Illumination FI tube, 30 W
Maximum Power Consumption 1300 W
Power Supply 115/230 V ± 10%, 50/60 Hz
Tray Size 288 × 404 mm
Tray Capacity for Shake Flasks 32 (deep well plate, low well plate, 24, 48 and 96 well plate)
Dimensions (W × D × H) 1000 × 725 × 620 mm 1000 × 725 × 1170 mm 1000 × 725 × 1720 mm
Internal Dimensions (W × D × H) 720 × 632 × 475 mm
Weight 145 kg

Features

  • Stable high-speed operation
  • Secure culture environment
  • Extended service lifespan
  • High-speed stackable operation
  • Non-deformable aluminum tray

Applications

  • Shaking Incubator FM-IS-A109 offers precise temperature and speed control with built-in UV sterilization, ensuring contamination-free incubation and shaking. Its stackable design saves space and is ideal for lab cell culture, microbial fermentation, and molecular biology.

Accessories Optional

  • Removable Shake Tray
    125 mL Flask Clamp
    250 mL Flask Clamp
    500 mL Flask Clamp
    1000 mL Flask Clamp
    2000 mL Flask Clamp
    Adjustable Angle Test Tube Rack (50 mL×15; 15 mL×28)
    Adjustable Angle Test Tube Rack (15 mL×60)
    Adjustable Angle Test Tube Rack (50 mL×30)
