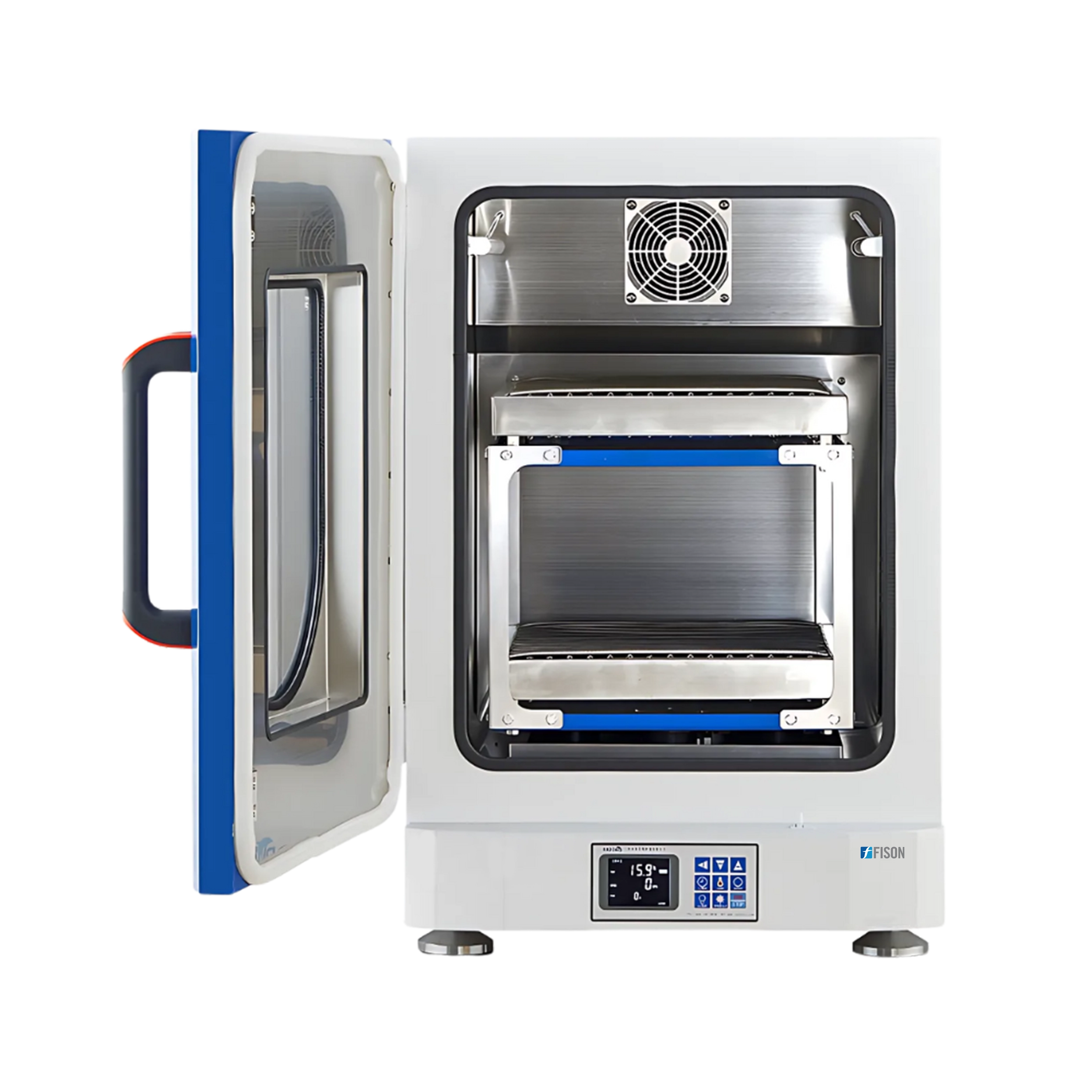

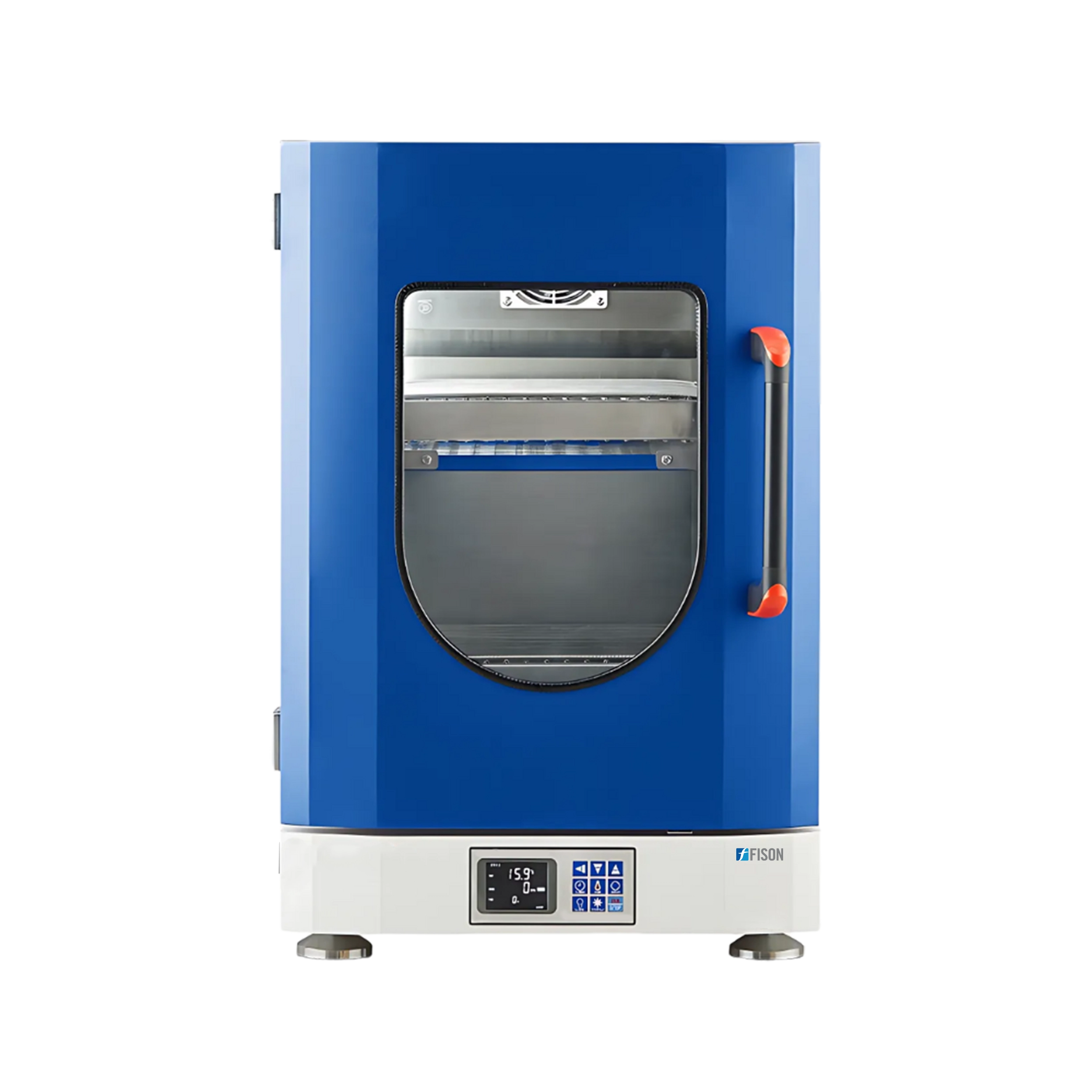

Shaking Incubator FM-IS-A106

Shaking Incubator FM-IS-A106

Shaking Incubator FM-IS-A106 features a spacious 110 L chamber volume for large batches of samples. The temperature overshoot protection ensures stable temperature control. The balanced oscillation system requires uniform and consistent shaking, essential for optimal sample mixing and culture growth. Our shaker allows for independent operation and maximum productivity in a multi-unit setup.

  •  Safety-first operation
  •  Power failure recovery
  •  Sound-light alarm system
  •  Memory retention feature
  •  Automatic start-up function

Total Volume 110 L
Temperature Range 4 to 60°C
Rotation Speed 2 to 300 rpm
Speed Control Accuracy ± 1 rpm
Temperature Display Resolution 0.1°C
Temperature Distribution ± 0.5°C at 37°C
Ambient Temperature Range 5 to 35°C
Sterilization Method UV sterilization
Shaking Throw 26 mm
Shaking Motion Orbital
Temperature Sensor Pt-100
Maximum Loading Capacity 35 kg
Temperature Control Mode PID control
Maximum Working Height 340 mm
Control Interface Push-button operation panel
Timer 0~999 hours
Maximum Stackable Units Up to 3 units
Maximum Power Consumption 800 W
Power Supply 115/230 V ± 10%, 50/60 Hz
Tray Size 370 × 400 mm
Tray Capacity for Shake Flasks 16 × 250 ml or 11 × 500 ml or 9 × 1000 ml
Dimensions (W × D × H) 550 × 666 × 850 mm 550 × 666 × 1650 mm
Internal Dimensions (W × D × H) 460 × 470 × 650 mm
Weight 95 kg

Shaking Incubator FM-IS-A106 offers precise temperature and speed control with built-in UV sterilization, ensuring contamination-free incubation and shaking. Its stackable design saves space and is ideal for lab cell culture, microbial fermentation, and molecular biology.

Removable Shake Tray


125 mL Flask Clamp
250 mL Flask Clamp
500 mL Flask Clamp
1000 mL Flask Clamp
2000 mL Flask Clamp
Adjustable Angle Test Tube Rack (50 mL×15; 15 mL×28)
Adjustable Angle Test Tube Rack (15 mL×60)
Adjustable Angle Test Tube Rack (50 mL×30)
