Shaking Incubator FM-IS-A100

Shaking Incubator FM-IS-A100

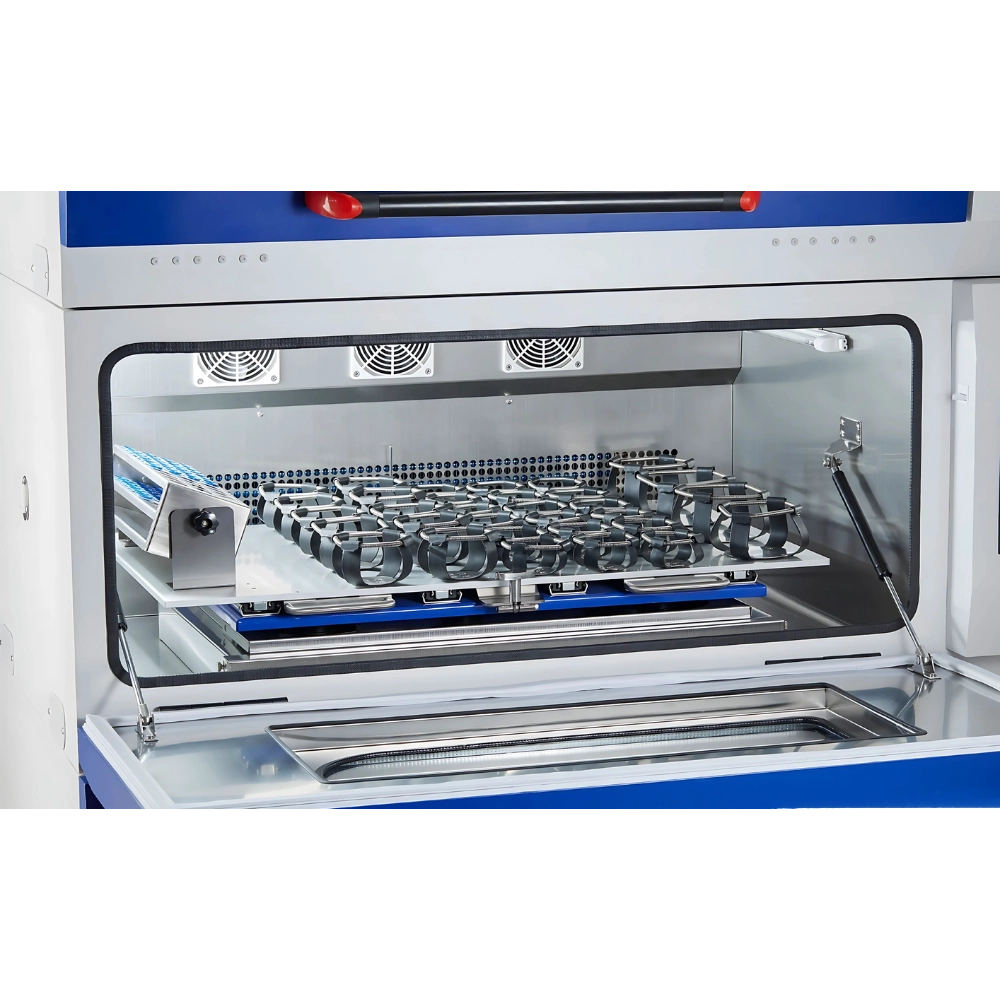

Shaking Incubator FM-IS-A100 has a temperature range of 4 to 60°C for precise control over incubation from low to high temperature. Its energy-efficient incubation optimizes power consumption while maintaining stable performance. The unit ensures stable high-speed operation, providing consistent and reliable shaking throughout. Our shaker includes non-deformable aluminum trays, ensuring durability even under heavy use and high temperatures.

  •  Optimized dark culture
  •  Easy-to-read digital monitor
  •  Simple push-button operation
  •  Digital Temperature Monitor
  •  Photosensitive media protection

Total Volume 315 L
Temperature Range 4 to 60°C
Rotation Speed 2 to 300 rpm
Speed Control Accuracy ± 1 rpm
Temperature Display Resolution 0.1°C
Temperature Distribution ± 0.5°C at 37°C
Ambient Temperature Range 5 to 35°C
Sterilization Method UV sterilization
Shaking Throw 26 mm
Shaking Motion Orbital
Temperature Sensor Pt-100
Maximum Loading Capacity 50 kg
Temperature Control Mode PID control
Maximum Working Height 340 mm
Control Interface Push-button operation panel
Timer 0~999 hours
Maximum Stackable Units Up to 3 units
Maximum Power Consumption 1400 W
Power Supply 115/230 V ± 10%, 50/60 Hz
Tray Size 520 × 880 mm
Tray Capacity for Shake Flasks 60 × 250 ml; 40 × 500 ml; 24 × 1000 ml; 15 × 2000 ml
Dimensions (W × D × H) 1330 × 820 × 620 mm (1 unit) 1330 × 820 × 1170 mm (2 units) 1330 × 820 × 1720 mm (3 units)
Internal Dimensions 1070 × 730 × 475 mm
Weight 220 kg

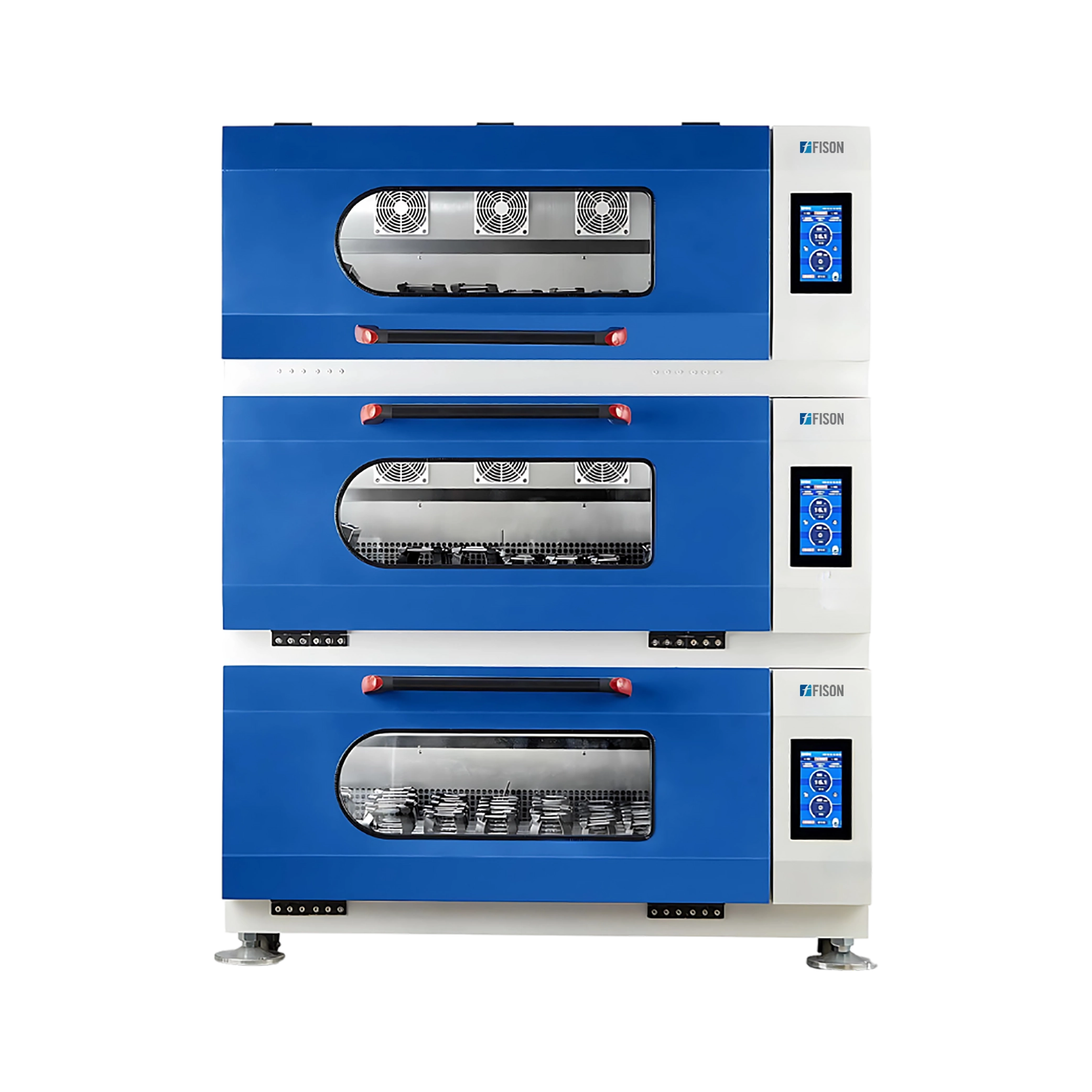

Shaking Incubator FM-IS-A100 offers precise temperature and speed control with built-in UV sterilization, ensuring contamination-free incubation and shaking. Its stackable design saves space and is ideal for lab cell culture, microbial fermentation, and molecular biology.

Removable Shake Tray


125 mL Flask Clamp
250 mL Flask Clamp
500 mL Flask Clamp
1000 mL Flask Clamp
2000 mL Flask Clamp
Adjustable Angle Test Tube Rack (50 mL×15; 15 mL×28)
Adjustable Angle Test Tube Rack (15 mL×60)
Adjustable Angle Test Tube Rack (50 mL×30)
