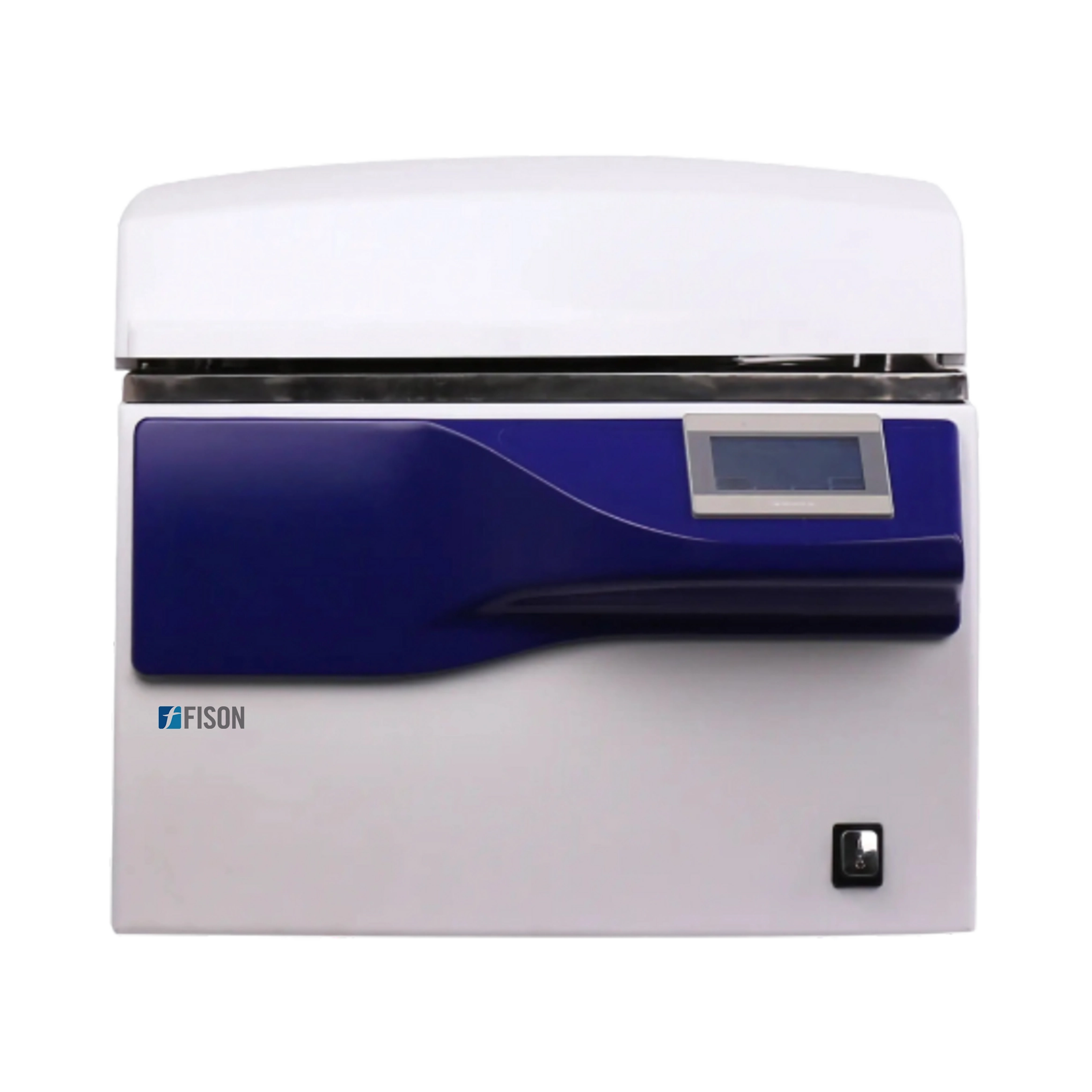

Sample Prep System FM-SAS-A100
Sample Prep System FM-SAS-A100 has a capacity of 12L ensuring optimal performance and durability. It is equipped with dual temperature and pressure control, providing precise and independent regulation for optimal process results. This includes a built-in UV lamp, ensuring effective sterilization and maintaining a contamination-free environment. Our Sample Prep System features a pressure water cooling system for efficient heat removal and stable operation.
Specifications
| Capacity | 12L |
| Chamber Size | φ300 × h260mm |
| Bucket Size | φ260 × h220mm |
| Sterilization Temperature | 70 to 130℃ |
| Packaging Temperature | 25 to 80℃ |
| Water Bath Temperature | 30 to 80℃ |
| Temperature Accuracy | ±0.1℃ |
| Temperature Deviation | ±0.5℃ |
| Max. Working Pressure | 2.5 bar |
| Pressure | 4 bar |
| Chamber Sterilization Water | Deionized pure water (Auto entry; Pressure ≥1 bar; High/low water level alarm) |
| Stirring | High speed: 240 rpm; Low speed: 120 rpm; Stepless adjustable |
| Cooling Water Interface | 2 mins inner wire, diameter 12 pagoda connector |
| Circulating Water | Pressure ≥1 bar tap water |
| Drainage Interface | 2 points inner wire, diameter 12 pagoda connector |
| Time Setting Accuracy | ±1 min |
| Subpackaging Port | Three |
| Feeding Port | One (for aseptic material addition) |
| Separate Hose | Inner diameter: 6mm; Thickness: 2mm |
| Media Adding Port | Diameter: 32mm |
| Subpackaging Accuracy | ~1% |
| Standard Packaging Capacity | 800 / h |
| Ambient Temperature | 25℃, RH ≤90% |
| Power Supply | AC220V ±10%, 50/60Hz Max. Current: 20A |
| Packing Dimensions (L×W×H) | 900 × 800 × 1120 mm, 1150 × 850 × 1150 mm |
| Sample Prep Dimensions (L×W×H) | 555 × 700 × 550 mm |
| Sample Fill Dimensions (L×W×H) | 720 × 640 × 1000 mm |
| Tube Fill Dimensions (L×W×H) | 412 × 292 × 344 mm |
| Sample Prep Weight | 85 kg |
| Sample Fill Weight | 46 kg |
| Tube Fill Weight | 17 kg |
| Net Weight | 100kg |
| Gross Weight | 178kg |
Features
- Accurate peristaltic pump
- Efficient SDB-tube fill system
- Reliable drainage connection
- Adjustable stirring speeds
- Integrated monitoring system
Applications
- Sample Prep System FM-SAS-A100 is widely used in laboratories, research facilities, and medical institutions for precise sample preparation, sterilization, and packaging. It is ideal for applications such as blood culture preparation, liquid handling, and aseptic processing.
Accessories
Name Quantity SDB-Sample prep 12 Media Preparator 1 Set Media container 1 Set Magnetic stirring unit 1 Set Oil-free air compressor (30L) 1 Set Air switch and cables 1 Set Connecting water pipes 1 Set Subpackaging adaptor 1 Set SDB-Sample fill 400 Filler 1 Set Petri dish supporter(90mm) 1 Set Subpackaging dish(90mm) 1 Set Subpackaging head 1 Set Subpackaging head 1 Set UV lamp 1 Set SDB-Tube fill 100 Filler 1 Set Pump pipe (1-10ml liquid separation) 1 Set Universal tray (Suitable for all kinds of containers such as hole plates, Petri dishes, and centrifugal tube holders) 1 Set Tray limiter 1 Set Test tube try (Suitable for test tube, 5ml frozen storage tube) 1 Set Mixer 1 Set Waste liquid tank 1 Set
