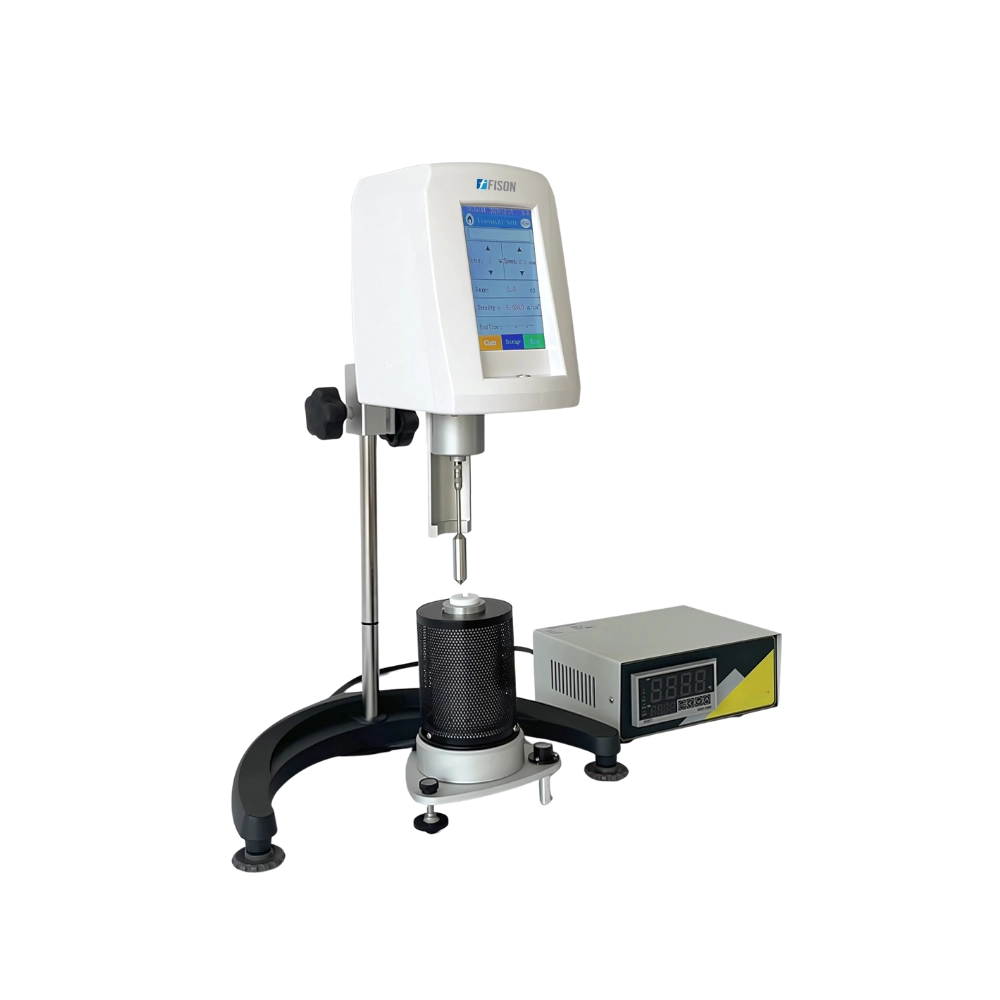

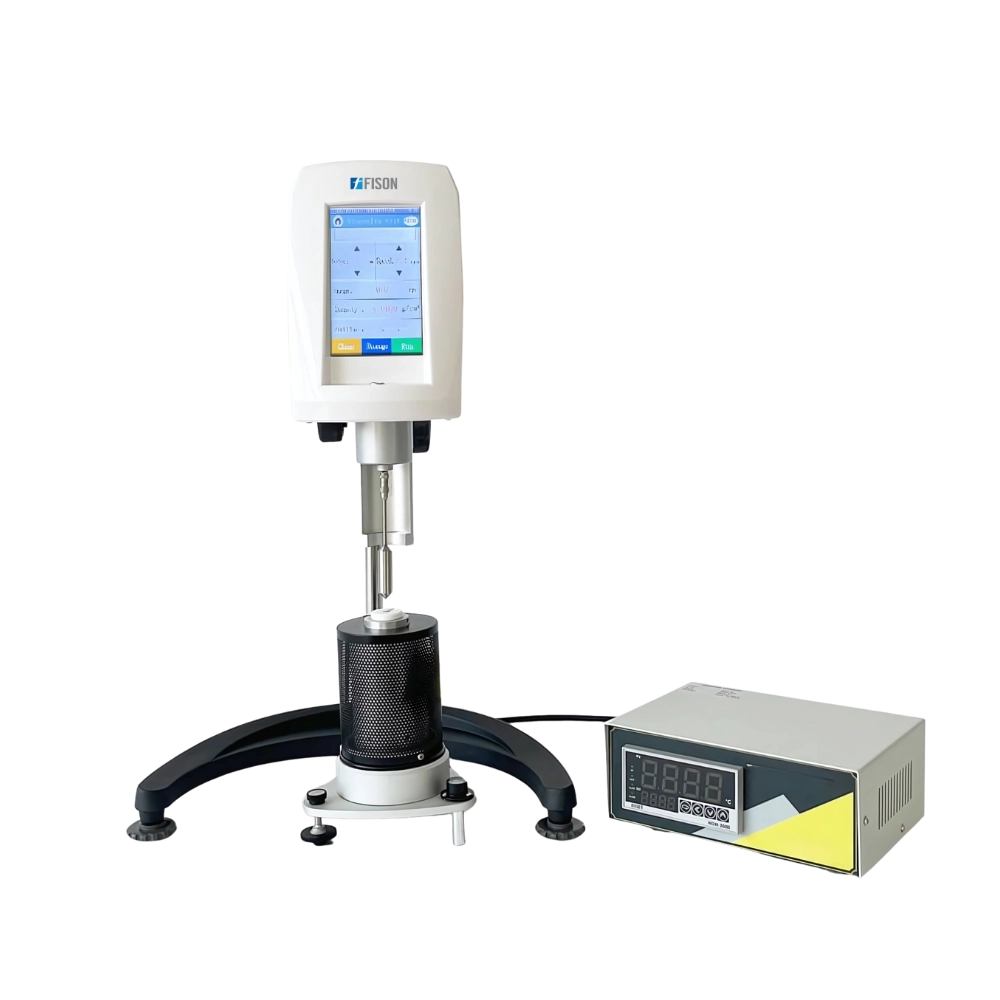

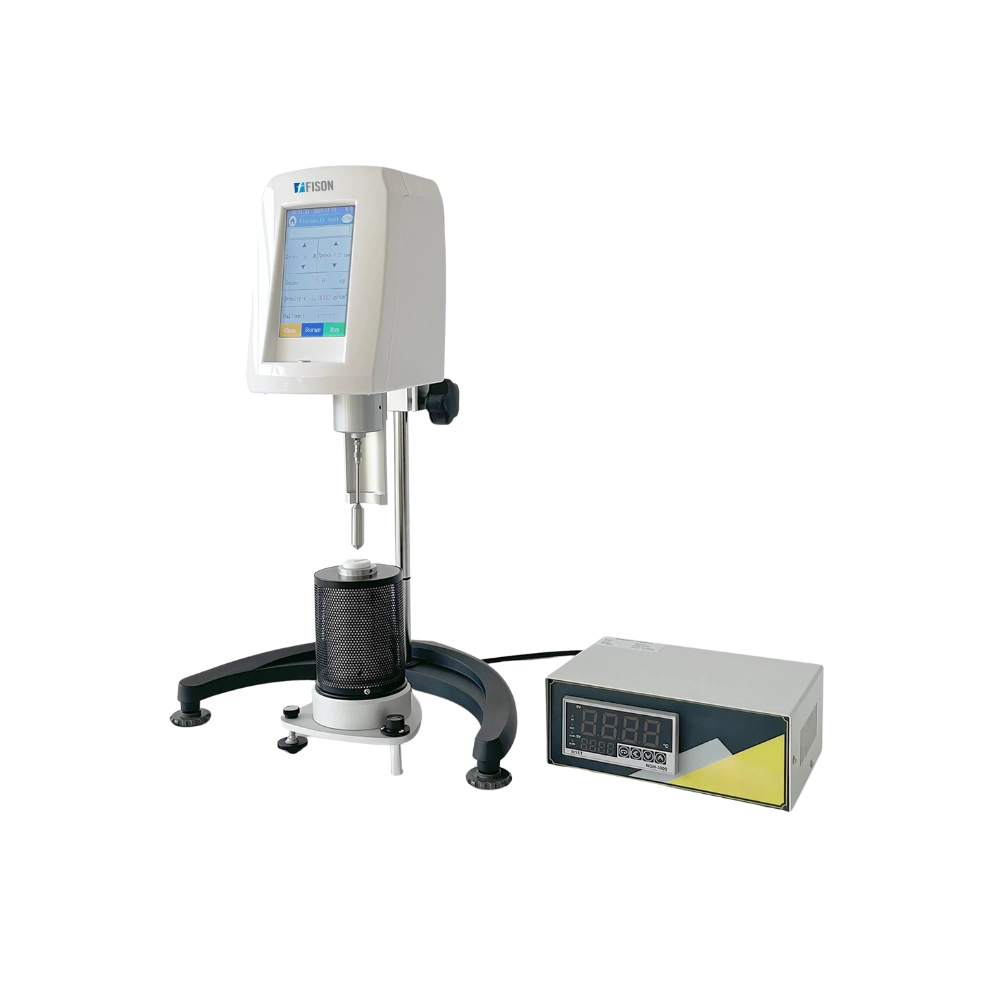

Rotational Viscometer FM-RV-A200
Rotational Viscometer FM-RV-A200 provides a rotation speed range of 0.3 to 100 rpm for different testing requirements. It has a 5-inch touch screen for easy operation and viewing of real-time data, improving interaction with the device. The wide viscosity range ensures compatibility with various fluid types, from low-viscosity liquids to high-viscosity materials. Our viscometer has shear rate and stress metrics, enabling in-depth analysis of fluid properties.
Specifications
| Rotation Speed | 0.3 to 100 (r / min) |
| Measuring Range | Spindle No. 21: 50 to 167k (mPa•s) Spindle No. 27: 250 to 834k (mPa•s) Spindle No. 28: 500 to 1.7m (mPa•s) Spindle No. 29: 1k to 3.3m (mPa•s) |
| Spindle | No. 21, No. 27, No. 28, No. 29 (4 pcs) |
| Capacity | Spindle No. 21: 7.8 ml Spindle No. 27: 11.3 ml Spindle No. 28: 12.6 ml Spindle No. 29: 11.5 ml |
| Spindle Speed | 0.3 to 100 r/min |
| Ambient Temperature | 5°C to 35°C |
| Relative Humidity | ≤80 % |
| Measurement Error | ±2 % |
| Repeat Error | ±1 % |
| Power Supply | 110 v / 60 hz or 220 v / 50 hz |
| Dimensions (W × D × H) | 300 × 300 × 450 mm |
| Net Weight | 16 kg |
| Gross Weight | 23 kg |
Features
- Built-in linux system
- Quick viscosity testing
- Auto calibration system
- Simple operation interface
- High-precision measurements
Applications
- Rotational Viscometer FM-RV-A200 is a high-precision laboratory instrument designed to measure the viscosity of fluids across a wide range. Its advanced rotational technology and multiple spindle options provide accurate results for oils, creams, and industrial liquids.
