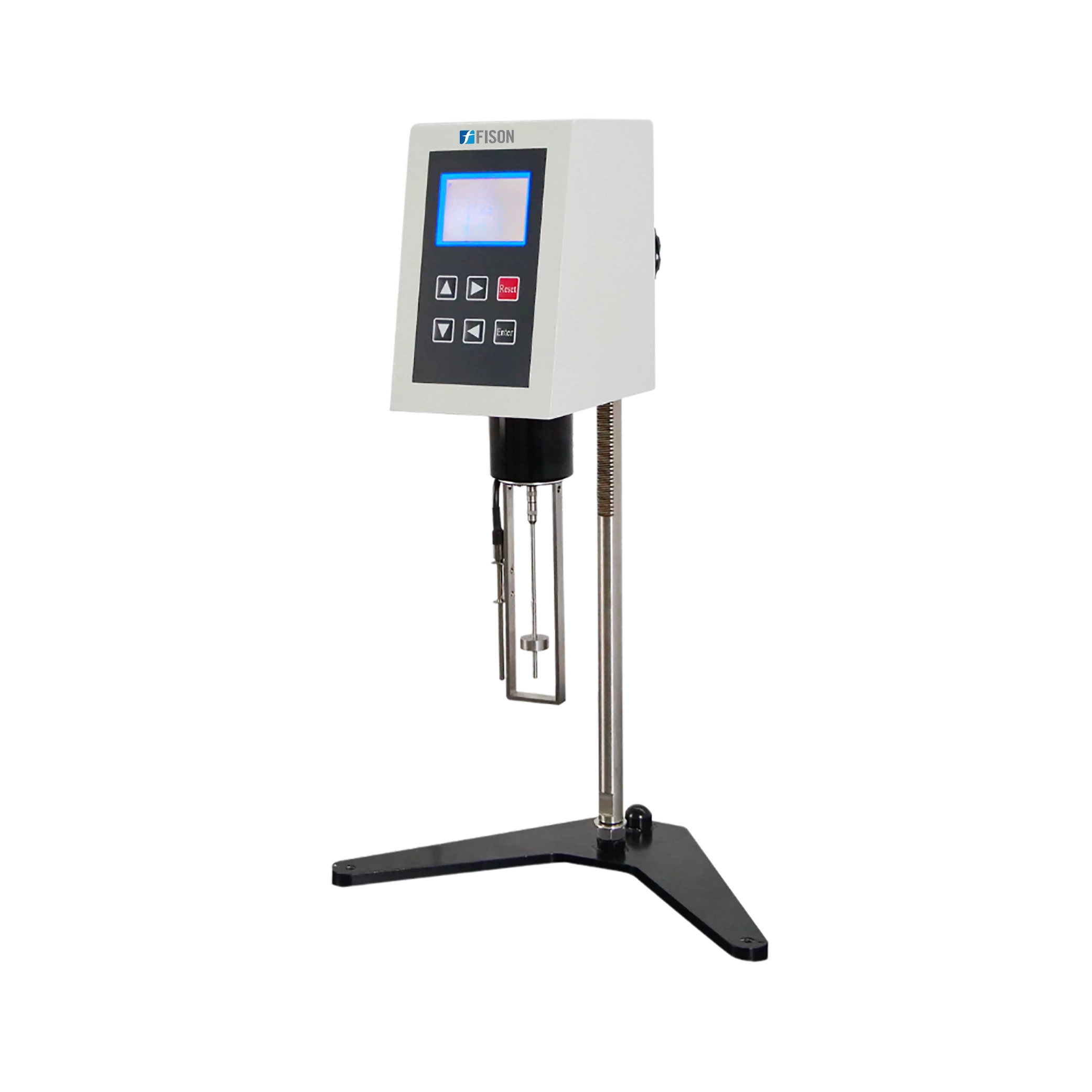

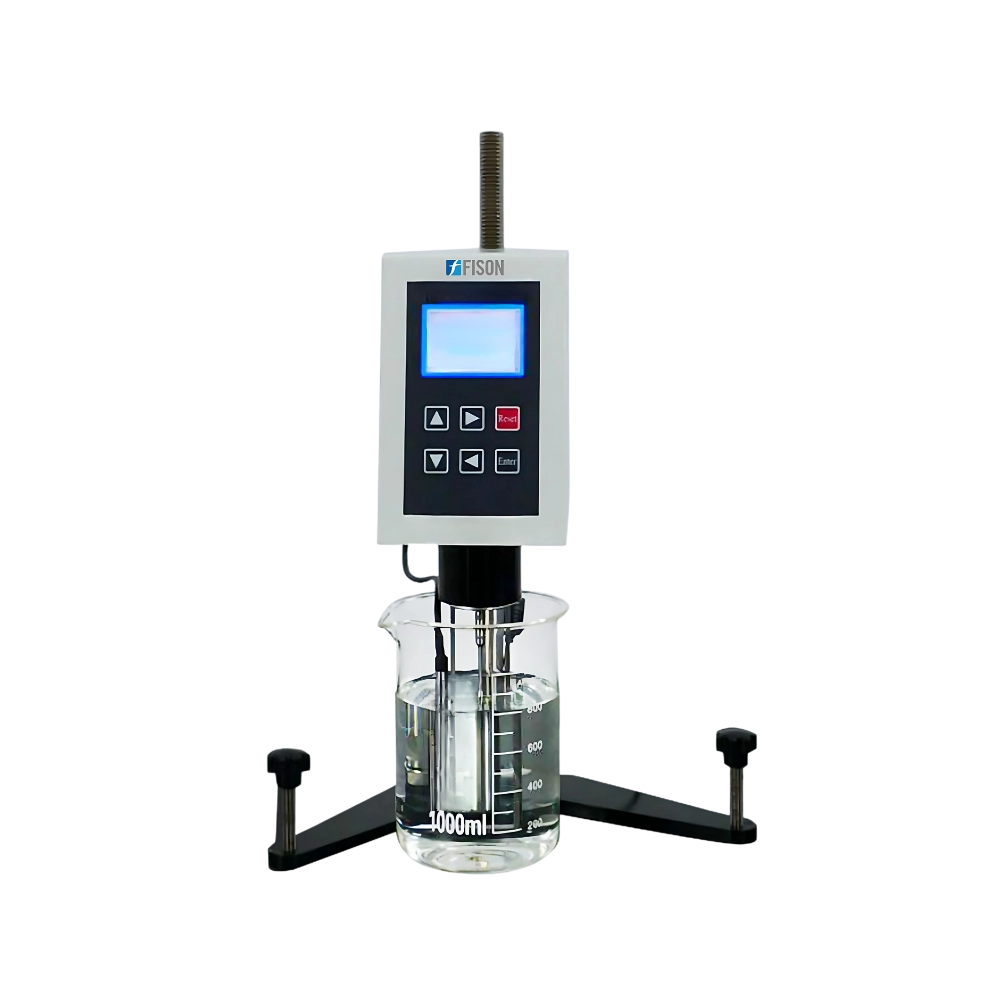

Rotational Viscometer FM-RV-A101
Rotational Viscometer FM-RV-A101 offers a test range of 10 to 2,000,000 mPa•s for diverse fluid testing. It ensures precise data collection through advanced microcomputer control technology, providing consistent and reliable results. The viscosity testing is accurate for analyzing fluid consistency and quality assurance. Our viscometer has customizable speed settings for various liquid types and testing conditions, delivering precision measurements.
Specifications
| Viscosity Range | 10 to 2000000 mPa•s |

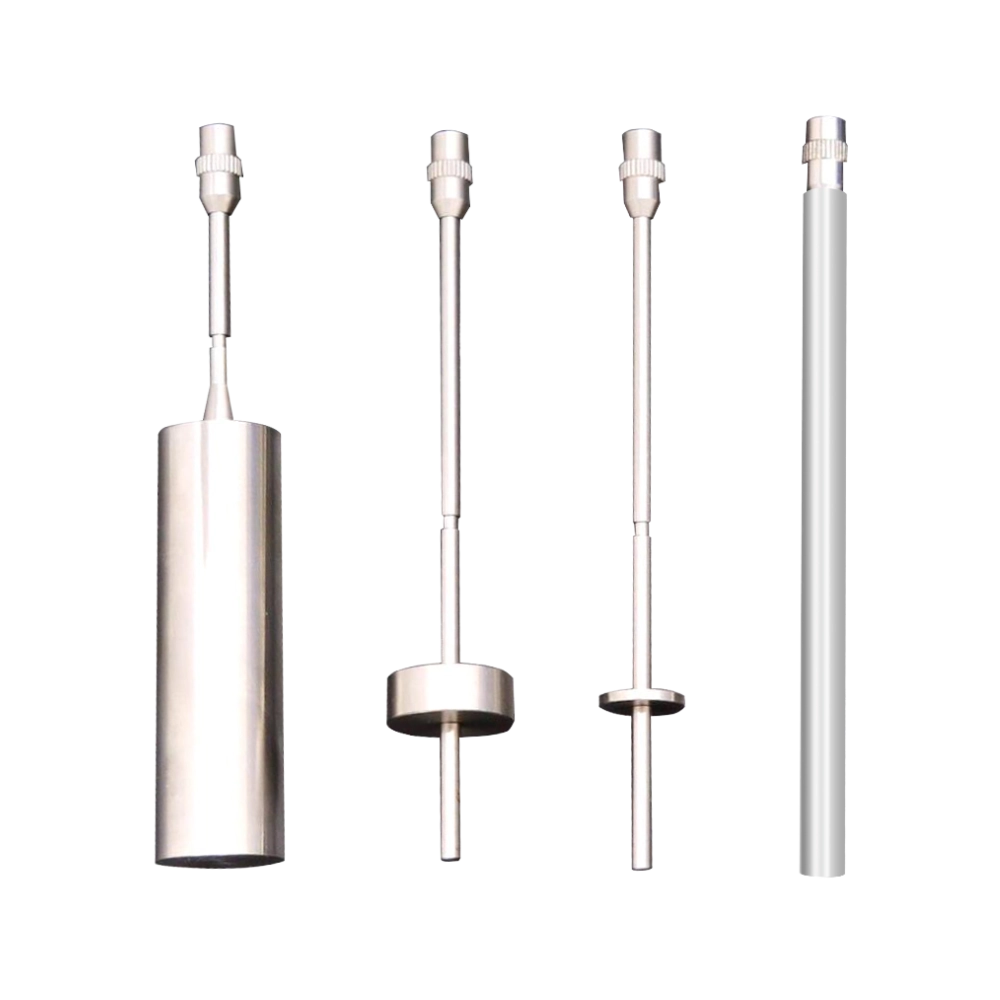

| Spindle | No.1 to No.4 (Total = 4) |
| Rotation Speed | 0.3 RPM, 0.6 RPM, 1.5 RPM, 3 RPM, 6 RPM, 12 RPM, 30 RPM, and 60 RPM (8 grades) |
| Measuring Accuracy | ±1% (F•S) |
| Ambient Temperature | 5 ℃ to 35 ℃ |
| Relative Humidity | ≤80 % |
| Power Supply | AC 220 V±10%, 50 Hz±10% |
| Packaging Dimensions (W × D × H) | 530 × 360 × 490 mm |
| Weight | 15 kg |
Features
- Rotary testing design
- Wide viscosity range
- User-friendly controls
- Digital display interface
- Reliable performance stability
Applications
- Rotational Viscometer FM-RV-A101 is a high-precision laboratory instrument designed to measure the viscosity of fluids across a wide range. Its advanced rotational technology and multiple spindle options provide accurate results for oils, creams, and industrial liquids.
Accessories
- Circulatory Water Bath × 1 set
Special Double-Layer Sample Cup × 1 set
No.0 Spindle (Low Viscosity Adapter) × 1 set
Small Sample Adaptor × 1 set
