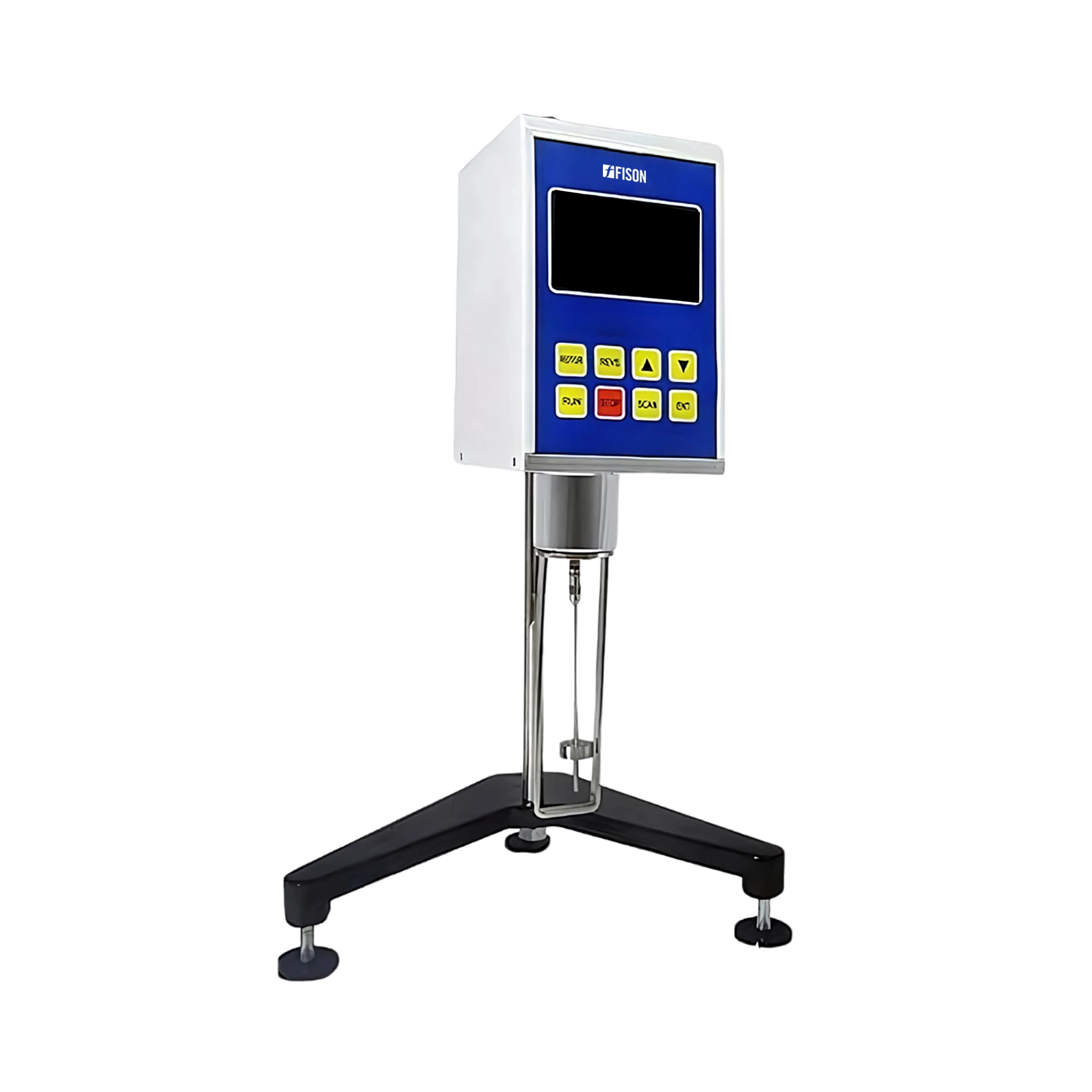

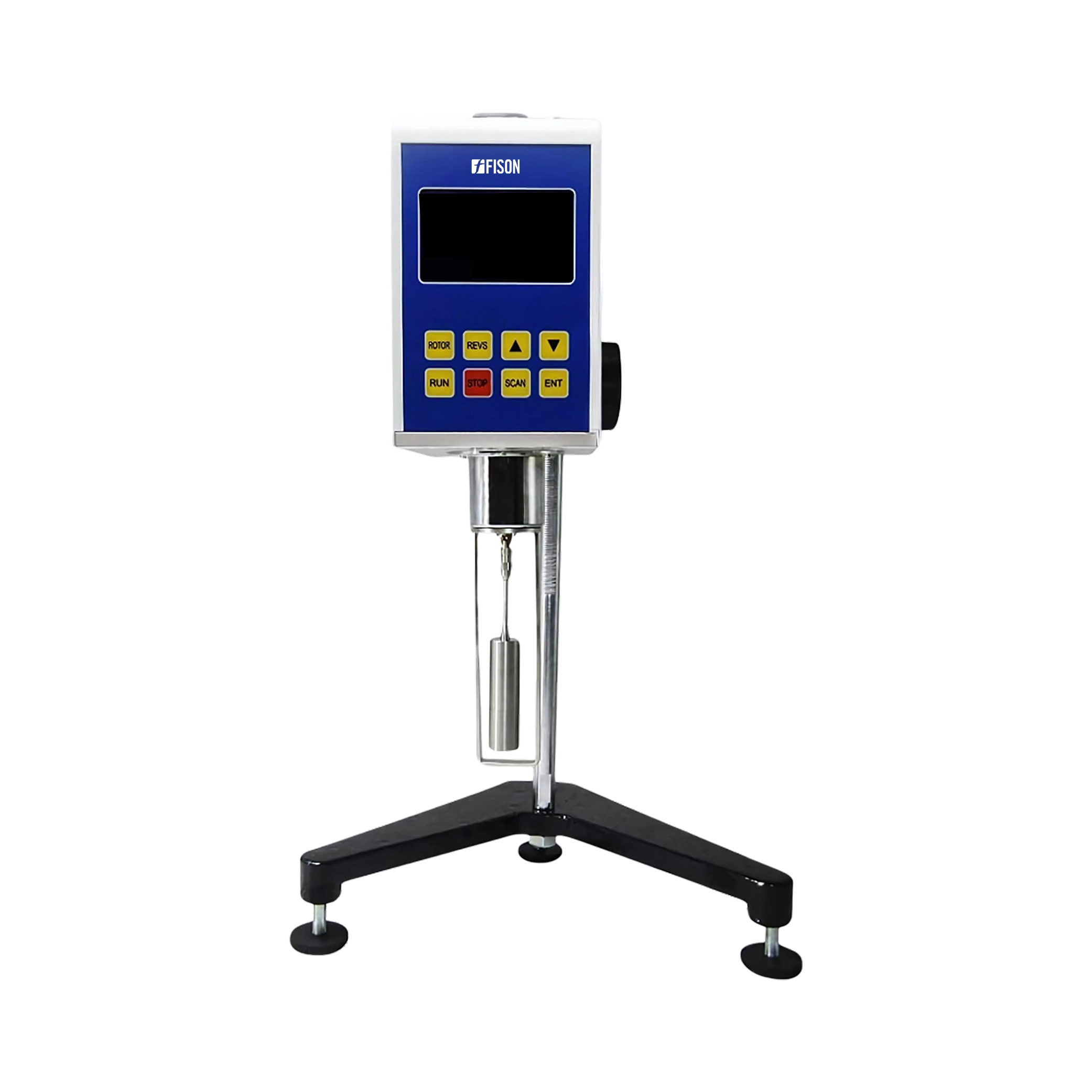

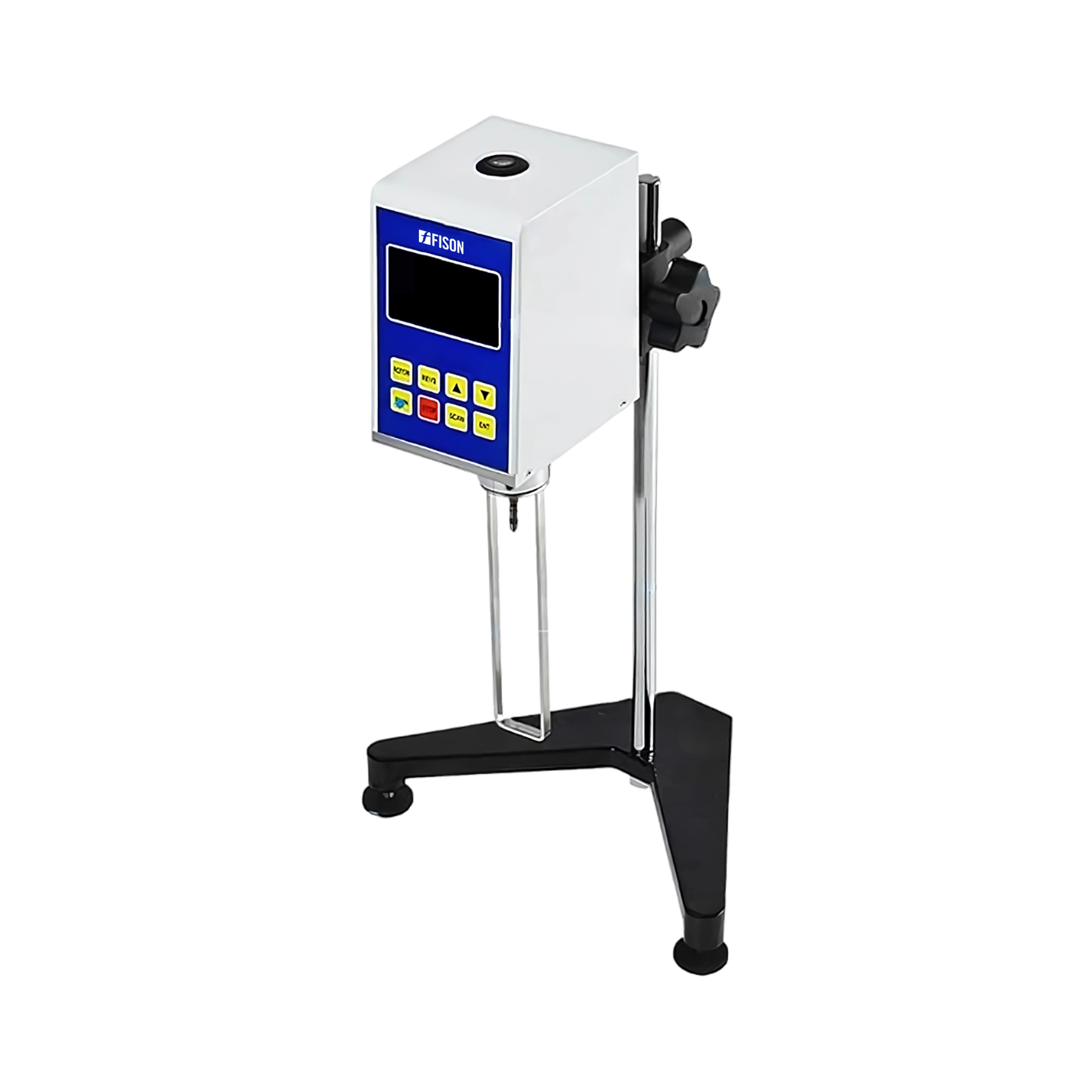

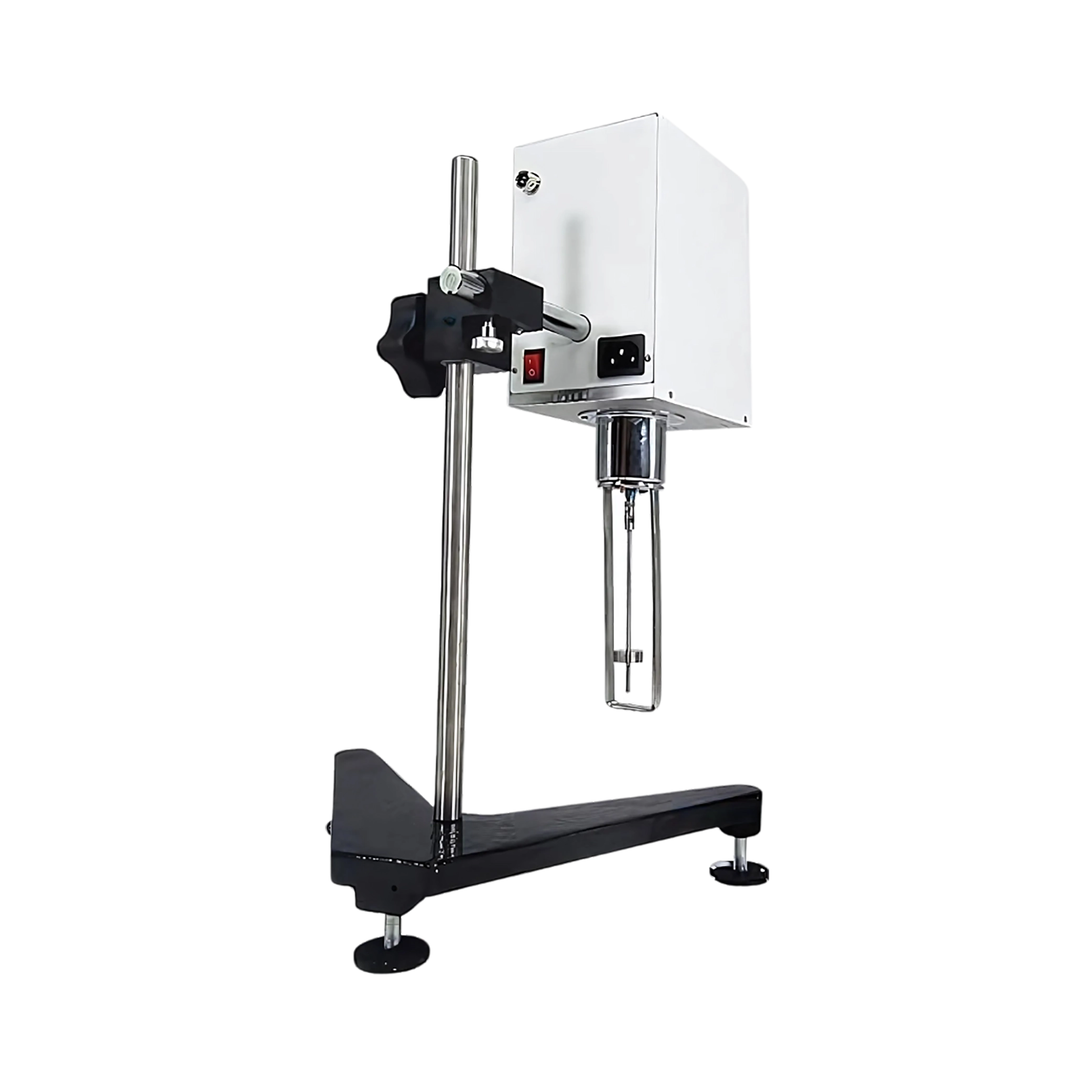

Rotational Viscometer FM-RV-A100
Rotational Viscometer FM-RV-A100 is a user-friendly device with high measurement accuracy. It offers the test range of 10 to 2 million mPa. s and temperature resolution of 0.1 ℃. Intelligent data acquisition and processing system for smooth operation. Designed with LCD screen to display precise viscosity.
Specifications
| Measurement range | 10 to 2 million mPa. s |
| Rotation speed | 6, 12, 30, 60 RPM |
| Test accuracy | ± 3% (Newtonian liquid) |
| Reproducibility | ± 0.5% (Newtonian liquid) |
| Viscosity resolution | 1 mPa ·S |
| Semiconductor temperature probe measuring range | -50 to 99 ℃ |
| Temperature measurement | ± 0.5 ℃ |
| Temperature resolution | 0.1 ° C |
| Ambient temperature | 5 ℃ to 35 ℃ |
| Relative humidity | ≤ 80%, |
| Power supply | AC 100 to 240 V, 50/60 Hz |
| Dimension | 990 × 1300 × 550 mm |
| Gross weight | 8.5 kg |
Features
- Accurate viscosity measurement
- Single-chip microcomputer ensures smart operation
- Stepper motor drives rotor through spring mechanism
- Smooth rotating rotor enhances efficiency
- Simplified data calculation
- Digital display for visualization of technical parameters
Applications
- Rotational Viscometer offers precise viscosity measurement across various industries, including adhesives, latex, biochemical products, paints, coatings, cosmetics, ink, pulp, starch, and food.
Accessories Optional
- Semiconductor temperature probe
Ultra-low viscosity testing rotor
