Rock Well Hardness Tester FM-RWHT-A100 Rock Well Hardness Tester FM-RWHT-A100 Rock Well Hardness Tester FM-RWHT-A100 Rock Well Hardness Tester FM-RWHT-A100 Rock Well Hardness Tester FM-RWHT-A100

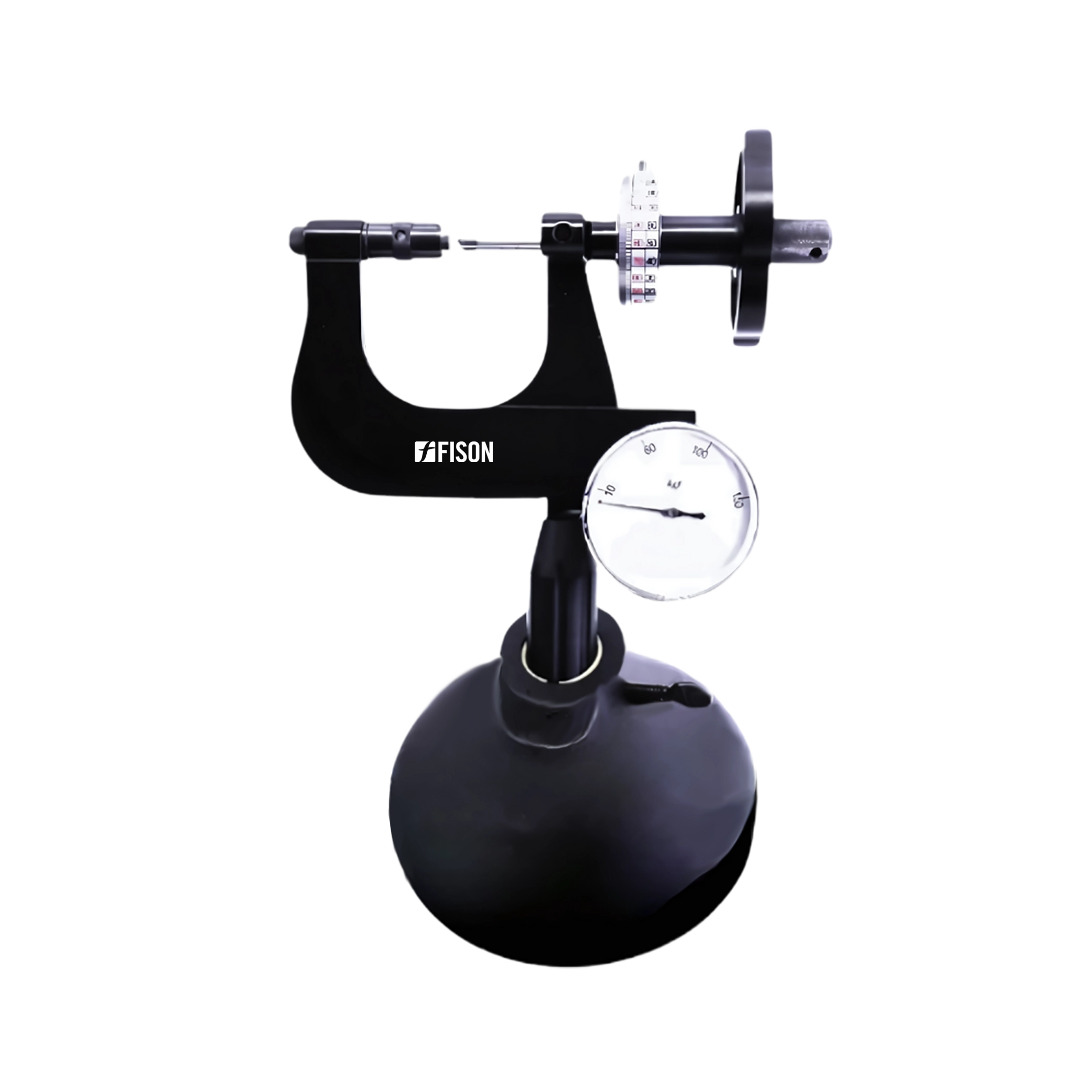

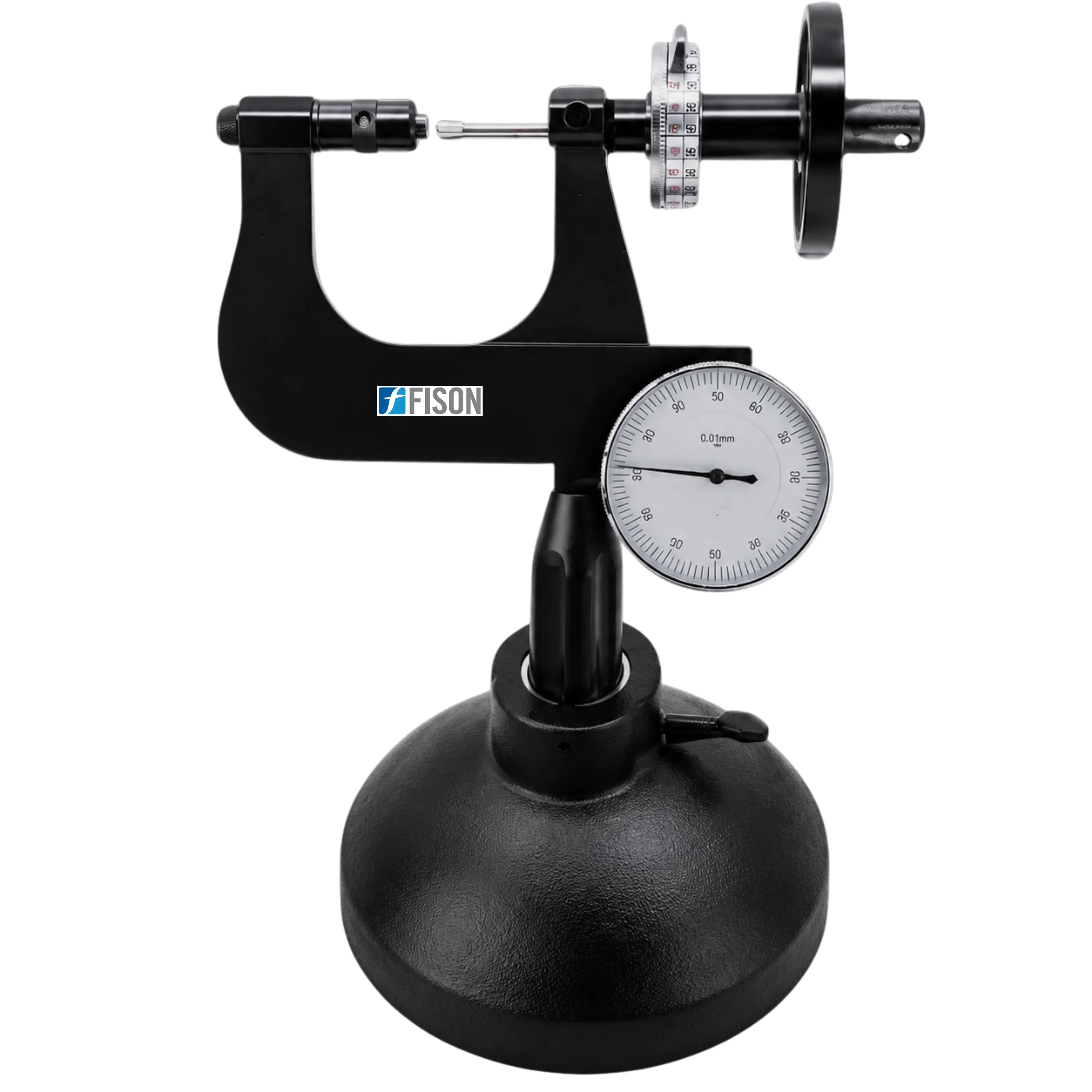

Rock Well Hardness Tester FM-RWHT-A100

Rock Well Hardness Tester FM-RWHT-A100 applies an initial test force of 3 kgf ensuring precise surface contact before applying the total test load. It supports total test forces of 15 kgf 30 kgf and 45 kgf making it versatile for various hardness testing requirements. It is ISO 6508-compliant ensuring that all tests meet internationally recognized Rockwell hardness standards. It calibrates its test force using load cells ensuring precise and stable force application during testing.

Specifications

Initial Test Force 3 kgf
Total Test Force 15 kgf, 30 kgf, 45 kgf (for PHR-1ST 15 kgf only)
Indenter 120° Diamond Indenter, 1/16
Accuracy Complies with ISO 6508, ASTM E18
Resolution 0.5 HR
Testing Range HRN, HRT, HRW, HRX, HRY, etc. (15 scales)
Specimen Size 50 X 50 mm
Dimension 220x150x240 mm
Net Weight 1.5 Kg
Gross Weight 1.8 Kg

Features

  • Superficial Metal Hardness Testing
  • Precision Testing for Delicate & Small-Surface Workpieces
  • Non-Destructive Hardness Testing
  • Certified Traceable Hardness Block
  • Indenter Verified with Standard Rockwell Hardness Tester

Applications

  • Rock Well Hardness Tester is ideal for Manufacturing and Engineering, Metal Processing, Automotive and Aerospace, Construction and Infrastructure, Research and Development.

Accessories

  • 1. Tester

    2. Bench Stand

    3. Diamond Penetrator
    4. Carbide Ball Penetrators Φ1.588mm
    5. Test Block HR30T
    6. Test Block HR30N

    7. Flat Anvil ½"
    8. "V" Anvil 1"

    9. Magnifier

    10. Extension Adaptor ½"

    11. Extension Adaptor 1"

    12. Carrying Case

Accessories Optional

  • 1. 120° Diamond Indenter

    2. Carbide Ball Indenter (1/16", 1/8")

    3. Steel Ball Indenter (1/4", 1/2")

    4. Standard Test Blocks (HR30N, HR30T)

    5. Raised Spot Anvil

    6. Slim Raised Spot Anvil (Flat Top: Φ1.5 mm, Φ2.5 mm, Φ3.5 mm)

    7. Diamond Raised Spot Anvil

    8. Ball Testing Anvil

    9. Spare Magnifier

Universal Testing Instrument

Universal testing instrument FM-UTM-A100

  • Maximum Capacity : 1000 KN
  • Force measurement sensor : Spoke load sensor
  • Length of testing area : 800 mm
Catalog

Abrasive Cutting Machine

Abrasive cutting machines are equipment for cutting various materials with precision. They use abrasive blades to ensure clean, accurate cuts and are designed for durability. Features like adjustable cutting speeds make them versatile for different tasks. These machines improve productivity by providing reliable and efficient performance and are ideal for labs, manufacturing, and metalworking. They are essential for achieving high-quality cuts while maintaining sample integrity

Abrasive Cutting Machine FM-ACM-A100

  • Maximum Cutting Diameter : Φ80 mm
  • Rotational Speed : 2800 r/min
  • Wheel Dimension : Φ250 × 2 × Φ32 mm
Catalog

Electrospinning Machine

Fison Electrospinning Machine features a high-precision power supply, ensuring adjustable voltage to optimize the electrospinning process. The machine has programmable syringe pump to control the flow rate of polymer solution for uniform fiber formation. Their adjustable collector distance allows users to control the spacing between the spinneret and the collector for nanofiber alignment. They consist of temperature control system that helps maintain the ideal environmental conditions for efficient results. Our Electrospinning Machine includes user-friendly touchscreen interface, making it easy for real-time monitoring.

Electrospinning Machine FM-ESM-A100
  • High Voltage Range : 0 to 30 kV
  • Temperature Range : Room Temperature (RT) to 50 °C
  • Syringe Pump Injection Speed : 0.0001 to 1 mm/s
Catalog

Foam Cutting Machine

Fison’s Foam Cutting Machine are designed for high-precision shaping of EPS and other foam materials. They utilize heated wires to deliver smooth, clean cuts with minimal material waste. Their key features include adjustable temperature control for varying foam densities, CNC automation for complex 3D shapes, and user-friendly software compatibility. They incorporate ball screw systems for accurate movement and stable performance. With lightweight yet durable frames, these machines ensure efficient production while maintaining low energy consumption.

Foam Cutting Machine FM-FCM-A100
  • Cutting dimension (L×B×H) : 2000×1250×1200 mm
  • Vertical arm cutting width : 1250 mm
  • Horizontal cutting distance : 2000 mm
Catalog
