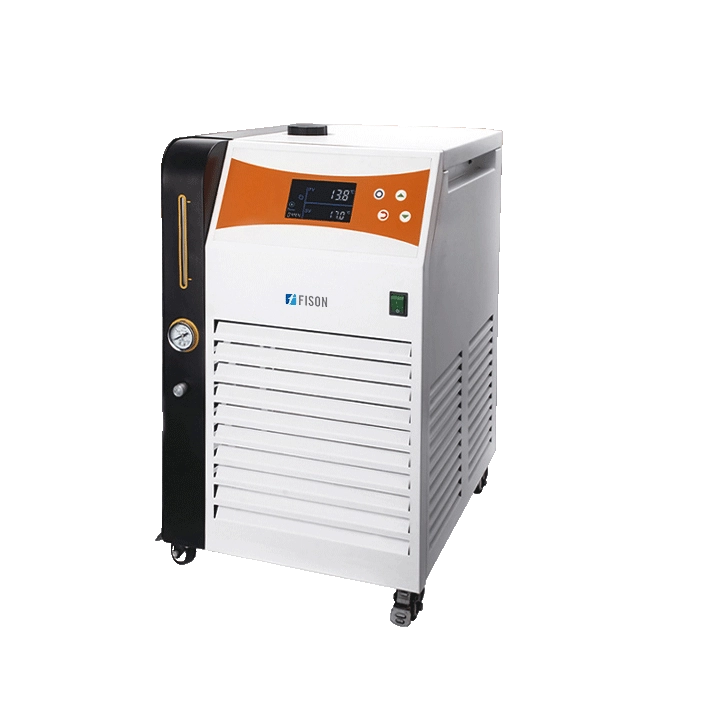

Recirculating Chiller FM-RC-A100
Recirculating Chiller FM-RC-A100 is an energy-efficient circulating chiller with a pump capacity pressure of 0 to 1.5 bar having a filling capacity of 8L that promotes cooling efficiency with high-performance functionality. Improved with PID temperature controlling technology enhances temperature stability that works within a temperature range between 5 to 40 °C. Engineered with a TECUMSEH compressor it guarantees efficient cooling while reducing noise levels.
Specifications
| Filling Capacity | 8 L |
| Temperature Range | 5 to 40 ˚C |
| Pump Capacity Pressure | 0 to 1.5 bar |
| Temperature Control System | PID |
| Stability | ± 0.3˚C |
| Sensor | PT Sensor |
| Resolution | 0.1˚C |
| Pump Flow Rate | 20 L/min |
| Refrigerant | R134a |
| Power Consumption | 1.2 kW |
| Power Supply | AC 220 V ±10 %, 50 Hz |
| Dimension | 550 × 400 × 650 mm |
| Packaging Dimension | 750 × 580 × 910 mm |
| Weight | 74 Kg |
Features
- Simplified with an LCD screen that displays all working status with perfect inspection
- Supplied with EEV technology enhances system stability for better working conditions
- Improved the start-stop cooling technique guarantees effective and regulated cooling cycles
- Equipped with auto-alarm function to ensure automatic alert to prevent protection against over-heating and temperature deviation
- Intended with a PT100 temperature sensor for precise temperature monitoring
- Include a refrigeration control system preventing damage caused by anomalous liquid temperature values
- Utilized with a water current detection device ensures efficient cooling by detecting external cycle closure or blockages in the system
- Integrated with moveable castors for easy mobility and effortless handling
- Fitted with a pressure gauge display for easy and convenient system pressure monitoring
Applications
- It is widely used in biological and medical fields to cool laboratory equipment such as rotary evaporators and preservation of biological samples, cells, and tissues.
