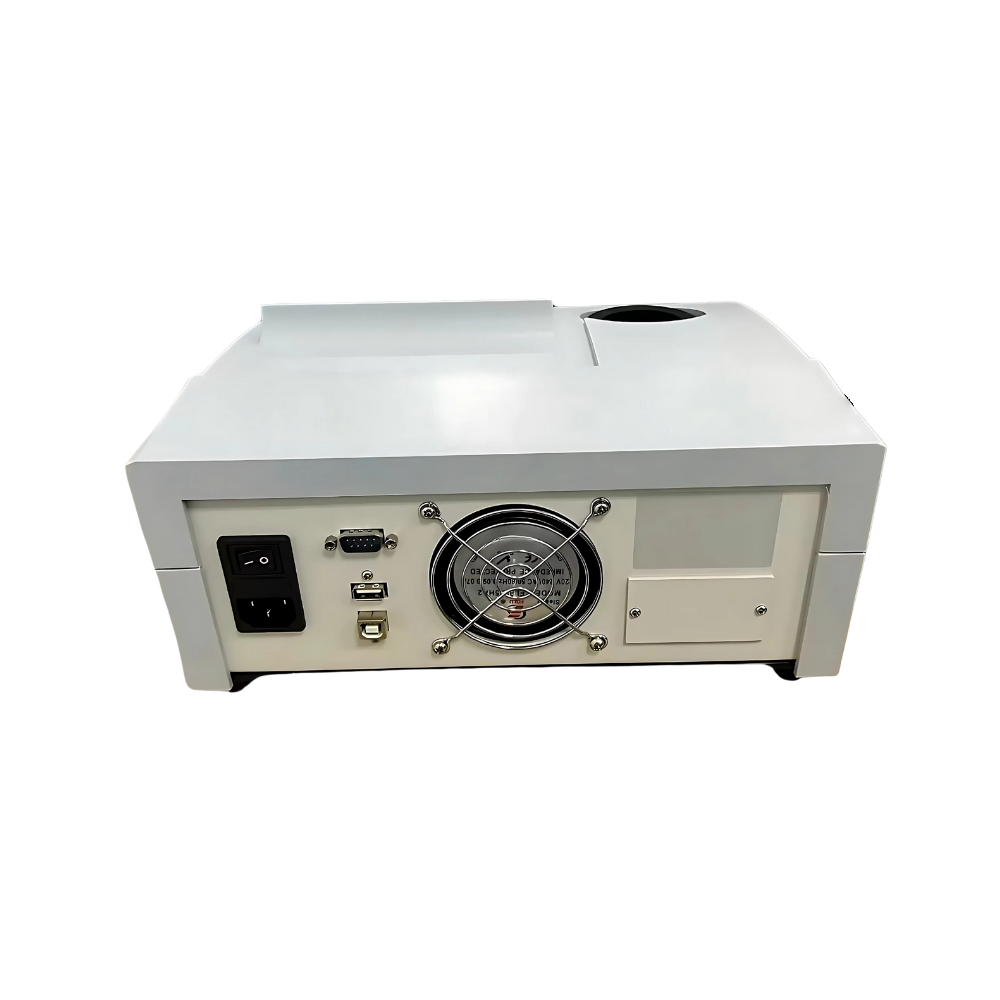

Ratio Turbidity Meter FM-RTM-A100

Ratio Turbidity Meter FM-RTM-A100

Ratio Turbidity Meter FM-RTM-A100 provides a measuring range of 4000 NTU, enabling precise turbidity measurements with minimal sample consumption. It is equipped with an LCD touchscreen for clear visualization of data. This unit has single and continuous reading modes, providing flexibility for both quick and continuous measurements. Our Ratio Turbidity Meter features reading, verification, and calibration logs, providing reliable tracking and documentation of results.

Specifications

Measurement Range NTU Auto Range Switchover (0.000-50.00; 50.01-200.0; 200.1-2000; 2001-4000)
Repeatability ≤ 0.5%
Allowable Error of Indication ≤ ± 6%
Stability of Indication ≤ ± 1%FS
Zero Drift ≤ ± 0.3% FS
Light Source Tungsten Halogen Lamp (6V, 10W)
Receiving Element Silicon Photocell
Sample Volume 30 to 40 ml
Solution Precision 0.001
Sample Bottle Φ 25 ×95 mm
Calibration Points 7
Data Storage 1000 sets
Interface USB/U Disk
Power Supply 220V ± 22V/50Hz ± 1HZ or 110V ± 11V/60Hz ± 1HZ
Dimensions 460 × 430 × 250 mm
Weight 9 kg

Features

  • Rapid turbidity settling
  • Automatic calibration function
  • Built-in signal averaging control
  • Includes indication error detection
  • Presence of high-frequency electrical waves

Applications

  • Ratio Turbidity Meter FM-RTM-A100 measures light scattering from suspended particles in liquids, quantifying turbidity, and is used in water treatment, food, pharmaceuticals, and environmental monitoring to ensure liquid quality.

Accessories

  • USB Cable × 1pc
    Power Cord × 1pc
    Turbidity Bottle × 5pcs
    Shading Cover × 1pc

Portable Turbidity Meter

Portable Turbidity Meter FM-PTM-A100

  • Measuring Range : 0 to 1000 NTU
  • Measurement Methods : Ratio Measurement Technology: 90-degree scattered light and transmitted light
  • Standards : Compliant with EPA Method 180.1, ISO Method 7027, and HJ 1075-2019
Catalog

Benchtop Turbidity Meter

Benchtop Turbidity Meter FM-BTM-A100

  • Measuring range (NTU) : 0 to 20.00, 20.0 to 200.0 , 200 to 1000 NTU
  • Accuracy : ± 2 % of value + 0.02 NTU
  • Repeatability : ≤0.5%
Catalog

Infrared Turbidity Meter

Fison Infrared Turbidity Meter offers direct data printing, enabling instant report users to print measurement data directly from the device, eliminating the need for external devices. The auto-adjustment measurement range is based on the turbidity levels of the sample. Their touch screen operation provides a user-friendly interface for effortless control. The multi-point calibration supports maintaining precision when switching between different sample types or standards. Our infrared turbidity meter has an automatic measurement switch that enhances efficiency by initiating the measurement process without requiring manual prompts.

Infrared Turbidity Meter FM-ITM-A100
  • Measuring Range : 0.000-2000 NTU, 0-500 EBC, 0-9999 ASBC
  • Resolution : 0.001
  • Repeatability : ≤ 0.3%
Catalog

Online Turbidity Meter

Fison’s Turbidity Meter use advanced optics and sensors for precise water quality analysis, accurately measuring turbidity across a wide range. Their self-cleaning mechanism prevents biofouling and contamination for accurate readings. Our Turbidity Meters are equipped with digital displays and communication interfaces, allowing seamless monitoring. These Turbidity Analysers are built with waterproof materials to withstand harsh environments, including waste water treatment facilities and industrial plants. They offer low maintenance and automatic calibration feature, reducing operational downtime and ensuring reliable performance.

Online Turbidity Meter FM-OTM-A100
  • Measurement Range : 0 to 4000 NTU
  • Accuracy : ±2%
  • Operation Temperature : 0 to 45 0C
Catalog
