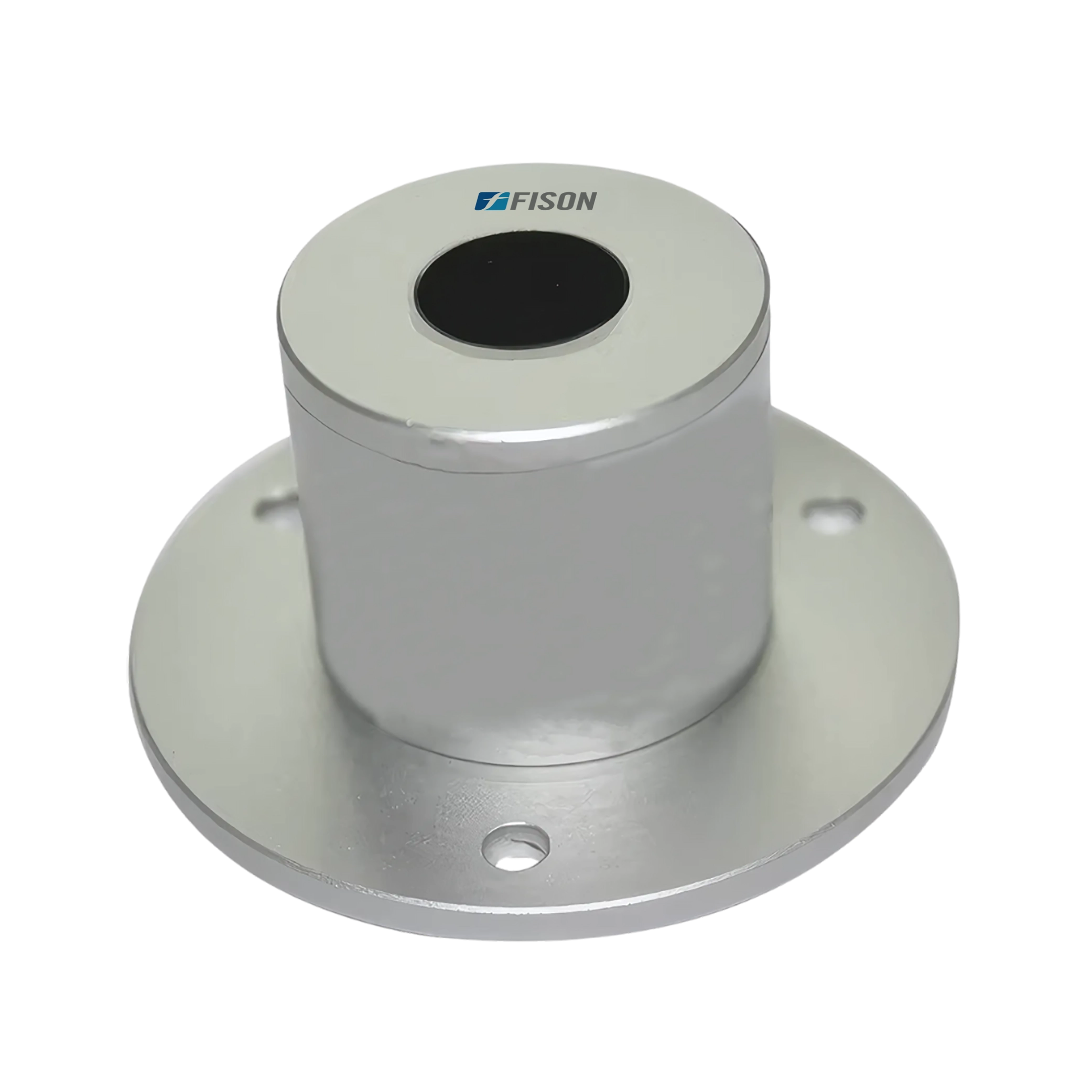

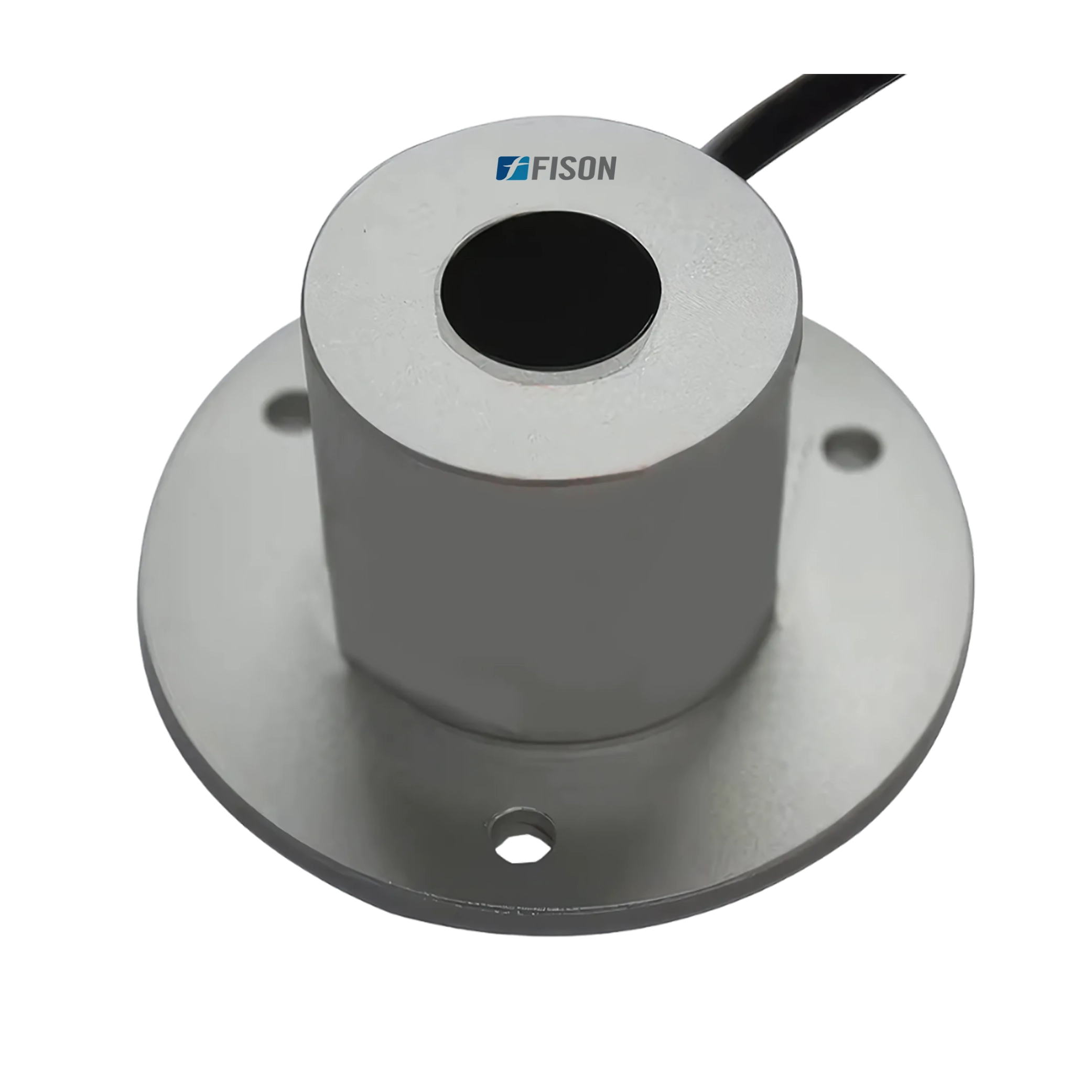

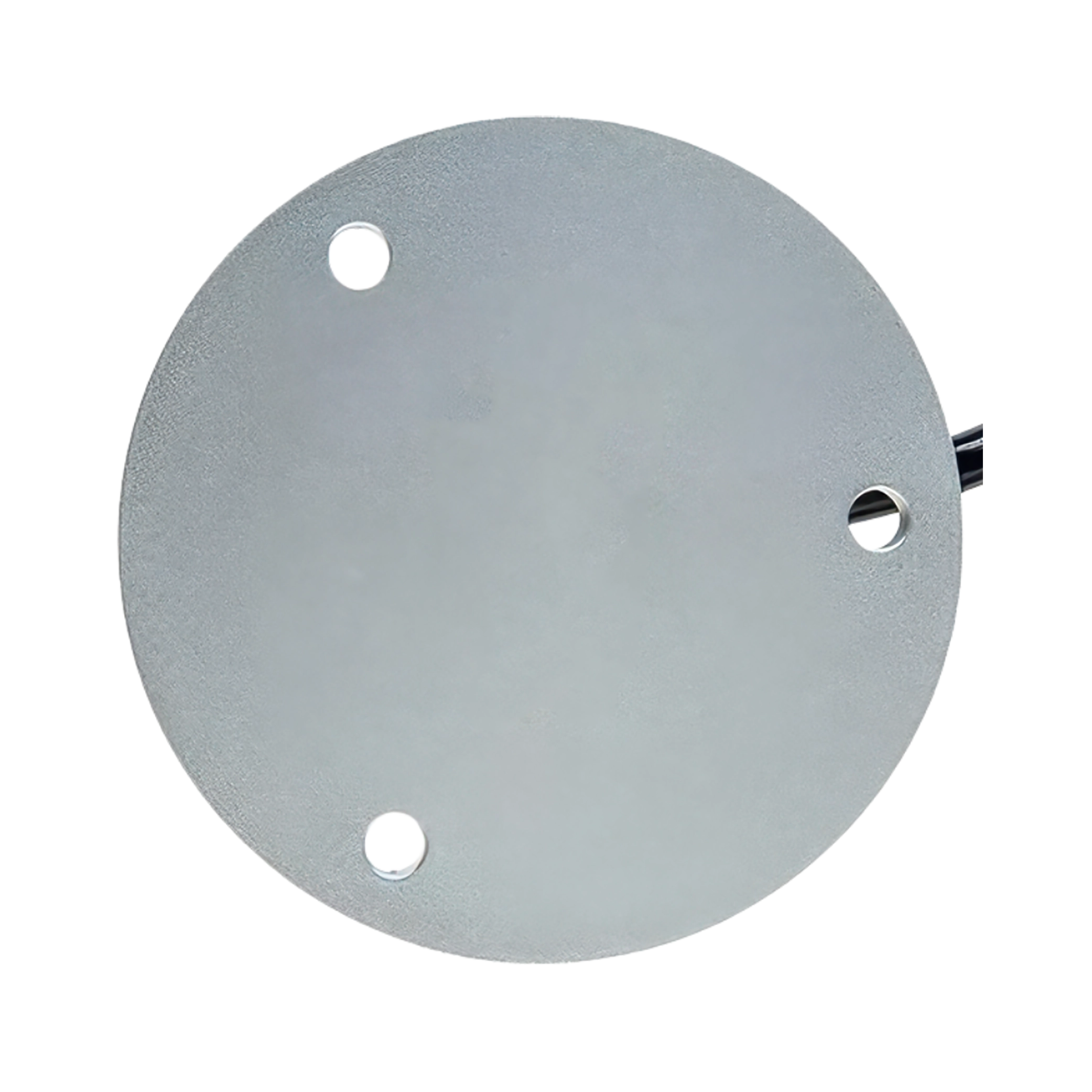

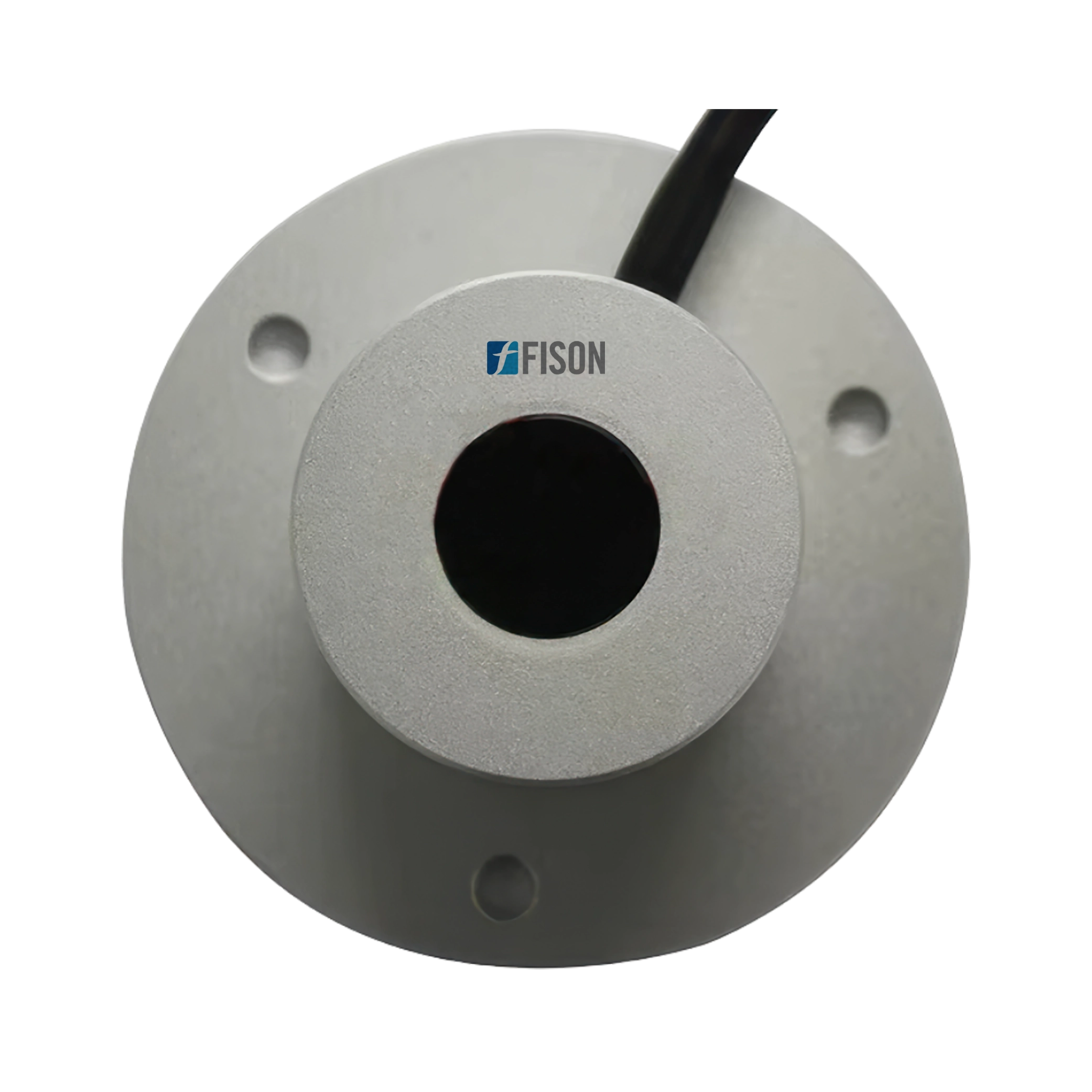

Pyranometer FM-PYM-A100
Pyranometer FM-PYM-A100 is designed to measure solar radiation within a spectral range of 280 to 400 nm, ensuring accurate UV monitoring. It offers a wide measurement range, covering 0 to 200 W/m², 0 to 200 µW/cm², and 0 to 15 UV Index. Its robust metal build ensures durability and reliability, even in harsh outdoor settings. Our pyranometer is designed with high sensitivity, providing accurate and precise solar radiation measurements.
Specifications
| Spectral Range | 280 to 400 nm |
| Measurement Range | 0 to 200 W/m² 0 to 200 µW/cm² 0 to 15 UV Index |
| Operating Temperature | -40℃ to +85℃ |
| Accuracy | ±5% rdg |
| Response Time | Less than 1s |
| Cosine Correction | Less than ±4% (Solar elevation angle = 30°) |
| Non-linearity | Less than ±3% |
| Temperature Effect | ±0.08%/℃ |
| Stability | Less than ±2% per year |
| Ingress Protection | IP65 |
| Shell Material | Aluminum alloy |
| Storage Condition | 10℃-60℃ @ 20%-90% RH |
| Output | 0 to 2V 4 to 20mA (2 wires) 0 to 5V RS485 |
| Weight | 220g |
Features
- Harsh Environment Ready
- Compact and User-friendly
- Lightweight and Portable
- Long-lasting Durability
Applications
- Pyranometer FM-PYM-A100 is used to measure solar radiation and is widely used in Solar Power Plants, Meteorological Stations, Agricultural Research Centers, Research Laboratories, and Construction and Architecture.
