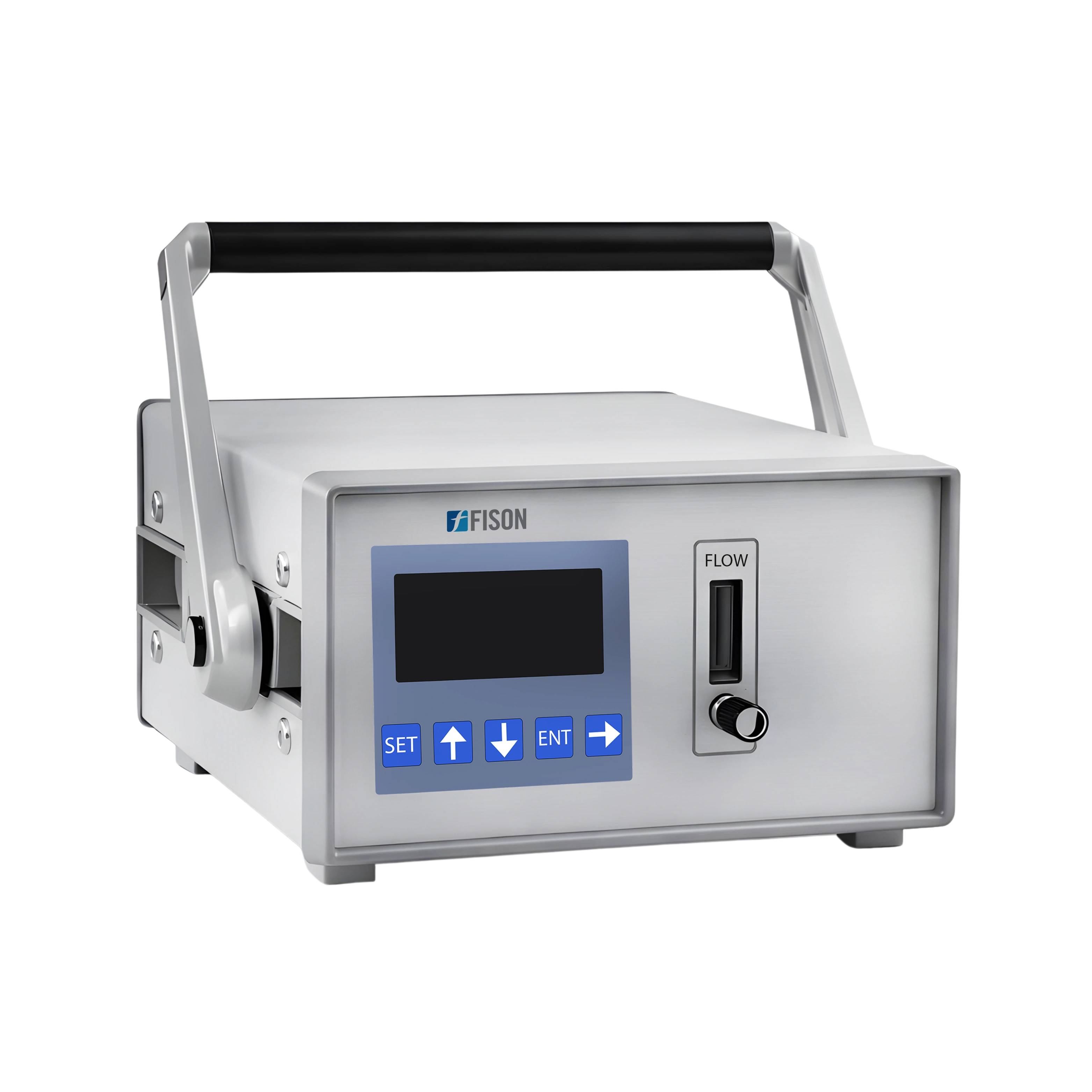

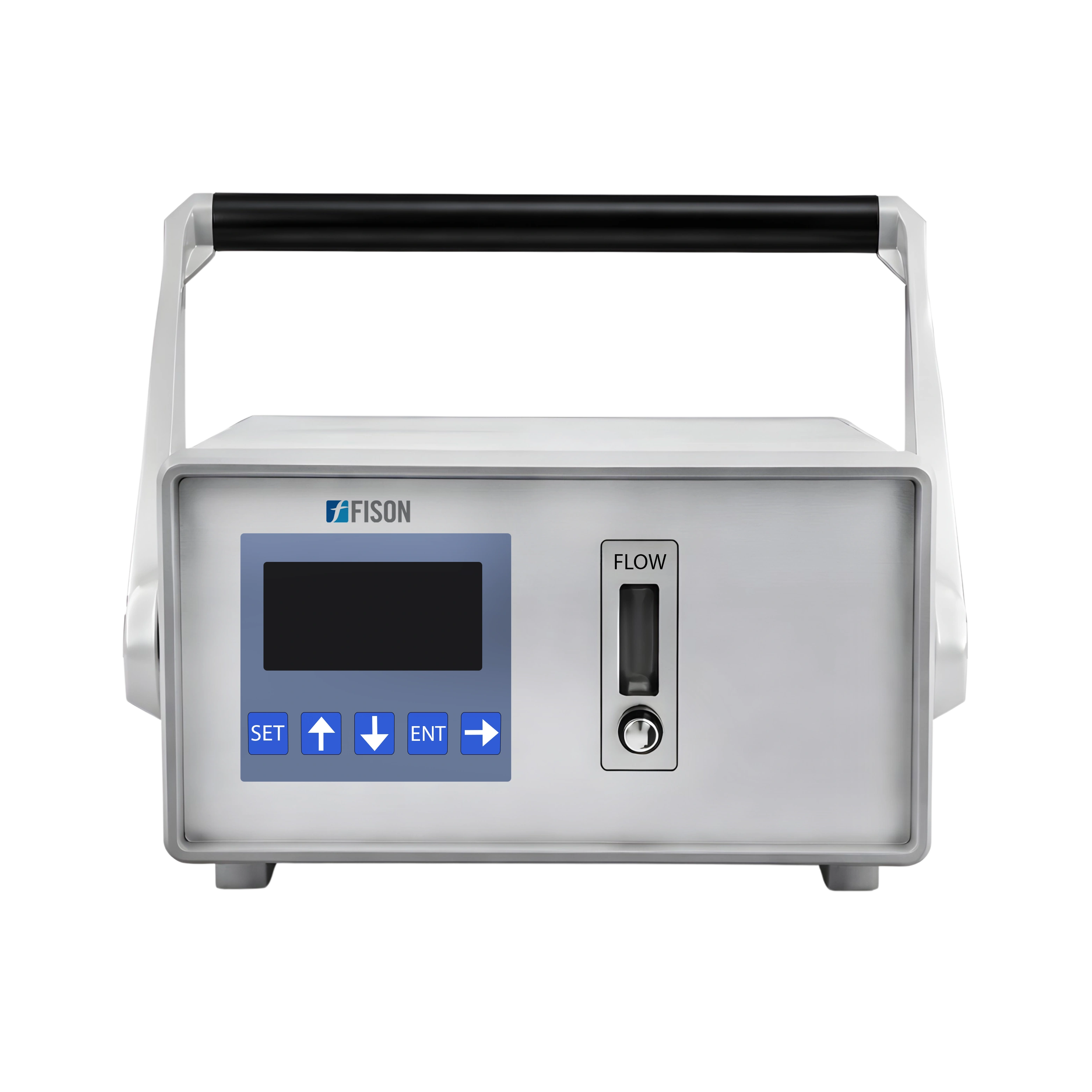

Portable Oxygen Analyzer FM-OXA-A100
Portable Oxygen Analyzer FM-OXA-A100 is a portable device with high-performance liquid crystal display. With adjustable sample gas flow, ranging from 350 to 450 ml/min, it ensures adaptability. Designed to measure inert gases such as nitrogen, hydrogen, carbon dioxide, carbon monoxide, and hydrocarbons. It employs advanced electrochemical and ion flow technology for accurate readings and stable performance. Enhanced multiple measurement ranges available, from 0 to 10ppm to 100%, it offers flexibility.
Specifications
| Measuring Range | 0-10/100/1000 ppm/1% /5% /25% /100% |
| Sample Gas Temperature | 0 to 50℃ |
| Ambient temperature | －5 to ＋50℃ |
| Ambient humidity | ≤ 90% RH |
| Display | LCD |
| Display Resolution | 0.01ppm/0.1PPm/1ppm/0.01%/0.1% |
| Mode | Portable |
| Accuracy | ≤ ±2% F.S. |
| Repeatability | ≤ ±1% F.S. |
| Stability | ≤ ±1% F.S./7d |
| Response Time | T90 <30s (after full preheating) |
| Sample Gas Flow | 350 to 450 ml/min |
| Sample Gas Pressure | 0.1 to 0.2 Mpa |
| Power charge | 100 to 240VAC 50/60Hz 1A |
| Power Supply | AC85 to 264V, 50/Hz |
| Analyzer Power Consumption | < 25VA |
| Dimension ( L × W × H ) | 260 × 145 × 330 mm |
| Weight | 4 kg |
Features
- Portable Oxygen Analyzer has quick response times
- Calibrated sample gas flow, pressure, and temperature specifications
- Long sensor and instrument life for extended usability
- Low power consumption for energy efficiency
- High sensitivity and fast response
- Sample gas flow ranging from 350 to 450 ml/min
- Sample gas temperature range of 0 to 50℃
Applications
- Portable oxygen analyzer boasts diverse applications, serving industries ranging from healthcare and manufacturing to environmental monitoring and research, offering accurate and convenient oxygen level measurements on the move.
