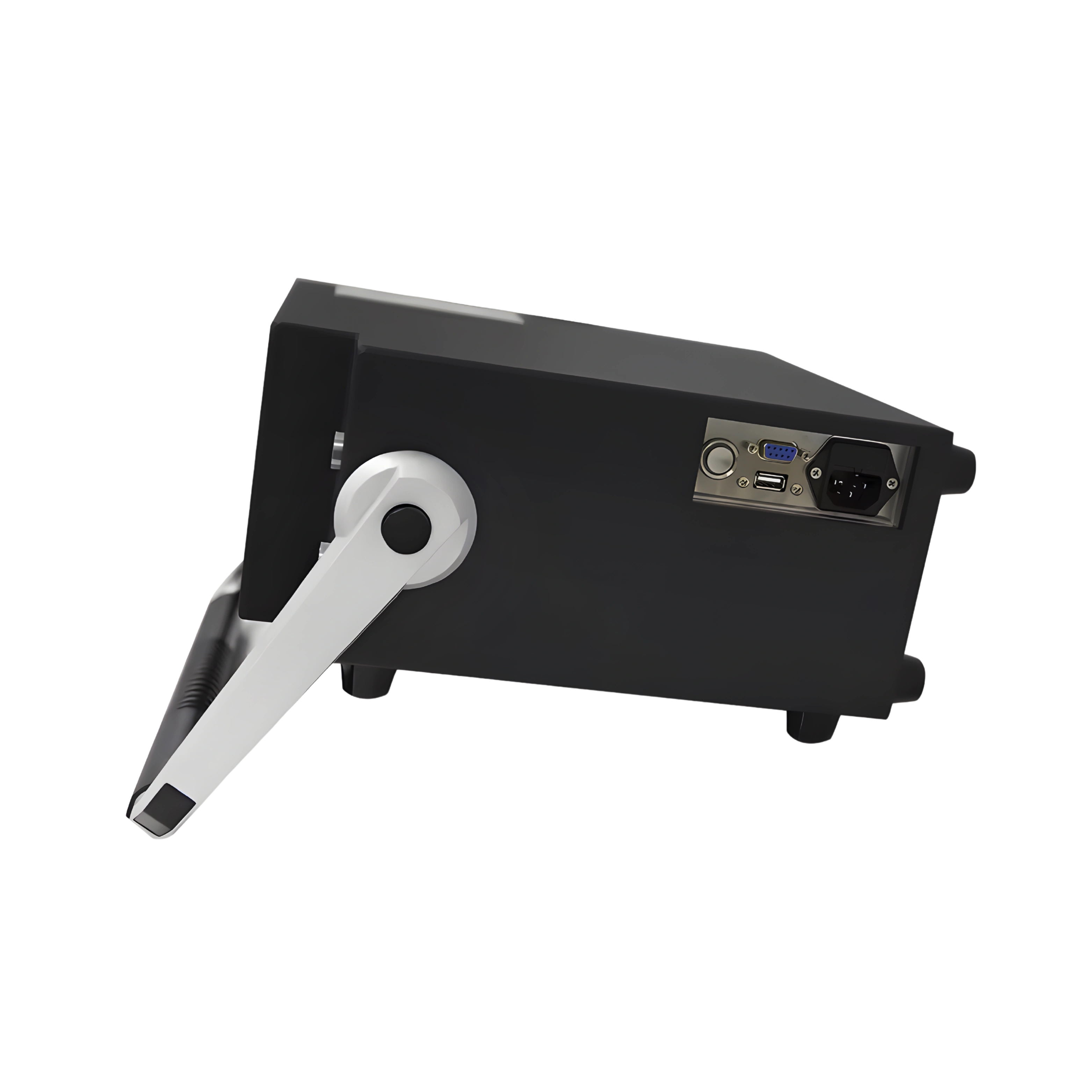

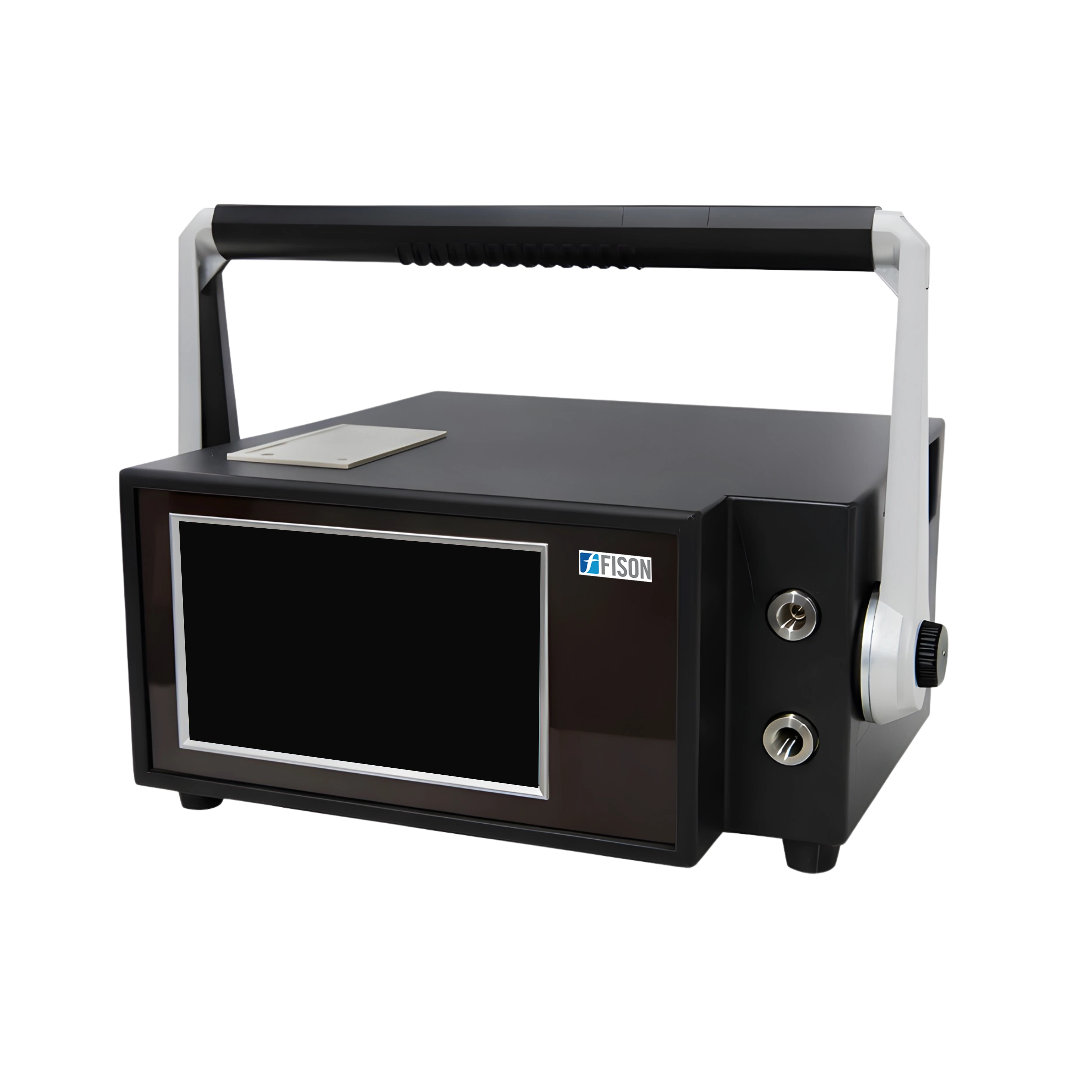

Portable Oil Particle Counter FM-POC-A100

Portable Oil Particle Counter FM-POC-A100

Portable Oil Particle Counter FM-POC-A100 detects particles from 0.8 to 600 µm, capturing both fine and coarse contaminants. It has a sampling volume range from 0.2 to 6000 mL with a sampling speed from 5 to 80 mL/min. Offers 8 to 64 detection channels and up to 1000 customizable particle-size channels for flexible and efficient oil analysis. It is equipped with an intuitive touchscreen interface for operating variable parameters.

Specifications

Particle Size Range 0.8 to 600μm
Detection Channels 8 to 64
Sensitivity 0.1μm
Sampling Volume 0.2 to 6000ml
Sampling Volume Interval 0.1ml
Sampling Accuracy ±1%
Sampling Speed 5 to 80ml/min
Cleaning Speed 5 to 80ml/min
Cleaning Volume 0ml to 90ml
Counting Accuracy < ±5%
Resolution ≤ 10
Repeatability RSD <2%
Light Source Semiconductor laser
Coincidence Error 12000 to 40000 grains/ml
Offline Viscosity Detection ≤ 100cSt (pressure chamber can be selected when the viscosity is too large)
Low-Pressure Range 0 to 0.6MPa
High Pressure upto 42MPa
On-Line Detection Interval arbitrarily set
Test Sample Temperature 0℃ to 80℃
Working Temperature -20℃ to 60℃
Storage Temperature -30℃ to 80℃
Screen Size 7- inch
Battery Capacity 5200mAh
Battery Running Time 6 to 8 hours
Standards NAS1638, GJB420A, GJB420B, ISO4406, SAE4059DPC, SAE4059CPC, GB/T14039, GOST17216, QC/T29104, JB/T9737, DL/T432, SAE749D and HH005-2018
Power Supply AC100 to 240V, 50/60Hz
Dimension (L×W×H) 310 × 305 × 135mm
Packing Dimension (L×W×H) 300 × 400 × 500 mm
Net Weight 8 kg
Gross Weight 11 kg

Features

  • Flexible sensor options
  • Incorporated with a metering pump
  • Pipeline crafted with 316L stainless steel and PTFE
  • Optional pressure-reducing valve
  • Compatible with various standards
  • Built-in multiple calibration curves
  • Integrated with data analysis system

Applications

  • Portable Oil Particle Counter is widely used in industrial maintenance, hydraulic systems, lubrication oil analysis, fuel oil quality control field testing, etc.

Accessories

  • Accessories Name Qty
    FPC-P2 Main Machine 1
    User Manual 1
    Certificate 1
    Installation List 1
    Inlet Tube 1
    Outlet Tube 1
    Print Paper 1
    Cable 1

Accessories Optional

  • Accessories Name Qty
    Pressure Chamber Sampler 1
