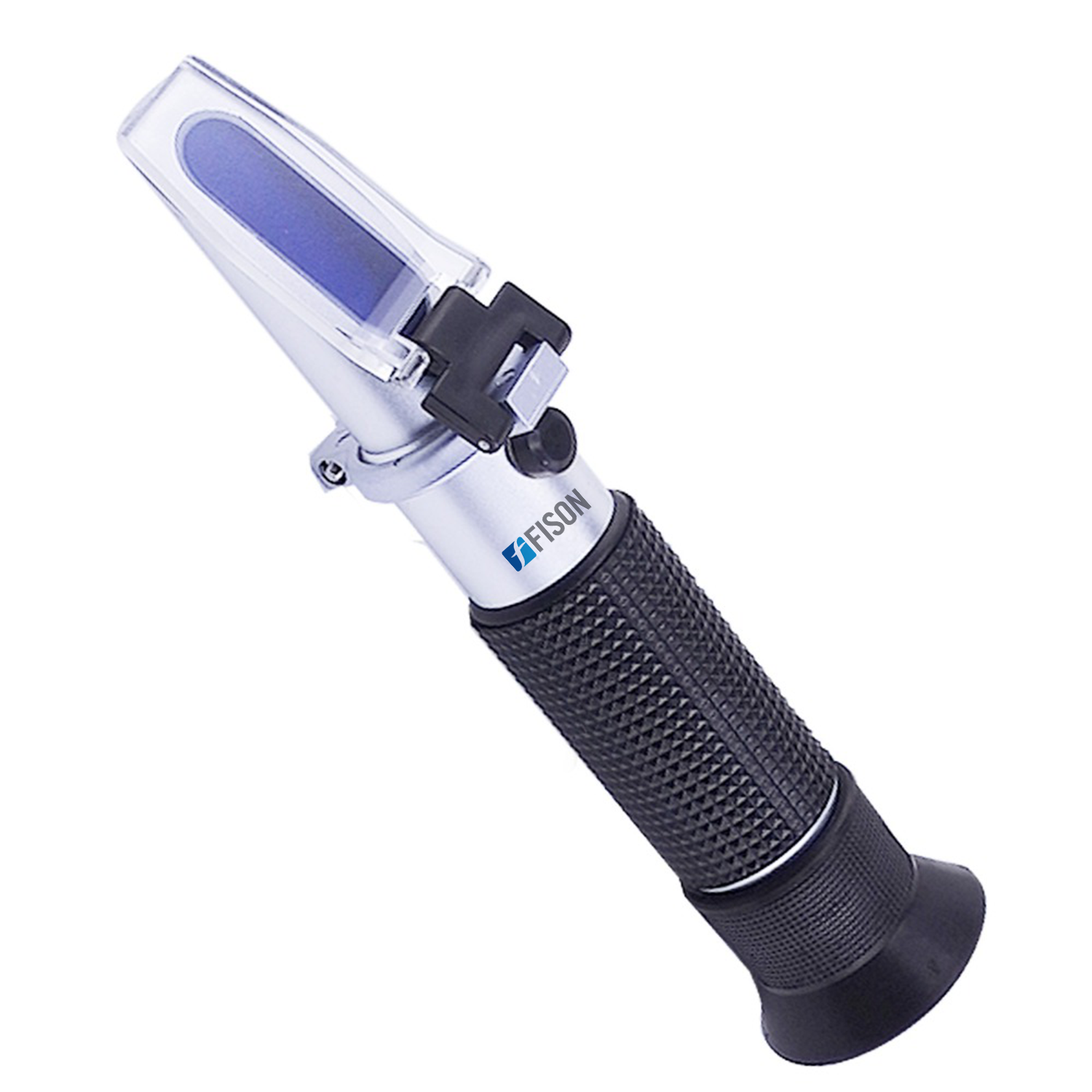

Portable Soya Milk Refractometer FM-MKR-A101
Portable Soya Milk Refractometer FM-MKR-A101 is a handheld portable refractometer to measure the soymilk density (soybean solid amount) in range from 0 to 25 %. It is an Automatic Temperature Compensation (ATC) model with reference temperature of 20°C and water resistant properties. Through corrective coefficient of optical system, via prism and scale range, it determines the amount of dissoluble Soybean milk quickly and accurately.
Specifications
| Type | Handheld and analogue type |
| Maximum milk concentration | 0.25 |
| Minimum scale value/accuracy | 0.5 % of soymilk content |
| Maximum brix range | 0.32 |
| Scale divisions | 0.5 % / 0.001 |
| Maximum temperature compensation | 0°C |
| Minimum temperature compensation | 20°C |
| Material body | metal, glass and rubber |
| Dimension | 30×40×205 mm |
| Weight | 0.21 kg |
Features
- Measures percentage of soymilk concentration (0 to 25%) with a refractive index measurement
- Automatic temperature compensation (ATC) for immediate, accurate calibration readings, regardless of ambient temperature
- Minimum detection scale value of 0.5 % of soymilk content
- Brix scale range of 0 to 32 %
- Resolution accuracy of +/- 0.2 % Brix
- Analogue refractometer fitted with an eyepiece which is adjusted easily and smoothly to different visual capacities
- Necessitates very small amount of sample, about 2 to 3 drops only
- ATC refractometer of 0 to 20°C provides accurate reading
- Heavy-duty sturdy design, built-in durable lightweight machined aluminum material
- Comfortable non-slip rubber outer grip
- Includes manual calibration knob that is secured with a lock nut
- Calibration of device is carried out by placing one drop of water on testing platform and adjusting to zero if needed
- Comes in a hard case, with a calibration screwdriver, pipette and users guide
Applications
- Soya Milk refractometer is engineered specifically for measuring the solids and protein content of Soya Milk. It is the handheld instrument able to measure both the solids and protein content of Soy Milk.
Accessories
Accessories no Accessories name 1. Carrying box 2. Screwdriver 3. Straw 4. Wipes 5. User manual
