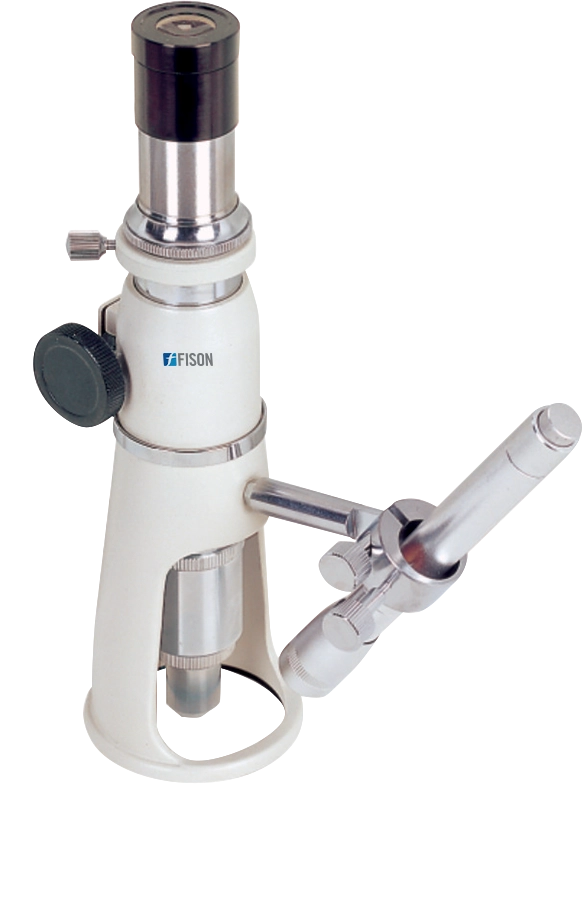

Measuring microscope FM-PMM-A102

Measuring microscope FM-PMM-A102

Measuring microscope FM-PMM-A102 comes with small, lightweight, portable design, and user-friendly operations. Equipped with No. 7 pen battery as source of illumination during microscopic analysis. Different measurements are possible by using different reticules and eyepiece using this microscope.

Specifications

Total magnification 40X
Objective Achromatic objective 4X
Condenser N.A. 0.1
Illumination source Pen light, no. 7 battery (with Holder)
Eyepiece/ cross with reticle WF 10X/ 18 mm (with diopter adjustment)
Magnification tube length 160 mm
Eyepiece reticle 0.1 mm
Fine division 0.025 mm
Working distance 18 mm
Focus range 30 mm
Diameter of bearing plane 63 mm
Height of microscope 210 mm
Weight 650 g

Features

  • WF 10X/ 18 mm Eyepiece
  • 4X Achromatic Objectives
  • High quality coaxial and angular incident illumination
  • Knurled ring for focusing
  • Aluminum coated body
  • Stable performance

Applications

  • Used in on field microscopic measurement or viewing across machinery production industry, paper and printing, textile industry for quality and research purpose.
