Portable Beer Refractometer FM-BER-A100

Portable Beer Refractometer FM-BER-A100

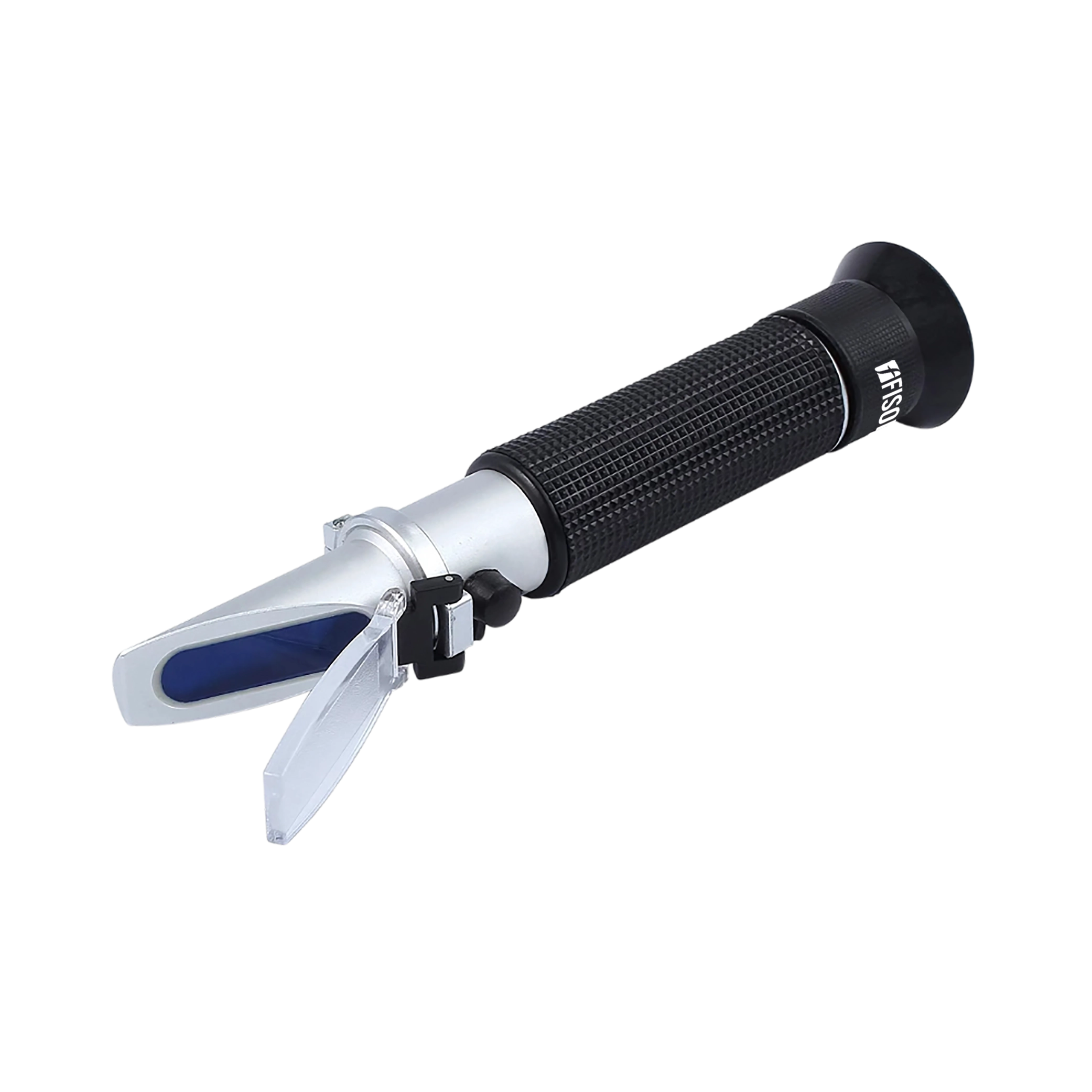

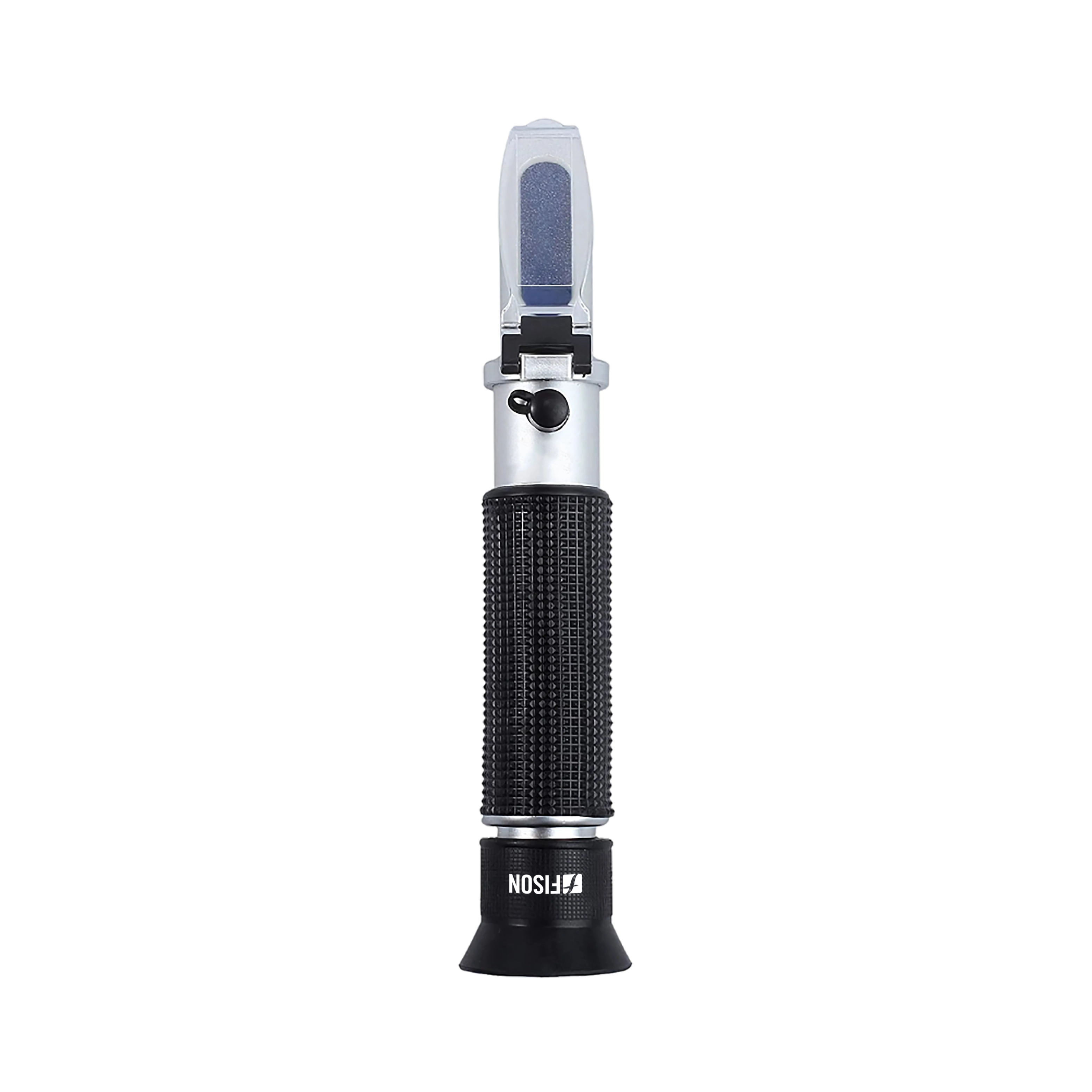

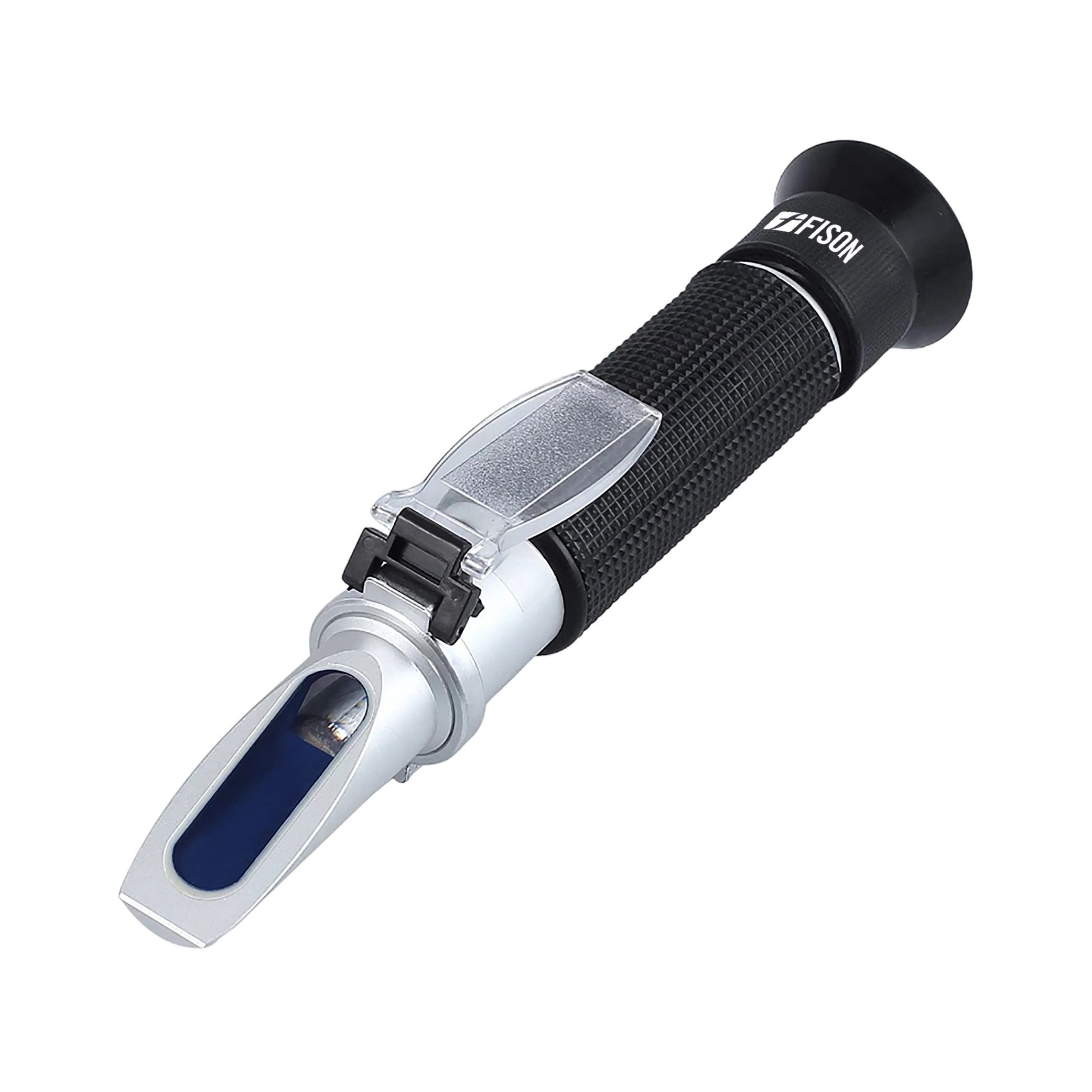

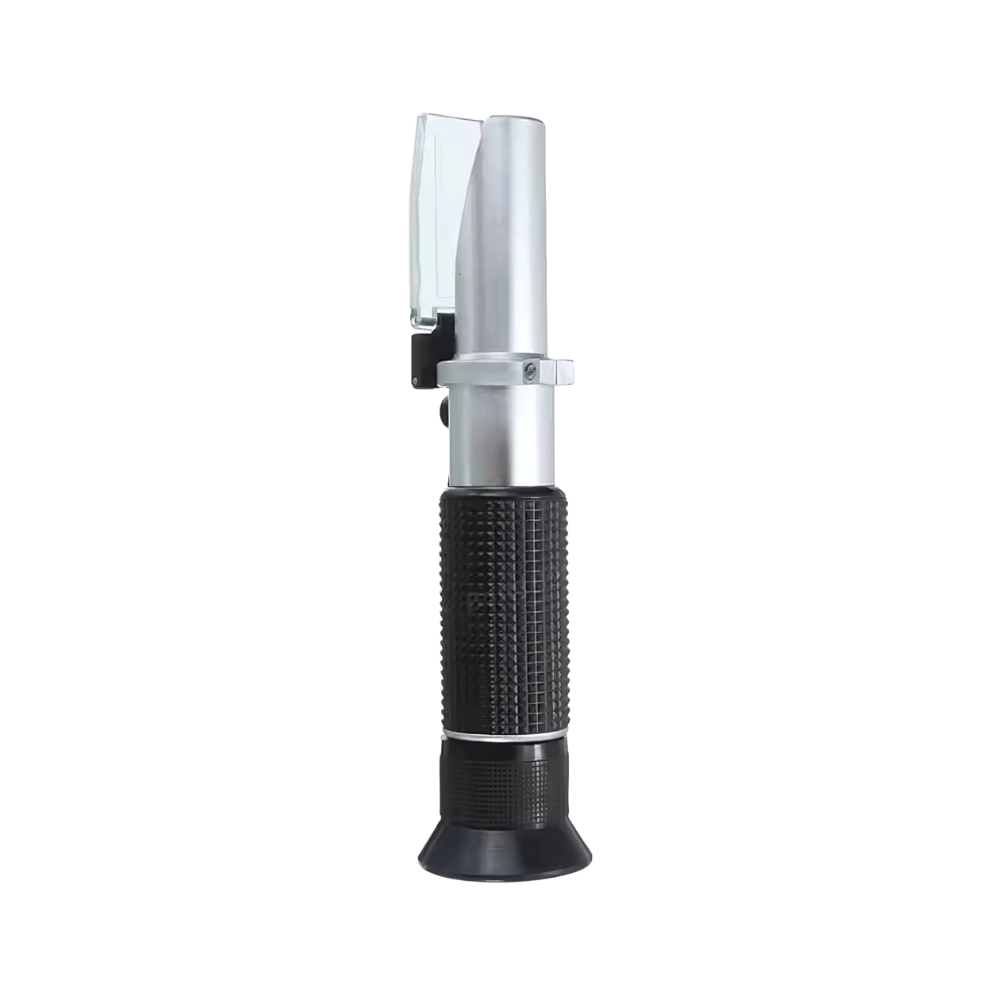

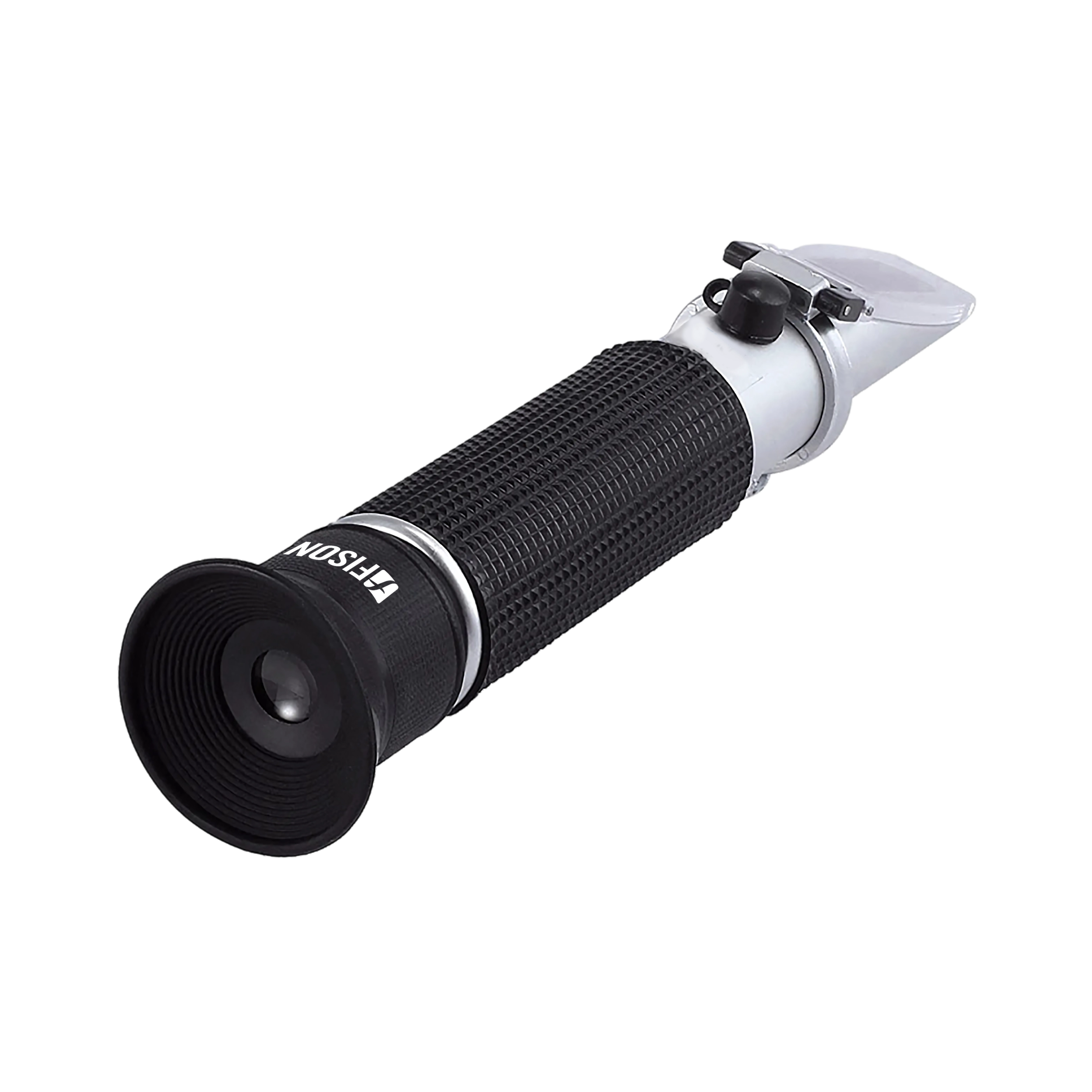

Portable Beer Refractometer FM-BER-A100 is a portable handheld refractometer used to determine the sugar content / specific gravity of beer in the 0 to 32 % Brix and 1.000 to 1.120 wort SG measuring range. It helps in assessing value of starting gravity as well as gravity of beer during fermentation and the end value. The overall results aid in calculating important values like, alcohol content and sugar content.

Specifications

Type Handheld and analogue type
Concentration of Brix 0 to 32% Brix Wort
Specific gravity range 1.000 to 1.120 Wort SG
Minimum scale detection value 0.20 % Brix; 0.001 SG
Maximum temperature compensation 0°C
Minimum temperature compensation 20°C
Material body metal, glass and rubber
Dimension 30 × 40 × 210
Weight 0.27 kg

Features

  • Concentration of Brix: 0 to 32% Brix Wort
  • Specific gravity range: 1.000 to 1.120 Wort SG (refractive index)
  • Minimum scale detection value/accuracy of 0.20 % Brix; 0.001 SG
  • Light-weight, portable, includes protective carrying case
  • Measures concentration of salt and dissolved solids in aqueous solution
  • Provides reading in parts per thousand (PPT) and specific gravity (SG)
  • Automatic temperature compensation (ATC) with reference temperature of 20°C
  • Ideal for on-site measurements in processing and storage areas, or in field

Applications

  • The application of beer refractometer enables the producer to bring some changes during beer production process, for example, prolonging boiling time, variation of water/sugar proportion. The beer refractometer accompanies brewer along whole way allowing achievement of the best quality result possible.

Accessories

  • Accessories no Accessories name
    1.        Carrying box
    2.        Screwdriver
    3.        Straw
    4.        Wipes
    5.        User manual

Portable Brix Refractometer

Portable Brix Refractometer FM-BXR-A100

  • Brix concentration range : 0 to 5% sugar
  • Minimum scale value/accuracy : 0.001
  • Scale divisions : 0.10%/0.001
Catalog

Portable Brix Refractometer FM-BXR-A101

  • Brix concentration range : 0 to 10% sugar
  • Minimum scale value/accuracy : 0.001
  • Scale divisions : 0.10%/0.001
Catalog
Portable Brix Refractometer FM-BXR-A102
  • Brix concentration range : 0 to 20% sugar
  • Minimum scale value/accuracy : 0.001
  • Scale divisions : 0.10%/0.001
Catalog

Portable Milk Refractometer

Portable Milk Refractometer FM-MKR-A100
  • Type : Handheld and analogue type
  • Maximum milk concentration : 0.2
  • Minimum scale value/accuracy : 0.2 % of milk content
Catalog

Portable Soya Milk Refractometer FM-MKR-A101

  • Type : Handheld and analogue type
  • Maximum milk concentration : 0.25
  • Minimum scale value/accuracy : 0.5 % of soymilk content
Catalog

Portable Salinity Refractometer

Portable Salinity Refractometer FM-SNR-A100

  • Type : Handheld and analogue type
  • Minimum salt concentration : 0 Parts per thousand (PPT)
  • Maximum salt concentration : 100 parts per thousand (PPT)
Catalog
Portable Salinity Refractometer FM-SNR-A101
  • Type : Handheld and analogue type
  • Minimum salt concentration : 0 Parts per thousand (PPT)
  • Maximum salt concentration : 28 parts per thousand (PPT)
Catalog
Portable Salinity Refractometer FM-SNR-A102
  • Type : Handheld and analogue type
  • Minimum salt concentration : 0 Parts per thousand (PPT)
  • Maximum salt concentration : 100 parts per thousand (PPT)
Catalog

Portable Alcohol Refractometer

Portable Alcohol Refractometer FM-ALR-A100

  • Type : Handheld and analogue type
  • Minimum alcohol percentage : 60 % V/V
  • Maximum alcohol percentage : 80% V/V
Catalog

Portable Alcohol Refractometer FM-ALR-A101

  • Type : Handheld and analogue type
  • Minimum alcohol percentage : 0 % V/V
  • Maximum alcohol percentage : 25 % V/V
Catalog
Portable Alcohol Refractometer FM-ALR-A102
  • Type : Handheld and analogue type
  • Minimum alcohol percentage : 0 % V/V
  • Maximum alcohol percentage : 25 % V/V
Catalog

Portable Wine Refractometer

Portable Wine Refractometer FM-WER-A100
  • Type : Handheld and analogue type
  • Sugar content range : 0 to 140° Oe,
    0 to 25° KMW(Babo),
    0 to 32% Mas Sacch
  • Sugar content accuracy : 1° Oe, 0.2° KMW(Babo),
    0.2% Mas Sacch
Catalog

Portable Wine Refractometer FM-WER-A101

  • Type : Handheld and analogue type
  • Sugar content range : 30 to 140° Oe,
    0 to 32% Brix
  • Sugar content accuracy : 1° Oe,
    0.20% Brix
Catalog

Portable Wine Refractometer FM-WER-A102

  • Type : Handheld and analogue type
  • Sugar content range : 0 to 190° Oe,
    0 to 38° KMW Babo,
    0 to 44% Brix
  • Sugar content accuracy : 2° Oe,
    0.4° KMW(Babo),
    0.4% Brix
Catalog
