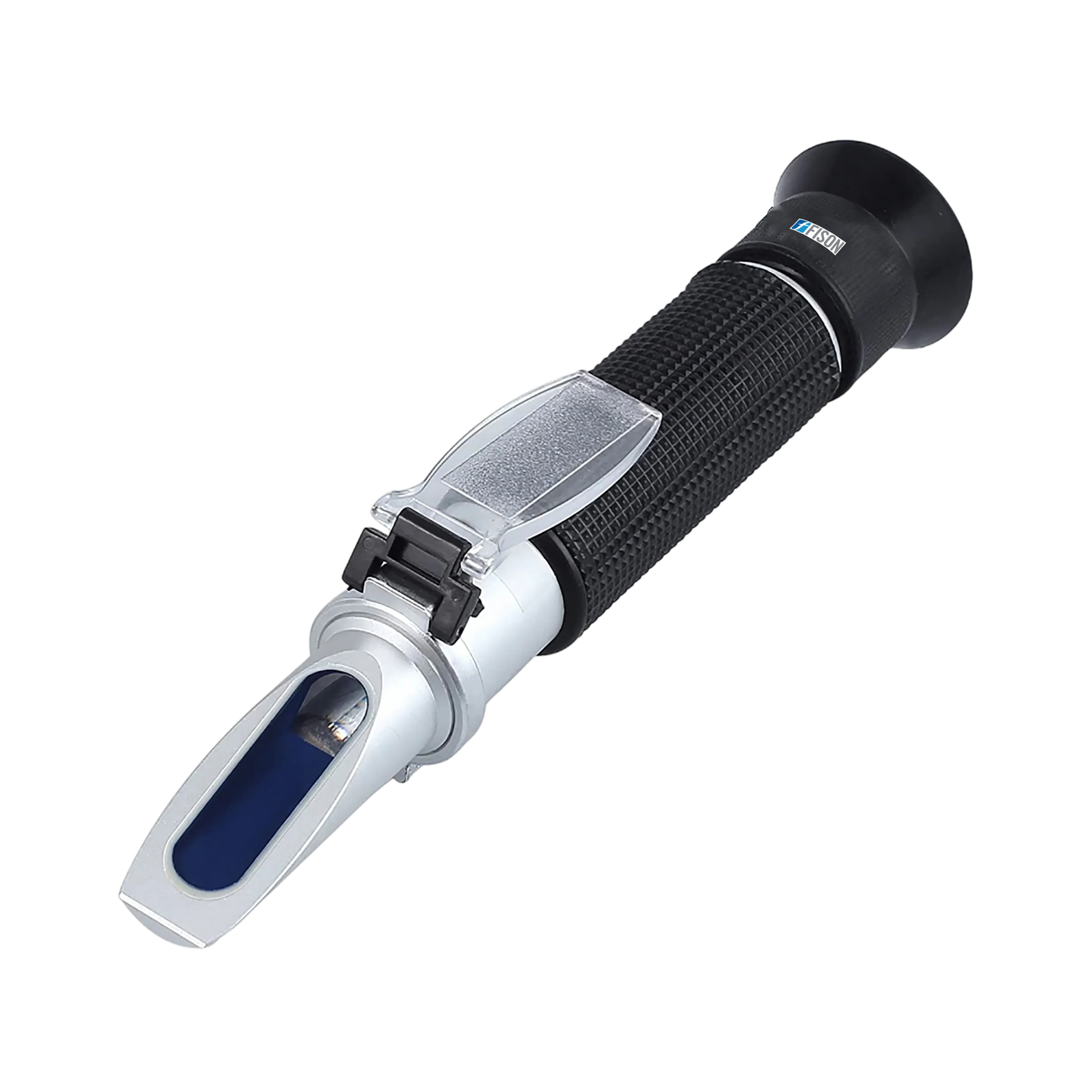

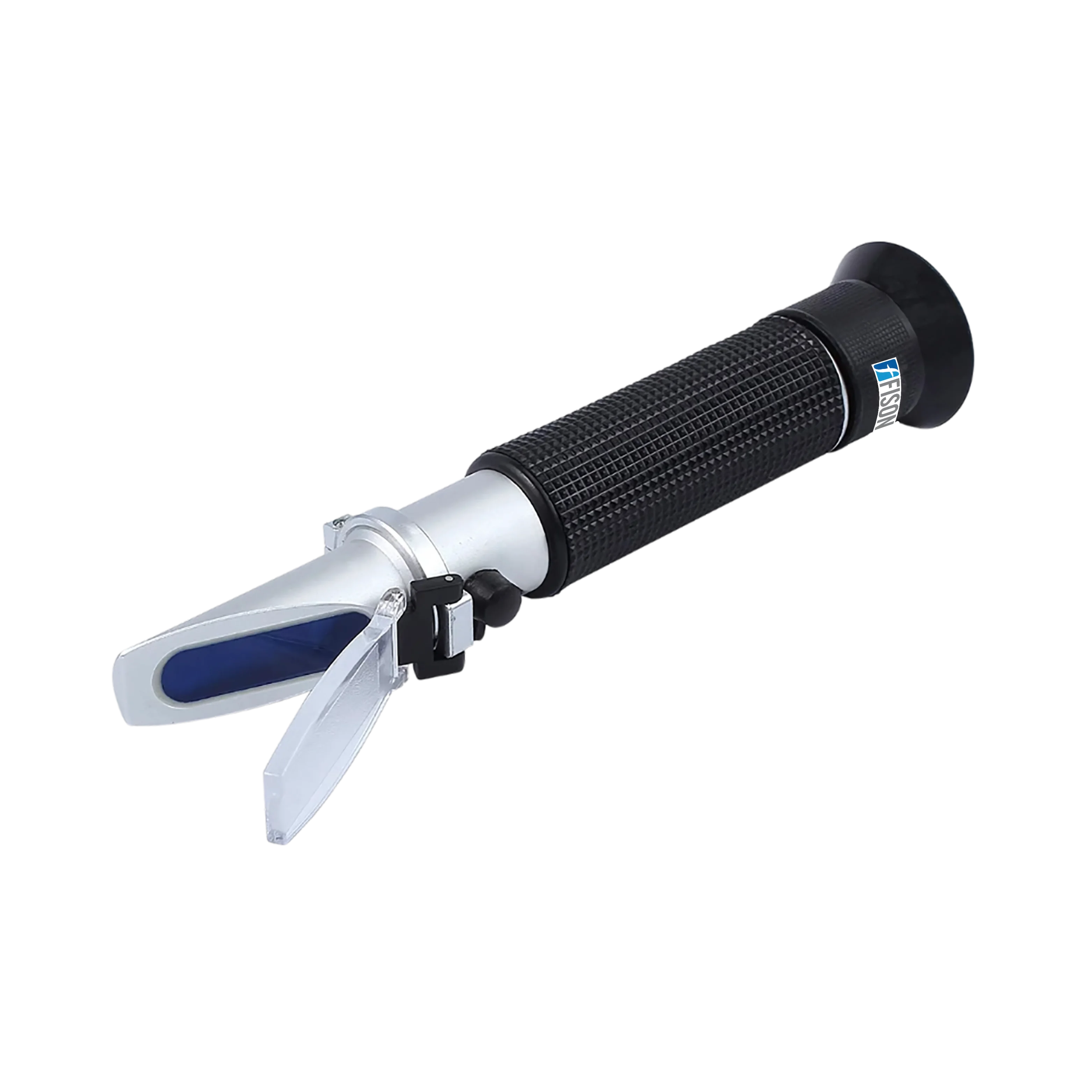

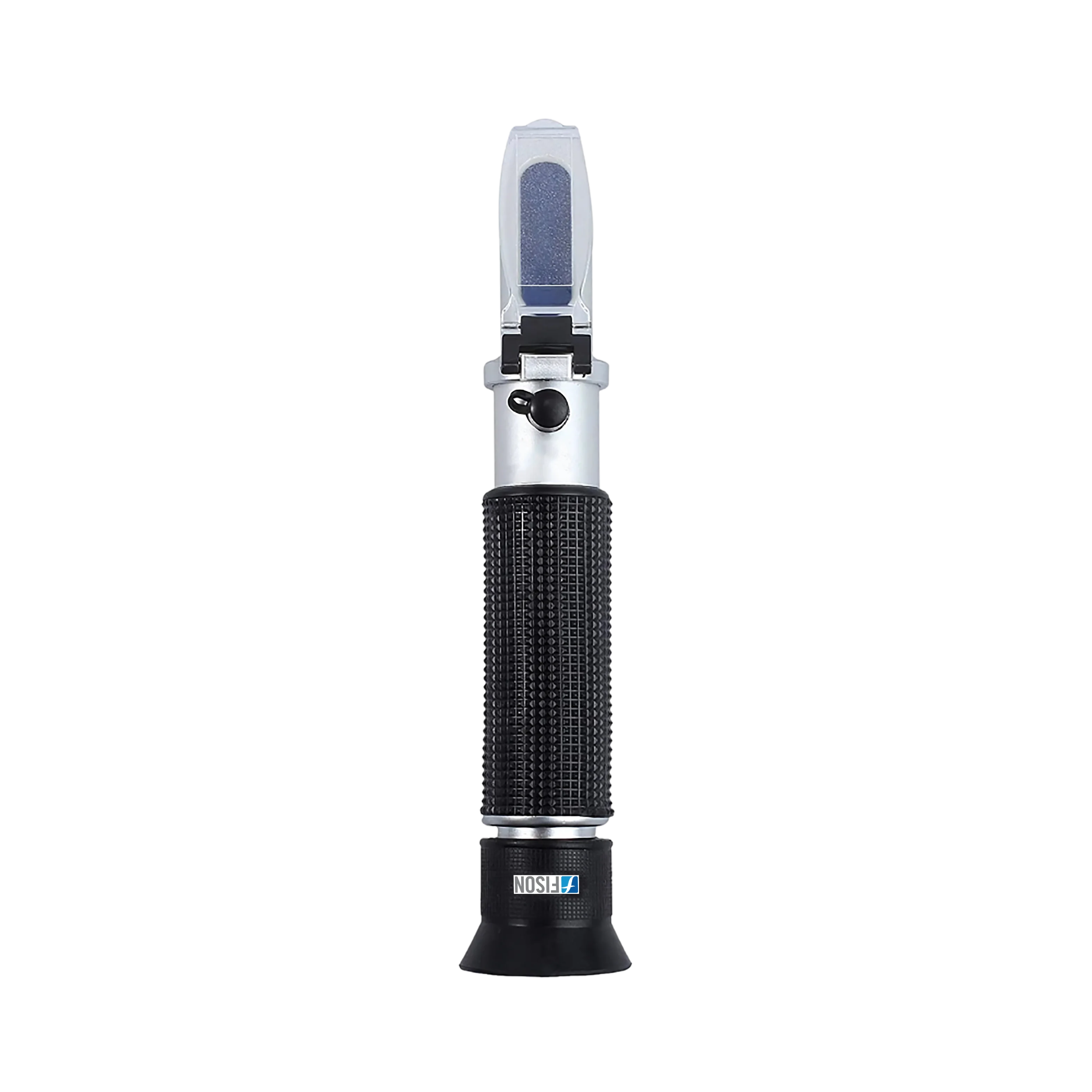

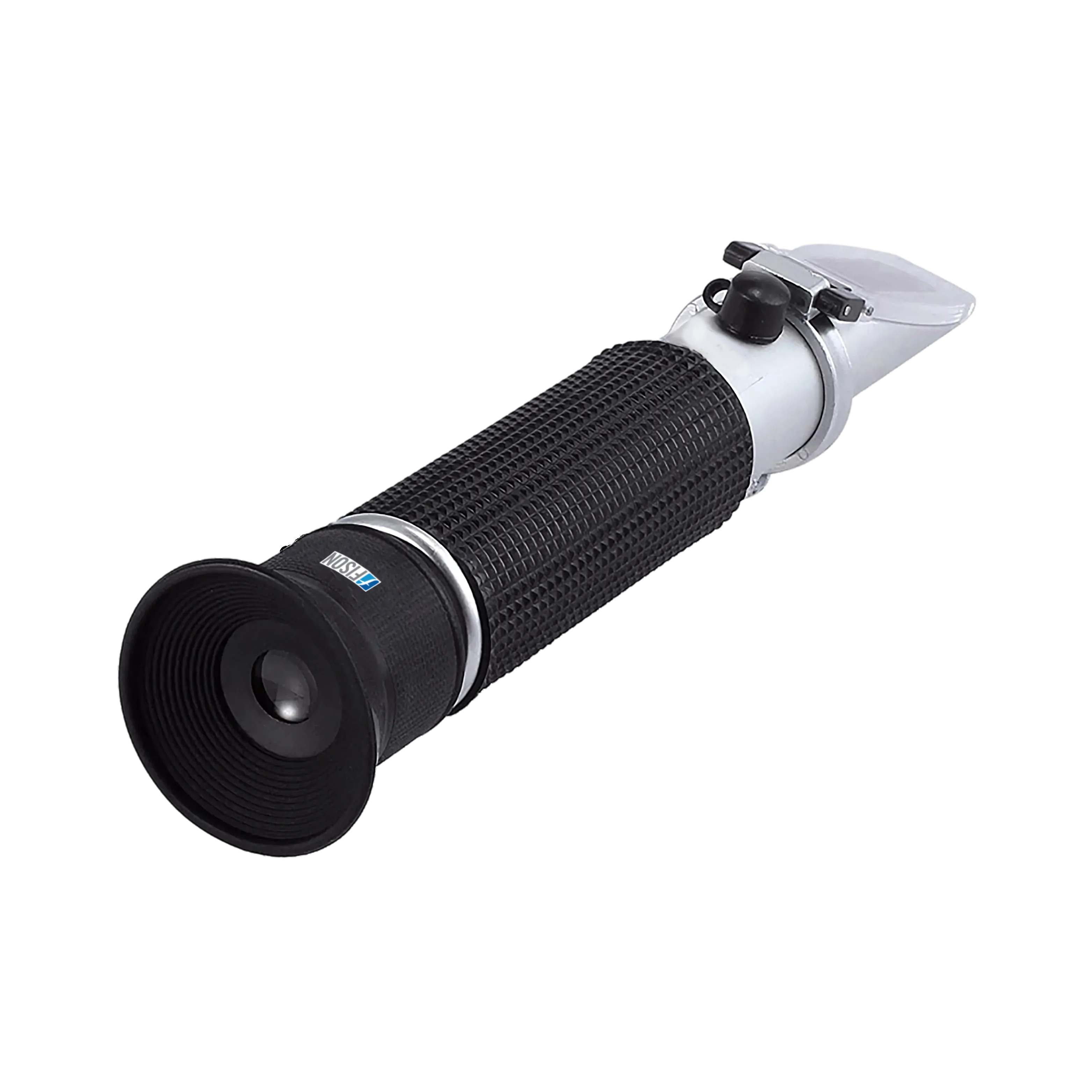

Portable Alcohol Refractometer FM-ALR-A100

Portable Alcohol Refractometer FM-ALR-A100

Portable Alcohol Refractometer FM-ALR-A100 is a handheld portable optical refractometer designed for measuring of ABV (alcohol by volume, alcohol percentage by volume) of ethanol/water mixtures. It is suitable for fruit brandies or other distillates which contain ethanol and water. For an accurate measurement, this refractometer ought to be used for solutions that do not contain pigments or sugar.

Specifications

Type Handheld and analogue type
Minimum alcohol percentage 60 % V/V
Maximum alcohol percentage 80% V/V
Minimum alcohol volume 0 V/V
Maximum alcohol volume 60 V/V
Minimum scale value (alcohol) 2 % of alcohol content
Brix concentration range -
Minimum scale value (brix) -
Glucose Baume -
Accuracy of Baume -
Maximum temperature compensation 0°C
Minimum temperature compensation 20°C
Material body Metal, glass and rubber
Dimension 30×40×200 mm
Weight 0.24 kg

Features

  • Alcohol percentage by volume range: 60 to 80% V/V
  • Alcohol by volume: 0 to 60 V/V
  • Minimum detection scale value: 2 % of alcohol content
  • Analogue refractometer fitted with an eyepiece which is adjusted easily and smoothly to different visual capacities
  • Necessitates very small amount of sample, about 2 to 3 drops only
  • Automatic Temperature Compensation (ATC)
  • ATC refractometer of 10 to 30°C provides accurate reading
  • Heavy-duty sturdy design, built-in durable lightweight machine aluminum material
  • Comfortable non-slip rubber outer grip
  • Includes manual calibration knob that is secured with a lock nut
  • Calibration of device is carried out by placing one drop of water on testing platform and adjusting to zero if needed
  • Comes in a hard case, with a calibration screwdriver, pipette and users guide

Applications

  • Reliably and accurately determine the alcohol content in a wide range of alcoholic beverages: all types of beer and beer mixtures, wine, cider, spirits, liqueurs, but also fermenting grape juice, wort, molasses, and wash.

Accessories

  • Accessories no Accessories name
    1.        Carrying box
    2.        Screwdriver
    3.        Straw
    4.        Wipes
    5.        User manual

Alternative Models Of Portable Alcohol Refractometer

Portable Alcohol Refractometer FM-ALR-A101

  • Type: Handheld and analogue type
  • Minimum alcohol percentage: 0 % V/V
  • Maximum alcohol percentage: 25 % V/V
Catalog

Portable Alcohol Refractometer FM-ALR-A102

  • Type: Handheld and analogue type
  • Minimum alcohol percentage: 0 % V/V
  • Maximum alcohol percentage: 25 % V/V
Catalog

Portable Brix Refractometer

Portable Brix Refractometer FM-BXR-A100

  • Brix concentration range : 0 to 5% sugar
  • Minimum scale value/accuracy : 0.001
  • Scale divisions : 0.10%/0.001
Catalog

Portable Brix Refractometer FM-BXR-A101

  • Brix concentration range : 0 to 10% sugar
  • Minimum scale value/accuracy : 0.001
  • Scale divisions : 0.10%/0.001
Catalog
Portable Brix Refractometer FM-BXR-A102
  • Brix concentration range : 0 to 20% sugar
  • Minimum scale value/accuracy : 0.001
  • Scale divisions : 0.10%/0.001
Catalog

Portable Milk Refractometer

Portable Milk Refractometer FM-MKR-A100
  • Type : Handheld and analogue type
  • Maximum milk concentration : 0.2
  • Minimum scale value/accuracy : 0.2 % of milk content
Catalog

Portable Soya Milk Refractometer FM-MKR-A101

  • Type : Handheld and analogue type
  • Maximum milk concentration : 0.25
  • Minimum scale value/accuracy : 0.5 % of soymilk content
Catalog

Portable Salinity Refractometer

Portable Salinity Refractometer FM-SNR-A100

  • Type : Handheld and analogue type
  • Minimum salt concentration : 0 Parts per thousand (PPT)
  • Maximum salt concentration : 100 parts per thousand (PPT)
Catalog
Portable Salinity Refractometer FM-SNR-A101
  • Type : Handheld and analogue type
  • Minimum salt concentration : 0 Parts per thousand (PPT)
  • Maximum salt concentration : 28 parts per thousand (PPT)
Catalog
Portable Salinity Refractometer FM-SNR-A102
  • Type : Handheld and analogue type
  • Minimum salt concentration : 0 Parts per thousand (PPT)
  • Maximum salt concentration : 100 parts per thousand (PPT)
Catalog

Portable Beer Refractometer

Portable Beer Refractometer FM-BER-A100

  • Type : Handheld and analogue type
  • Concentration of Brix : 0 to 32% Brix Wort
  • Specific gravity range : 1.000 to 1.120 Wort SG
Catalog

Portable Wine Refractometer

Portable Wine Refractometer FM-WER-A100

  • Type : Handheld and analogue type
  • Sugar content range : 0 to 140° Oe,
    0 to 25° KMW(Babo),
    0 to 32% Mas Sacch
  • Sugar content accuracy : 1° Oe, 0.2° KMW(Babo),
    0.2% Mas Sacch
Catalog
Portable Wine Refractometer FM-WER-A101
  • Type : Handheld and analogue type
  • Sugar content range : 30 to 140° Oe,
    0 to 32% Brix
  • Sugar content accuracy : 1° Oe,
    0.20% Brix
Catalog
Portable Wine Refractometer FM-WER-A102
  • Type : Handheld and analogue type
  • Sugar content range : 0 to 190° Oe,
    0 to 38° KMW Babo,
    0 to 44% Brix
  • Sugar content accuracy : 2° Oe,
    0.4° KMW(Babo),
    0.4% Brix
Catalog
