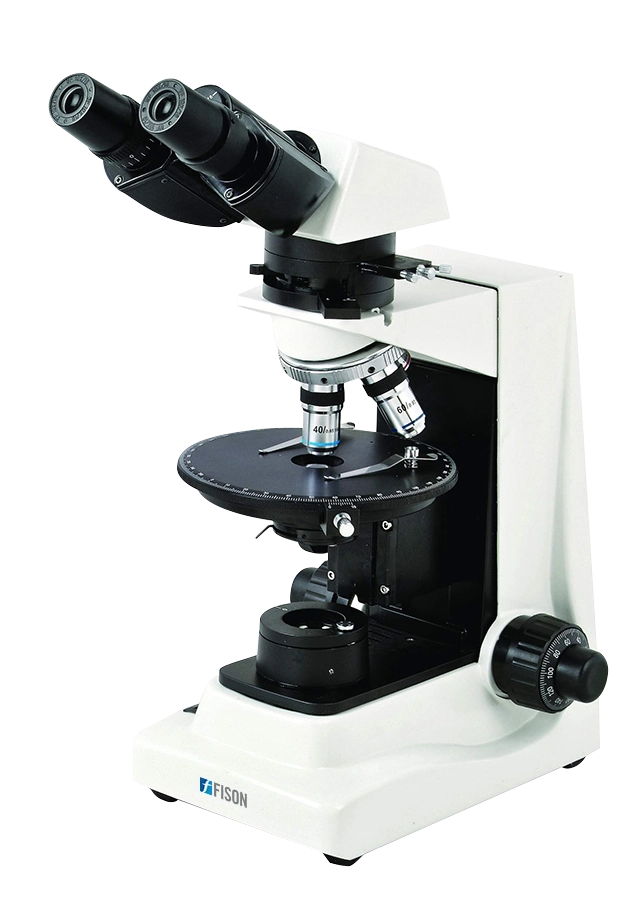

Polarizing Microscope FM-PM-A200

Polarizing Microscope FM-PM-A200

Polarizing Microscope FM-PM-A200 is an upright microscope with Seidentopf type binocular head. It comes with polarizer which slides in/out of optical path, located on the top of collector. The 0°-90° gradation rotatable analyzer is used to observe single polarization.

Specifications

Optical System Finite optical system
Viewing head Seidentopf type binocular head inclined at 30°, 360° Rotatable
Polarizer Sliding in/out of optical path, located on the top of collector
Analyzer Rotatable analyzer with gradation 0°-90°
Objective Achromatic objective 4X, 10X, 40X, 60X
Bertrand lens Bertrand lens, sliding in/out of optical path
Optical Compensator λ Slip (first class red), 1/4λ Slip, Quartz wedge
Eyepiece Eyepiece WF10X/18 with scale of crosshair, WF10X/ 18 mm
Revolving round stage Diameter 160 mm, 360° rotatable and graduated in 1°increments
minimum resolution 6‘ when using Vernier scale, center adjustable
Illumination 6V/20W Halogen lamp, brightness adjustable
Nosepiece Backward quadruple nosepiece, adjustable center
Condenser Abbe condenser NA 1.25 with iris diaphragm & filter
Focusing Coaxial coarse & fine adjustment, range 28 mm, fine division 0.002
Dimension 232 × 260 × 460 mm
Weight 11.5 kg

Features

  • Seidentopf type Binocular 30° inclined head
  • Polarizer which slides in/out of optical path
  • λ Slip (first class red), 1/4λ Slip, quartz wedge Optical compensator
  • Bertrand lens to observe interferogram of specimen
  • 6V/20W Halogen lamp as illumination source

Applications

  • Used to observe performance of minerals, gems and other crystals figures by inspecting their colors and interference colors at microscopic level.

Accessories Optional

  • Accessories No. Name
    1 λ Slip (First Class Red)
    2 1/4 λ Slip
    3 Quartz Wedge
    4 Bertrand lens, sliding in/out of optical path
    5 6 V, 20W halogen lamp
