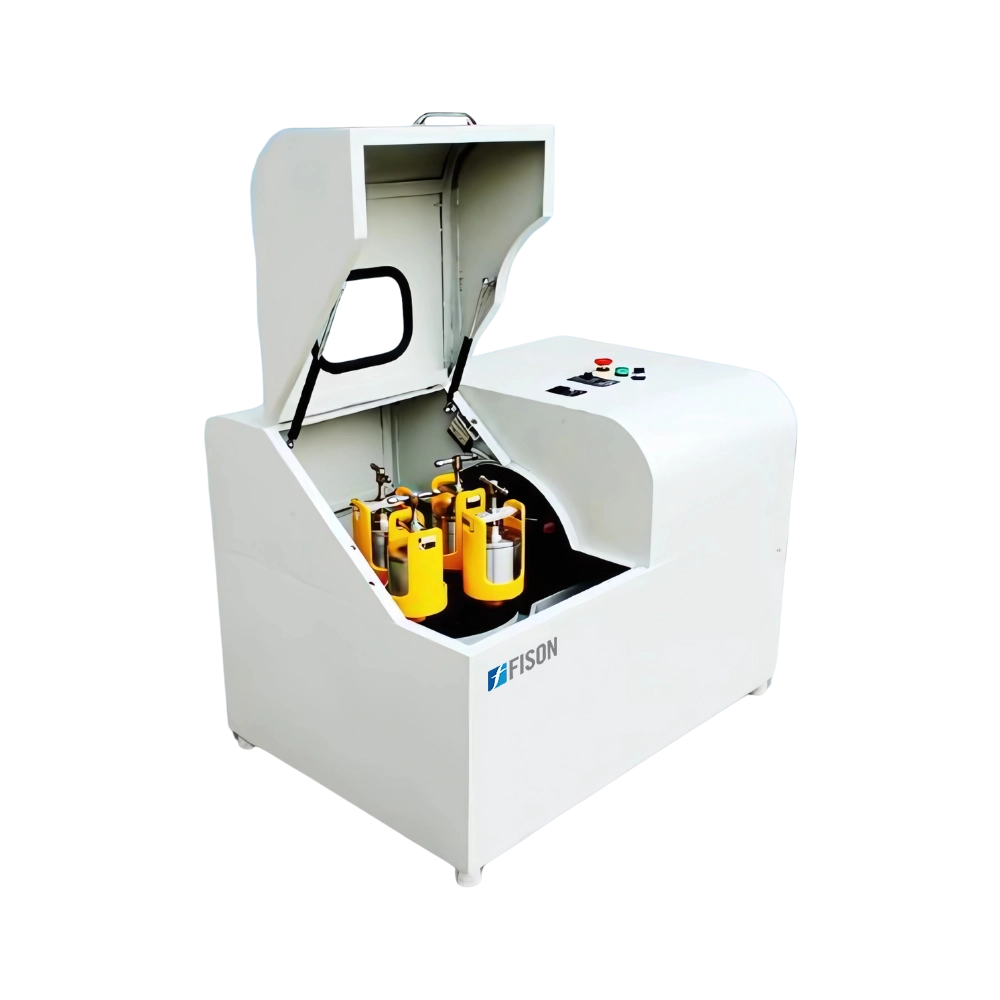

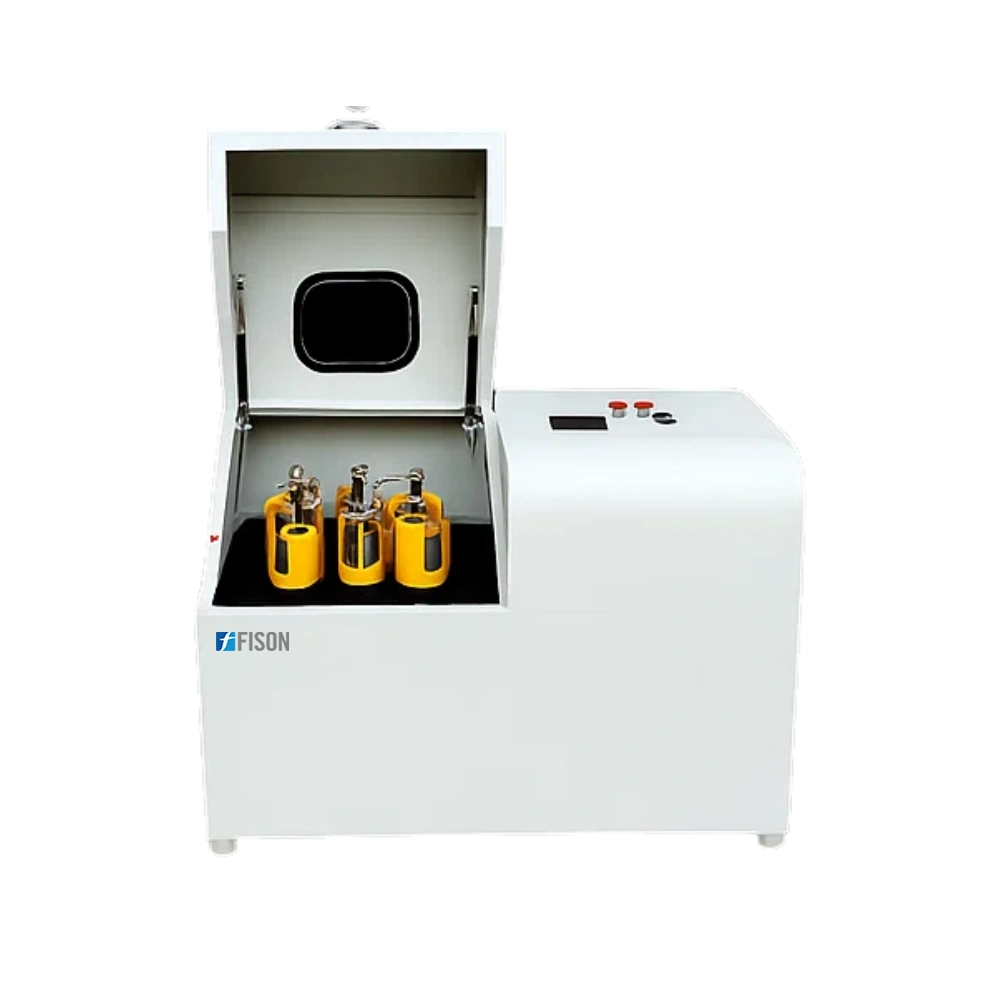

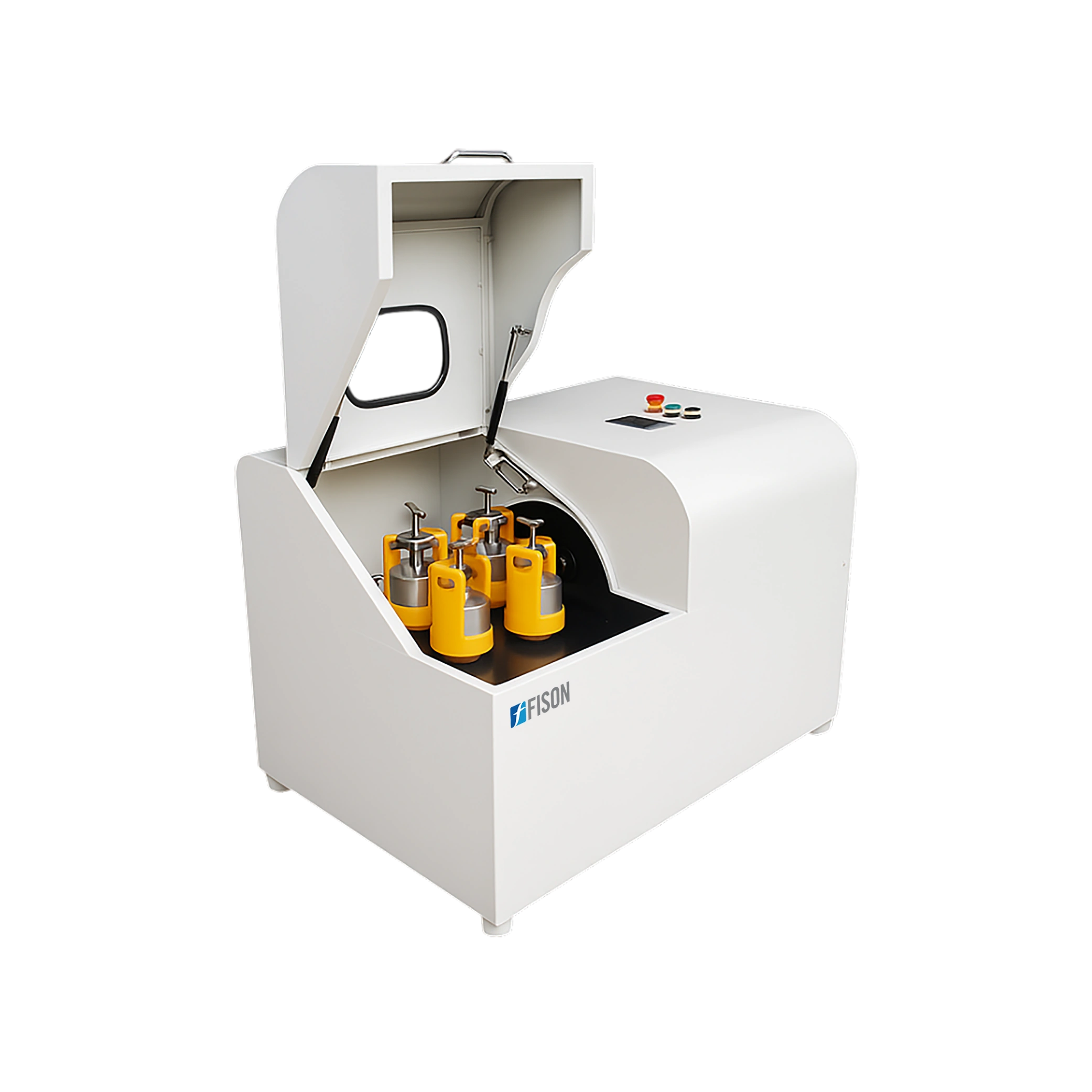

Planetary Ball Mill FM-PBM-A123
Planetary Ball Mill FM-PBM-A123 is designed with a 4L capacity for efficient grinding in laboratory and industrial settings. It operates at a jar rotational speed of 850 rpm, providing uniform and precise milling for various materials. It supports dry and wet milling to accommodate different material types and processing needs. Our mill features low noise and minimal wear, ensuring a smooth and efficient grinding process with reduced maintenance requirements.
Specifications
| Capacity | 4L |
| Jar Rotational Speed | 850rpm |
| Turning Speed | 12rpm |
| Working Principle | Impact and friction force |
| Discharging Granularity | Down to 0.1μm |
| Rotational Speed Ratio | 1: 2 |
| Drive Mode | Gear drive and Belt drive |
| Power | 220VAC, 50Hz, 0.75KW |
| Dimension (L×W×H) | 1040×730×720mm |
| Weight | 170 Kg |
Features
- Fixed-Point Operation
- Uniform Grinding
- Stable Gear Transmission
- Multi-sample Processing
Applications
- Planetary Ball Mill FM-PBM-A123 is widely used in Nanotechnology and Materials Science, Pharmaceuticals and Biotechnology, Chemistry and Chemical Engineering, Ceramics and Metallurgy, Environmental Science, and Electronics and Battery Research.
