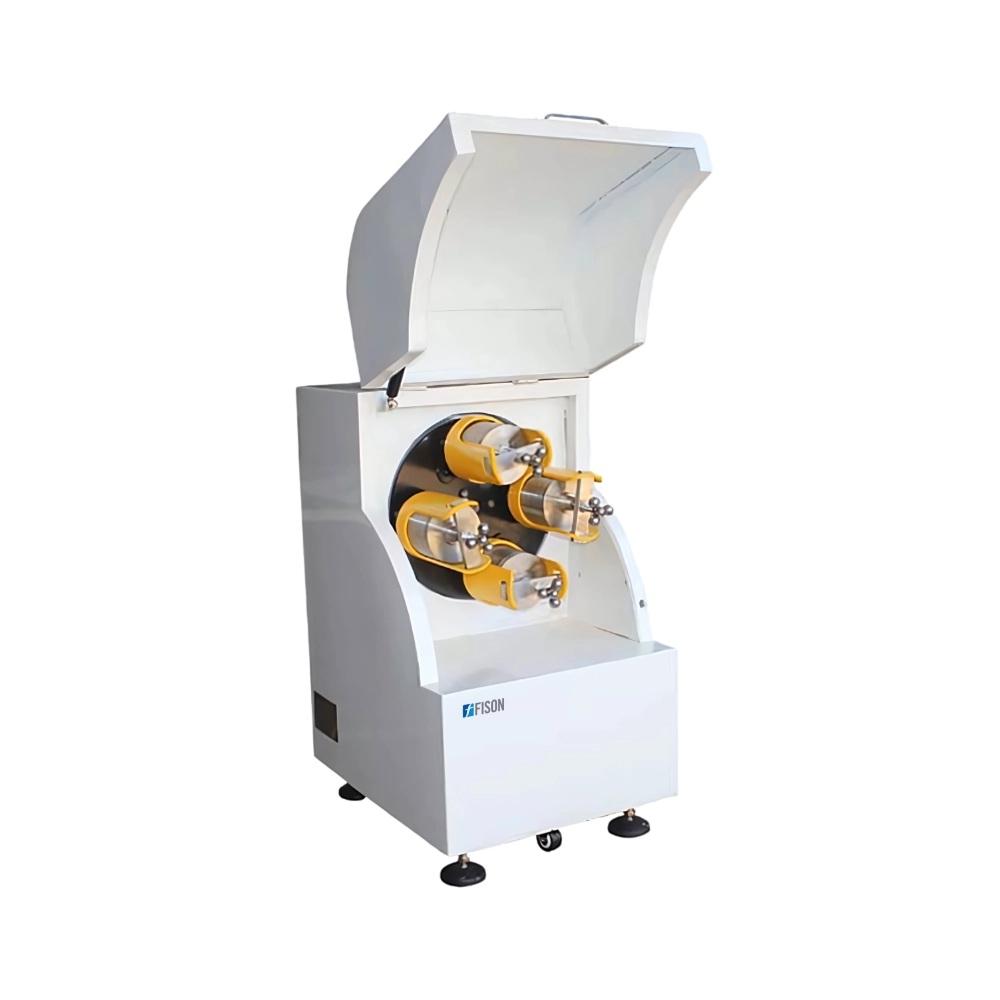

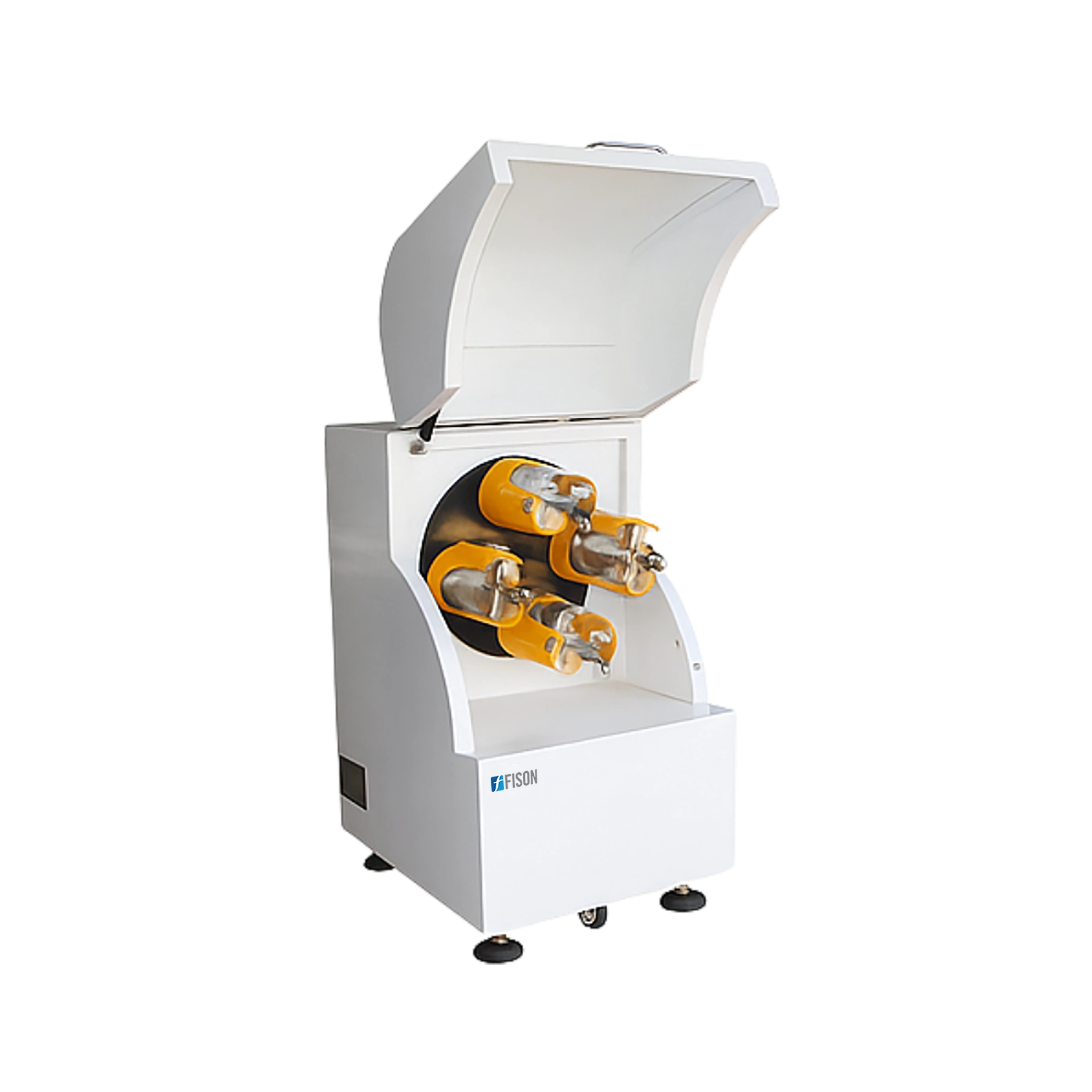

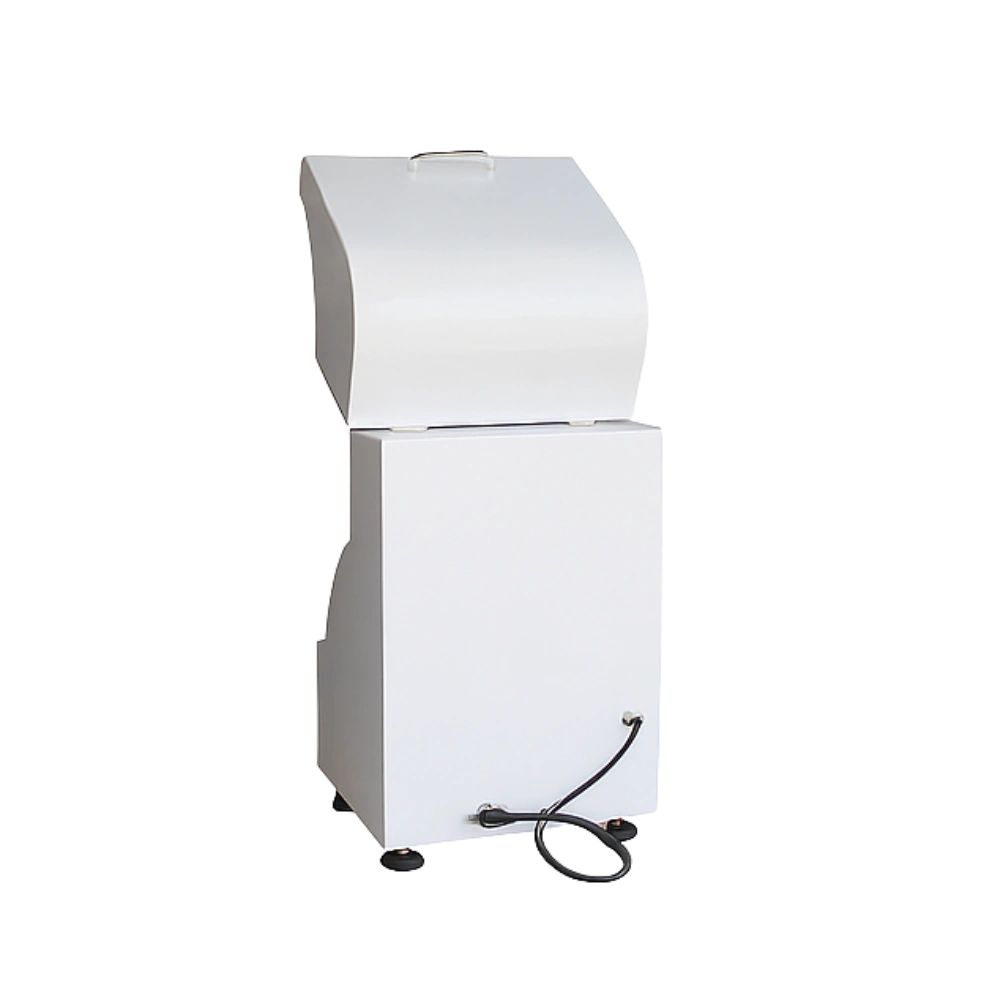

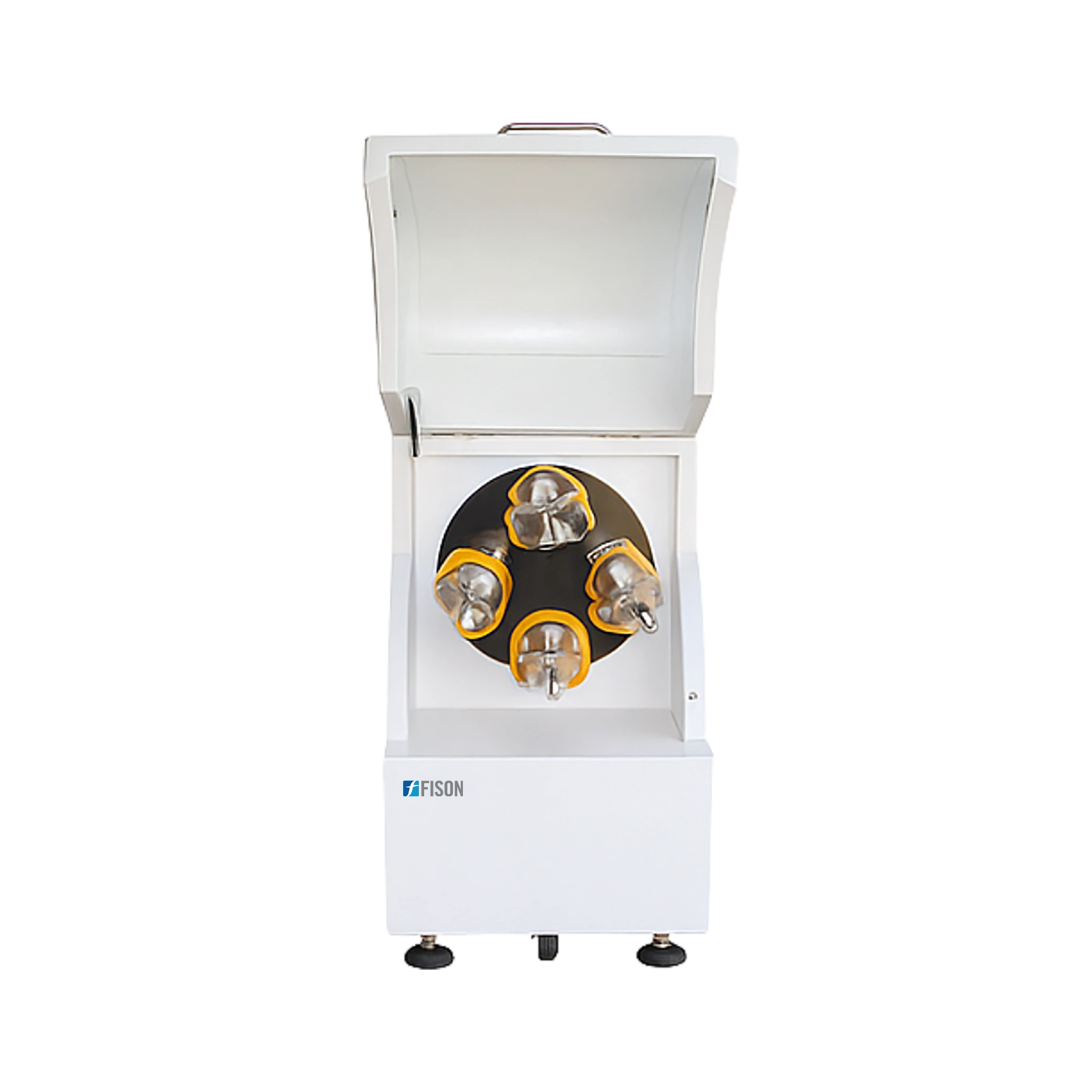

Planetary Ball Mill FM-PBM-A120
Planetary Ball Mill FM-PBM-A120 is designed with a 6L capacity, providing ample space for sample processing. It operates at a jar rotational speed of 800 rpm, ensuring efficient and consistent mixing or grinding performance. It features an ergonomic and stable design, ensuring smooth operation and user convenience. Our mill offers adjustable speed and positive/negative alternate time, providing precise control for optimal grinding efficiency.
Specifications
| Capacity | 6L |
| Jar Rotational Speed | 800rpm |
| Working Principle | Impact and friction force |
| Discharging Granularity | Down to 0.1μm |
| Rotational Speed Ratio | 1: 2 |
| Drive Mode | Gear drive and belt drive |
| Power | 220VAC, 50Hz, 0.75KW |
| Dimension (L×W×H) | 480×580×760mm |
| Package Dimension (L×W×H) | 540×660×900mm |
| Weight | 140 Kg |
Features
- Customizable Grinding Parameters
- Smart Variable Frequency Control
- Built-in Fan
- Advanced Safety Features
- User-Friendly and Eco-Safe
Applications
- Planetary Ball Mill FM-PBM-A120 is widely used in Nanotechnology and Materials Science, Pharmaceuticals and Biotechnology, Chemistry and Chemical Engineering, Ceramics and Metallurgy, Environmental Science, and Electronics and Battery Research.
