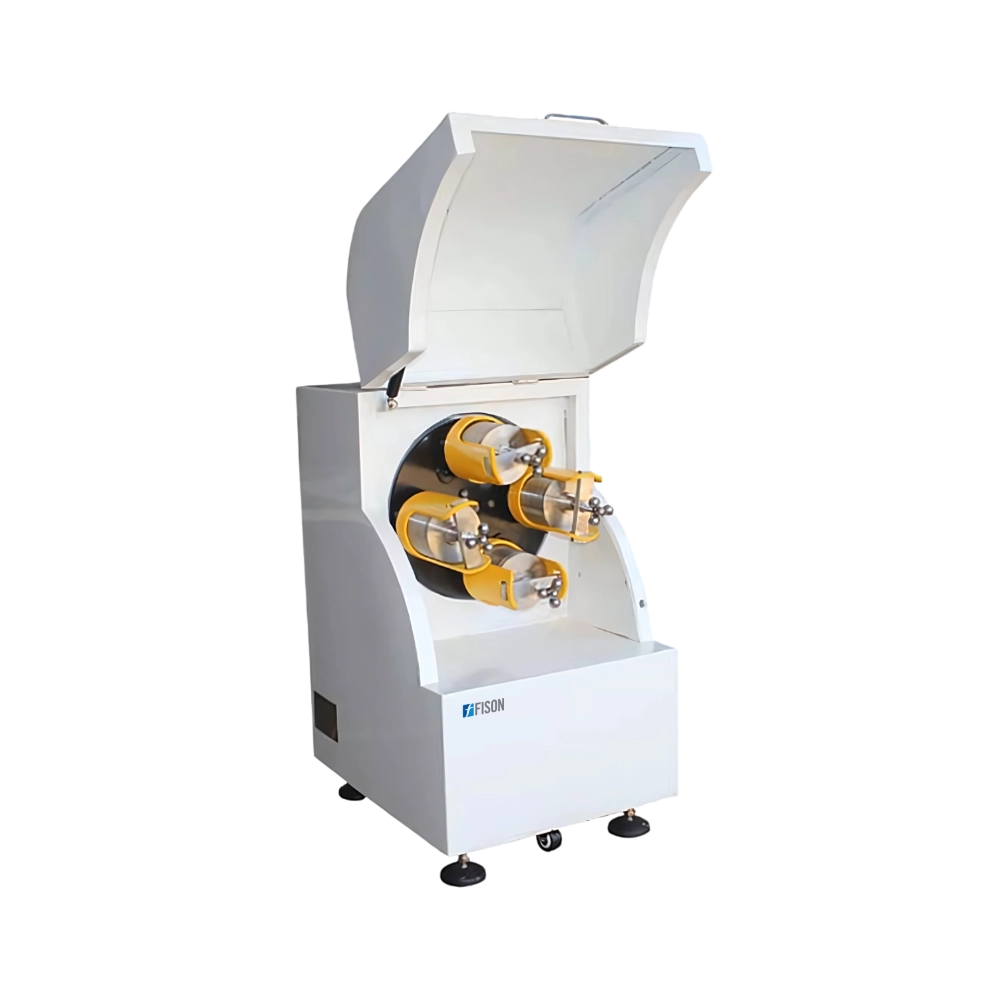

Planetary Ball Mill FM-PBM-A119
Planetary Ball Mill FM-PBM-A119 offers a jar rotational speed of 800 rpm, ensuring efficient and uniform particle size reduction for high-performance milling. It has a 4L capacity, making it suitable for small to medium-scale grinding applications. It features a 304 stainless steel construction, ensuring durability, corrosion resistance, and long-lasting performance. Our mill is designed for low-noise operation, providing a quiet and stable grinding process.
Specifications
| Capacity | 4L |
| Jar Rotational Speed | 800rpm |
| Working Principle | Impact and friction force |
| Discharging Granularity | Down to 0.1μm |
| Rotational Speed Ratio | 1: 2 |
| Drive Mode | Gear drive and belt drive |
| Power | 220VAC, 50Hz, 0.75KW |
| Dimension (L×W×H) | 480×580×760mm |
| Package Dimension (L×W×H) | 540×660×900mm |
| Weight | 140 Kg |
Features
- No pollution
- High Milling Efficiency
- Variable Frequency Control
- Safety Switch
- Stable Gear Transmission
Applications
- Planetary Ball Mill FM-PBM-A119 is widely used in Nanotechnology and Materials Science, Pharmaceuticals and Biotechnology, Chemistry and Chemical Engineering, Ceramics and Metallurgy, Environmental Science, and Electronics and Battery Research.
