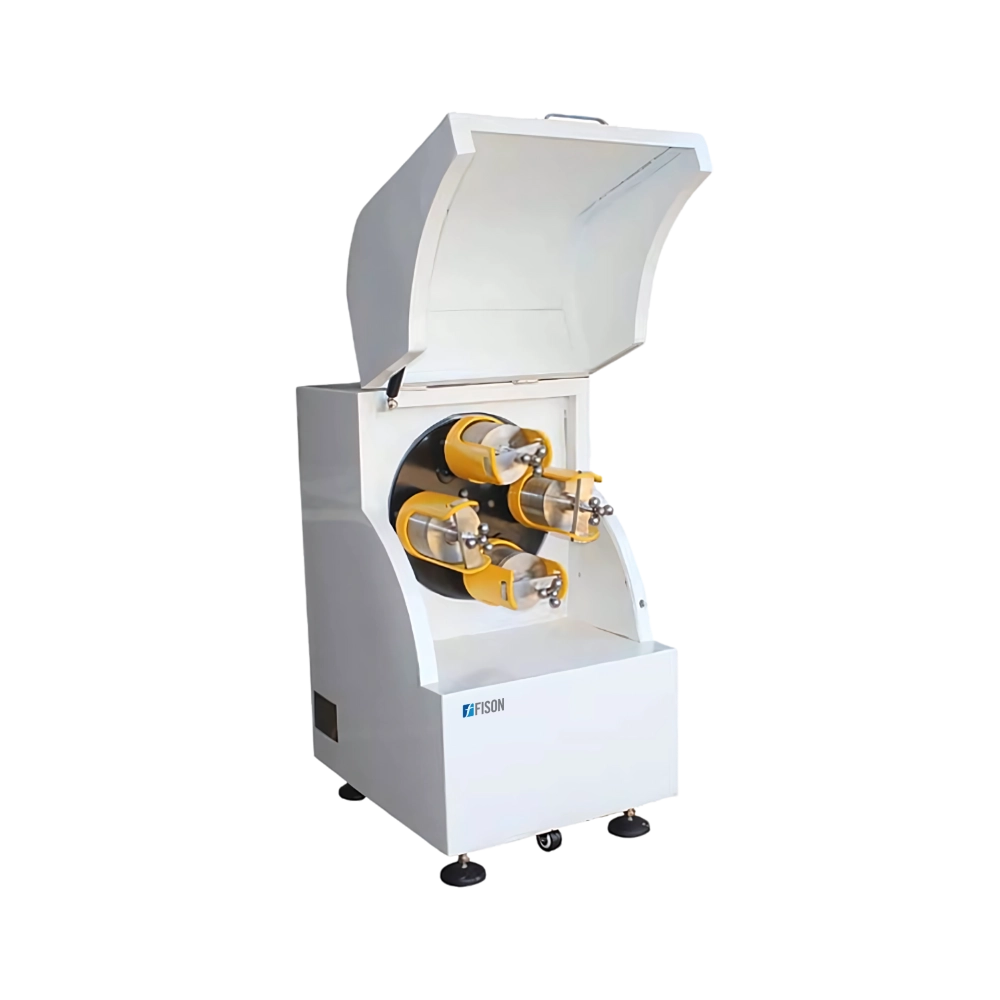

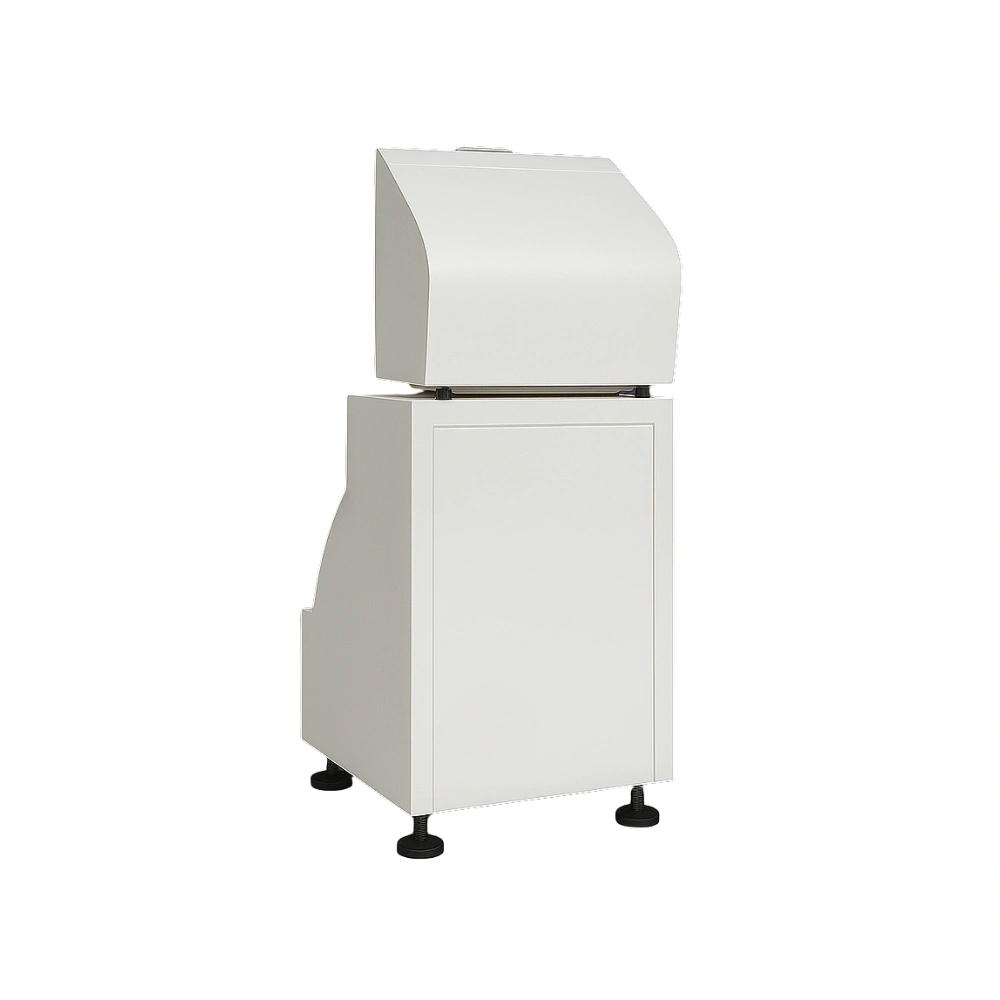

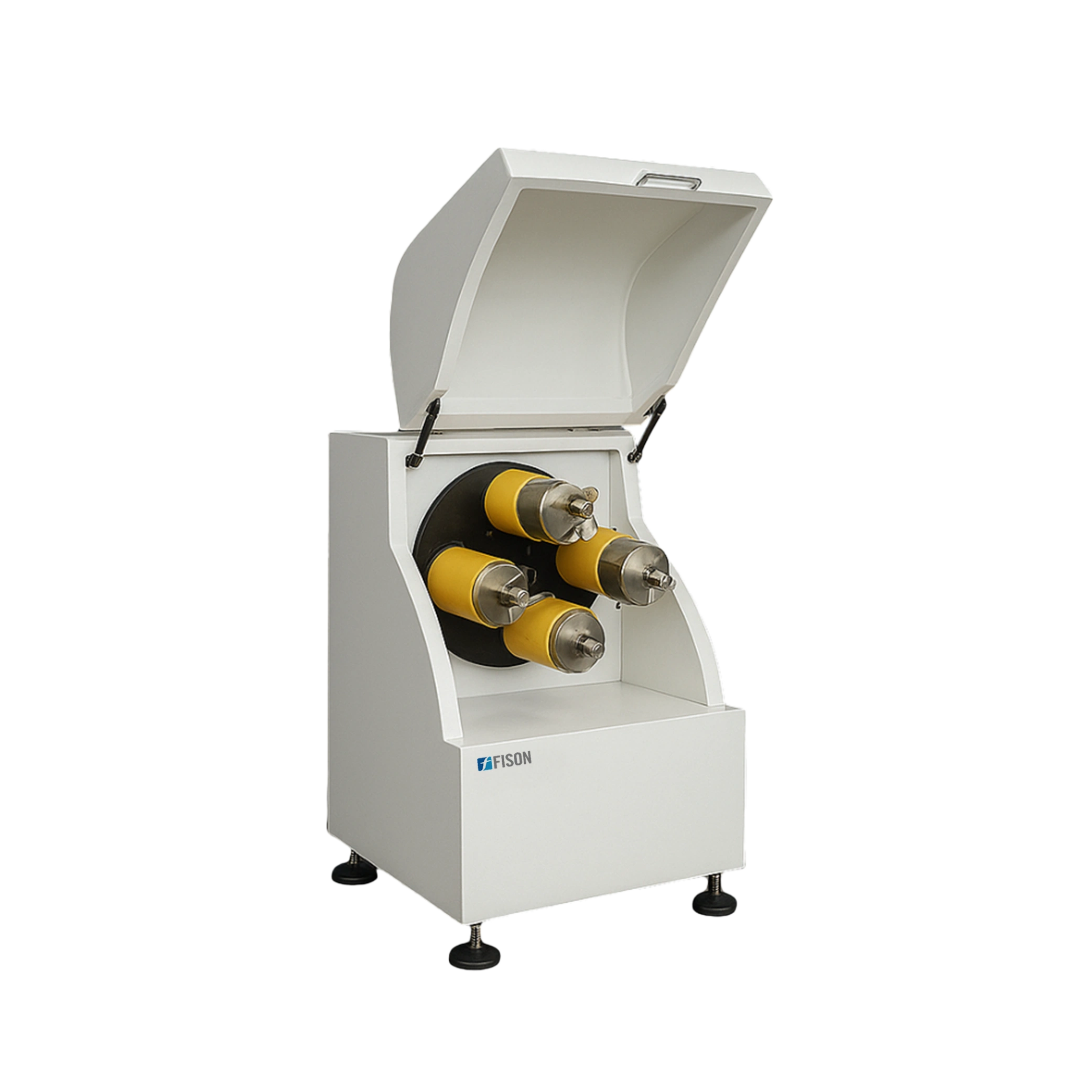

Planetary Ball Mill FM-PBM-A118
Planetary Ball Mill FM-PBM-A118 offers 2L capacity, making it an excellent choice for larger grinding applications that require high efficiency. Its jar rotates at 800 rpm, ensuring consistent and uniform particle size reduction. It features a built-in fan that enhances cooling and maintains stable operation. Our mill offers multiple grinding modes, providing versatility for various sample types.
Specifications
| Capacity | 2L |
| Jar Rotational Speed | 800rpm |
| Working Principle | Impact and friction force |
| Discharging Granularity | Down to 0.1μm |
| Rotational Speed Ratio | 1: 2 |
| Drive Mode | Gear drive and belt drive |
| Power | 220VAC, 50Hz, 0.75KW |
| Dimension (L×W×H) | 480×580×760mm |
| Package Dimension (L×W×H) | 540×660×900mm |
| Weight | 140 Kg |
Features
- Low-noise Gear System
- Multiple Samples Simultaneously
- Variable Frequency Control
- 304 Stainless Steel Material
- High Uniformity, Excellent Repeatability
Applications
- Planetary Ball Mill FM-PBM-A118 is widely used in Nanotechnology and Materials Science, Pharmaceuticals and Biotechnology, Chemistry and Chemical Engineering, Ceramics and Metallurgy, Environmental Science, and Electronics and Battery Research.
