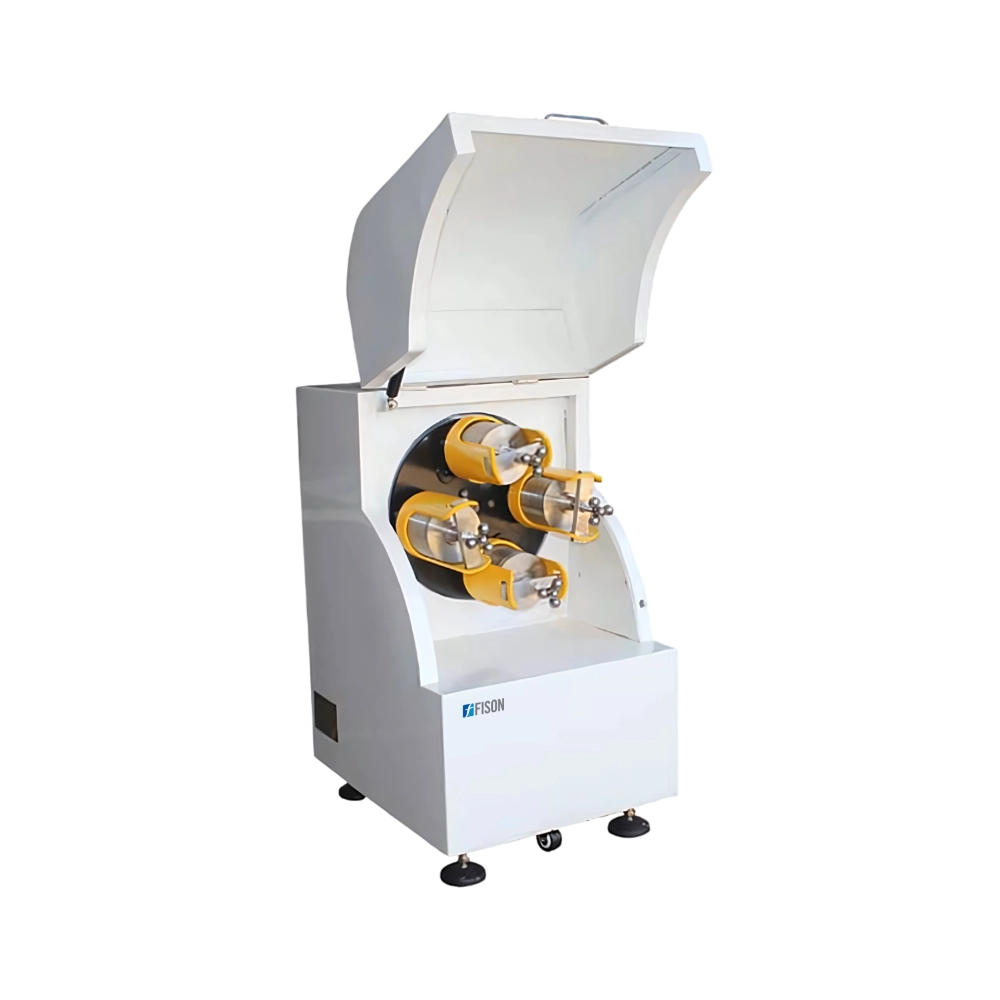

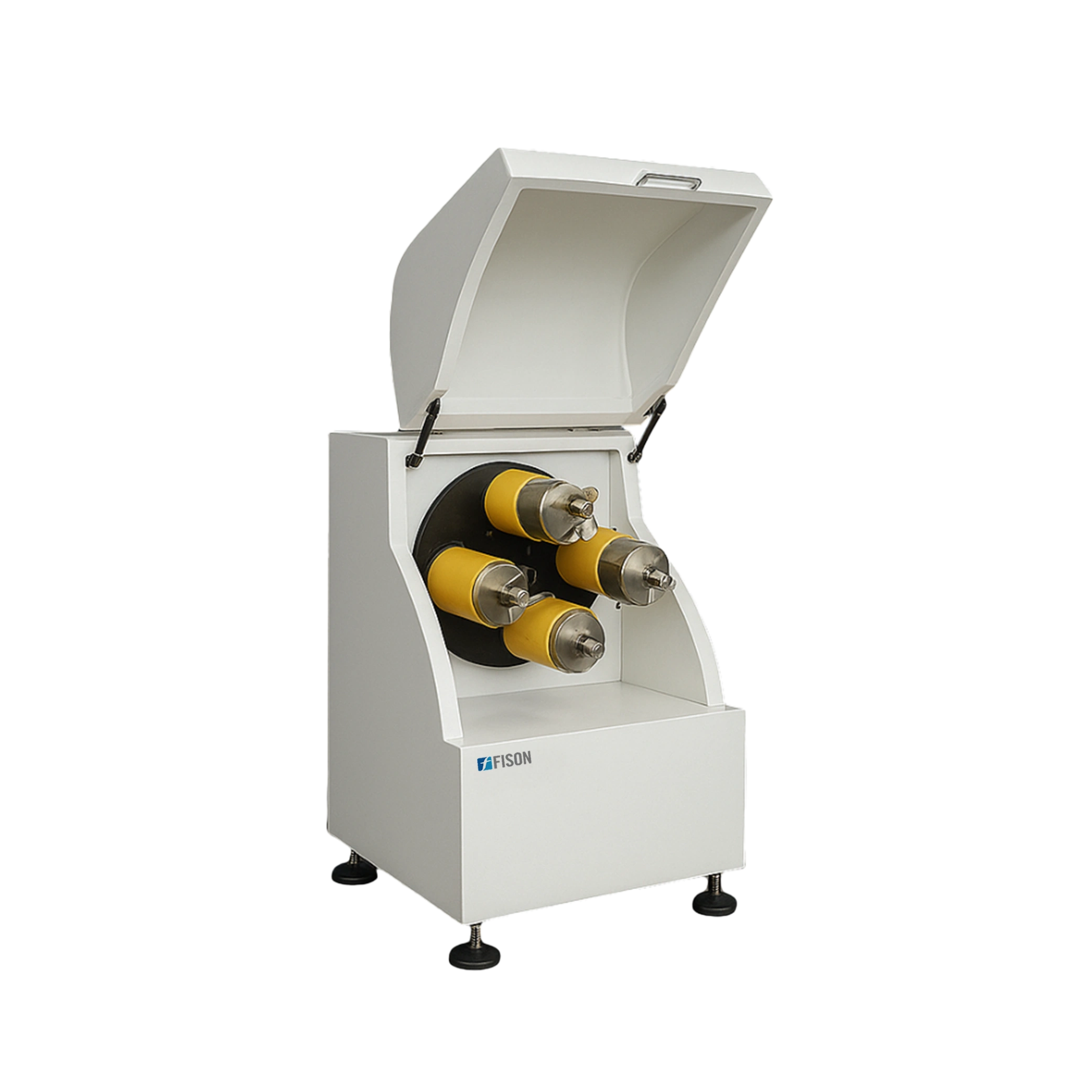

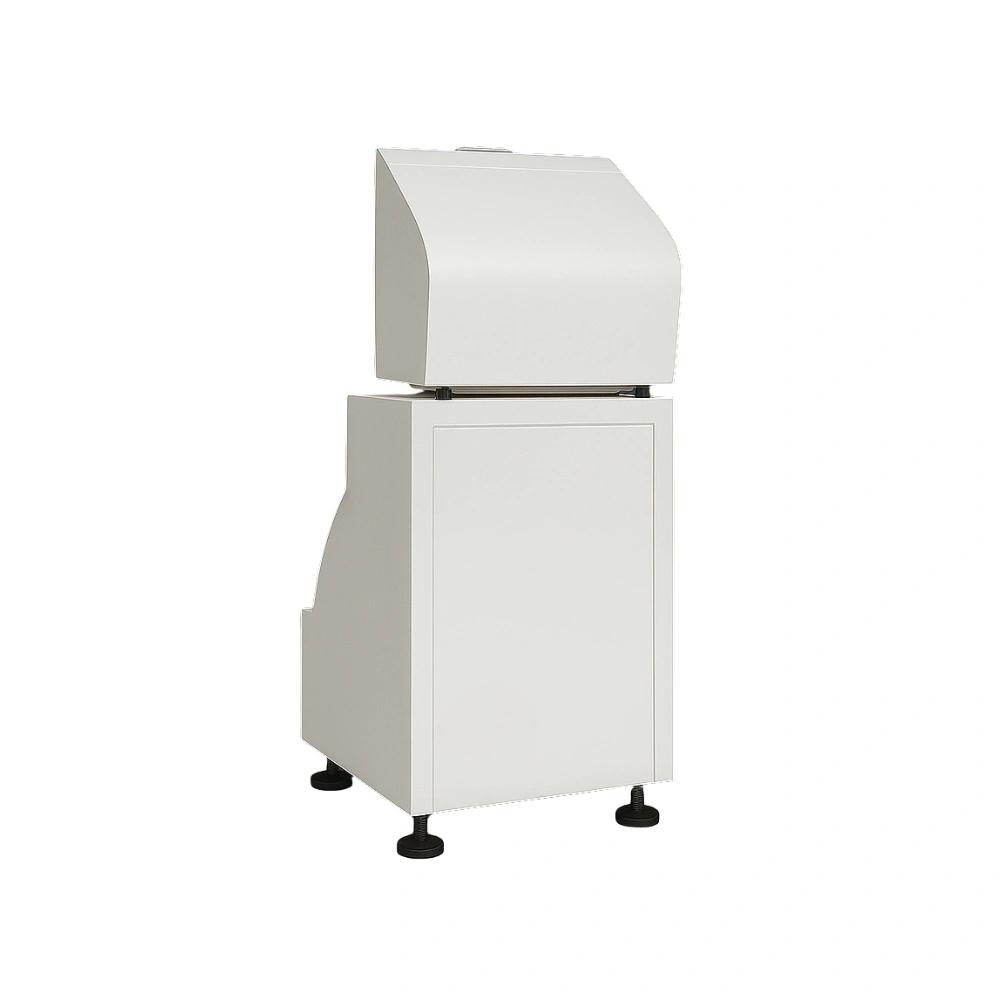

Planetary Ball Mill FM-PBM-A117
Planetary Ball Mill FM-PBM-A117 has a 1L capacity, making it suitable for small-scale grinding applications. It offers a jar rotational speed of 800 rpm, ensuring efficient and consistent particle size reduction. It can handle four samples simultaneously, allowing for increased productivity and uniform grinding results. Our mill features a special low-noise gear system that ensures quiet and stable operation, making it ideal for laboratory and industrial applications.
Specifications
| Capacity | 1L |
| Jar Rotational Speed | 800rpm |
| Working Principle | Impact and friction force |
| Discharging Granularity | Down to 0.1μm |
| Rotational Speed Ratio | 1: 2 |
| Drive Mode | Gear drive and belt drive |
| Power | 220VAC, 50Hz, 0.75KW |
| Dimension (L×W×H) | 480×580×760mm |
| Package Dimension (L×W×H) | 540×660×900mm |
| Weight | 140 Kg |
Features
- Multiple Grinding Modes
- Built-in Fan
- Precision Performance
- User-Friendly and Safe
- Enhanced Safety Features
- Stable Gear Transmission
Applications
- Planetary Ball Mill FM-PBM-A117 is widely used in Nanotechnology and Materials Science, Pharmaceuticals and Biotechnology, Chemistry and Chemical Engineering, Ceramics and Metallurgy, Environmental Science, and Electronics and Battery Research.
