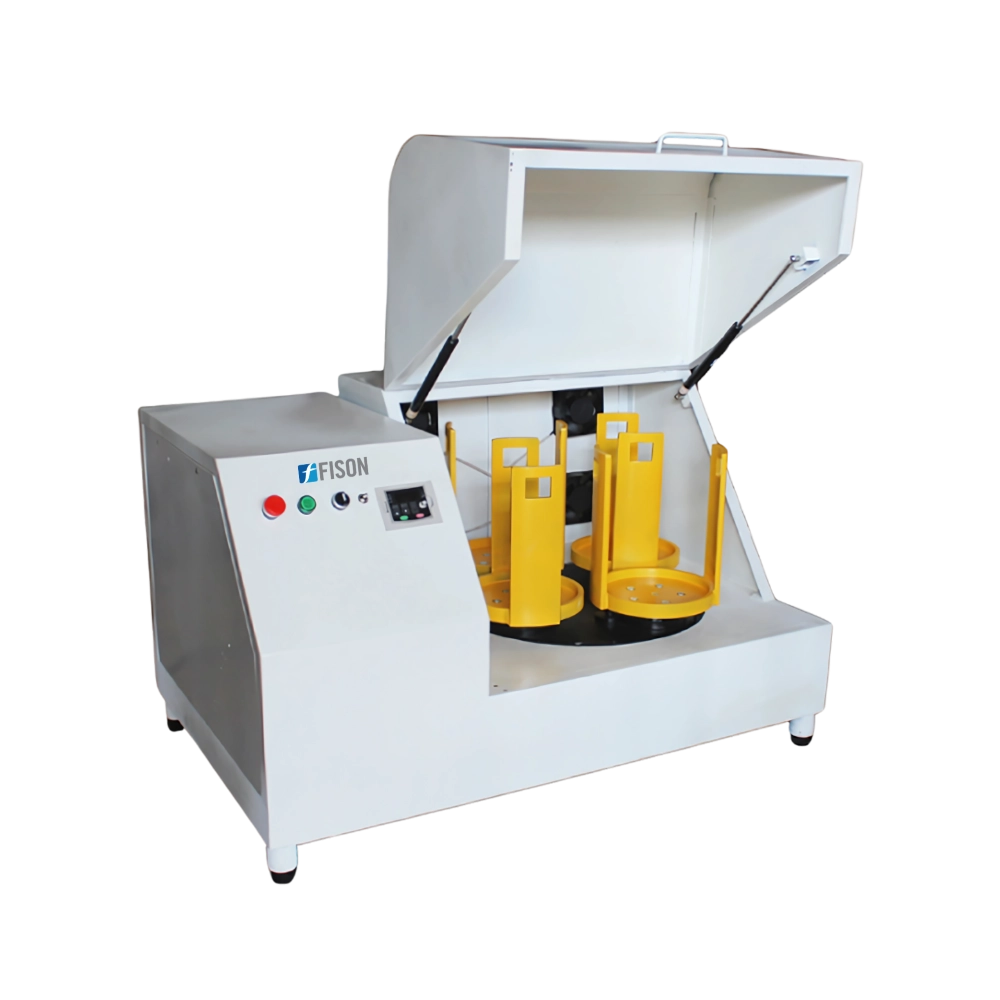

Planetary Ball Mill FM-PBM-A116
Planetary Ball Mill FM-PBM-A116 is designed with a 20L capacity for efficient large-volume sample processing. It operates at a jar rotational speed of 480 rpm, ensuring consistent and high-energy grinding for optimal material refinement. It enables efficient multi-sample processing, allowing simultaneous grinding for higher productivity. Our mill is designed for low-noise performance and operates with minimal vibration, ensuring a quieter and more stable working environment.
Specifications
| Capacity | 20L |
| Jar Rotational Speed | 480rpm |
| Working Principle | Impact and friction force |
| Discharging Granularity | Down to 0.1μm |
| Rotational Speed Ratio | 1: 2 |
| Drive Mode | Gear drive and belt drive |
| Power | 380VAC, 50/60Hz, 2.2KW |
| Dimension (L×W×H) | 1200×760×730mm |
| Package Dimension (L×W×H) | 1300×820×850mm |
| Weight | 320 Kg |
Features
- Ultrafine Precision
- High-Tech Material Processing
- Effortless Operation
- Advanced Safety Features
- High-Energy Planetary Motion
Applications
- Planetary Ball Mill FM-PBM-A116 is widely used in Nanotechnology and Materials Science, Pharmaceuticals and Biotechnology, Chemistry and Chemical Engineering, Ceramics and Metallurgy, Environmental Science, and Electronics and Battery Research.
