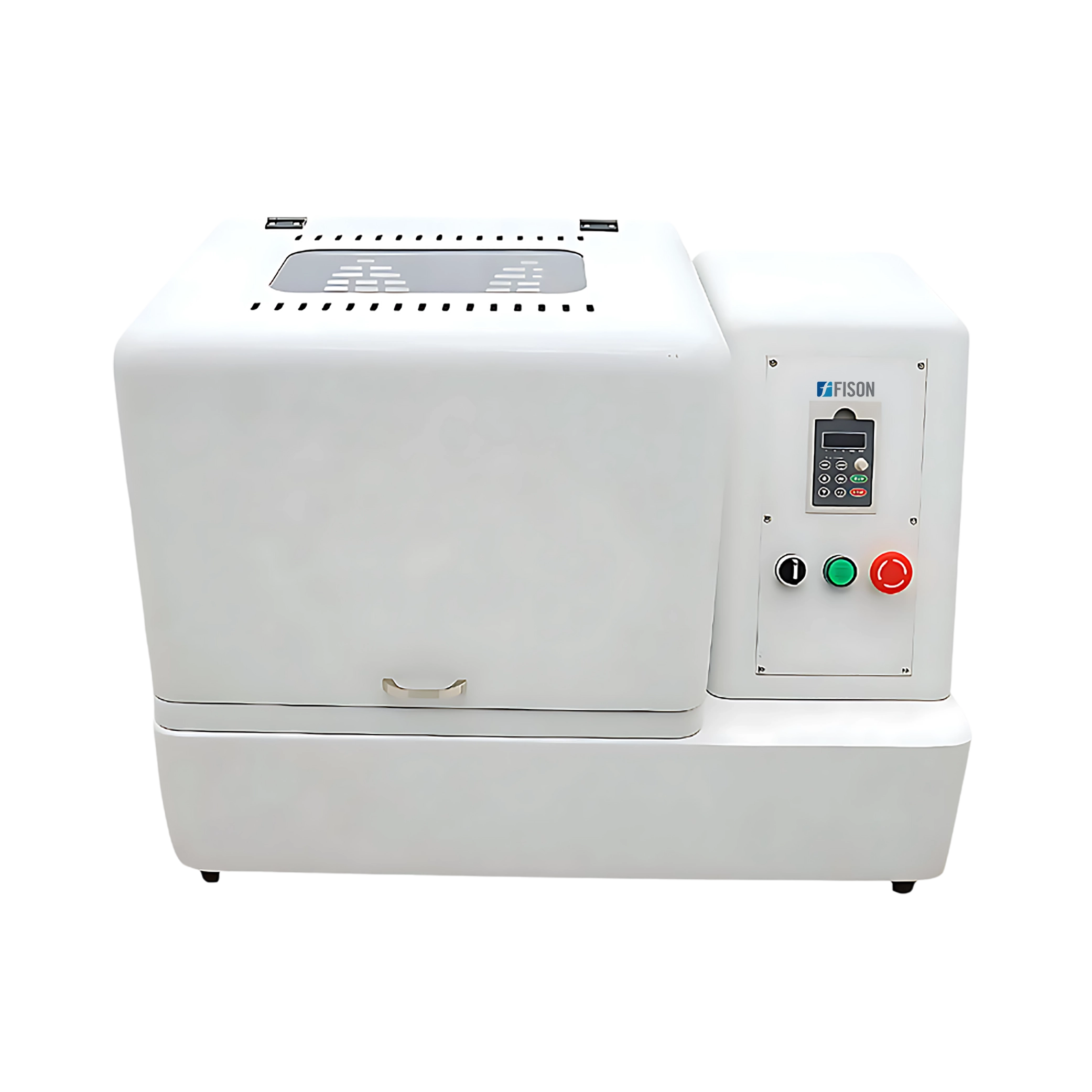

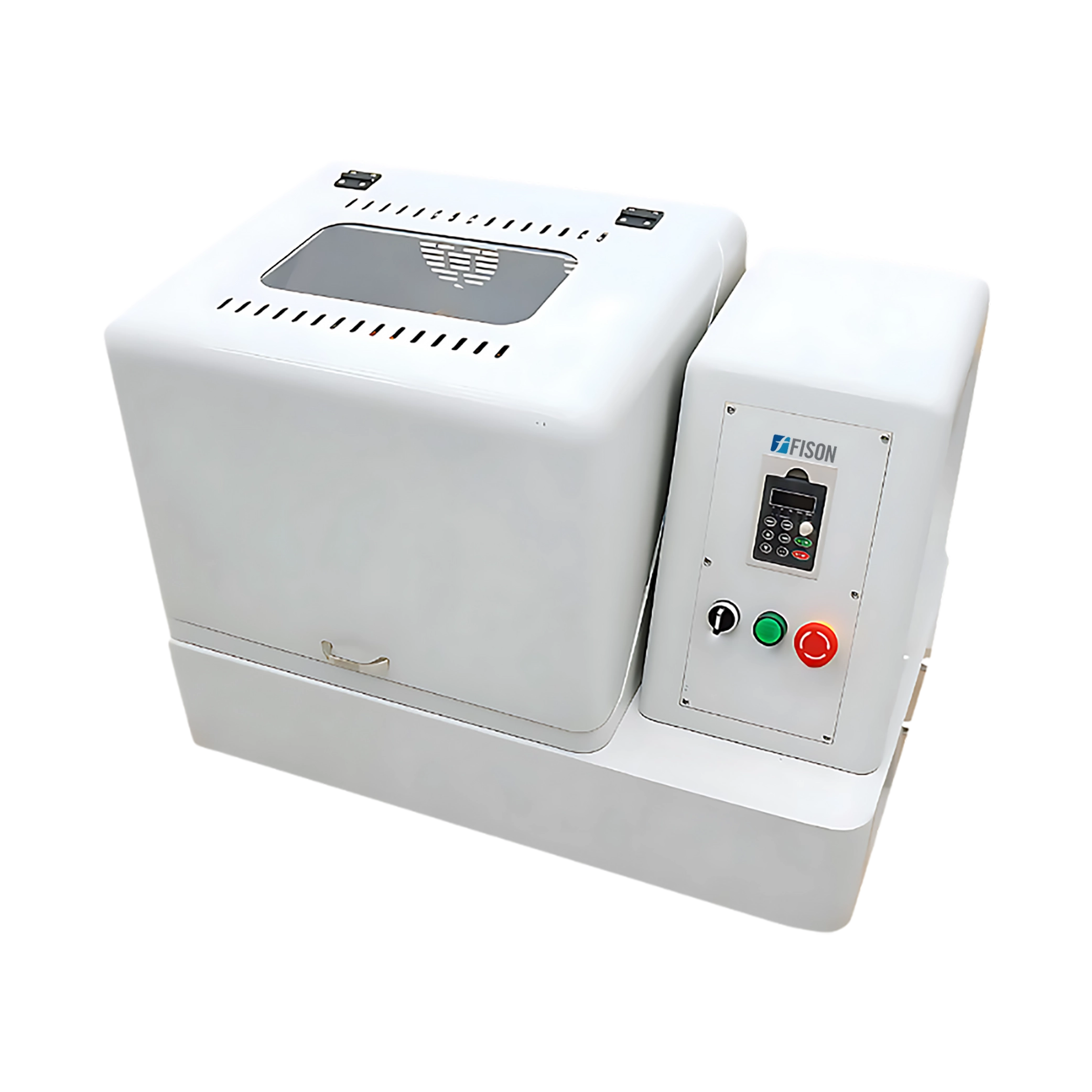

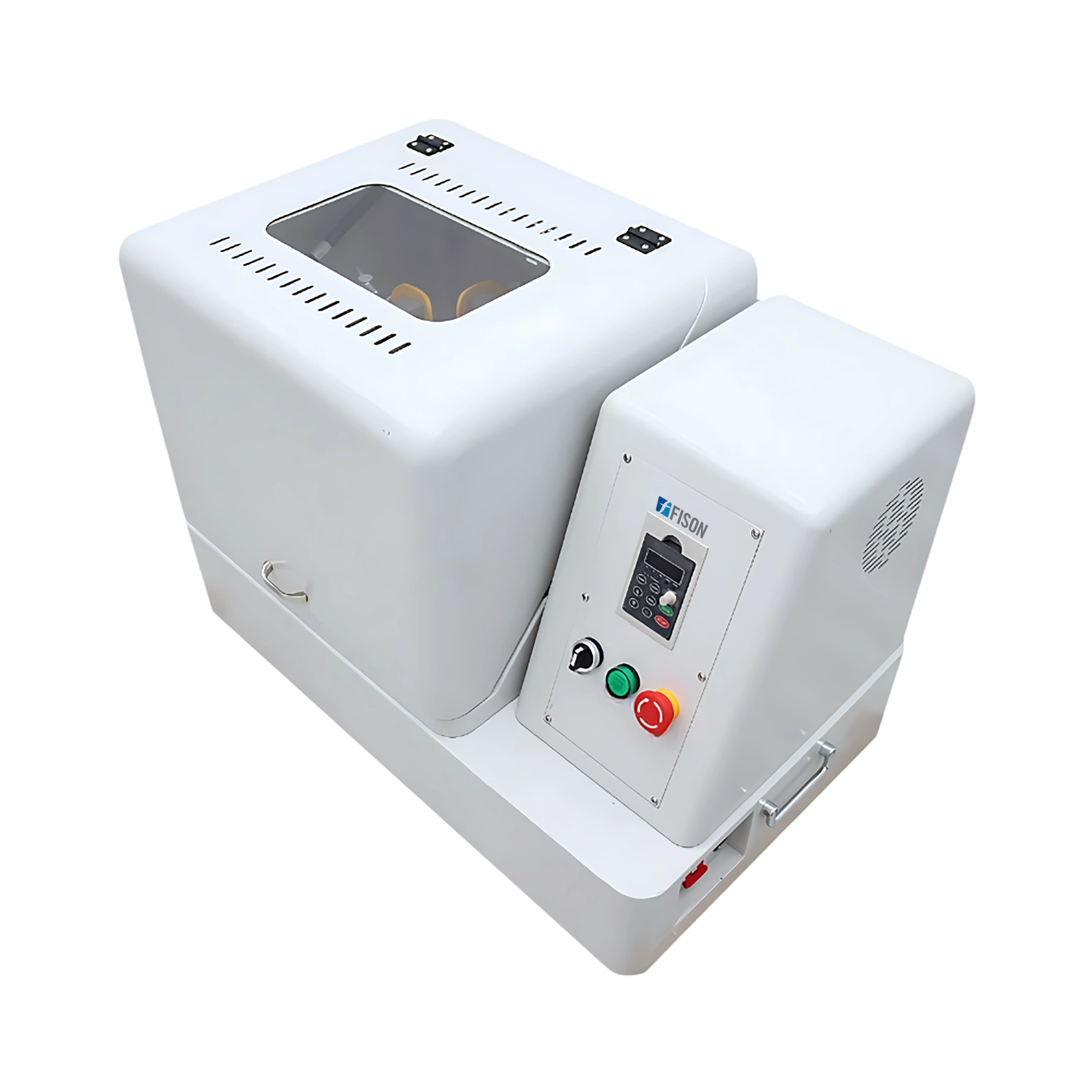

Planetary Ball Mill FM-PBM-A115
Planetary Ball Mill FM-PBM-A115 offers a 10L capacity for efficient material processing in each batch. It delivers high-speed milling for optimal particle size reduction and uniform mixing, with a jar rotational speed of 800 rpm. It is constructed with 304 stainless steel and YG8 cemented carbide, ensuring exceptional durability and resistance. Our mill has a versatile design that enables the efficient grinding of various materials, which is ideal for research and industrial use.
Specifications
| Capacity | 10L |
| Jar Rotational Speed | 800 rpm |
| Working Principle | Impact and friction force |
| Discharging Granularity | Down to 0.1μm |
| Rotational Speed Ratio | 1: 2 |
| Drive Mode | Gear drive & belt drive |
| Power Supply | 110/220VAC, 50Hz, 0.75KW |
| Dimension (L×W×H) | 730 × 470 × 550 mm |
| Package Dimension (L×W×H) | 800 × 520 × 750 mm |
| Weight | 85 Kg |
Features
- Robust and Long-Lasting Build
- Premium Quality Milling
- Ultra-fine Grinding
- Efficiently Designed Tank Capacity
Applications
- Planetary Ball Mill FM-PBM-A115 is widely used in Nanotechnology and Materials Science, Pharmaceuticals and Biotechnology, Chemistry and Chemical Engineering, Ceramics and Metallurgy, Environmental Science, and Electronics and Battery Research.
