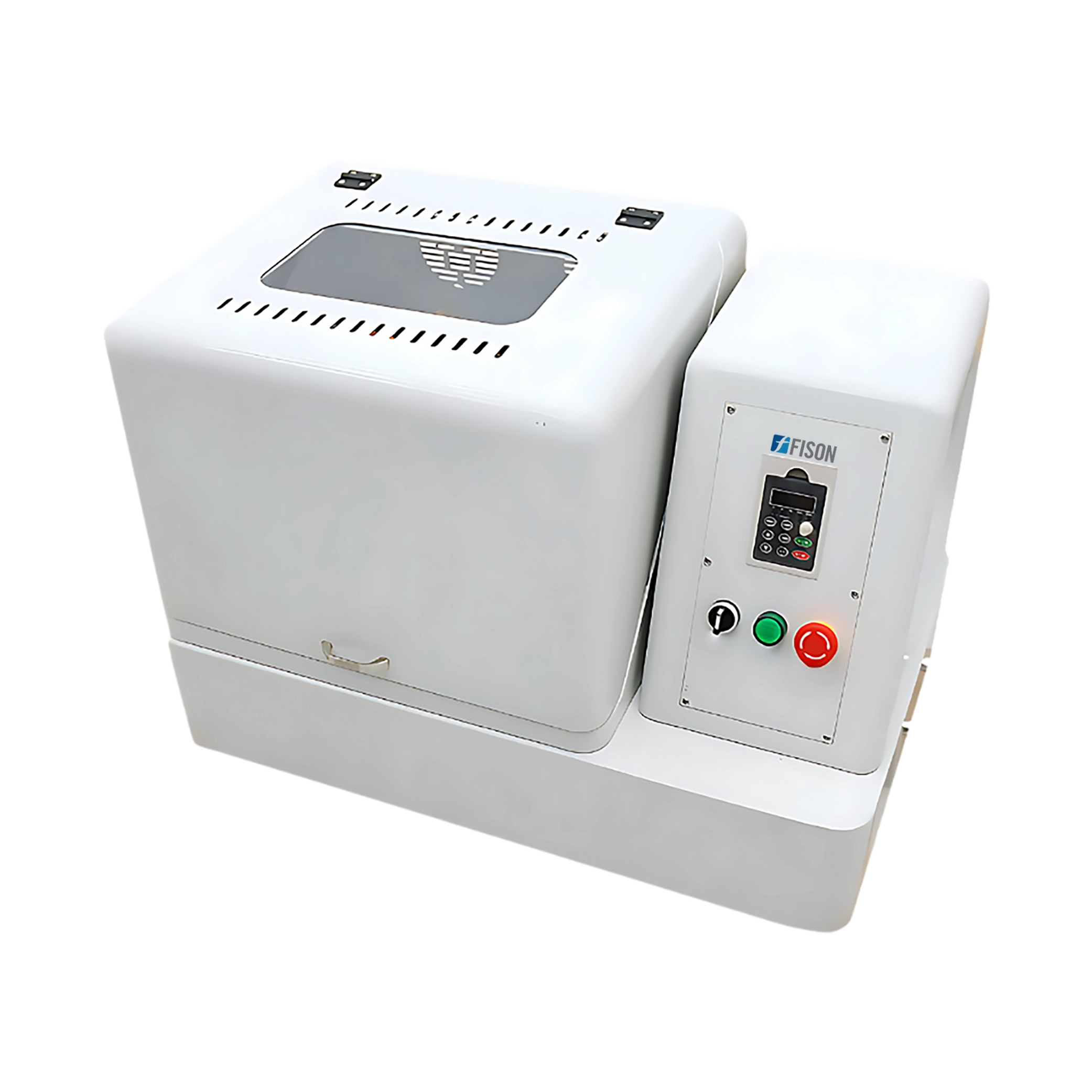

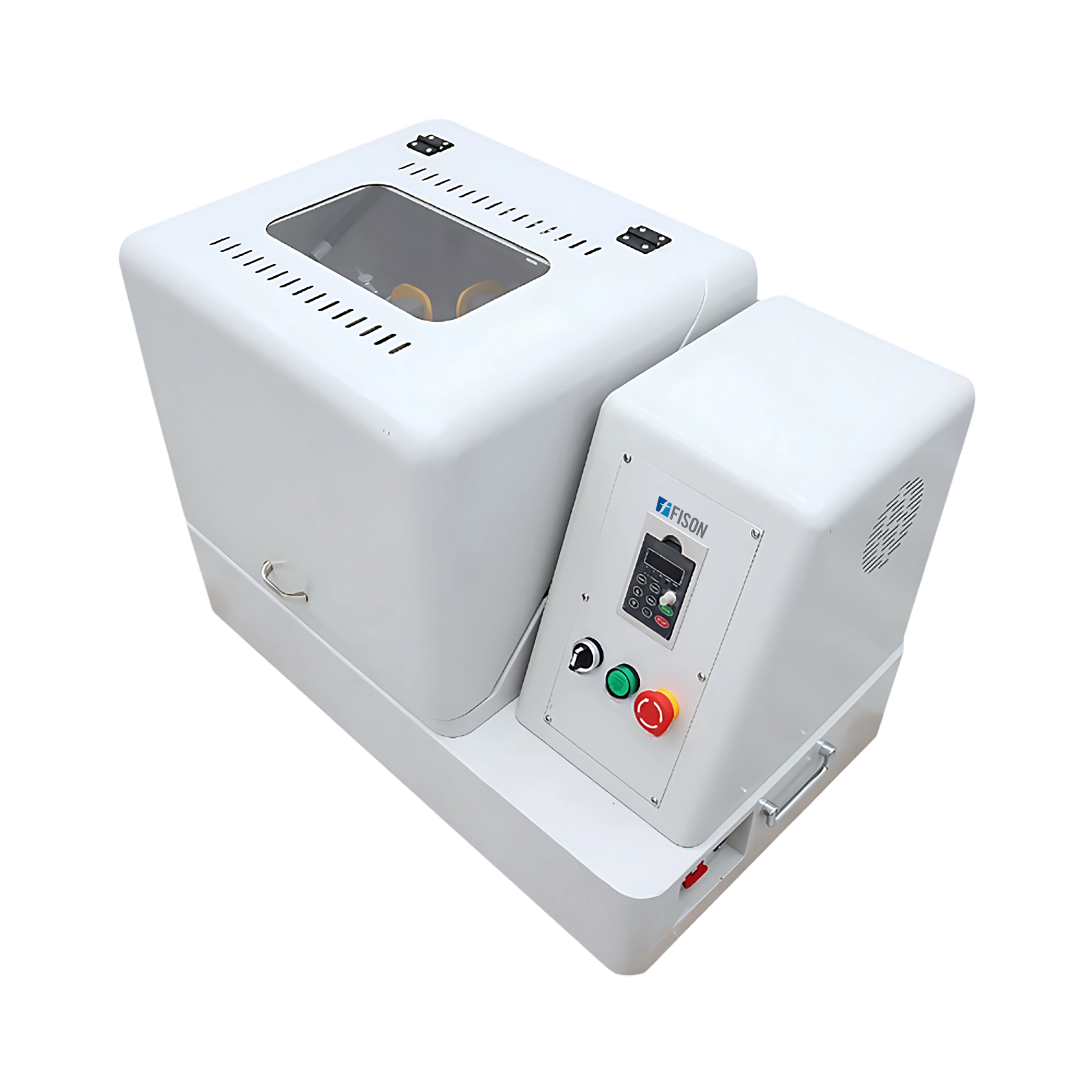

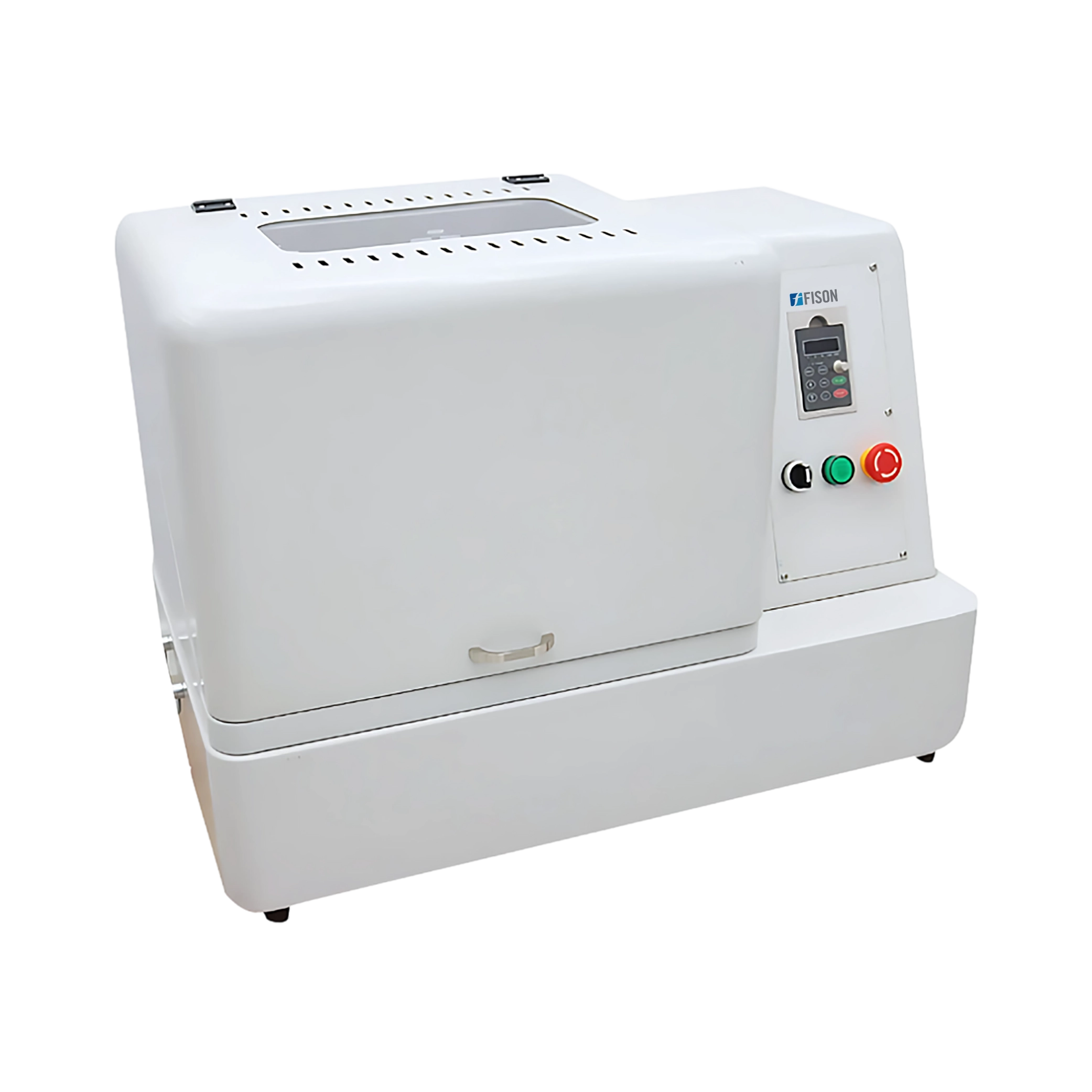

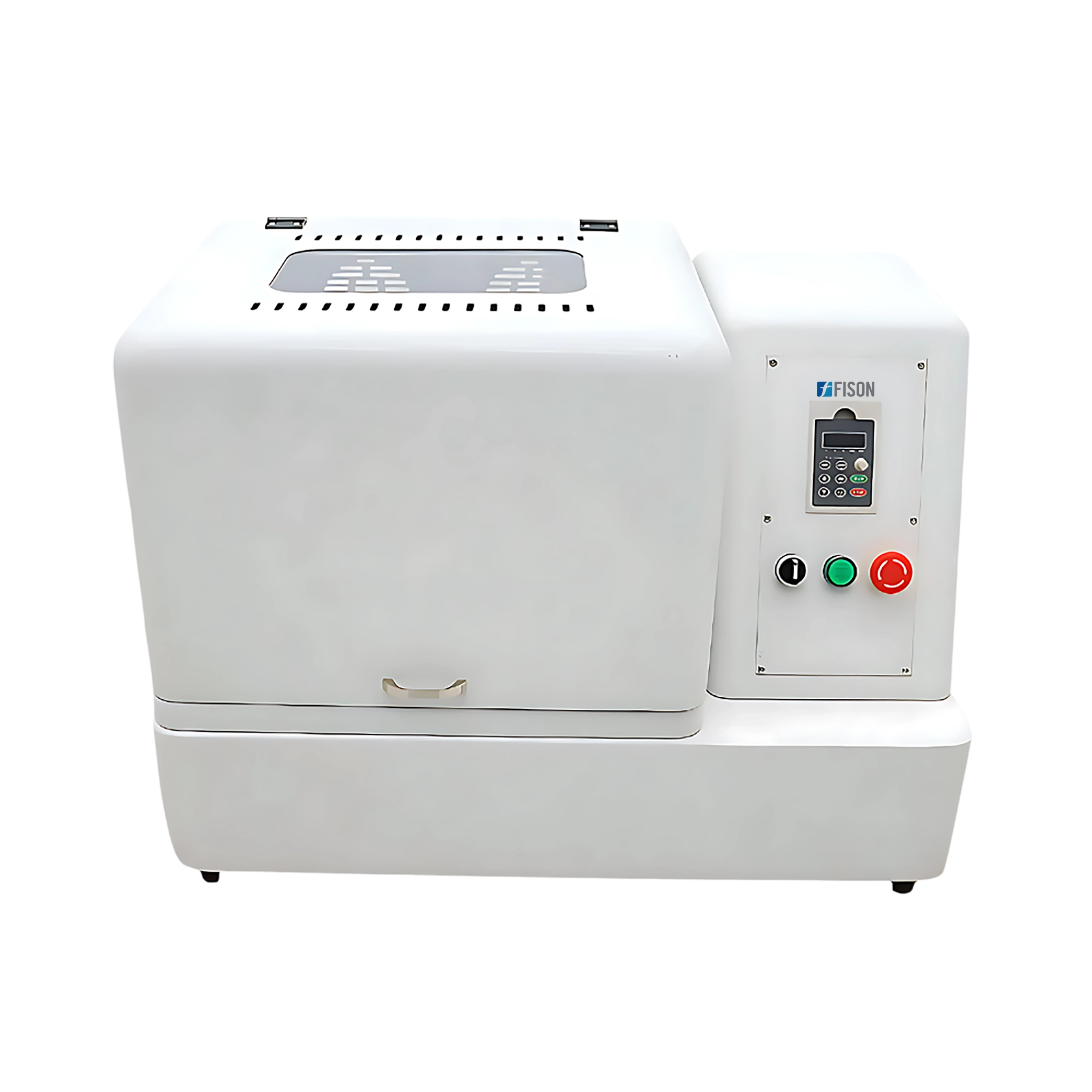

Planetary Ball Mill FM-PBM-A114
Planetary Ball Mill FM-PBM-A114 is designed to deliver efficient and uniform grinding with a jar rotational speed of 800 rpm. It offers a generous 8L capacity, allowing for high-throughput sample processing. It features ultra-fine grinding capabilities, ensuring precise and efficient particle size reduction for various materials. Our ball mill accommodates different sample types and processing requirements for optimal performance.
Specifications
| Capacity | 8L |
| Jar Rotational Speed | 800 rpm |
| Working Principle | Impact and friction force |
| Discharging Granularity | Down to 0.1μm |
| Rotational Speed Ratio | 1: 2 |
| Drive Mode | Gear drive & belt drive |
| Power Supply | 110/220VAC, 50Hz, 0.75KW |
| Dimension (L×W×H) | 730 × 470 × 550 mm |
| Package Dimension (L×W×H) | 800 × 520 × 750 mm |
| Weight | 85 Kg |
Features
- Durable Construction
- Broad Material Compatibility
- High-Performance Milling Media
- Optimized Tank Capacity
Applications
- Planetary Ball Mill FM-PBM-A114 is widely used in Nanotechnology and Materials Science, Pharmaceuticals and Biotechnology, Chemistry and Chemical Engineering, Ceramics and Metallurgy, Environmental Science, and Electronics and Battery Research.
