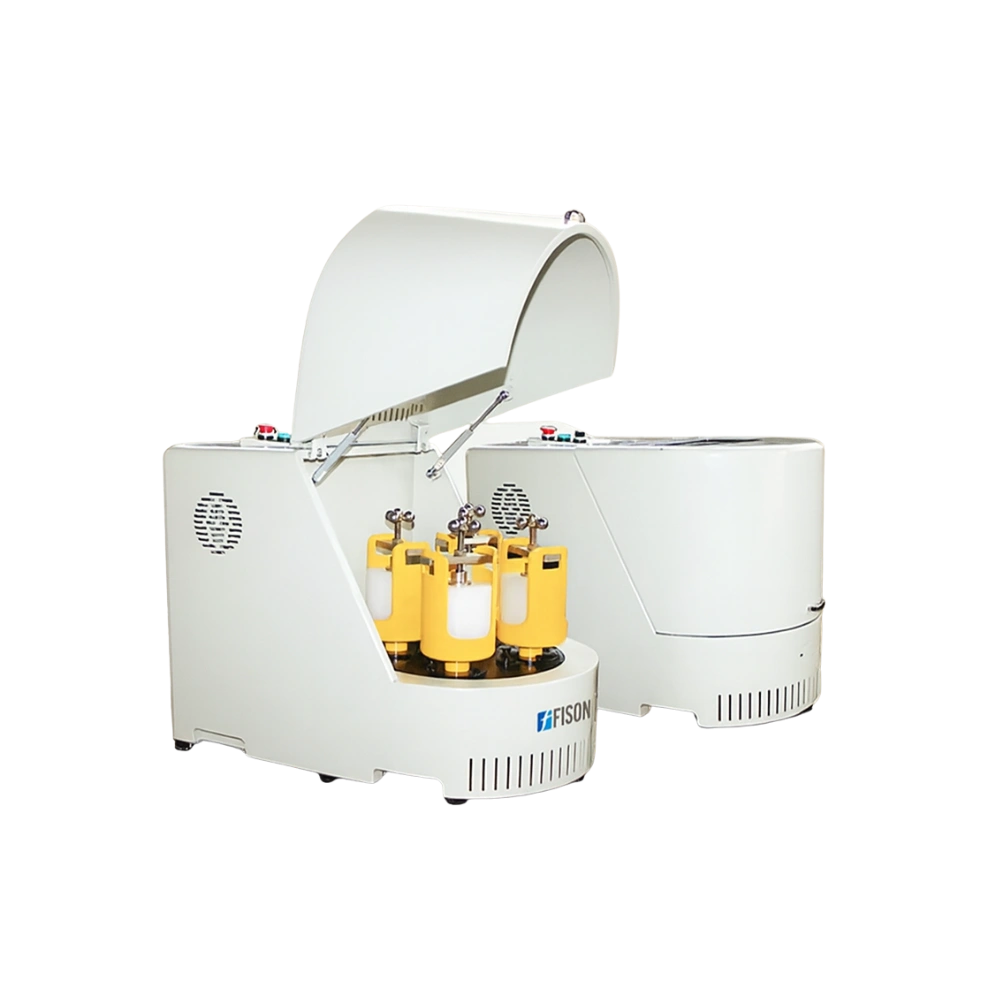

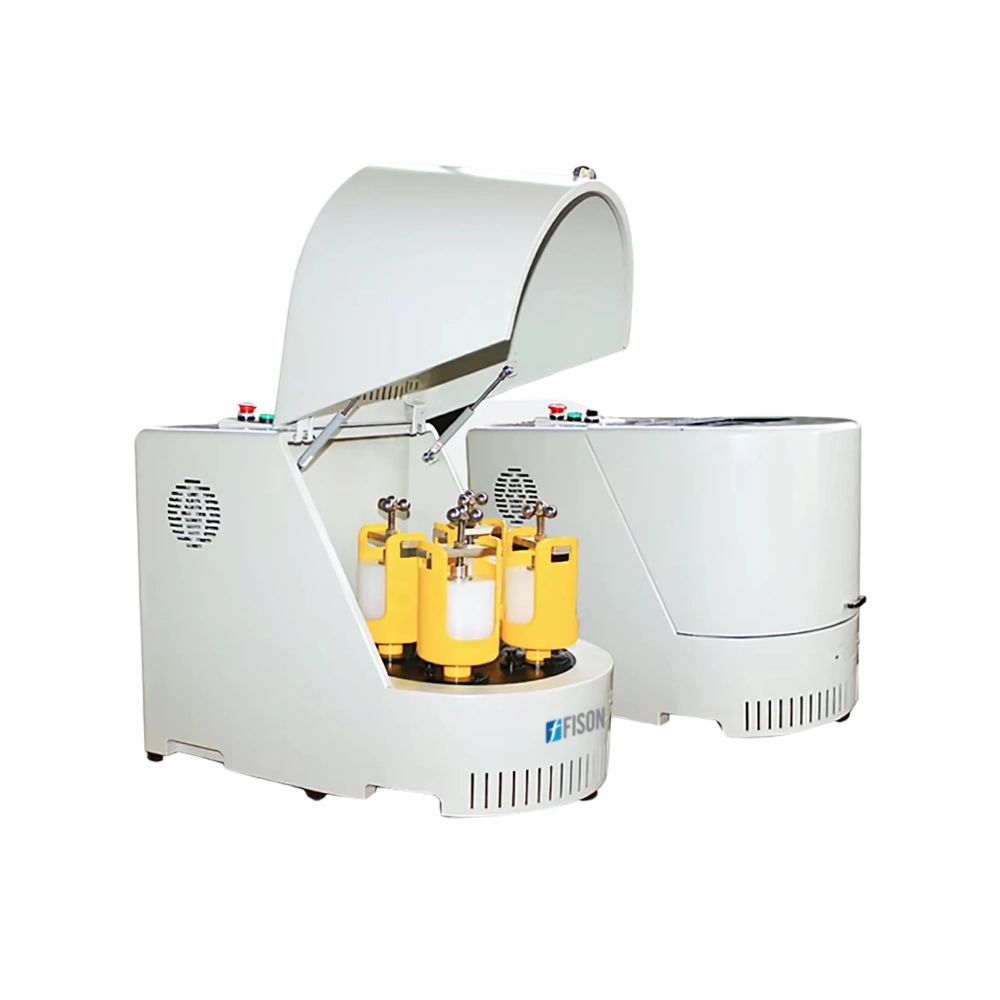

Planetary Ball Mill FM-PBM-A109
Planetary Ball Mill FM-PBM-A109 is designed with a 6 L capacity, enabling the simultaneous grinding of multiple samples. It offers a jar speed of 800 rpm for powerful grinding, fine particle reduction, and material homogeneity. It supports positive and negative rotation, allowing bidirectional grinding for enhanced mixing. Our Planetary Ball Mill delivers multi-functional grinding, ideal for ultra-fine powder processing in labs and industries.
Specifications
| Capacity | 6L |
| Jar Rotational Speed | 800rpm |
| Working Principle | Impact and Friction Force |
| Discharging Granularity | Down to 0.1μm |
| Rotational Speed Ratio | 1:2 |
| Drive Mode | Gear Drive and Belt Drive |
| Power | 110/220VAC, 50Hz, 0.75KW |
| Dimension (L x W x H) | 720 x 468 x 535mm |
| Package Dimension (L x W x H) | 820 x 560 x 740mm |
| Weight | 75 Kg |
Features
- Advanced Speed Control
- Versatile Feed Size
- Durable Stainless Steel
- Customizable Sieving
Applications
- Planetary Ball Mill FM-PBM-A109 is widely used in Nanotechnology and Materials Science, Pharmaceuticals and Biotechnology, Chemistry and Chemical Engineering, Ceramics and Metallurgy, Environmental Science, and Electronics and Battery Research.
