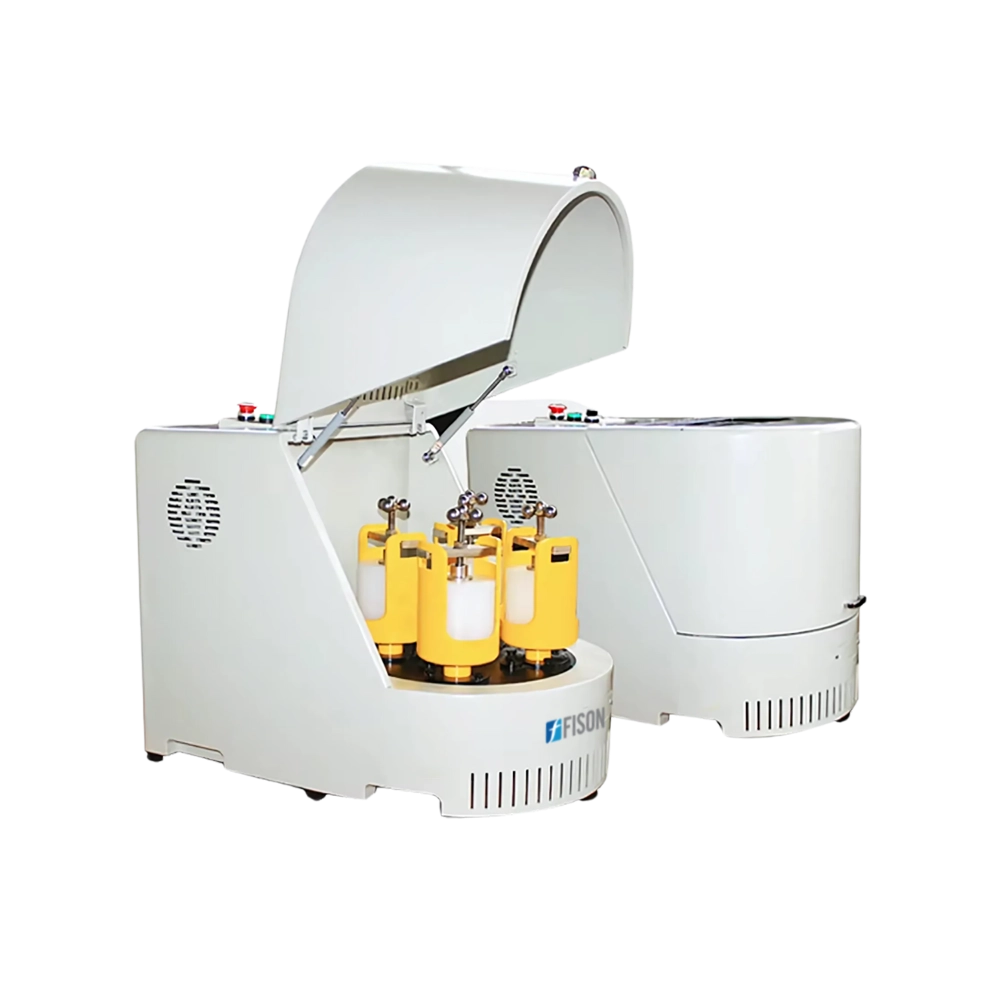

Planetary Ball Mill FM-PBM-A107
Planetary Ball Mill FM-PBM-A107 offers a jar rotational speed of 800 rpm, ensuring rapid and uniform grinding for optimal particle size reduction. It is designed with a 2L capacity to accommodate efficient milling operations. It operates through impact and friction forces, enabling efficient grinding. Our ball mill features a vibration sieve ensuring precise screening of powders, granules, and liquids for optimal particle distribution and milling efficiency.
Specifications
| Capacity | 2L |
| Jar Rotational Speed | 800rpm |
| Working Principle | Impact and Friction Force |
| Discharging Granularity | Down to 0.1μm |
| Rotational Speed Ratio | 1:2 |
| Drive Mode | Gear Drive and Belt Drive |
| Power | 110/220VAC, 50Hz, 0.75KW |
| Dimension (L x W x H) | 720 x 468 x 535mm |
| Package Dimension (L x W x H) | 820 x 560 x 740mm |
| Weight | 75 Kg |
Features
- Stainless Steel Sieves
- Agate Jars and Balls
- Smart Functions
- Adjustable Speed
Applications
- Planetary Ball Mill FM-PBM-A107 is widely used in Nanotechnology and Materials Science, Pharmaceuticals and Biotechnology, Chemistry and Chemical Engineering, Ceramics and Metallurgy, Environmental Science, and Electronics and Battery Research.
