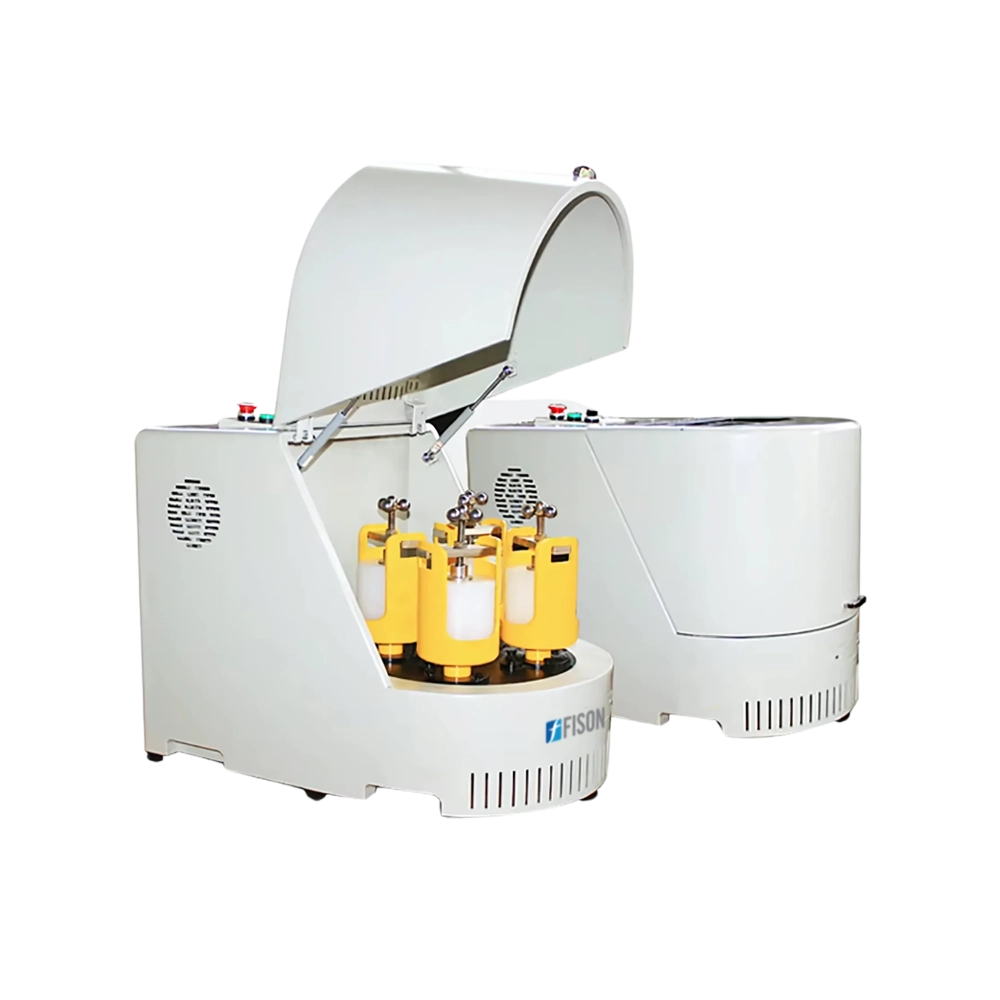

Planetary Ball Mill FM-PBM-A106
Planetary Ball Mill FM-PBM-A106 is designed with a capacity of 1L, making it ideal for small-scale grinding and material processing applications. It ensures uniform particle size reduction at 800 rpm, optimizing the grinding process. It is crafted from high-quality stainless steel, providing exceptional durability, corrosion resistance, and long-lasting performance. Our ball mill features positive and negative rotation, ensuring uniform mixing and efficient grinding.
Specifications
| Capacity | 1L |
| Jar Rotational Speed | 800rpm |
| Working Principle | Impact and Friction Force |
| Discharging Granularity | Down to 0.1μm |
| Rotational Speed Ratio | 1:2 |
| Drive Mode | Gear Drive and Belt Drive |
| Power | 110/220VAC, 50Hz, 0.75KW |
| Dimension (L x W x H) | 720 x 468 x 535mm |
| Package Dimension (L x W x H) | 820 x 560 x 740mm |
| Weight | 75 Kg |
Features
- Adjustable Speed Control
- Smart Operation
- Optimized Grinding Efficiency
- Premium Agate Ball Mill Jars
- Integrated Vibration Sieve
Applications
- Planetary Ball Mill FM-PBM-A106 is widely used in Nanotechnology and Materials Science, Pharmaceuticals and Biotechnology, Chemistry and Chemical Engineering, Ceramics and Metallurgy, Environmental Science, and Electronics and Battery Research.
