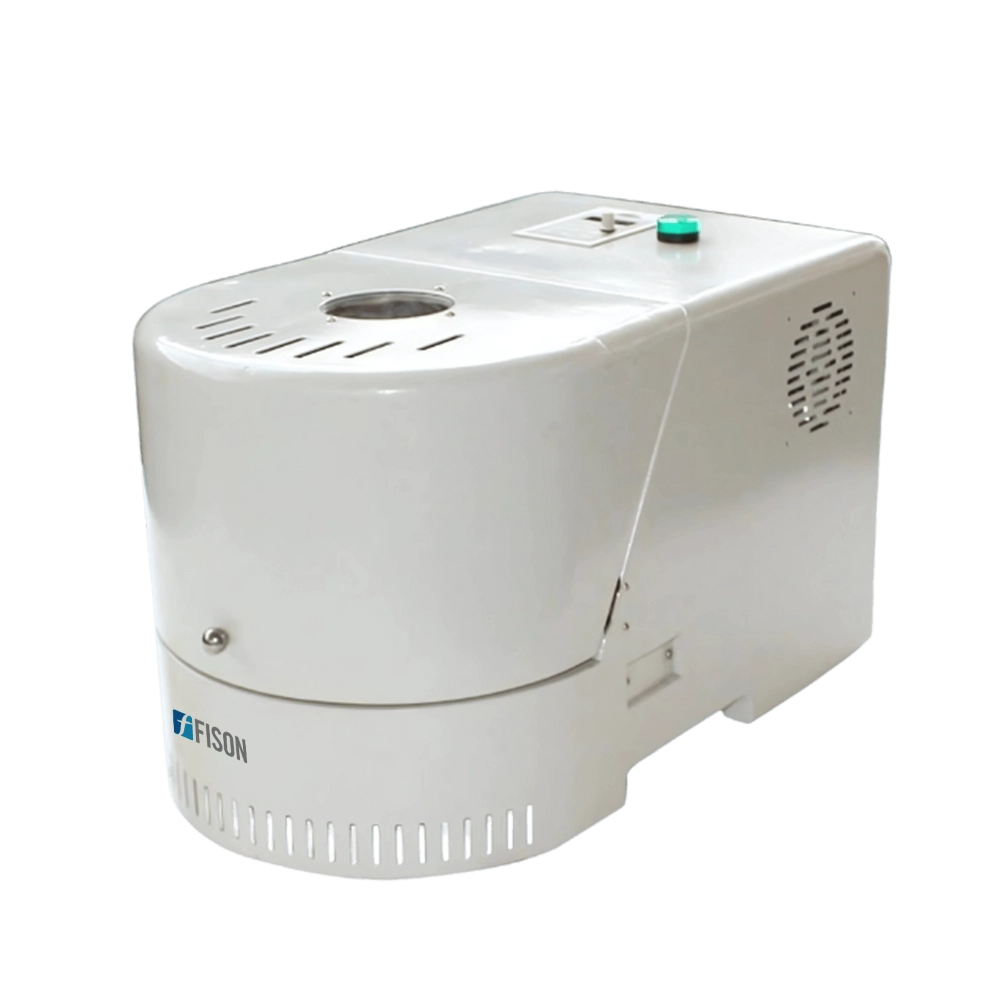

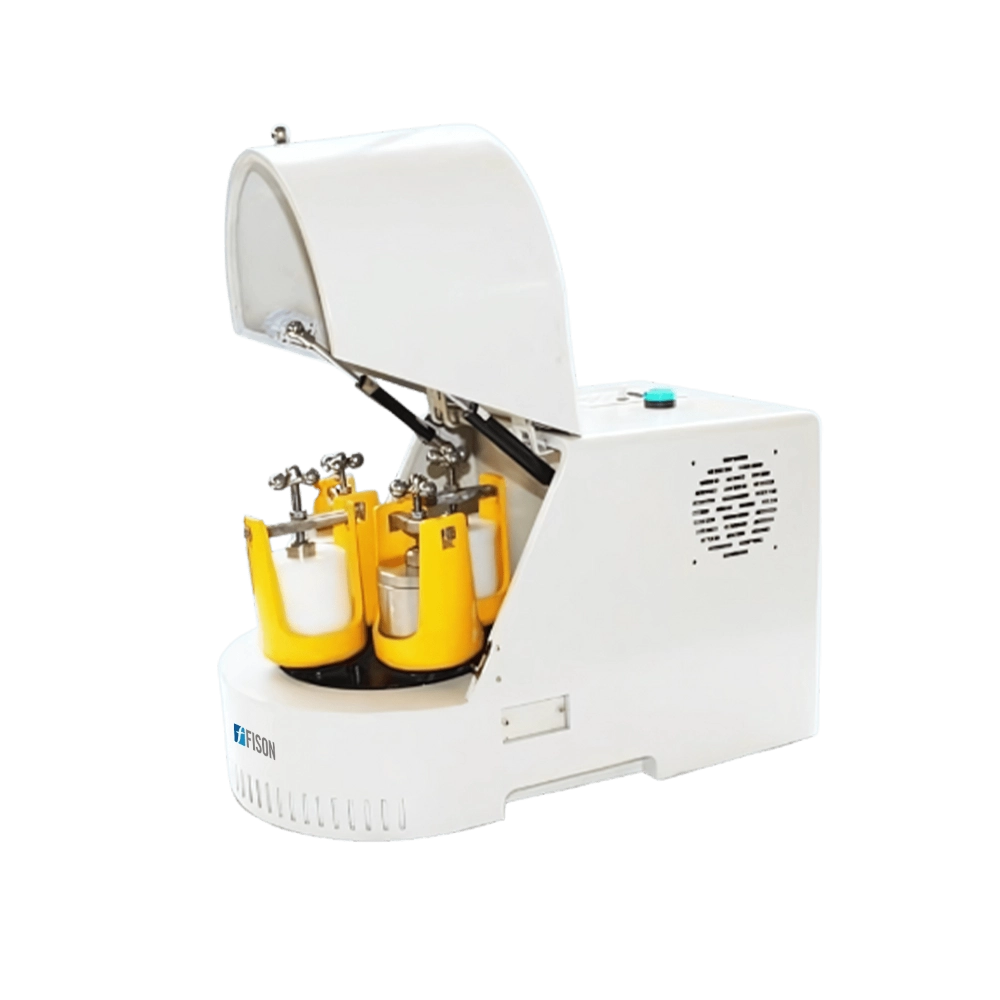

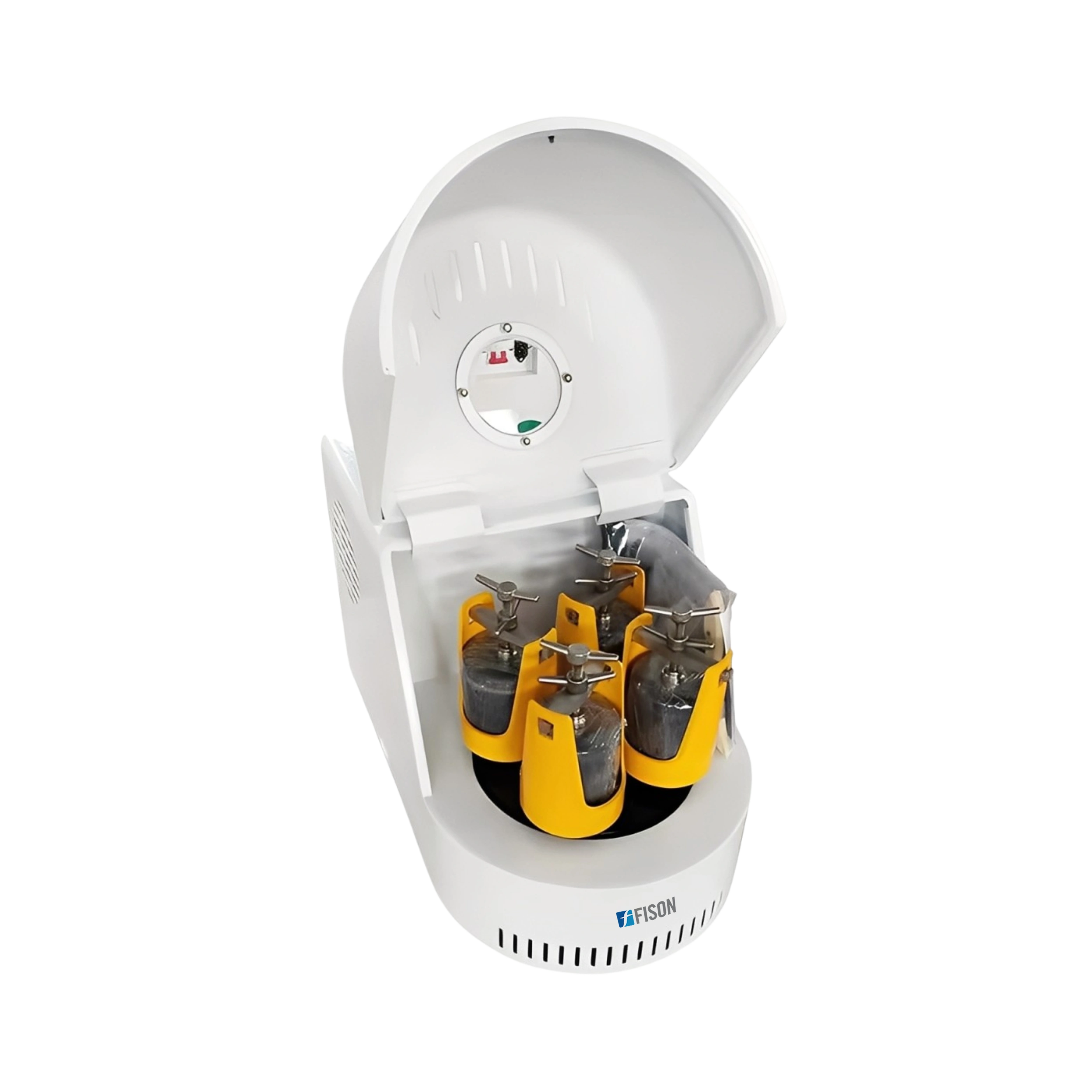

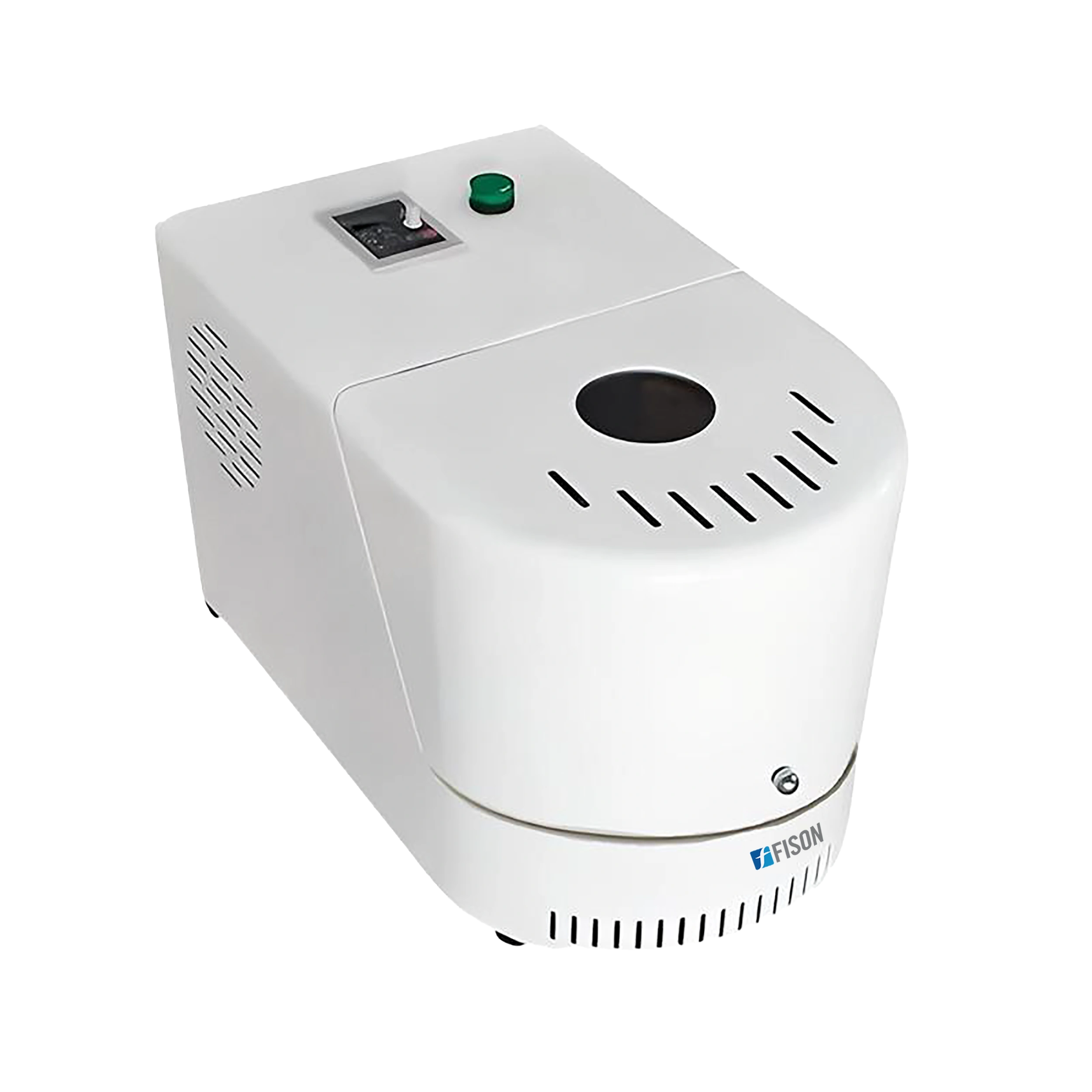

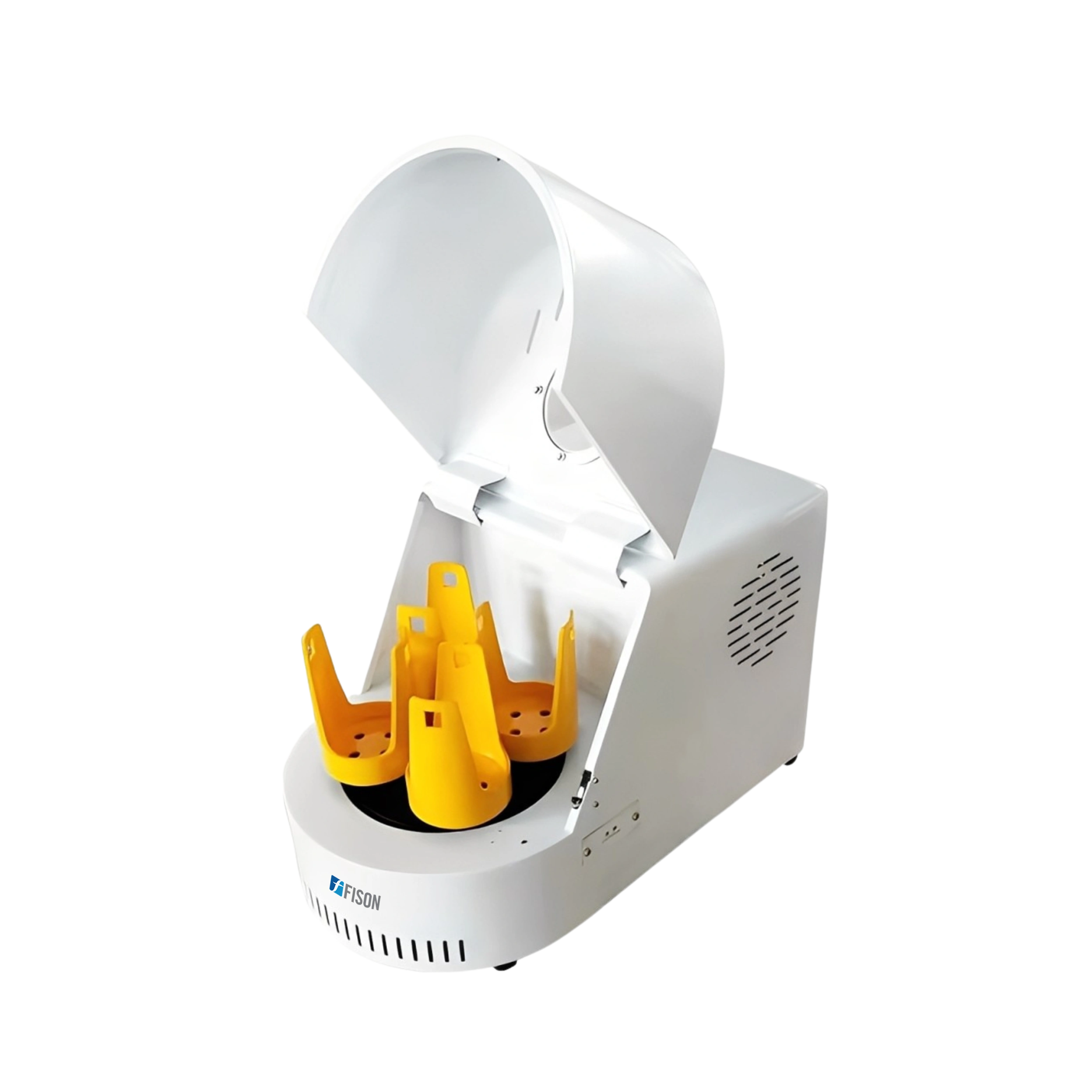

Planetary Ball Mill FM-PBM-A105
Planetary Ball Mill FM-PBM-A105 is designed with a jar rotational speed of up to 1100 rpm, ensuring powerful and efficient grinding. It offers a capacity of 0.4 L, making it ideal for small-scale grinding and milling applications. Its advanced low-noise operation system ensures a quiet and comfortable working environment. Our ball mill is equipped with 304 stainless steel jars, offering excellent durability, corrosion resistance, and strength.
Specifications
| Capacity | 0.4 L |
| Jar Rotational Speed | 1100 rpm |
| Working Principle | Impact and friction force |
| Discharging Granularity | Down to 0.1μm |
| Rotational Speed Ratio | 1: 2 |
| Drive Mode | Gear drive and belt drive |
| Power | 110/220VAC, 50Hz, 0.25KW |
| Dimension (L×W×H) | 502 × 300 × 298 mm |
| Package Dimension (L×W×H) | 570 × 370 × 370 mm |
| Weight | 26 kg |
Features
- Advanced Variable Speed Control
- Versatile Ball Mill Jars
- Gear-Driven Efficiency
- Stable and Silent
Applications
- Planetary Ball Mill FM-PBM-A105 is widely used in Nanotechnology and Materials Science, Pharmaceuticals and Biotechnology, Chemistry and Chemical Engineering, Ceramics and Metallurgy, Environmental Science, and Electronics and Battery Research.
