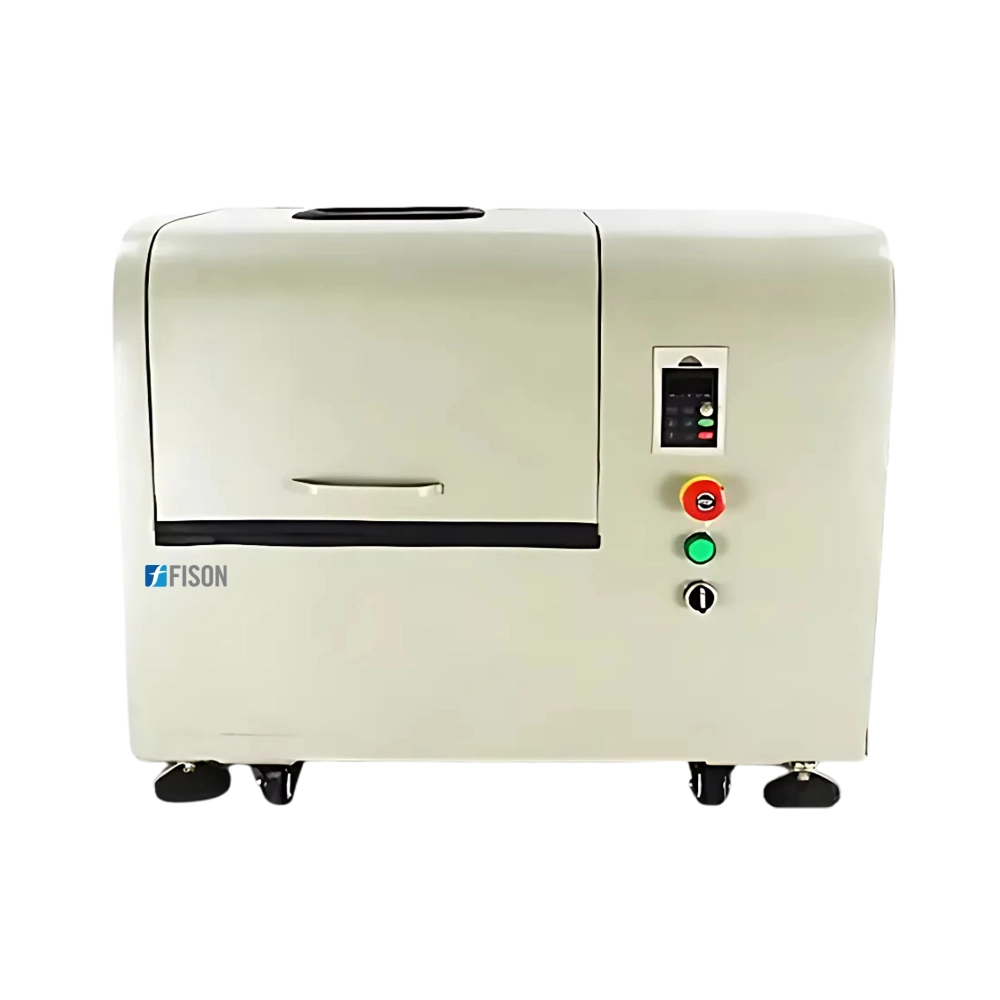

Planetary Ball Mill FM-PBM-A103
Planetary Ball Mill FM-PBM-A103 offers a 4L capacity, providing efficient grinding and mixing for the laboratory. Its jar rotates at 800 rpm, ensuring rapid and consistent particle size reduction for optimal processing. Its versatile media compatibility supports a wide range of grinding materials, making it suitable for various applications. Our ball mill offers a long service life, providing reliable and efficient operation over extended periods of intensive use.
Specifications
| Capacity | 4L |
| Jar Rotational Speed | 800 rpm |
| Working Principle | Impact and friction force |
| Discharging Granularity | Down to 0.1μm |
| Rotational Speed Ratio | 1:2 |
| Drive Mode | Gear drive and belt drive |
| Power | 110/220VAC, 50Hz, 0.75KW |
| Dimension (LWH) | 720 × 480 × 630 mm |
| Package Dimension (LWH) | 820 × 600 × 830 mm |
| Weight | 120 Kg |
Features
- Sleek & Intuitive
- Adaptive Performance
- Exceptional Uniformity
- Seamless Speed Control
- Bidirectional Grinding
Applications
- Planetary Ball Mill FM-PBM-A103 is widely used in Nanotechnology and Materials Science, Pharmaceuticals and Biotechnology, Chemistry and Chemical Engineering, Ceramics and Metallurgy, Environmental Science, and Electronics and Battery Research.
