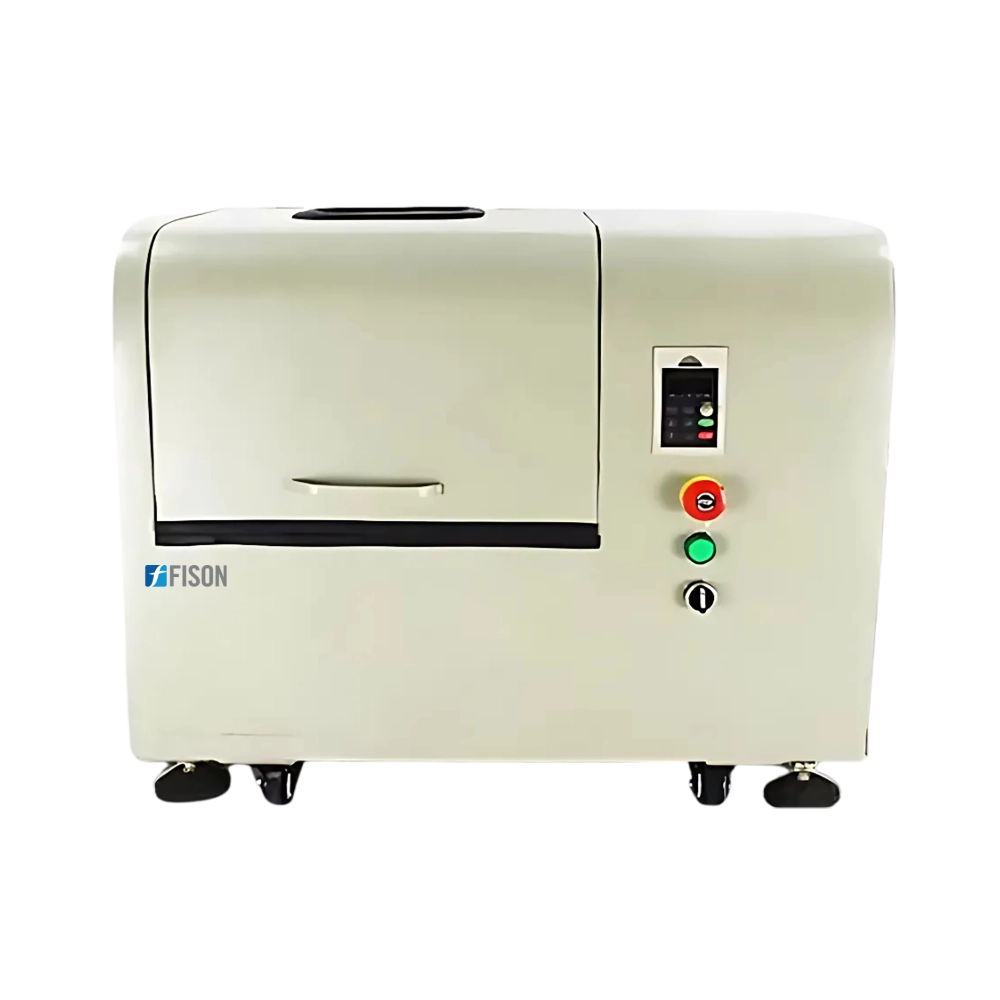

Planetary Ball Mill FM-PBM-A102
Planetary Ball Mill FM-PBM-A102 offers a 2L capacity for efficient grinding and mixing of materials in laboratory and industrial applications. It operates at a jar rotational speed of 800 rpm, ensuring uniform particle size reduction and optimal material processing. It utilizes impact and friction forces to achieve precise material size reduction. Our ball mill is perfect for both wet and dry grinding applications, providing flexibility for various material processing needs.
Specifications
| Capacity | 2L |
| Jar Rotational Speed | 800 rpm |
| Working Principle | Impact and friction force |
| Discharging Granularity | Down to 0.1μm |
| Rotational Speed Ratio | 1:2 |
| Drive Mode | Gear drive and belt drive |
| Power | 110/220VAC, 50Hz, 0.75KW |
| Dimension (LWH) | 720 × 480 × 630 mm |
| Package Dimension (LWH) | 820 × 600 × 830 mm |
| Weight | 120 Kg |
Features
- Multi-sample Capability
- Stepless Speed Adjustment
- Diverse Grinding Media
- Advanced Cooling System
Applications
- Planetary Ball Mill FM-PBM-A102 is widely used in Nanotechnology and Materials Science, Pharmaceuticals and Biotechnology, Chemistry and Chemical Engineering, Ceramics and Metallurgy, Environmental Science, and Electronics and Battery Research.
