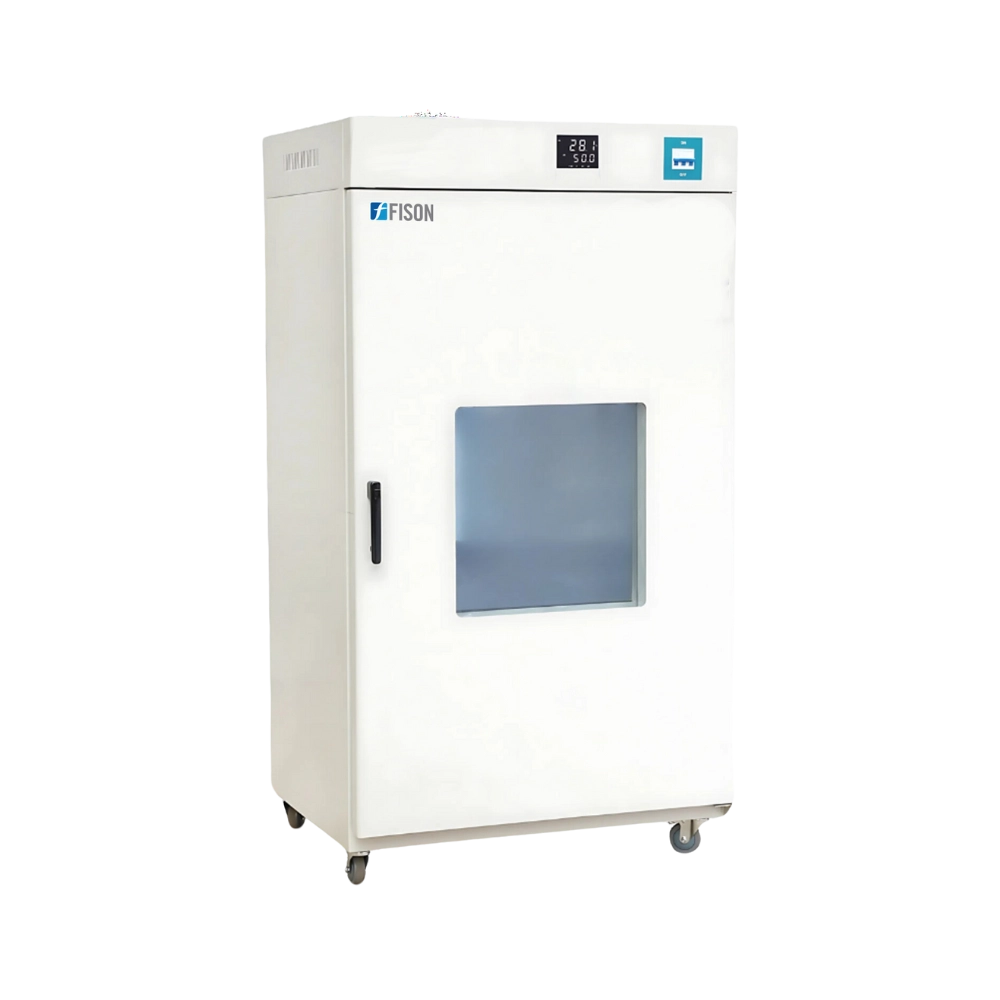

Drying Oven FM-DO-A202
Drying Oven FM-DO-A202, with a 200L capacity, is ideal for handling large batches. It is equipped with a digital microcomputer temperature controller, for precise temperature regulation. The thermal insulation system utilizes ultra-fine glass fiber and high-temperature resistant non-metallic materials at the tank connections to reduce heat conduction. Our Drying Oven features vertical forced convection, ensuring consistent and uniform temperature distribution within the chamber.
Specifications
| Capacity | 200 L |
| Temperature | RT 10 to 250°C |
| Temperature Resolution | 0.1°C |
| Temperature Fluctuation | ±0.1°C |
| Temperature Uniformity | ±2% |
| Timing Range | 1 to 9999min |
| Heating Mode | Heating tube |
| Power Consumption | 2000 W |
| Power Supply | 220V 50Hz |
| Product Dimension (W×D×H) | 720 × 770 × 930 mm |
| Packaging Dimensions (W×D×H) | 880 × 830 × 1140mm |
| Net Weight | 80 kg |
| Gross Weight | 100 kg |
Features
- Digital LED display
- Pt100 platinum resistance
- Equipped with an alarm system
- Provided with fan stop switch
- PID intelligent control instrument
Applications
- Drying Oven FM-DO-A202 is used for removing moisture and testing the temperature characteristics of products and is widely used in industries, research institutions and various testing laboratories.
Accessories
- Plate × 2pc
