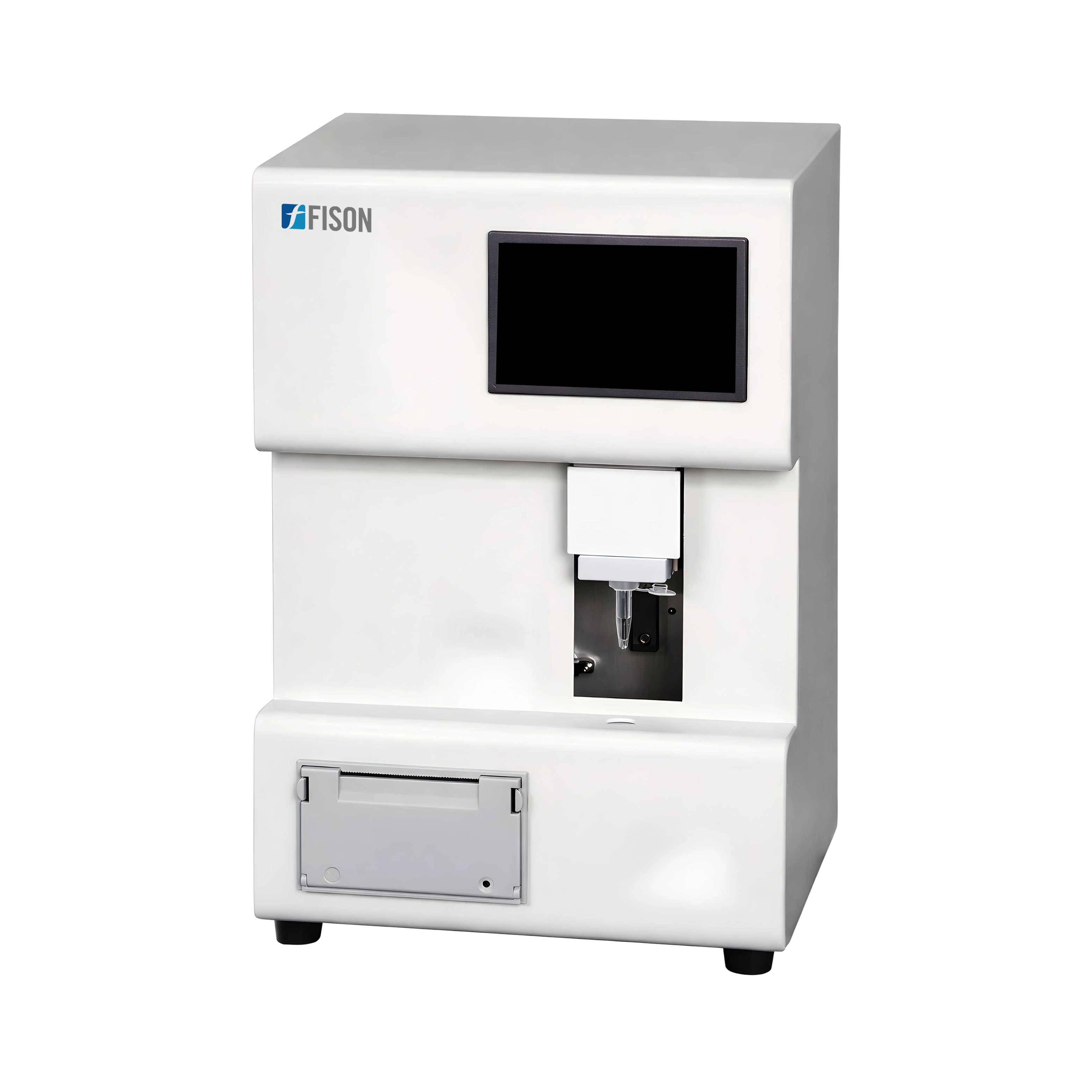

Osmometer FM-OSM-A100

Osmometer FM-OSM-A100

Osmometer FM-OSM-A100 efficiently performs chemical analysis and has measuring range of 0 to 3000 m Osmol/kg H2O. Innovative design offers color touch LCD screen for visualization and modification. Real-time data monitoring of concentration, freezing point, and osmolarity ensures accurate analysis. Equipped with a dual cooling system, our product boasts a short pre-cooling time, allowing smart detection. Smart probe movement streamlines the workflow.

  •  Small sample size requirement for versatile testing
  •  Calibration flexibility for precise measurement curves
  •  Maintenance-friendly cooling system without heat transfer fluid
  •  Built-in database of hundreds of drug names for sample data
  •  Microcomputer control for automatic data processing and storage
  •  RS232 interface for seamless connectivity and data sharing

Measuring Range 0 to 3000 m Osmol/kg H2O
Sample Quantity 50 μl (50μl to 100 μl)
Testing Time < 1.5 min
Pre-cooling Time < 3 min
Repeatability RSD ≤ ± 1% (300 m Osmol/kg)
Accuracy ±2 m Osmol /kg (≤400 m Osmol /kg)
±1% (> 400 m Osmol /kg)
Resolution 1 m Osmol /kg
Linearity < 1 % line
Ambient Temperature 10 to 30 ℃
Environment Humidity 5 to 80%
Power Supply AC 220 V ± 10%; 50 Hz
Power < 80 W
External Size (W × D × H) 250 × 250 × 370 mm

Osmometer has versatile applications across pharmaceuticals, chemistry, and biotechnology for precise chemical analysis.
