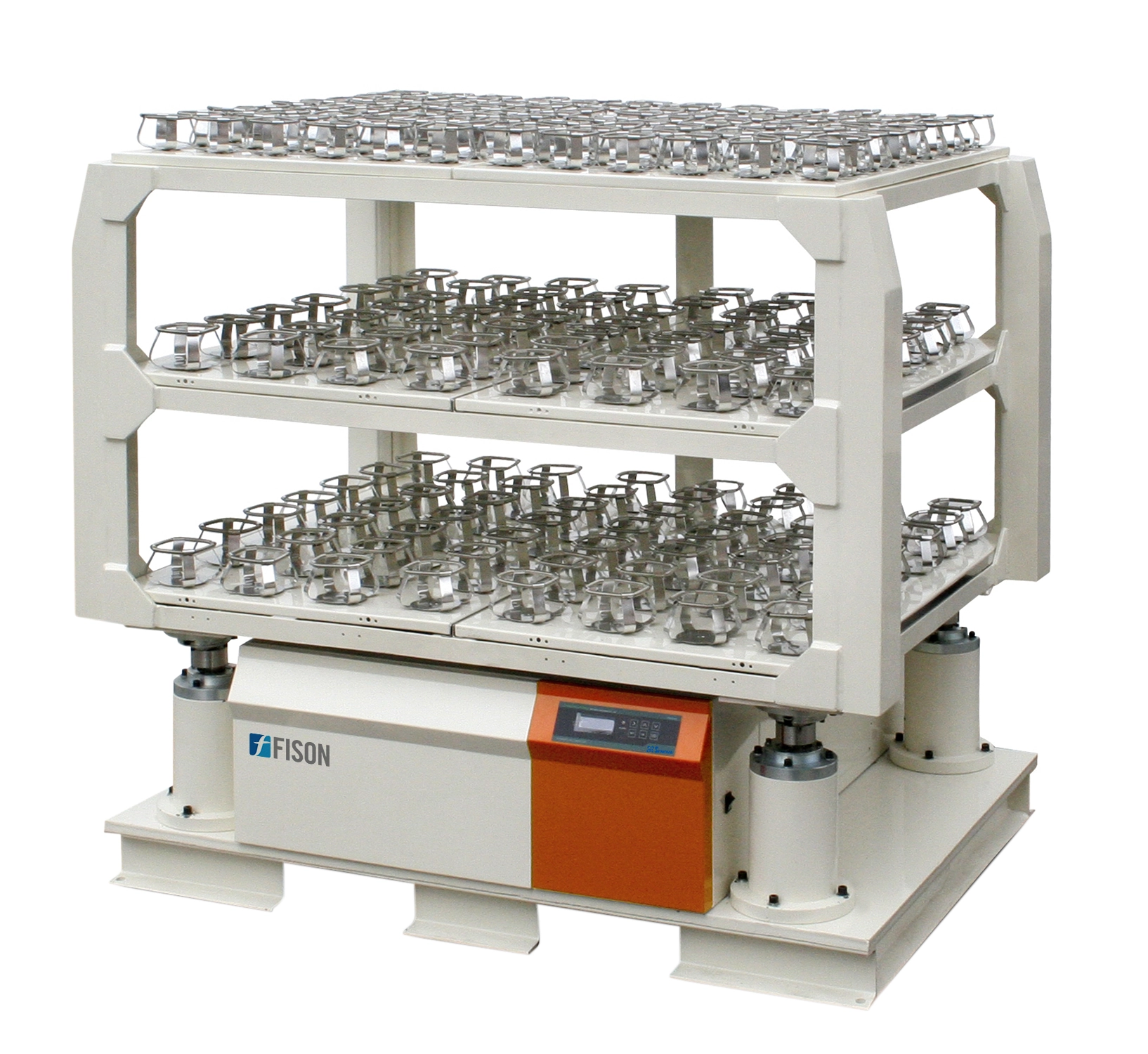

Triple Layer Orbital Floor Shaker FM-TFS-A100

Name: Triple Layer Orbital Floor Shaker FM-TFS-A100
Brand: Fison
SKU: FM-TFS-A100
Rating: 4.4 (272 reviews)

Triple Layer Orbital Floor Shaker FM-TFS-A100 is a microprocessor PID control system with LCD Display. Features orbital oscillation mode, multi-dimensional balance drive and 8 segment adjustable program controller. It comes with 1080 × 680 mm tray size, 30 to 250 rpm shaking speed and 50 mm vibration range. Designed with powder coated steel construction. The unique design of speed monitoring circuit provides long working life under repeated and continuous use. A wide range of platforms available make them ideal for use with culture flasks, bottles and other vessels.

Catalog Buy Now

✔ Microprocessor PID control system with LCD display
✔ 8 segment adjustable program settings of different speed and time
✔ Powder coated steel construction
✔ Multi-dimensional drive technology
✔ Chrome alloy and iron casting key parts
✔ Recovery function after power cut-off
✔ Over speed acoustic and visual alarm function
✔ Slow start circuit prevent sudden start and liquid splash
✔ Power cut off protection for overheating motor and over temperature
✔ Frequency control system with accuracy ± 1 rpm
✔ Large torque converter motor

Controller	PID (Environmental Scanning Microprocessor）
Shaking mode	Orbital
Shaking speed	30 to 250 rpm
Shaking accuracy	± 1 rpm
Vibration range	50 mm
Shaking plate size	1080 × 680 mm
Program control	8 segments (adjustable)
Working environment temperature	Constant room temperature (indoor)
Drive mode	Multi-dimensional drive
Convection mode	Natural convection
Display	LCD (simultaneous display of working and set parameters)
Timing range	0 to 999.59 h continuous
Shaking plate quantity	6 pcs
Chamber material	Polished stainless steel
External material	Steel with powder coating
Safety function	Audio and visual alarm for over temperature, alarm for over speed
Power	1100 W (converter motor)
Power supply	AC 200 to 240 V , 50 to 60 Hz
Dimension (W × D × H)	1590 × 1120 × 1310 mm
Net weight	850 kg

Used for cell culturing, staining/de-staining and general mixing in microbiology, chemistry, immunology, biochemistry, molecular biology, biopharmaceutical and biomedical laboratories.

Flask specification		Standard quantity	Maximum capacity
Flask clamp (PCS)	250 ml	250 × 1pier	450
	500 ml	162 × 1pier	324
	1000 ml	-	168
Note: Other sizes listed above can be offered as standard configuration to replace the size with standard quantity alternatively.
